The C3TN camera offers simple and durable camera equipment that can handle multiple security requirements at an incredibly affordable price. The C3TN is a well-engineered camera that focuses on the essential features to provide excellent video quality, extended night vision, weatherproof housing, and more. It's the perfect solution to meet your security needs without compromising performance.

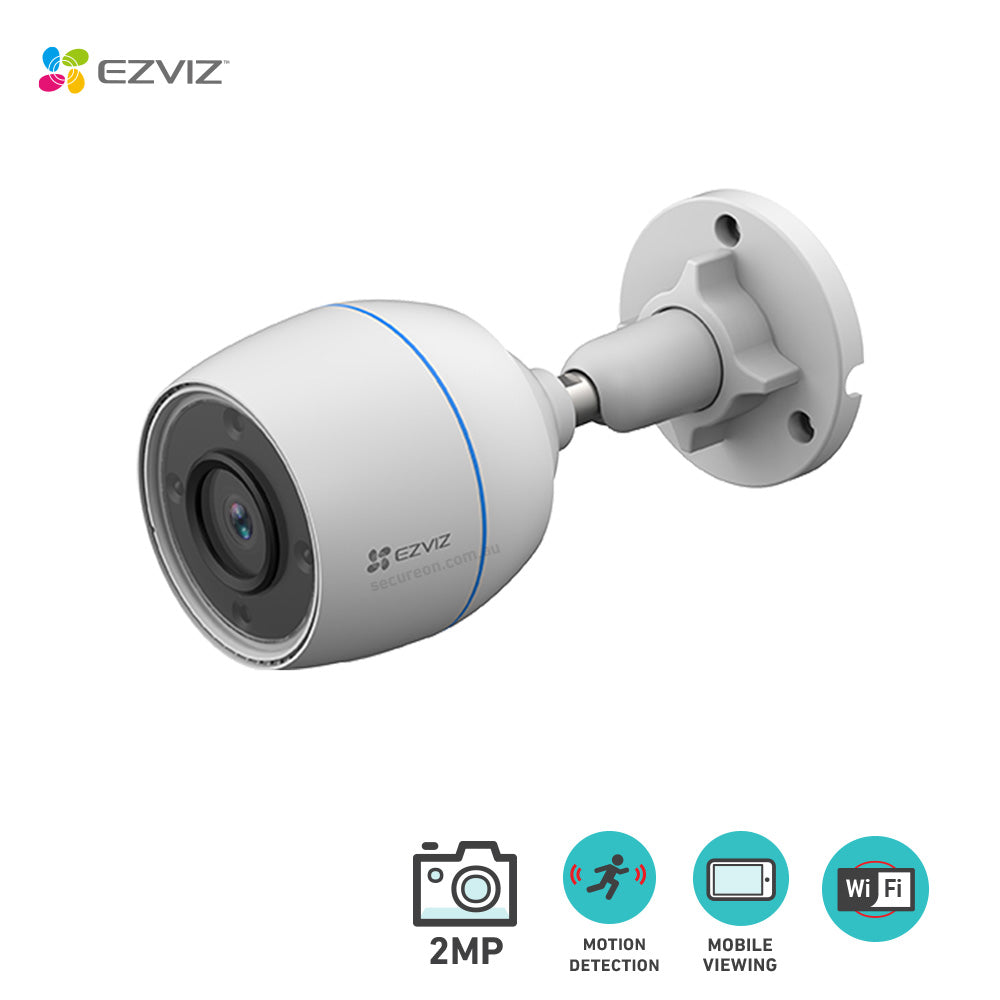

Model: CS-C3TN (1080P, 2.8mm)
Key Features
- 1080p Resolution
- Color Night Vision
- IP67 Dustand Water Protection
- Motion Detection
- IR Night Vision (Up to 30 m / 98 ft)
- Active Defense with Strobe Light
- Audio Pick-Up
- H.265 Video Technology
- Supports MicroSD Card (Up to 256 GB)
- Support EZVIZ Cloud Storage
General
- Dimensions: 72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch)
- Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
- Net Weight: Product: 256 g (9.03 oz), With package: 500 g (17.64 oz)
- IP Grade: IP67
- Operation Conditions: -4 °F to 122 °F (-20 °C to 50 °C )Humidity 95% or less (non-condensing)
Camera
- Image Sensor: 1/2.7” Progressive Scan CMOS
- Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- IR Night Vision Distance: Up to 98 ft / 30 m
- Shutter Speed: Self-adaptive shutter
- Lens: 2.8 mm @ F2.0, view angle: 106° (Horizontal), 122°(Diagonal)
- Lens Mount: M12
- DNR: 3D DNR
- WDR: Digital WDR
Video & Audio
- Max. Resolution: 2MP, 1920 × 1080
- Video Compression: H.265 / H.264
- Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate
- Frame Rate: Max: 30fps; Self-Adaptive during network transmission
- Max. Bitrate: 2 Mbps
Network
- Wi-Fi Pairing: AP pairing
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Channel Bandwidth: Supports 20MHz
- Wired Network: RJ45 × 1(10M / 100M Adaptive Ethernet Port)
- Transmission Rate: 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps
- Frequency Range: 2.4GHz ~ 2.4835 GHz
Functions
- Detection: Motion Detection
- General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image,Password
- Protection, Watermark
- Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Storage
- Local Storage: Supports microSD card (Up to 256 GB)
- Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
Power
- Power Supply: DC 12V / 1A
- Power Consumption: Max. 6W
In The Box
- In the box: - C3TN Color Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
- CE / WEEE / REACH / RoHS / UL / FCC / UKCA
