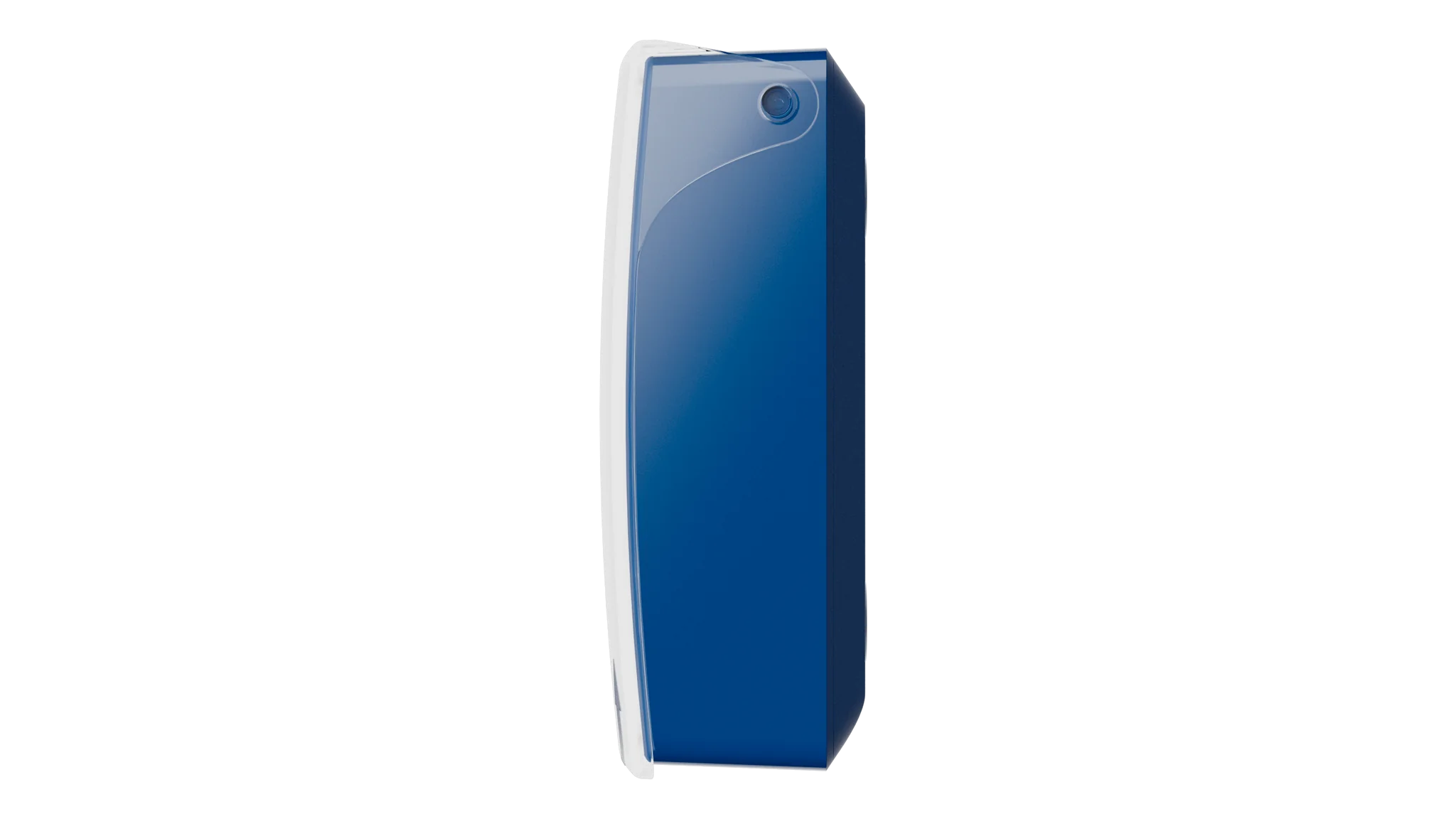

AJAX ManualCallPoint Jeweller Blue AJAX#84237

The AJAX ManualCallPoint (Blue) Jeweller (model AJAX#84237) is a wireless, resettable emergency button designed for indoor use within the AJAX security ecosystem. It enables rapid activation of programmable automation scenarios or alarms, making it suitable for environments like offices, schools, and industrial facilities.

Quick Specs

AJAX Wireless Resettable Button Featuring Programmable Scenarios. Blue-Colored Version. Manual Call Point (Blue) Jeweller AJAX#84237

Key Features

• Programmable Scenarios: Supports various operating modes, including Scenario Trigger, Fire Alarm, Panic Button, and Gas Leak Alarm. Pressing the button can initiate actions such as unlocking doors, activating emergency lighting, or de-energizing equipment.

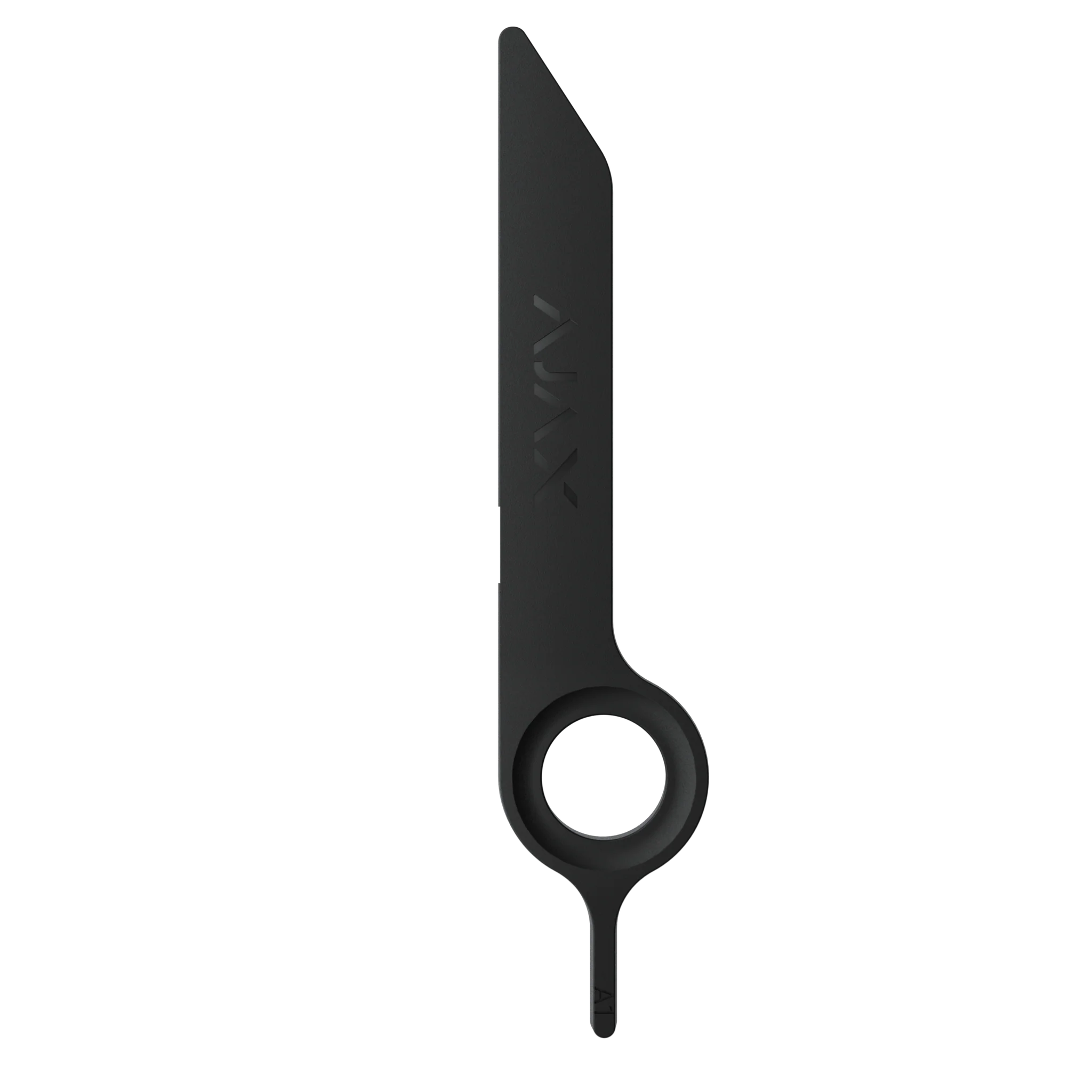

• Resettable Mechanism: Features a frangible element that, when pressed, triggers the alarm. The button is reset using a special key included in the kit.

• Wireless Communication: Utilizes AJAX's Jeweller radio protocol, offering up to 1,700 meters of communication range in open space. The protocol ensures secure, two-way communication with encryption and frequency hopping.

• Tamper Protection: Equipped with a tamper button that triggers an alert if the device is removed from its mounting surface.

• Battery Life: Powered by two pre-installed CR123A batteries, providing up to 7 years of operation under typical usage conditions.

• Visual Indicators: Includes LED indicators that light up when the button is activated or if a malfunction is detected.

Technical Specifications

• Dimensions: 102 × 104 × 39 mm

• Weight: 214 grams

• Operating Temperature: 0°C to +50°C

• Operating Humidity: Up to 80%

• Installation: Indoor use only

• Color: Blue

How It Works

In an emergency, ManualCallPoint Jeweller enables users to activate an alarm and run pre-programmed automation scenarios with a simple press. The button not only triggers alarms and security sirens but also can open electric locks, cut power to devices, and activate ventilation. Addressability ensures accurate tracking of button activations, specifying the time and room. Notifications are promptly sent to system users and CMS. Designed for emergencies, ManualCallPoint Jeweller prioritizes reliability. The button can be reset only using a special tool (key) included in the kit.

Downloads

• Technical specifications
• User manual
• Demo & Tips for engineers and PRO users
• Technical data sheet
