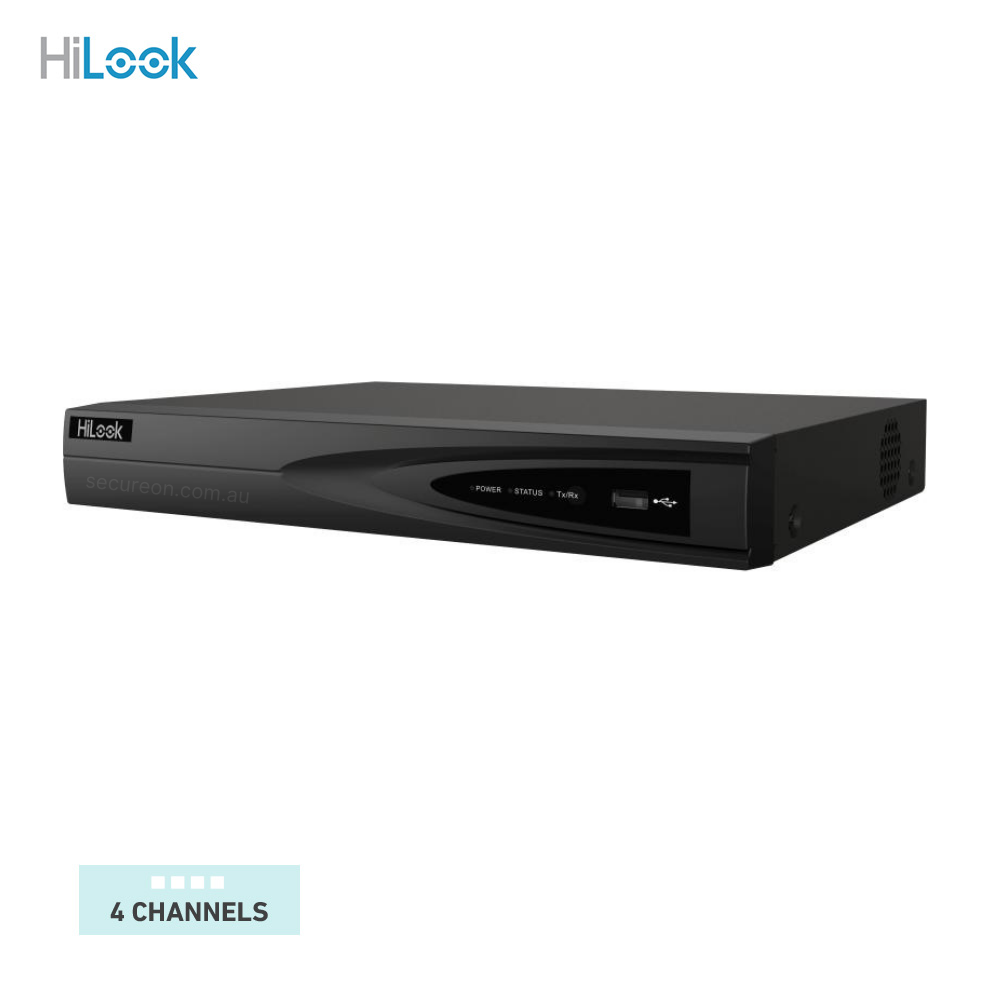

Hilook Pro Series 4CH NVR Video Recorder NVR-104MH-K/4P(B)

Intelligent Analytics

• AI by Device Facial recognition, perimeter protection, motion detection 2.0
• AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA

Facial Recognition

• Face Picture Comparison 4-ch
• Facial Detection and Analytics Face picture comparison, human face capture, face picture search
• Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance 1-ch, 8 MP

Motion Detection 2.0

• By Camera All channels

Perimeter Protection

• By Device 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By Camera All channels

Video and Audio

• IP Video Input 4-ch
• Incoming Bandwidth 40 Mbps
• Outgoing Bandwidth 80 Mbps
• HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode HDMI1/VGA simultaneous output
• CVBS Output N/A
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format H.265/H.265+/H.264+/H.264
• Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback 4-ch

Decoding Capability

AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)

Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps)

Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)

• Stream Type Video, Video & Audio
• Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection 128
• API ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power ≤ 50 W
• Standard IEEE 802.3af/at

Auxiliary Interface

• SATA 1 SATA interface
• Capacity Up to 16 TB capacity for each HDD
• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

General

• GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply 48 VDC, 1.35 A
• Consumption ≤ 10 W (without HDD and PoE off)
• Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity 10% to 90%
• Dimension (W × D × H) 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
• ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained Certification CE KC WEEE REACH ROHS BIS CB RCM IC LOA UKCA
