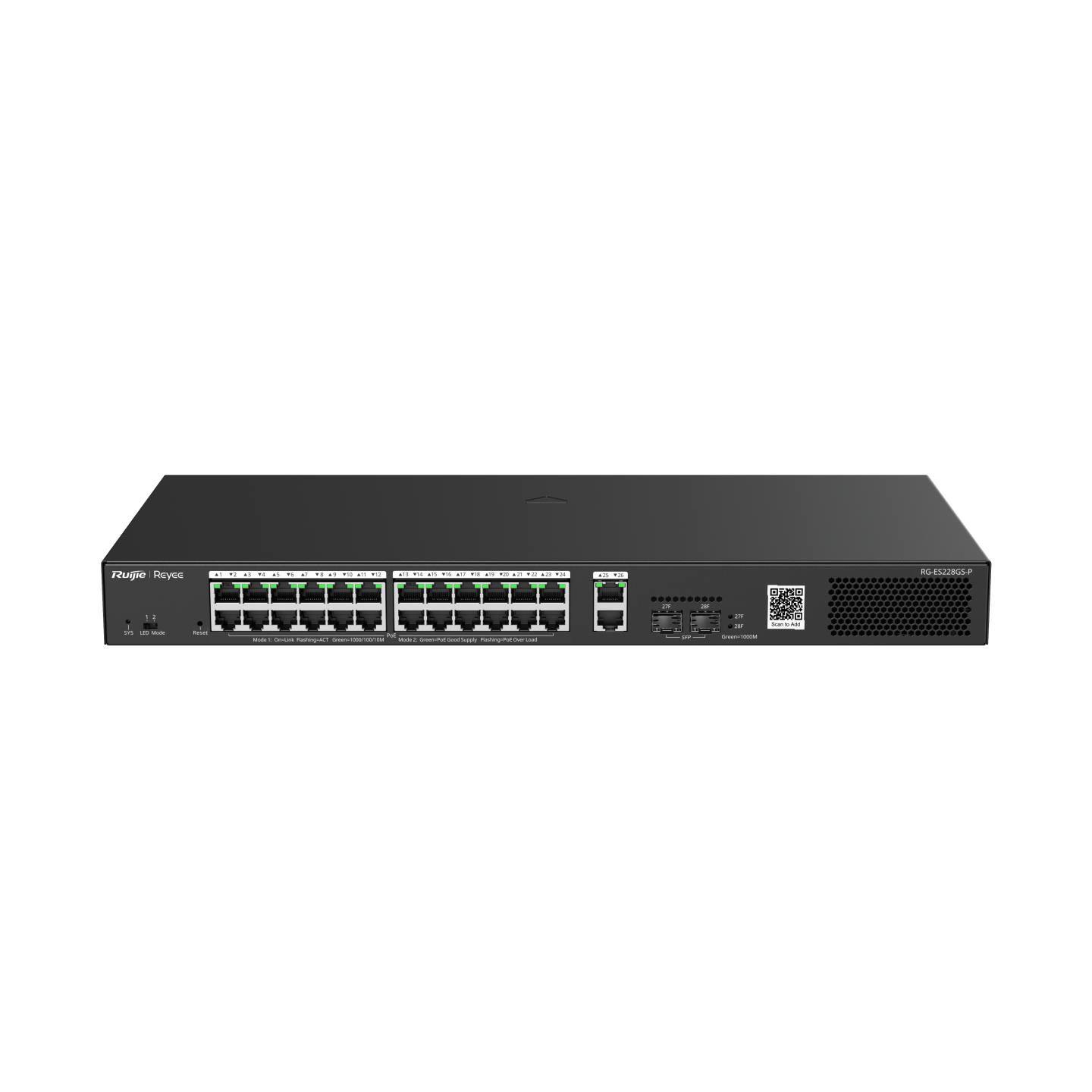

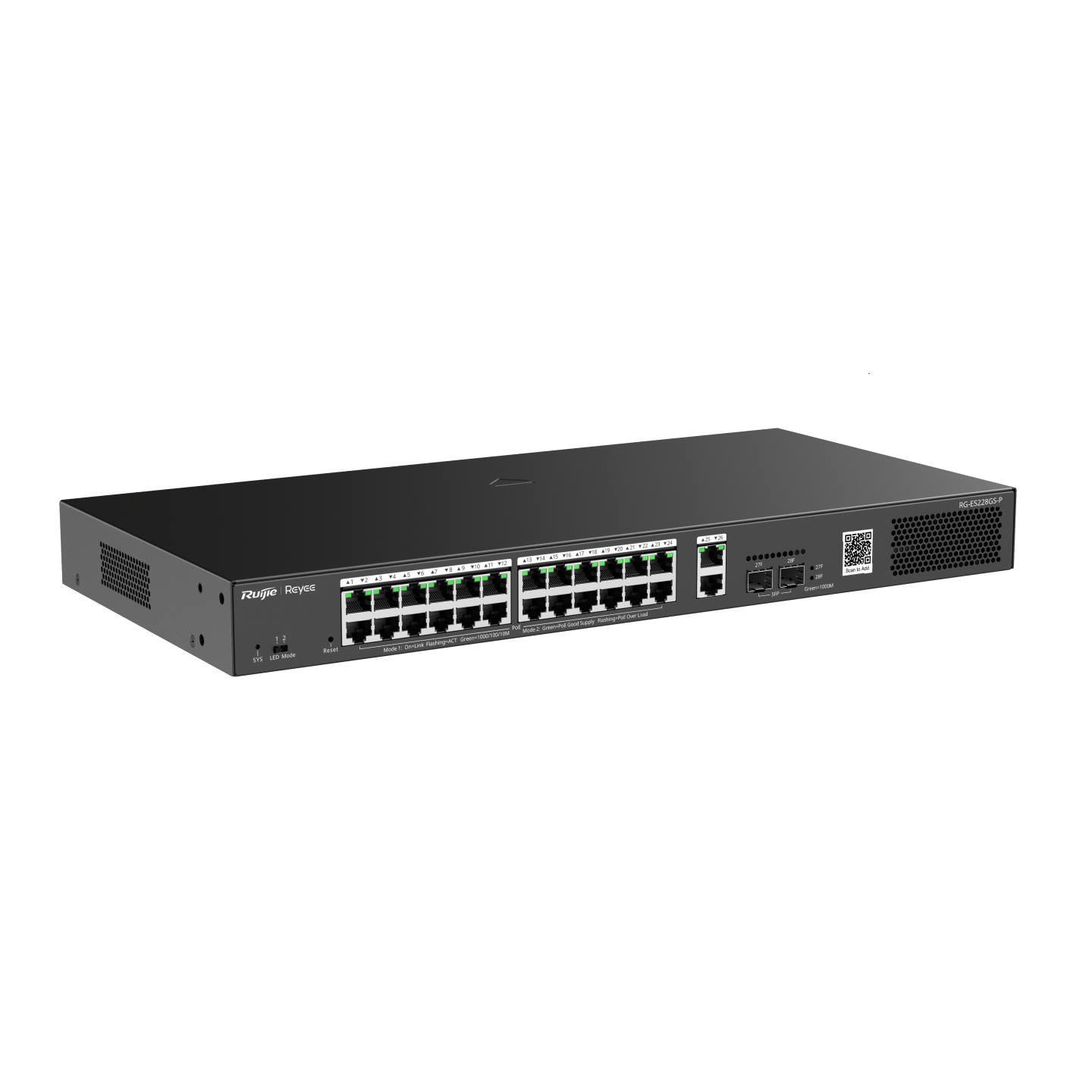

Ruijie 28-Port Gigabit Smart Cloud Managed PoE Switch RG-ES228GS-P

The Ruijie RG-ES228GS-P is a 28-port Gigabit smart cloud-managed PoE+ switch designed for businesses, surveillance systems, and high-density network environments. It offers cloud-based management via the Ruijie Cloud platform, enabling zero-touch provisioning, remote monitoring, and configuration. With features like automatic loop prevention and IP camera recognition, the RG-ES228GS-P ensures reliable and efficient network performance. Its intelligent fan control ensures quiet operation, making it suitable for noise-sensitive settings.

Quick Specs

28-Port Gigabit Smart Poe Switch, 24 Poe/Poe+ Gigabit Rj45 Ports With 2 Gigabit Rj45/2 Sfp Uplink Ports,370W Poe Power Budget, Desktop Steel Case

Key Features

• 28 Gigabit Ports: 24 PoE+ (IEEE 802.3af/at) ports, 2 RJ45 uplink ports, and 2 SFP fiber uplink ports

• High PoE Power Budget: 370W total, suitable for powering multiple devices like IP cameras and access points

• Cloud-Based Management: Manage via Ruijie Cloud app for remote configuration and monitoring

• Advanced Network Features: IP camera recognition, automatic loop prevention, and VLAN support (up to 16 VLANs)

• Performance: 56 Gbps switching capacity, 41.66 Mpps forwarding rate, and 8000 MAC address entries

• Hardware Design: Built-in fan activates above 25°C for silent operation; dimensions: 440 mm × 214.9 mm × 44 mm; weight: 4 kg

• Reliability: MTBF > 200,000 hours; 4 kV port surge protection

Downloads

• View Datasheet
