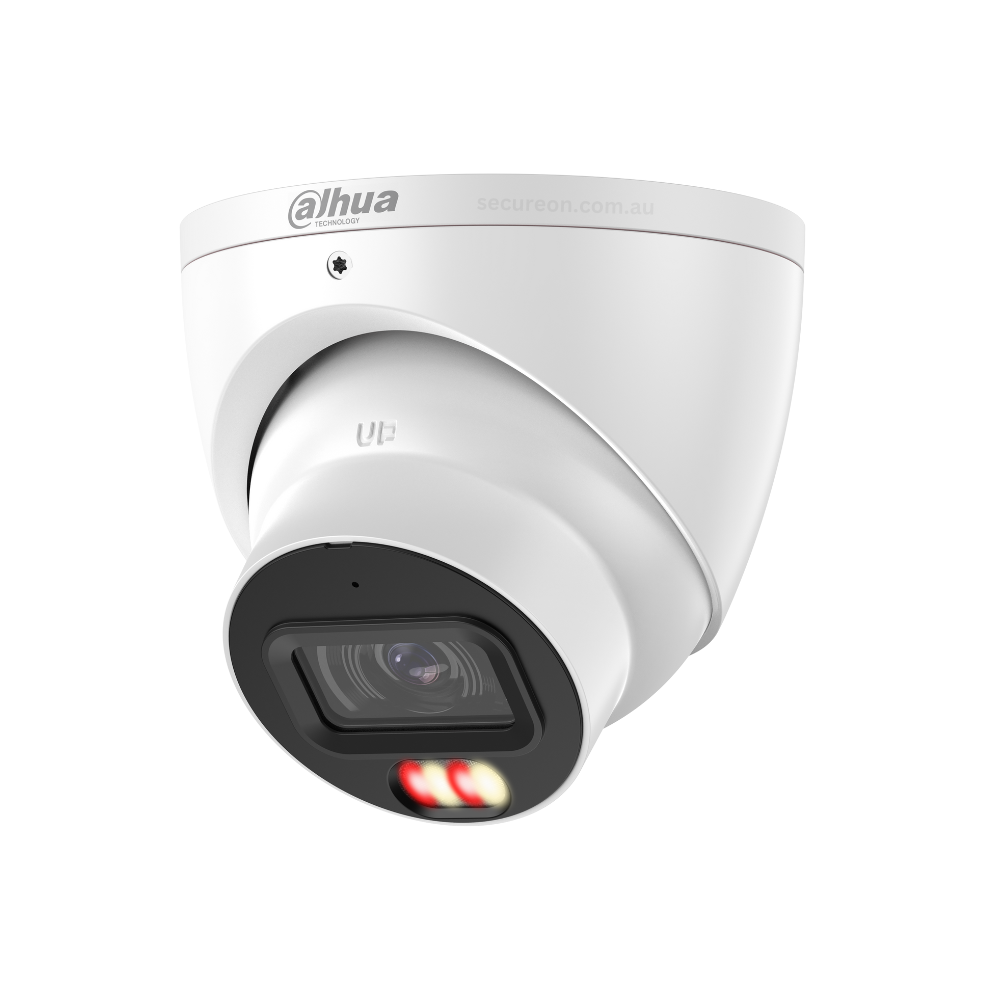

Dahua 6MP Smart Dual Light Fixed-focal Turret WizSense AcuPick Security Camera White DH-IPC-HDW3667EM-S-IL-ANZ

Dahua 6MP Smart Dual Light Fixed-focal Turret WizSense AcuPick Security Camera White DH-IPC-HDW3667EM-S-IL-ANZ

$214
$247
$214
SKU: DH-IPC-HDW3667EM-S-IL-ANZ
Tags: / / / / / / / / / / / /
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
10 customers are viewing this product
Please hurry! Only 100 left in stock
  • Secure On Australia

Typically shipped within 1 - 3 business days

Free standard shipping on orders over $200

Back-to-base Australian warranty

Free tech support

14-day return policy

Dahua 6MP Smart Dual Light Fixed-focal Turret WizSense AcuPick Security Camera White DH-IPC-HDW3667EM-S-IL-ANZ

Dahua

Dahua 6MP Smart Dual Light Fixed-focal Turret WizSense AcuPick Security Camera White DH-IPC-HDW3667EM-S-IL-ANZ

$247 $214
Dahua 6MP Smart Dual Light Fixed-focal Turret WizSense AcuPick Security Camera White DH-IPC-HDW3667EM-S-IL-ANZ

Dahua

Dahua 6MP Smart Dual Light Fixed-focal Turret WizSense AcuPick Security Camera White DH-IPC-HDW3667EM-S-IL-ANZ

$247 $214
Product Details

Key Features

  • 6 MP 1/2.7" CMOS image sensor, low luminance, and high-definition image capture
  • Outputs up to 8 MP (3840 × 2160) at 25/30 fps
  • H.265 codec for high compression rate and ultra-low bit rate
  • Built-in multi-core light, with a maximum IR distance of 30 m and a maximum warm light distance of 30 m
  • ROI, SMART H.264+/H.265+, and AI H.264/H.265 encoding for flexible adaptation to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring scenarios
  • Intelligent monitoring: Intrusion and tripwire detection (both functions support target classification and accurate detection of vehicles and humans)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Supports up to 512 GB Micro SD card; built-in microphone
  • 12 VDC/PoE power supply
  • IP67 protection rating
  • SMD 4.0 support
  • AI SSA support
  • SMD area can be configured within warm light areas to support alarm triggering
  • Smart H.265+ & Smart H.264+

Key Functions

SMD 4.0

Dahua Smart Motion Detection (SMD) 4.0 technology uses intelligent algorithms to classify objects that trigger motion detection alerts. This technology effectively filters out non-target objects, such as small and large animals, significantly reducing false alarms. When used with an AI NVR, the Quick Pick feature allows for rapid searching and retrieval of video footage featuring human and vehicle targets, prioritising the most relevant matches.

Smart Dual Light

Dahua Smart Dual Light technology employs intelligent algorithms to detect targets. Typically, the IR illuminator is active at night. However, when a target enters the monitoring area, the white light turns on, enabling the camera to record full-color video and capture detailed information about key events. This process links snapshots and video with full-color imaging. Once the target leaves the monitoring area, the white light turns off, and the IR illuminator reactivates, effectively minimizing light pollution.

Dahua's smart encoding technology, leveraging an advanced scene-adaptive rate control algorithm, achieves higher encoding efficiency than standard H.265 and H.264. This technology delivers high-quality video while reducing storage and transmission costs.

Downloads

Specs

Camera

Image Sensor



1/2.7" CMOS

Max. Resolution



3840 (H) × 2160 (V)

ROM



256 MB

RAM



1 GB

Scanning System



Progressive

Electronic Shutter Speed



Auto/Manual 1/3 s–1/100,000 s

Min. Illumination



0.007 lux@F1.4 (Color, 30 IRE)

0.0007 lux@F1.4 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio



>56 dB

Illumination Distance



Up to 30 m (98.43 ft) (IR)

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control



Auto;Manual

Illuminator Number



2 (Multi-core (IR + warm) light)

Angle Adjustment



Pan: 0°–360°

Tilt: 0°–80°

Rotation: 0°–360°

Lens

Lens Type



Fixed-focal

Lens Mount



M12

Focal Length



2.8 mm; 3.6 mm

Max. Aperture



F1.4

Field of View



2.8 mm: H: 110°; V: 58°; D: 132°

3.6 mm: H: 86°; V: 49°; D: 100°

Iris Control



Fixed

Close Focus Distance



2.8 mm: 1.4 m (4.59 ft)

3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

84.8 m

( 278.22 ft)

33.9 m

( 111.22 ft)

17.0 m

( 55.77 ft)

8.5 m



( 27.89 ft)

3.6 mm

98.7 m

( 323.82 ft)

39.5 m

( 129.59 ft)

19.7 m

( 64.63 ft)

9.9 m



( 32.48 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)



Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD



SMD 4.0

AcuPick



Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA



Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search



Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression



H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

AI Coding



AI H.265; AI H.264

Video Frame Rate



Main stream: 3840 × 2160@(1–25/30 fps)

Sub stream: 1920 × 1080@(1–25/30 fps)

Third stream: 1920 × 1080@(1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability



3 streams

Resolution



8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control



VBR;CBR;ABR

Video Bit Rate



H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Day/Night



Auto(ICR)/Color/B/W

BLC



Yes

HLC



Yes

WDR



120 dB

Scene Self-adaptation (SSA)



Yes

White Balance



Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control



Auto/Manual

Noise Reduction



3D NR

Motion Detection



OFF/ON (4 areas, rectangular)

Region of Interest (RoI)



Yes (4 areas)

Smart Illumination



Yes

Smart Dual Light



Yes

Defog



Yes

Image Rotation



0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror



Yes

Privacy Masking



8 areas

LDC



Yes

Audio

Built-in MIC



Yes, built-in Mic

Audio Compression



PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event



No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection SMD; security exception

Network

Network Port



RJ-45 (10/100 Base-T)

SDK and API



Yes

Network Protocol



IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability



ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host



20 (Total bandwidth: 64 M)

Storage



FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser



IE: IE11;

Chrome;

Firefox

Management Software



Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client



iOS;Android

Cyber Security



Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications



CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply



12 VDC/PoE (802.3af)

Dual Power Backup



When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption



Basic: 3.7 W (12 VDC); 5.3 W (PoE);

Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)

Environment

Operating Temperature



–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity



≤95% (RH), non-condensing

Storage Temperature



–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity



≤95% (RH), non-condensing

Protection



IP67

Structure

Casing Material



Metal

Product Dimensions



105.5 mm × Φ122.0 mm (4.16" × Φ4.80")

Net Weight



0.53 kg (1.17 lb)

Gross Weight



0.71 kg (1.57 lb)
