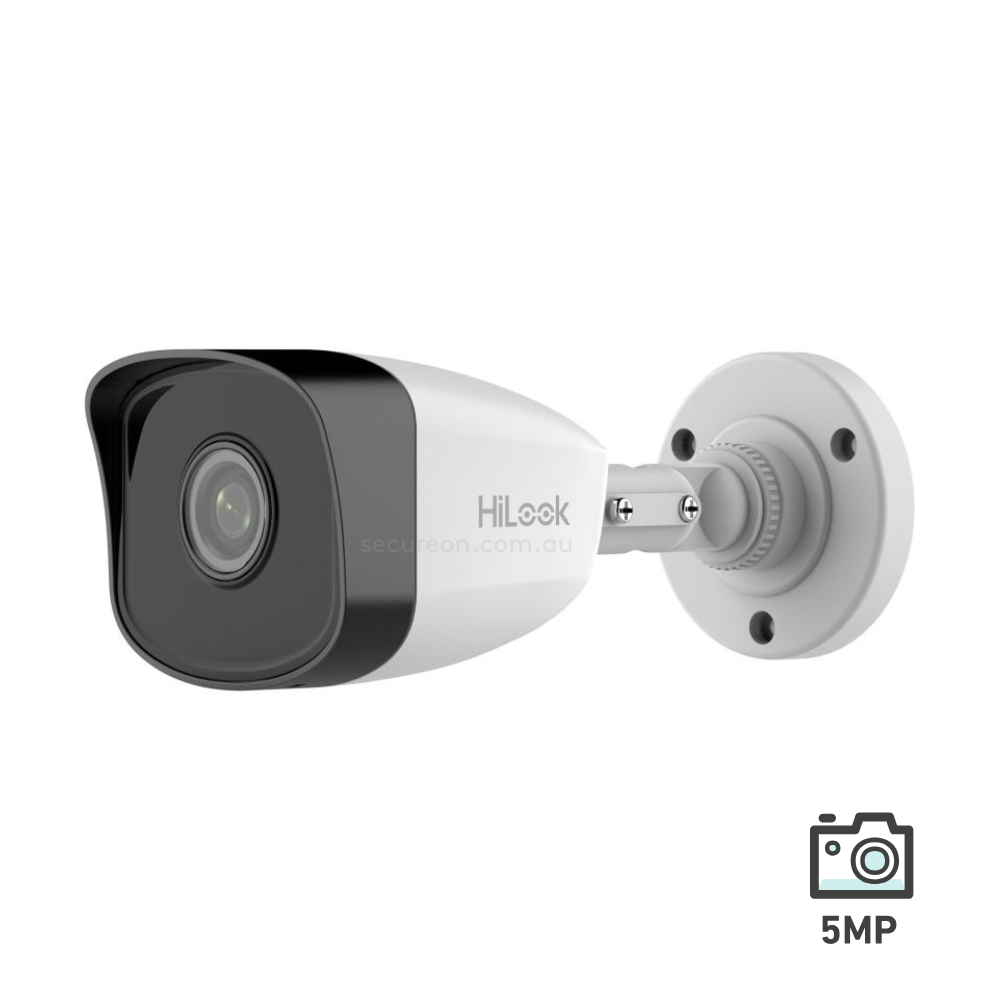

HiLook 5MP 2.8mm Fixed Bullet Network Camera IPC-B150H

Key Features

• High quality imaging with 5 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Easy installation with Power over Ethernet (PoE) technology

Downloads

View Datasheet

Specifications

Camera

• Image Sensor1/2.7" progressive scan CMOS
• Max. Resolution2560 × 1920
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°

  4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°

• Lens MountM12
• Iris TypeFixed
• ApertureF2.0

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 20 fps (2560 × 1920)

  25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1920)

  30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain profile
• Region of Interest (ROI)1 fixed region for main stream

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/Host

  Up to 32 users. 3 levels: administrator, operator and user

  3 user levels: administrator, operator, and user

• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, Schedule, Day, Night
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event Motion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5. mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension186.3 mm × 71.4 mm × 66.7 mm (7.3" × 2.8" × 2.6")
• Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Approx. 270 g (0.6 lb.)
• With Package WeightApprox. 481 g (1.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC

  FCC SDoC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;

  RCM: AS/NZS CISPR 32: 2015;

  IC VoC: ICES-003: Issue 7;

  KC: KN 32: 2015, KN 35: 2015

• Safety

  UL: UL 62368-1;

  CB: IEC 62368-1:2014+A11;

  CE-LVD: EN 62368-1:2014/A11:2017;

  BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU;

  WEEE: 2012/19/EU;

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
