IThe C3X brings color video to life even in the darkness, without the need for extra lighting. It's like watching a movie unfold right before your eyes. With advanced AI algorithms seamlessly integrated, your security system becomes smarter and more efficient than ever. Stay one step ahead with accurate alerts that promptly notify you when people or vehicles enter your customized zones.
The C3X's intelligent features include an embedded AI deep learning algorithm, precise human/vehicle shape detection, an active defense system featuring a powerful siren and attention-grabbing strobe light, IP67 dust and water protection for durability, and even customizable voice alerts to keep you informed.
Key Features

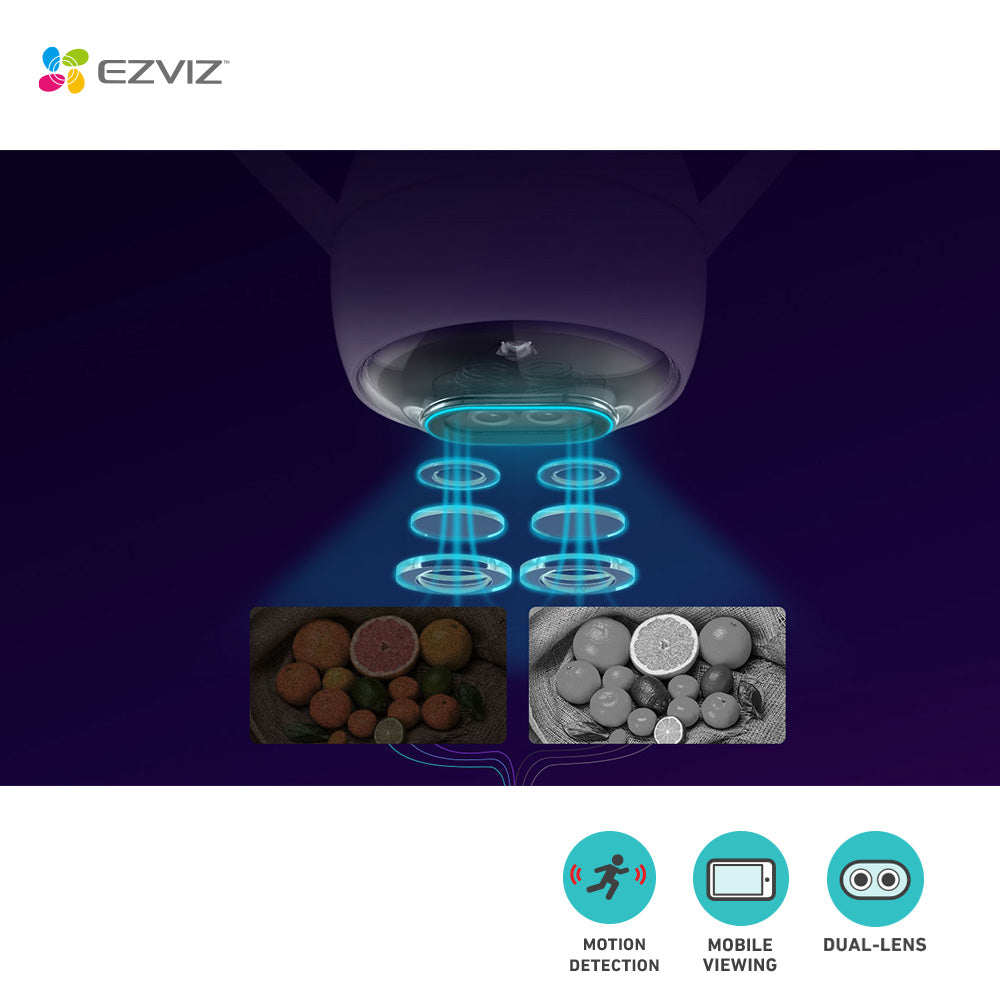

- Intelligent Dual-Lens
- Color Night Vision
- Embedded AI Deep Learning Algorithm
- Human/Vehicle Shape Detection
- Active Defense with Siren and Strobe Light

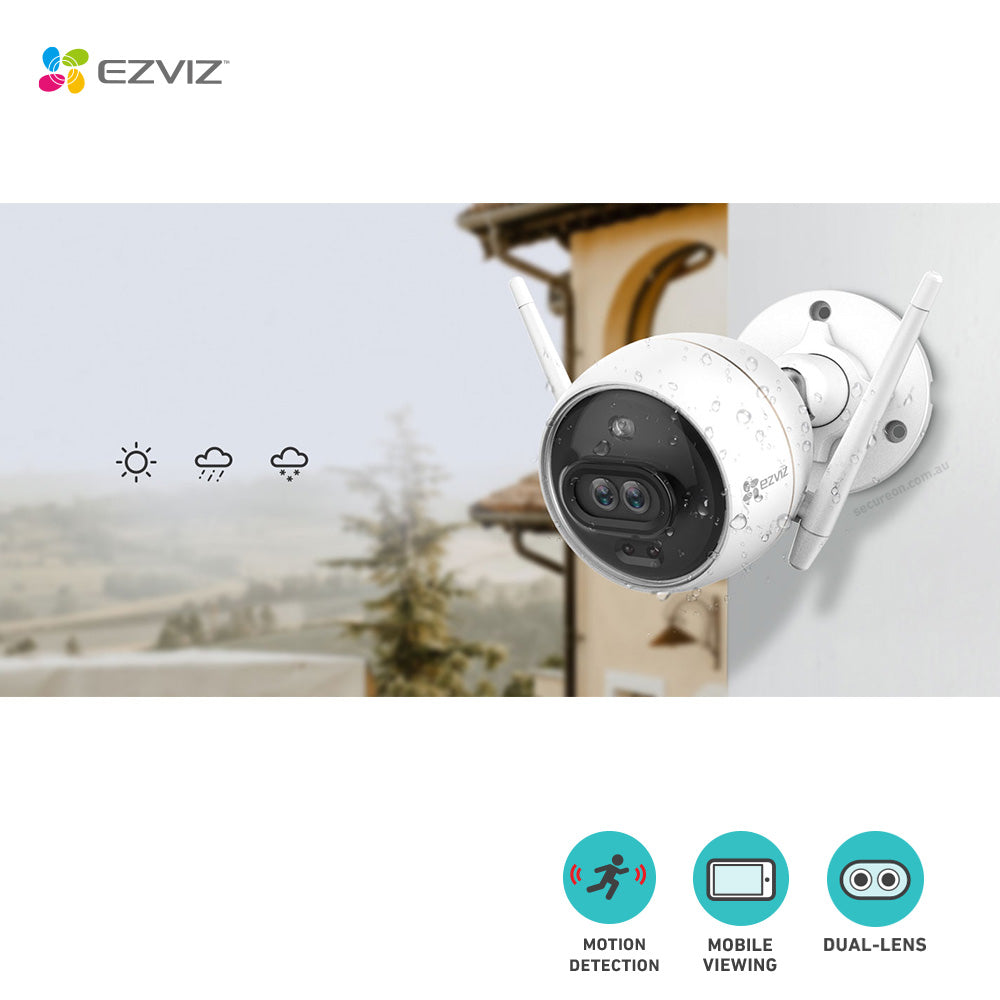

- IP67 Dust and Water Protection
- Customizable Voice Alerts
Model
CS-CV310-C0-6B22WFR (EU)
CS-CV310-C1-6B22WFR (Americas)
CS-CV310-C3-6B22WFR (APAC)
Camera
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens:
2.8 mm @ F1.6, view angle: 105° (Horizontal), 120° (Diagonal)
4 mm @ F1.6, view angle: 89° (Horizontal), 106° (Diagonal)
- Min. Illumination: color night vision, 0.005 lux
- Lens Mount: M8
- DNR: 3D DNR
- WDR: Digital WDR
Compression
- Video Compression: H.264 / H.265
- Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate.
- Max. Resolution: 1920 × 1080
- Frame Rate: 50Hz: 25fps; Self-Adaptive during network transmission
- BLC: Supports
Interface
- Storage: MicroSD card slot (Max. 256 GB)
- Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Network
- Smart Alarm: Motion detection, human shape detection, vehicle shape detection
- Setup Motion Detection Area: Supports
- Wi-Fi Pairing: AP paring
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
Wi-Fi
- Standard: IEEE802.11b/g/n
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: Supports 20 MHz
- Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
- Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps
General
- Power Supply: DC 12V±10%
- Power Consumption: Max. 12W
- IR Range: Max. 30 meters (98.43 feet)
- IP Grade: IP67

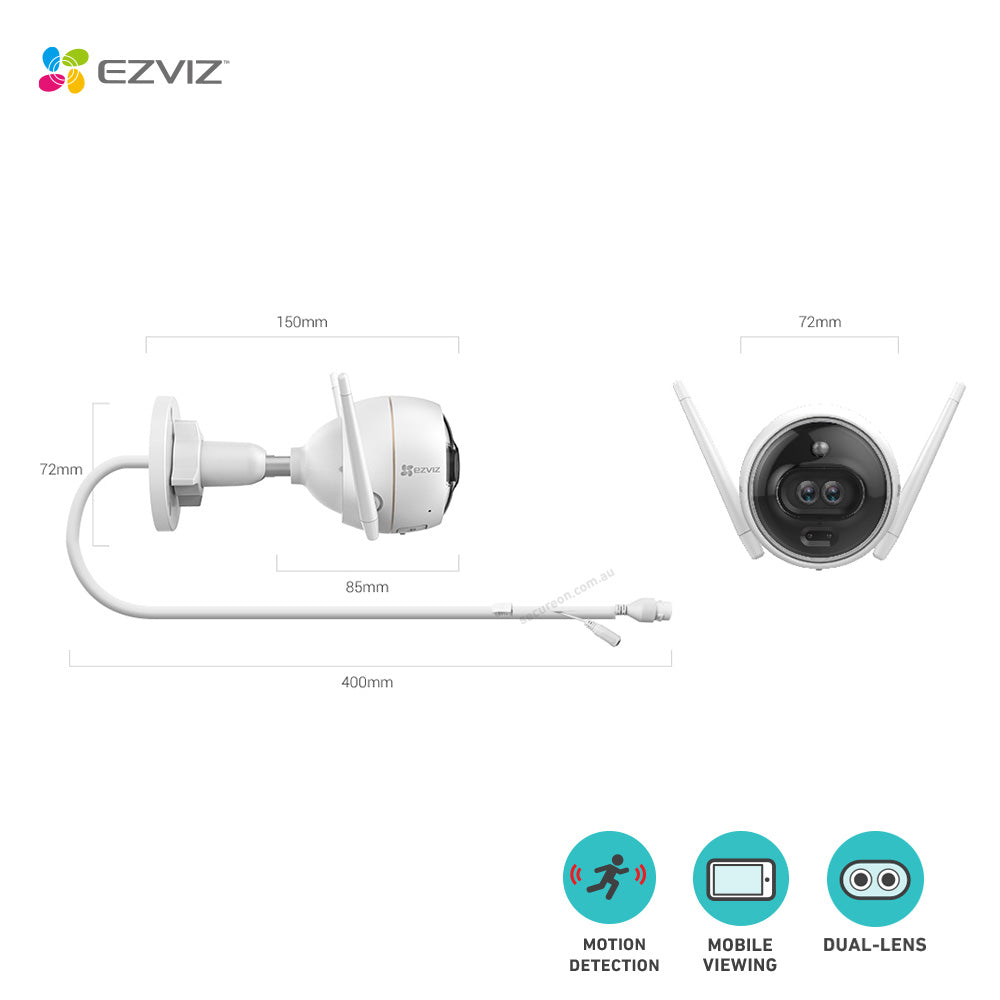

- Dimensions: 72 x 72 x 150 mm (2.83 x 2.83 x 5.9 inch)
- Packaging Dimensions: 253.5 x 111.5 x 93.5 mm (9.98 x 4.39 x 3.68 inch)
- Weight: 425g (0.94 lb)
Package contents
- Package Contents: C3X Camera; Drill Template; Screw Kit; Waterproof Kit; Power
- Adapter 1.5 m (4.9 ft.); Quick Start Guide
- Operating Environment
- Temperature: -30°C to 60°C (-22°F to 140°F )
- Humidity: 95% or less (non-condensing)
Certifications
- UL / FCC / CE / WEEE / REACH / RoHS
