14

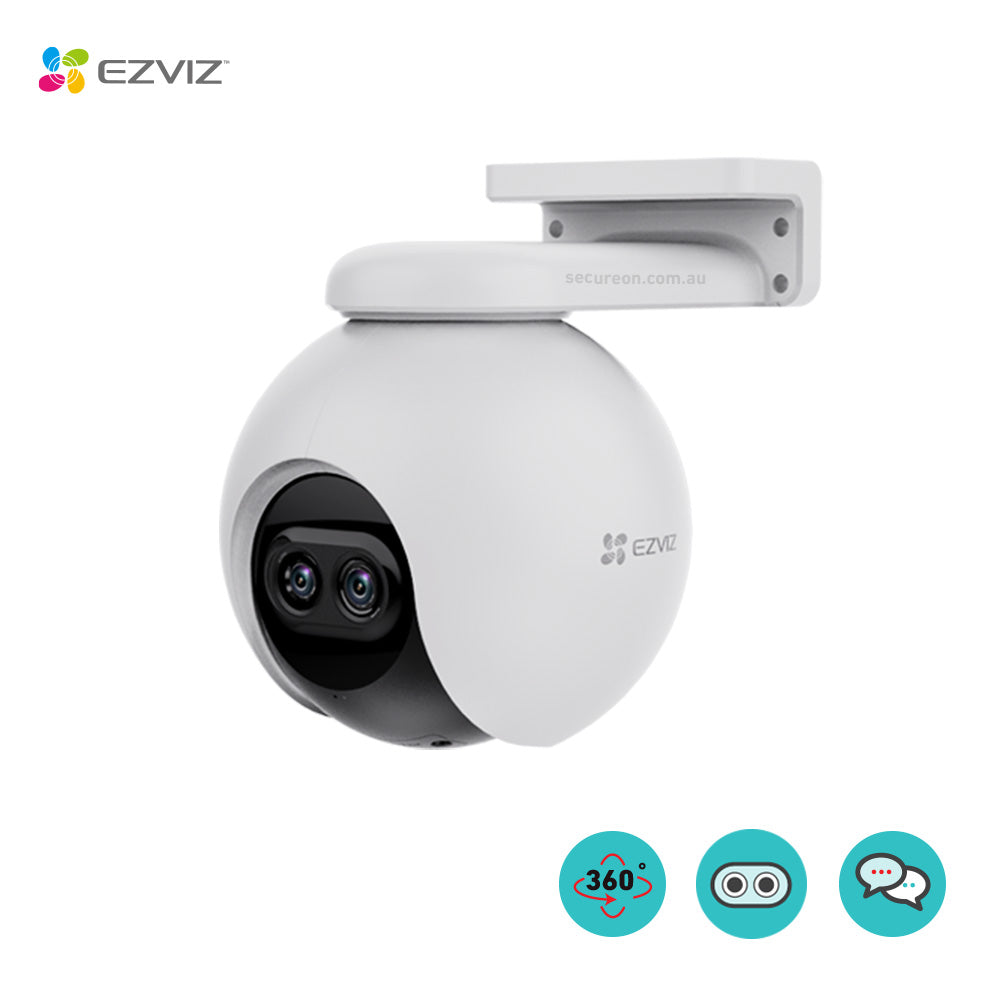

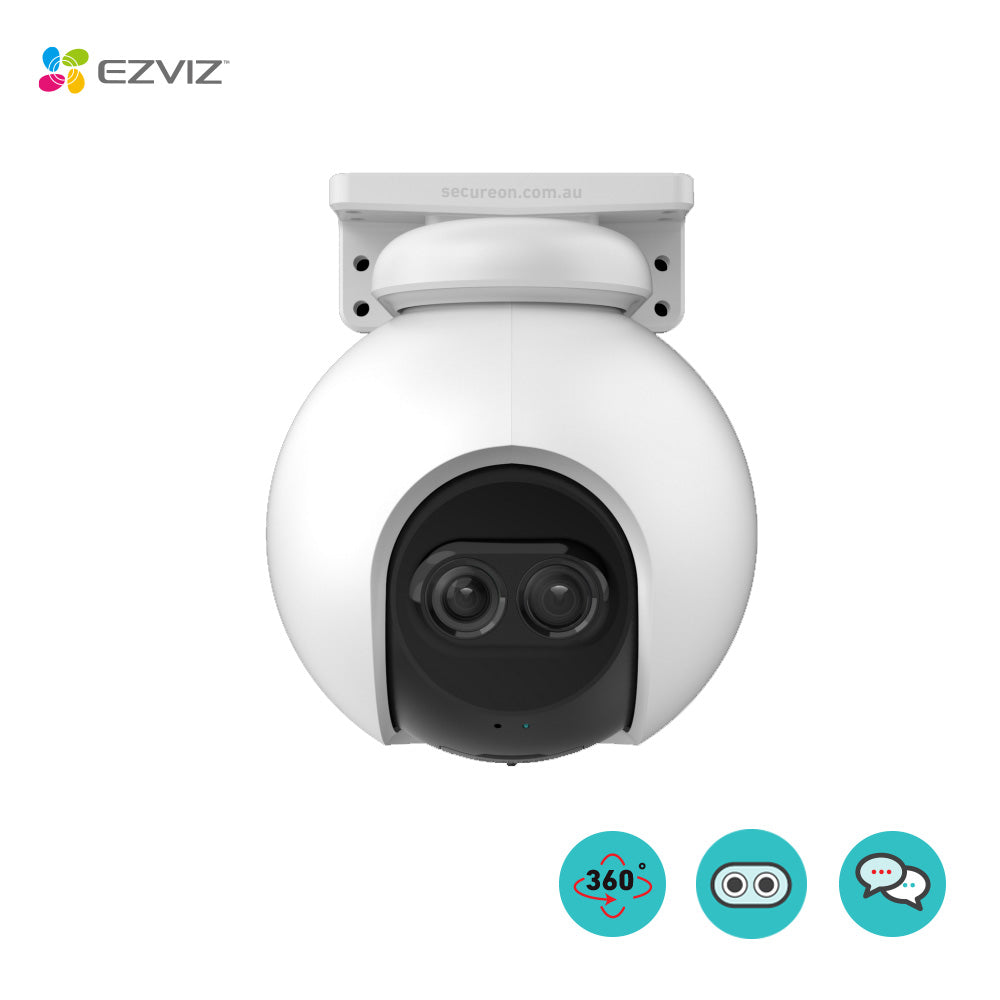

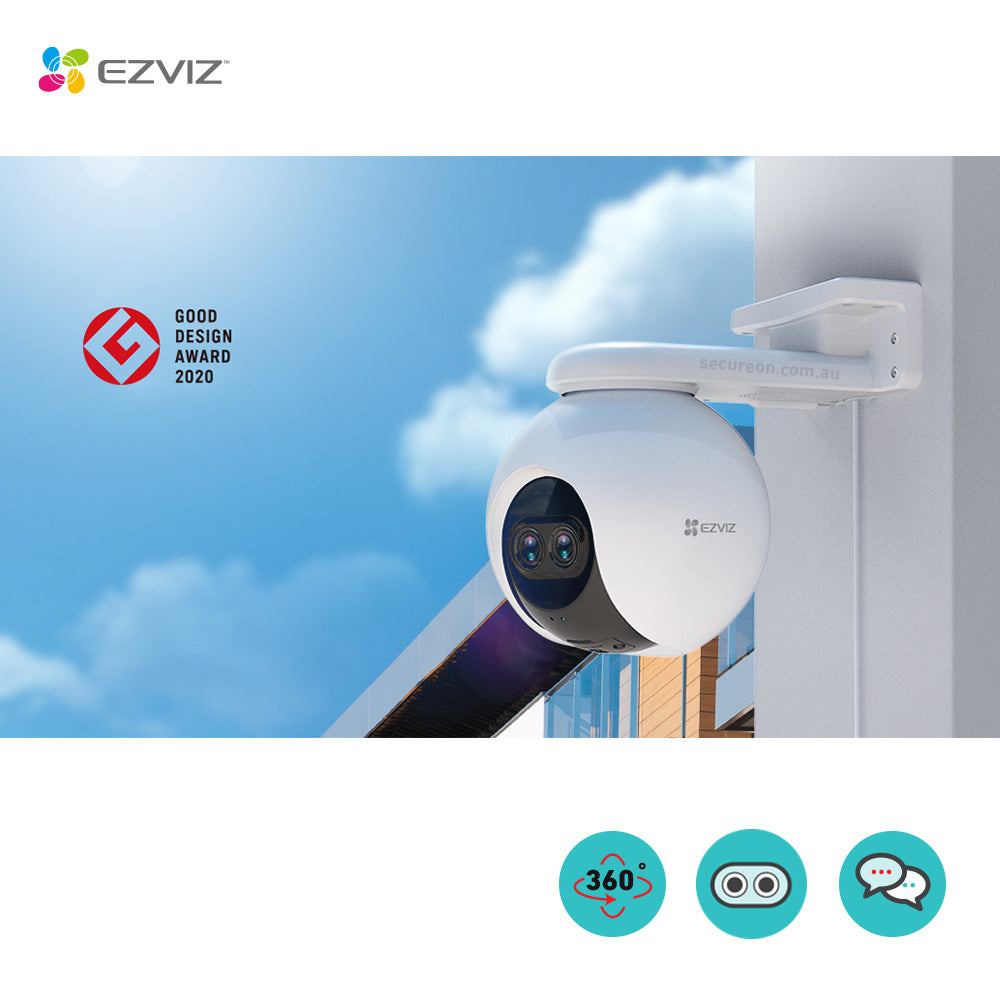

With the award-winning C8PF, you will never miss the bigger picture while also seeing what’s important – down to every detail. This pan-tilt-zoom camera features advanced dual-lens technologies to fulfill unprecedented 8-time mixed zoom for home protection, and provides a picture-in-picture video display mode of both wide and close-up views.
Key Features
- Intelligent Dual Lenses
- Picture-in-Picture Display Mode
- 8× Mixed Zoom
- 360° Panoramic Coverage
- AI-Powered Human Shape Detection
- Two-Way Talk
- IR Night Vision (Up to 98 ft / 30 m)
- Weatherproof Design
- Supports MicroSD Card (Up to 512 GB)
Model: CS-C8PF (1080P)
Camera
- Image sensor: Dual-1/2.7" Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: 2.8 mm @ F1.6 + 12 mm @ F1.6

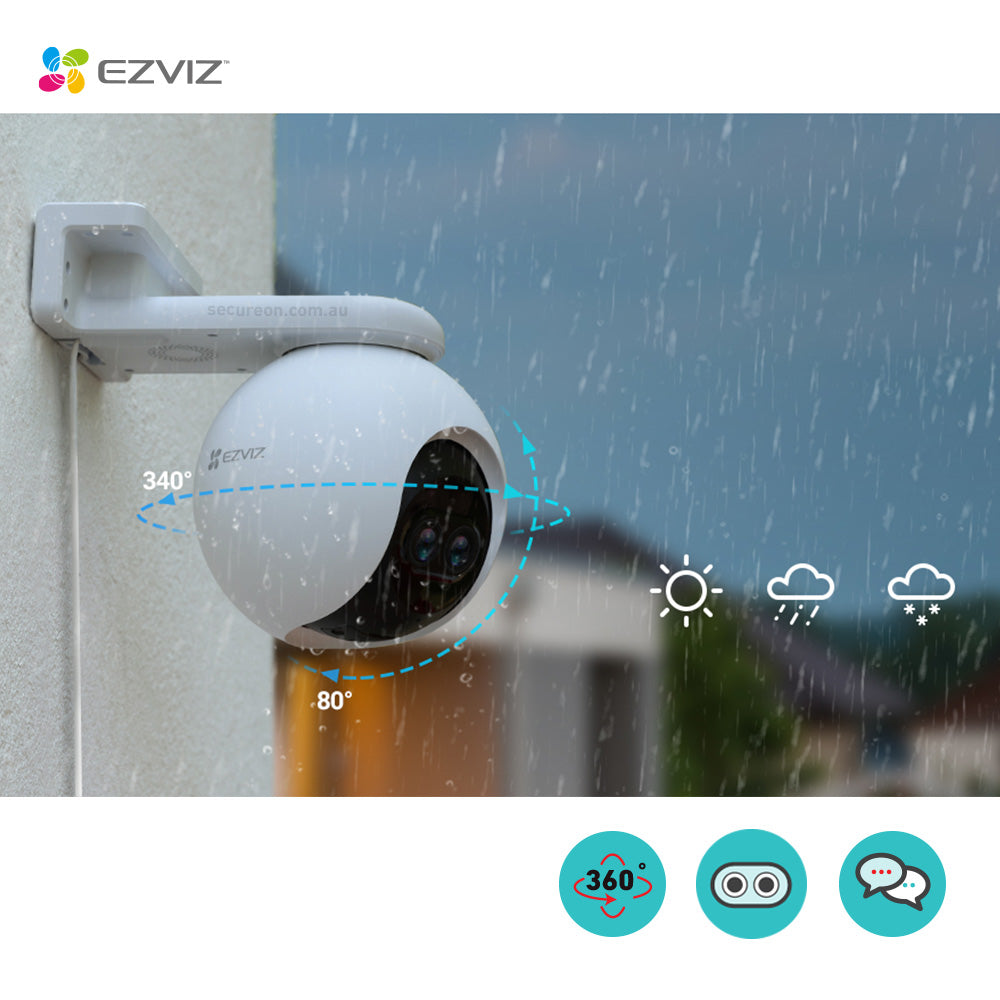

- PT Angle: Pan: 340°, Tilt: 80°
- Minimum Illumination: 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR
- Lens Mount: M12
- Day & Night: IR-cut filter with auto switching
- DNR: 3D DNR
- WDR: Digital WDR
- BLC: Supports
- Black & White Night: 30 m/ 98 ft
Video & Audio
- Max. Resolution: 2MP, 1920 × 1080
- Video Compression: H.265 / H.264
- Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate
- Frame Rate: Max: 30fps; Self-Adaptive during network transmission
- Max. Bitrate: 2 Mbps
Network
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate: 11b: 11Mbps,11g :54Mbps,11n :72Mbps
- Wi-Fi Pairing: AP pairing
- Protocol: EZVIZ Cloud Proprietary Protocol
- Interface Protocol: EZVIZ Cloud Proprietary Protocol
- Wired Network: RJ45 × 1(10M/100M Adaptive Ethernet Port)
Functions
- Smart Alarm: AI-powered Human Shape Detection
- Customized Alert Area: Supports
- Audio: Supports mic
- General Function: Anti-flicker, dual-stream, heart beat, password protection, watermark
Storage
- Local Storage: MicroSD card slot (Max. 512GB)
- Cloud Storage: EZVIZ cloud storage
General
- Operating Conditions: -30ºC to 60ºC (14°F to 113°F), humidity 95% or less (non-condensing)
- IP Grade: Weatherproof design
- Power Supply: DC 12V / 1A
- Power Consumption: MAX. 12W
- Dimensions: 154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch)
- Packaging Dimensions: 197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch)
- Weight: Product: 578 g (20.39 oz)
- With package: 938 g (33.09 oz)
In The Box
- In the box: - C8PF Camera
- 1.5-Meter Power Adapter
- Screw Kit
- Waterproof Kit
- Drill Template
- Regulatory Information
- Quick Start Guide
Certifications
- UL / FCC / CE / WEEE / REACH/ ROHS
