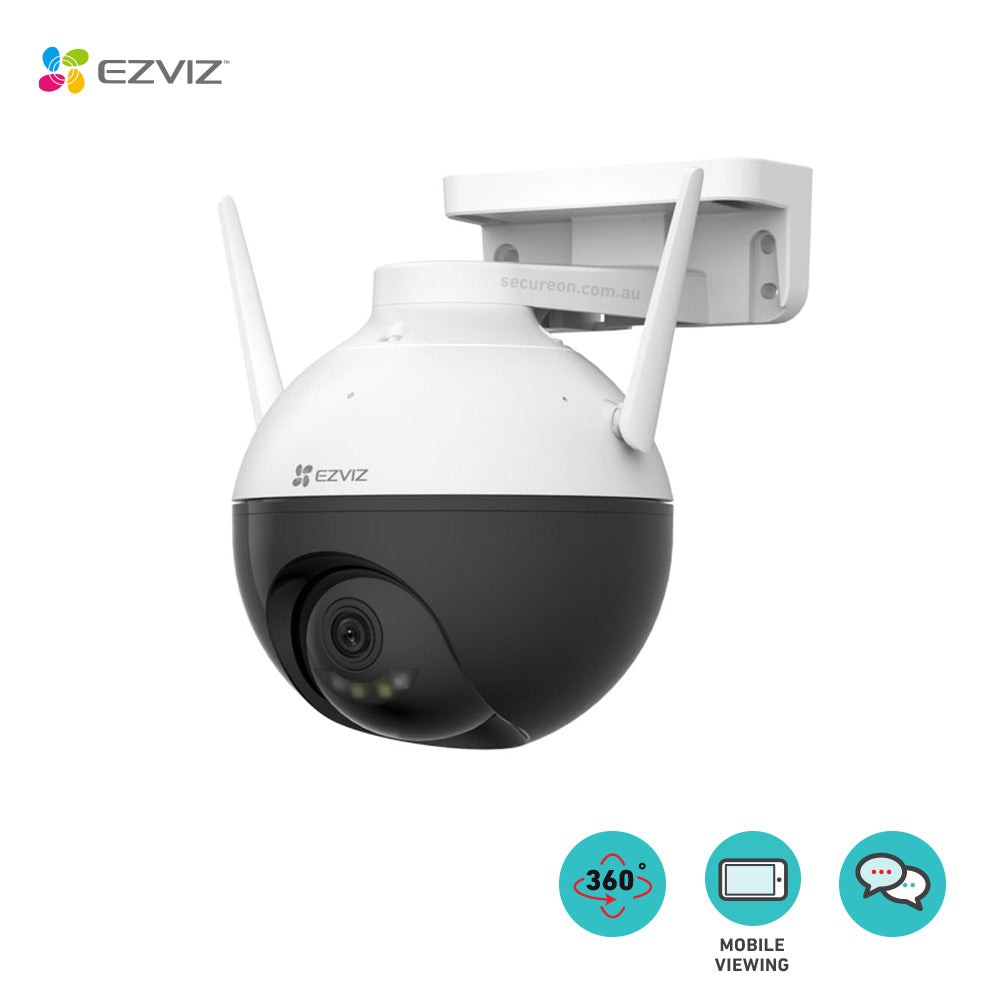

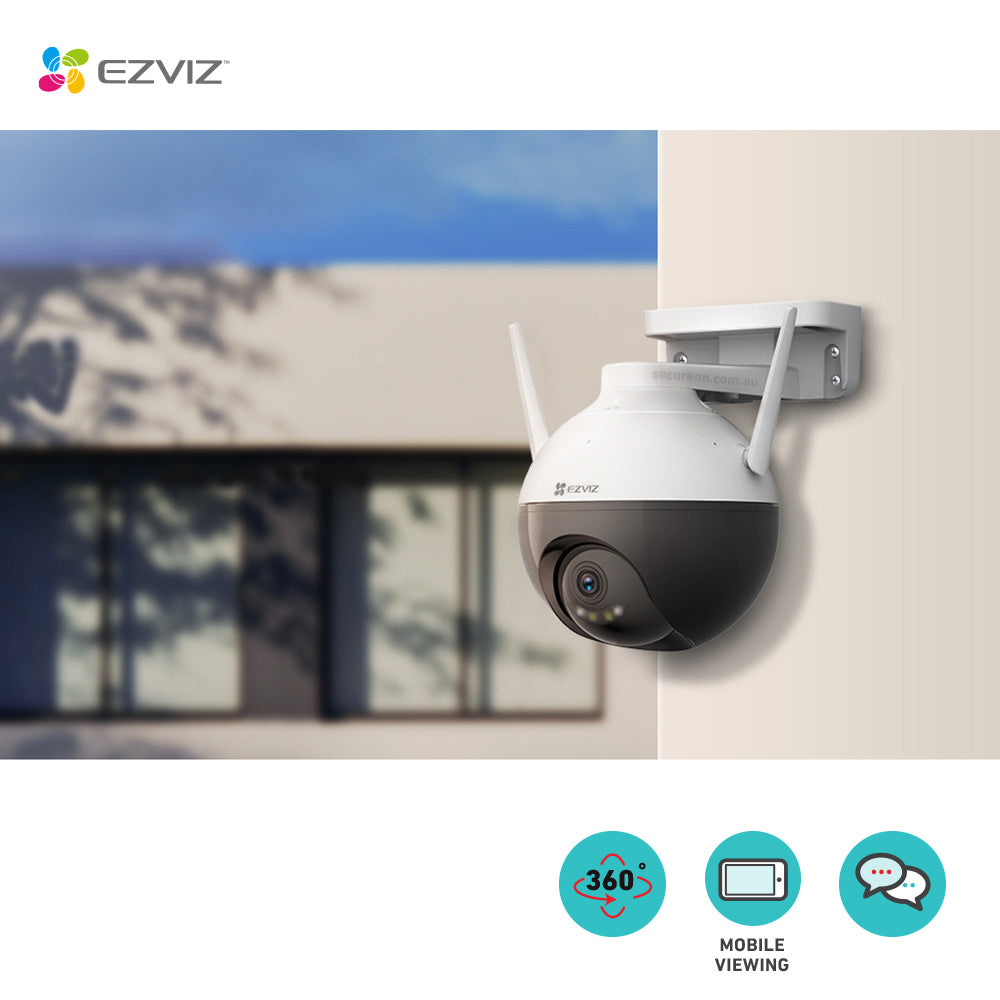

Enhancing 360° panoramic protection with remarkable ultra 2K+ video clarity, the C8W takes security surveillance to the next level. Packed with essential features for advanced security, including AI-powered human shape detection, color night vision, two-way communication, and active defense capabilities, it becomes your reliable gatekeeper ensuring round-the-clock protection. Trust the C8W to deliver exceptional performance and peace of mind, day and night.
Key Features
- 2K+ Resolution

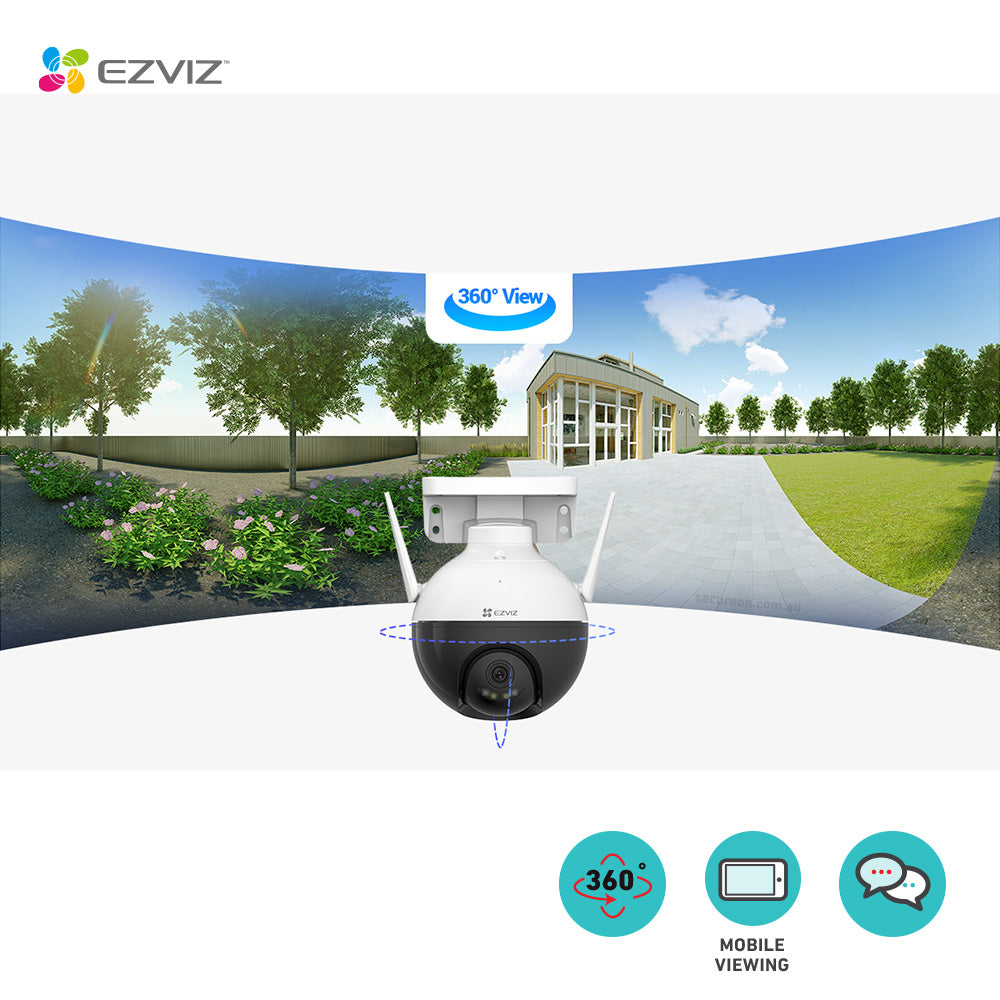

- 360° Panoramic Coverage
- Color Night Vision
- IR Night Vision (Up to 98 ft/30 m)
- Two-Way Talk
- AI-Powered Human Shape Detection
- Active Defense
- Supports MicroSD Card Storage (Up to 256 GB)
Model
CS-C8W (4MP,W1)
Camera
- Image Sensor: 1/2.7” Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle: 55° (Horizontal), 66° (Diagonal)
- PT Angle: Pan: 352°, Tilt: 95°
- Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR
- Lens Mount: M12
- Day & Night: IR-cut filter with auto-switching
- DNR: 3D DNR
- WDR: Digital WDR
- BLC: Supports
- Black & White Night: 30 m / 98 ft.
Video & Audio
- Max. Resolution: 2560 × 1440
- Frame Rate: Max. 30 fps, self-adaptive during network transmission
- Video Compression: H.265 / H.264
- H.265 Type: Main Profile
- Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
- Audio Bit Rate: Self-Adaptive
- Max. Bitrate: 2Mbps
Network
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
- Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
- Wi-Fi Pairing: AP pairing
- Protocol: EZVIZ Cloud Proprietary Protocol
- Interface Protocol: EZVIZ Cloud Proprietary Protocol
- Wired Network: RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port)
Storage
- Local Storage: MicroSD card slot (Max. 256 GB)
- Cloud Storage: EZVIZ Cloud Storage
Function
- Smart Alarm: AI-powered human shape detection
- Customized Alert Area: Supports
- Audio: Supports two-way talk
- General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Wi-Fi
- Operating Conditions: -30°C ~ 60°C ( -22°F to 140°F ), humidity 95% or less (non-condensing)

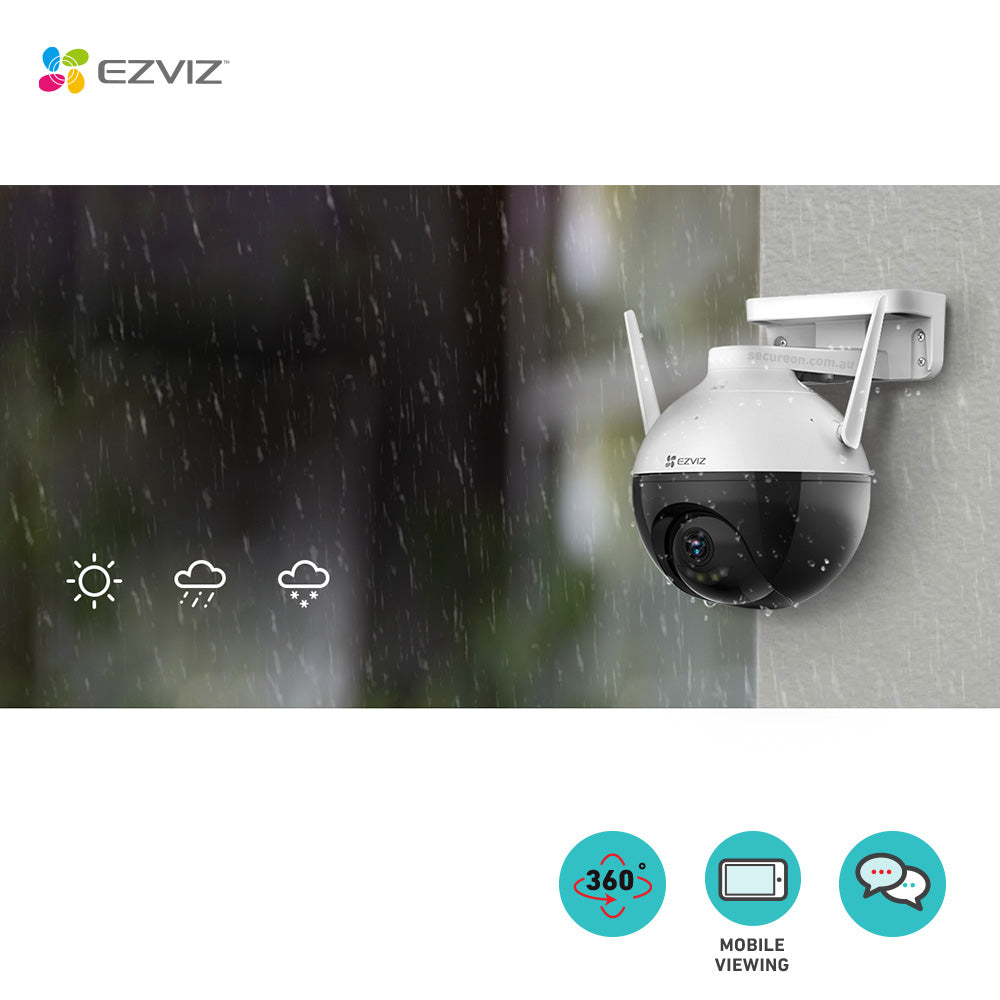

- IP Grade: Weatherproof design
- Power Supply: DC 12V / 1A
- Power Consumption: Max. 6W
- Dimensions: 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch)
- Packaging Dimensions: 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch)
- Weight (With Package): 885 g (31.22 oz)
- Net Weight: 510 g (17.99 oz)
Package contents
- In the box: - C8W Camera
- 1.5-Meter Power Adapter
- Screw Kit
- Waterproof Kit
- Drill Template
- Regulatory Information
- Quick Start Guide
Certifications
- UL / FCC / CE / WEEE / REACH / RoHS / UKCA
