HiLook 2-Wire 1 Button Digital IP Video Intercom Kit HA-KIT-PY2

Vendor: HiLook

HiLook 2-Wire 1 Button Digital IP Video Intercom Kit HA-KIT-PY2

$328 $297

Vendor: HiLook

HiLook 2-Wire 1 Button Digital IP Video Intercom Kit HA-KIT-PY2

$328 $297

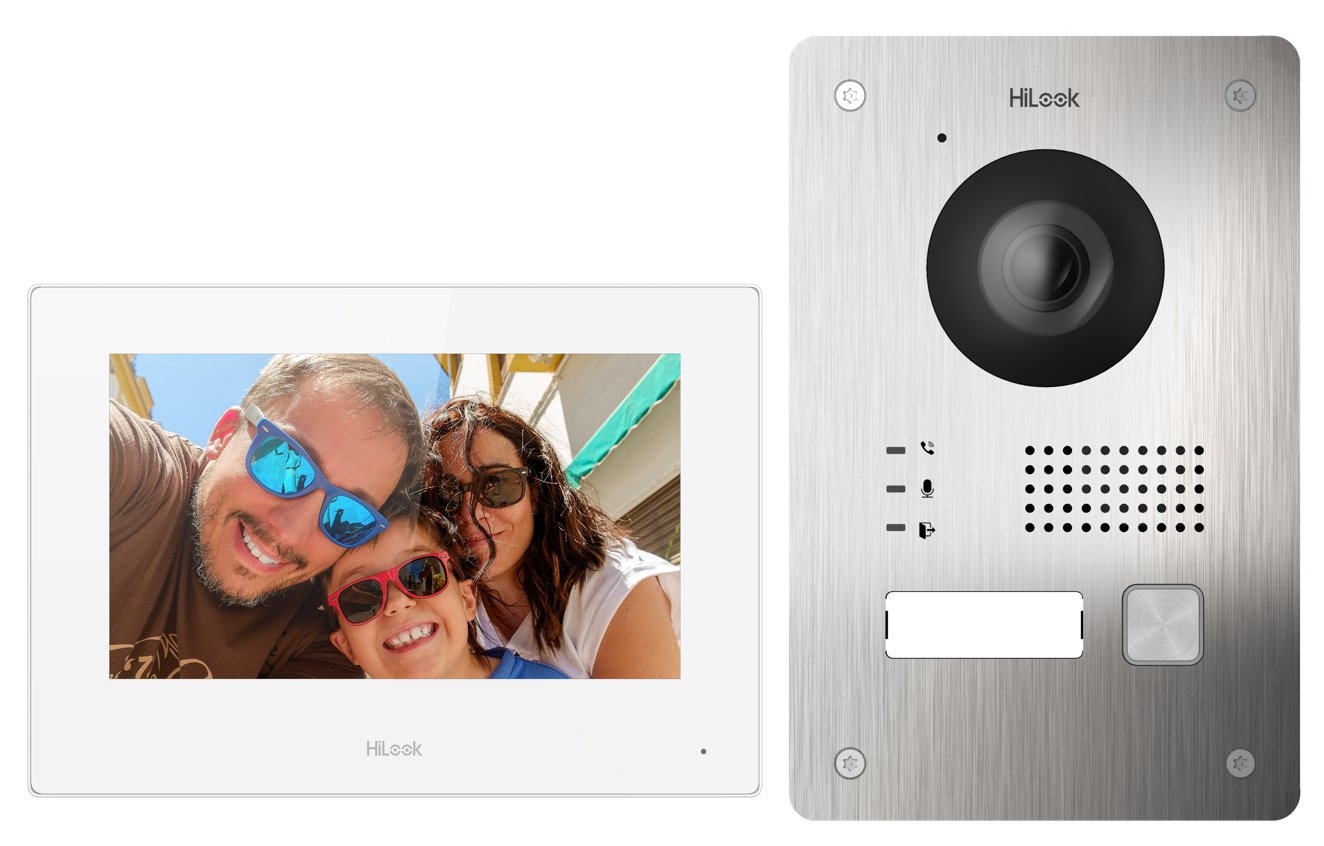

The HiLook 2-Wire 1 Button Digital IP Video Intercom Kit lets you easily manage security with remote control via the Hik-Connect APP. It includes a door station, indoor monitor, two power supplies, and a 32GB TF card for video storage. With flexible PoE installation and an extra power adapter, it’s a simple and reliable choice for home or business security.

Key Features

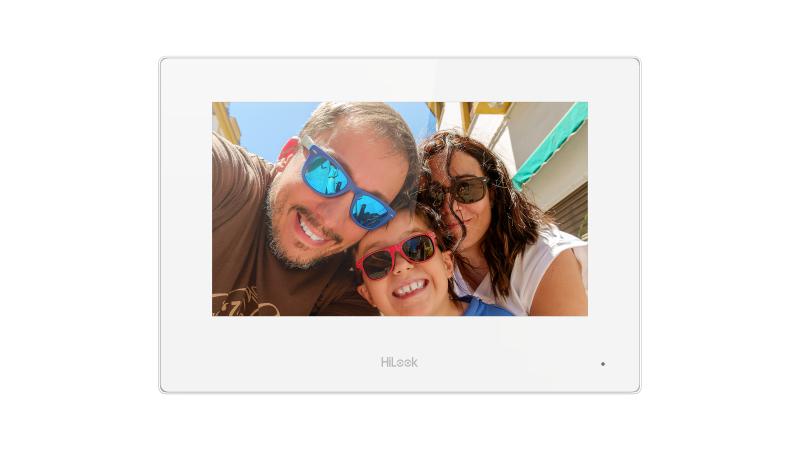

Indoor Station

  • 7' touch screen 2-Wire IP indoor station with 1024 × 600 resolution
  • Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely
  • Easy wizard for quick set up
  • Live-view of the door station and cameras in public areas
  • Support voice messages when no response from the indoor station

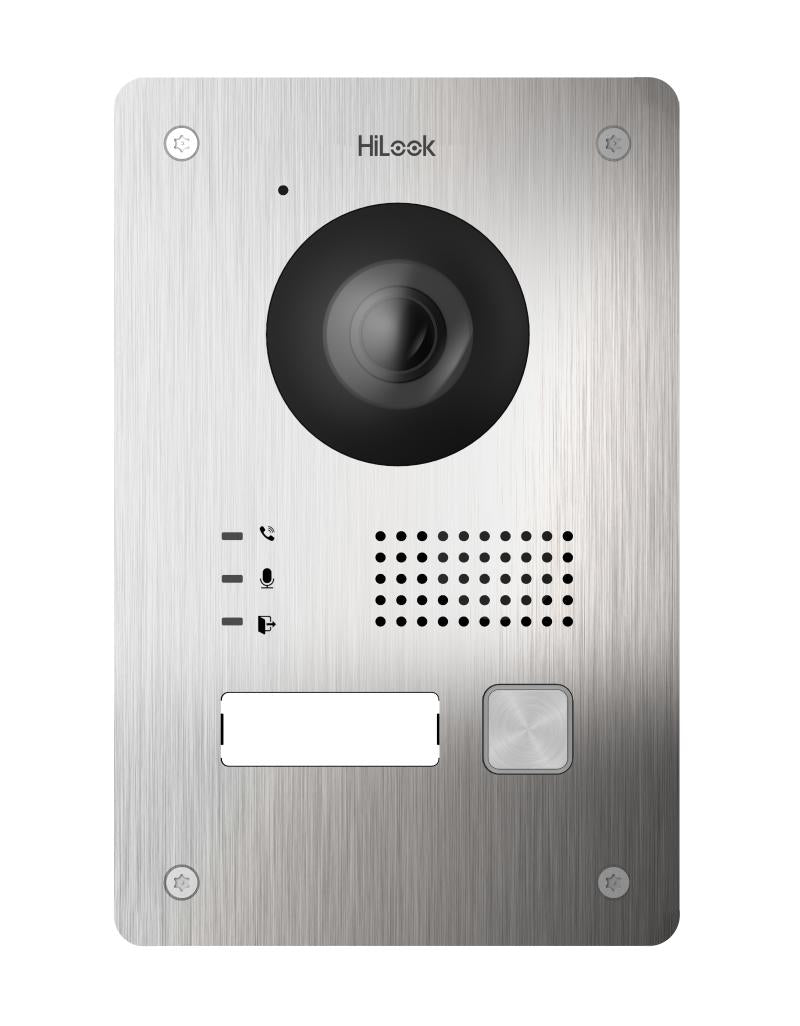

Door Station

  • High quality imaging with 2 MP resolution
  • One call physical button for easier calls
  • Two-lock control
  • IP65 protection level
  • Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
  • High-quality stainless steel panel

Downloads

View HiLook 2-Wire Digital IP Video Intercom Kit HA-KIT-PY2 Datasheet

Specifications

Door station/System parameters

  • Operation system Embedded Linux operation system
  • Operation mode Single-button
  • Flash 32 MB
  • RAM 256 MB

Door station/Video parameters

  • Camera 2MP HD camera
  • Resolution

    Main stream: 1280*720P, 1920*1080p

    Sub stream: 640*480

  • Night vision Low illumination IR supplement distance: 3 m
  • WDR Support
  • Field of view Horizontal: 140° Vertical: 85°
  • Video Compression Standard H.264

Door station/Audio parameters

  • Audio input Built-in 1*omnidirectional microphone
  • Audio output Built-in 1*loudspeaker, 8Ω
  • Audio quality Noise suppression and echo cancellation
  • Audio compression standard G.711 U, G.711 A
  • Audio compression Rate 64 Kbps

Door station/Network parameters

  • Network protocol TCP/IP, RSTP, SIP2.0
  • Wired network Support, 2-Wire wiring

Door station/Device interfaces

  • RS-485 /
  • Alarm input2( Exit button or door contact)
  • Output1*12 V/500 mA output
  • Two-wire interface1
  • TAMPER switch1

Door station/General

  • Power consumption< 10 W
  • Working temperature-40° C to +60° C(-40° F to 140° F)
  • Working humidity10% to 95%
  • InstallationSurface mounting, flush mounting
  • Protection level IP65
  • Indicator3
  • Power supplyFrom indoor station

Indoor station/System parameters

  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB

Indoor station/Display parameters

  • Display screen7-inch TFT touch screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
  • BrightnessAdjustable

Indoor station/Audio parameters

  • Audio inputBuilt-in 1*omnidirectional microphone
  • Audio outputBuilt-in 1*loudspeaker, 8Ω
  • Audio qualityNoise suppression and echo cancellation
  • Volume Local adjustable
  • Audio compression standardG.711 U, G.711 A

Indoor station/Network parameters

  • Wired network 1*10 Mbps through 2-wire interface
  • Wireless networkWi-Fi 802.11 b/g/n, 2.400-2.4835 GHz

Indoor station/Device interfaces

  • RS-4851
  • Alarm input8
  • Two-wire (output)1
  • Two-wire (input)1
  • Power input24VDC/1.5A

Indoor station/General

  • Power supply24VDC/1.5A
  • Power consumption≤ 8 W
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90%
