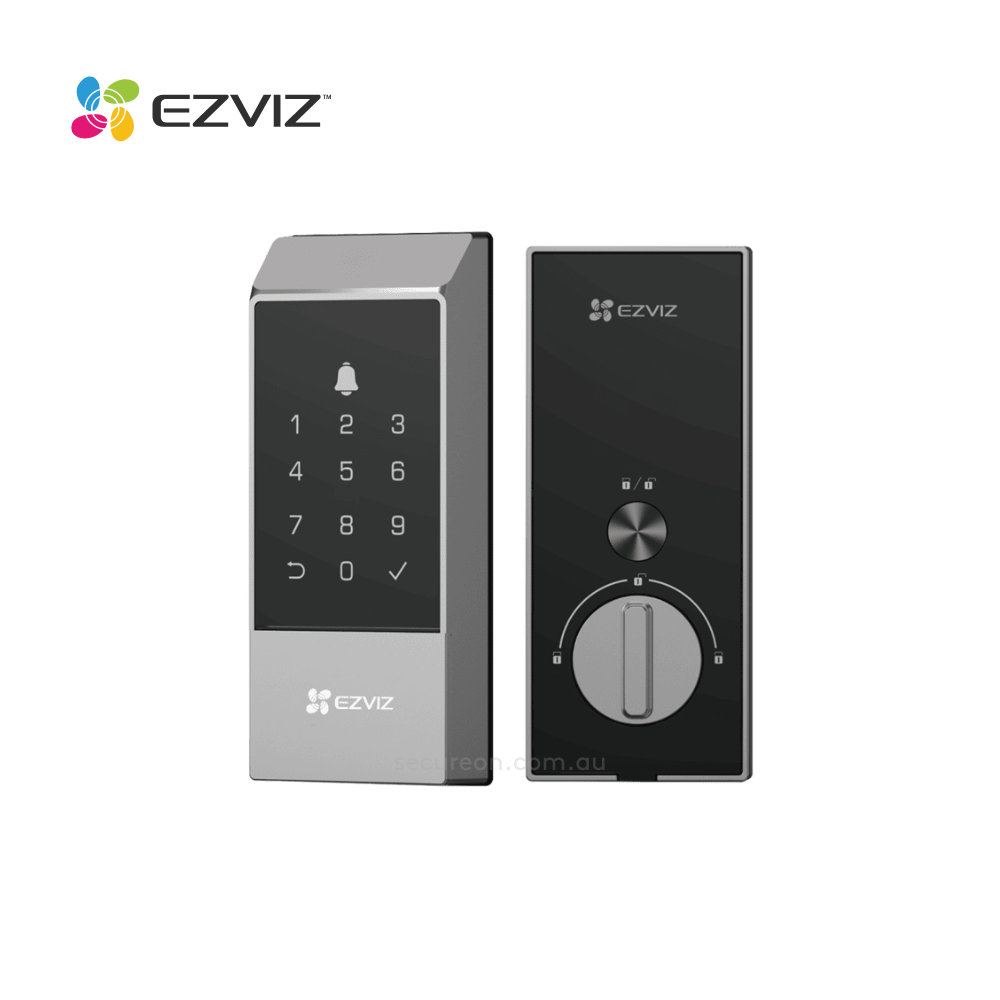

EZVIZ Smart Deadbolt 5-in-1 Lock CS-DL04

Keyless unlocking, simpler home routines

Ever locked yourself out, hid a key under a flowerpot, or had children who lost their keys? Say goodbye to the hassle of your traditional lock while making your home entrance securer. The DL04 provides keyless, seamless unlocking methods, so you can use a passcode to enter, or slide open a door as easy as unlocking your smartphone. Saving you both time and money, the DL04 does not require a bridging hub to unlock internet-connected features, and can be installed in a much simpler, quicker way. The DL04 also better secures your access in multiple ways – it uses an auto-locking feature and real-time status check to prevent a left-open door, and can become integrated with EZVIZ cameras to build a security system.

Direct Wi-Fi connection for an easily smart front door

There’s no need to pay for an extra accessory or a hub to get your lock online before you start enjoying smart, remote controls. Simply pair the DL04 with your home Wi-Fi, and use the EZVIZ App to customize its settings and manage lock activities.

Key Features

• 5-in-1 Keyless Entry with Fingerprint Access
• Bluetooth & Wi-Fi Enabled
• Real-Time Notifications
• Privacy Mode
• Durable Aluminum Design
• Supports 2.4 GHz Wi-Fi
• Passcode Unlocking
• Lock Status Check & Alerts
• Multiple Unlock Methods
• Supports Anti-Peeping Codes
• Sturdy Design
• Anti-Tamper Alarm
• Supports Emergency Power Supply (Type-C)

Downloads

• View EZVIZ Smart Deadbolt 5-in-1 Lock CS-DL04 Datasheet
• View EZVIZ Smart Deadbolt 5-in-1 Lock CS-DL04 Manual

Specifications

Model CS-DL04

Technical Specification

Product material Aluminum + Plastic

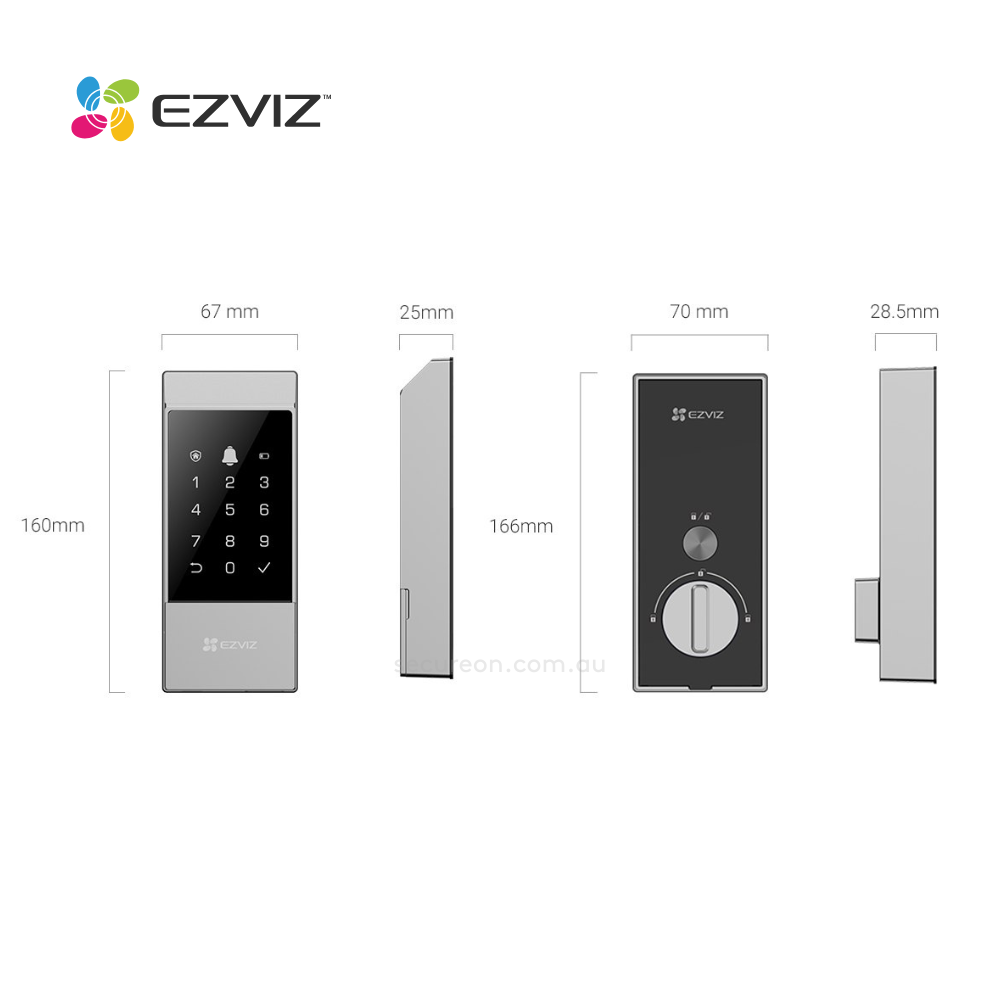

Dimensions

• Front Panel: 160 × 67 × 25 mm (6.29 × 2.63 × 0.98 inch)
• Rear Panel: 166 × 70 × 28.5 mm (6.53 × 2.75 × 1.12 inch)

Communication

• EZVIZ Connect
• 2.4G Wi-Fi

Keyless unlocking Supports

Bluetooth Key Supports (up to 50 groups)

Working power 4 AA Alkaline Batteries

Working condition -20°C to 60°C, Humidity 10% to 95% (non-condensing)

APP Function

• Lock status check Supports
• User management Supports
• Message notification Supports
• Privacy mode Supports (enable via EZVIZ App)
• Temporary passcode Supports
• Remote unlock Supports
• Real-time notification Supports
• EZVIZ Connect Supports
• Low battery alert Supports

Front Panel Function

• Password unlock Supports (up to 50 groups, 6-10 digits)
• Virtual passcode Supports
• Electric doorbell Yes
• Low battery alert Supports
• Anti-tamper alert Supports
• Anti-test alert Supports (enter 5 errors in 5 minutes, locked for 3 minutes)

In the box

• DL04 Front Panel
• DL04 Rear Panel
• Screw Kit
• Mounting Bracket
• AA-Sized Battery × 4
• Lock Cylinder Kit
• Lock Body Kit
• Hole Templet
• Regulatory Information
• Quick Start Guide

Certifications

Certifications CE (EMC/LVD/RED/ROHS) / BHMA / REACH / SVHC / WEEE
