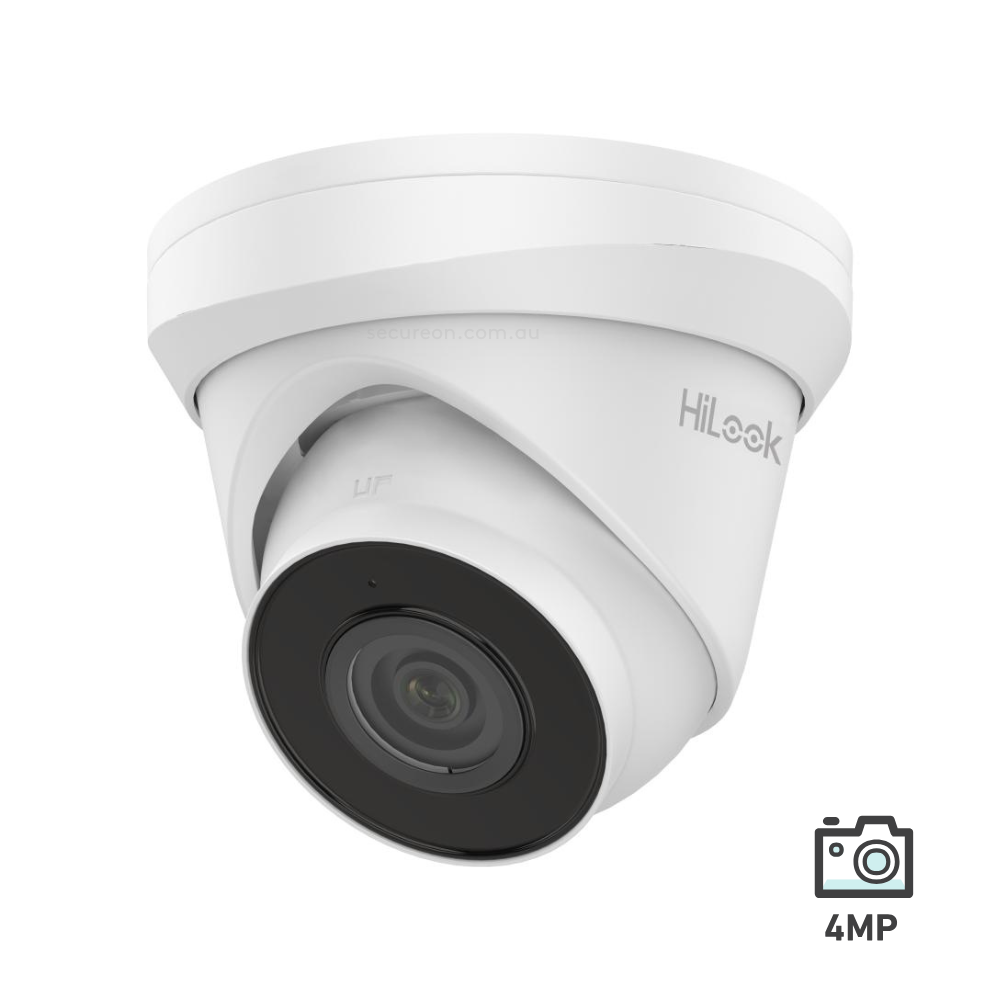

HiLook 4MP 2.8mm Fixed Turret Network Camera IPC-T240H-MU

The HiLook 4MP Turret Camera offers clear 4 MP video with efficient storage. It works well in bright or low light thanks to 120 dB WDR and EXIR 2.0 infrared. Built tough with IP67 water and dust resistance, it includes a microphone for audio and supports up to 256 GB SD card for local recording.

Key Features

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range
• -U: Built-in microphone for real-time audio security
• -U: Support up to 256 GB SD card storage

Downloads

View HiLook 4MP 2.8mm Fixed Turret Network Camera IPC-T240H-MU Datasheet

Specifications

Camera

• Image Sensor 1/3" progressive scan CMOS
• Max. Resolution 2560 × 1440
• Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type Fixed focal length, 2.8 mm
• Focal Length & FOV 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
• Lens Mount M12
• Iris Type Fixed
• Aperture F2.0

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 30 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

Video

• Main Stream

  50 Hz: 20 fps (2560 × 1440)

  25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Region of Interest (ROI) 1 fixed region for main stream

Audio

• Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate -U: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate -U: 8 kHz/16 kHz
• Environment Noise Filtering -U: Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface, ISAPI
• User/Host Up to 32 users. 3 levels: administrator, operator and user
• ClientGuarding vision
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR) 120 dB
• Image Enhancement BLC, 3D DNR

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage -U: Built-in memory card slot, support microSD card, up to 256 GB
• Built-in Microphone -U: Yes
• Reset Key -U: Yes

Event

• Basic Event Motion detection, video tampering, exception
• Linkage

  Upload to FTP, notify surveillance center, send email

  -UF also supports: upload to memory card, trigger recording, trigger capture

Smart Event

Line crossing detection, intrusion detection

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension Ø110 mm × 85.3 mm (Ø 4.3" × 3.4")
• Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Approx. 320 g (0.7 lb.)
• With Package Weight Approx. 556 g (1.2 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection IP67 (IEC 60529-2013)
