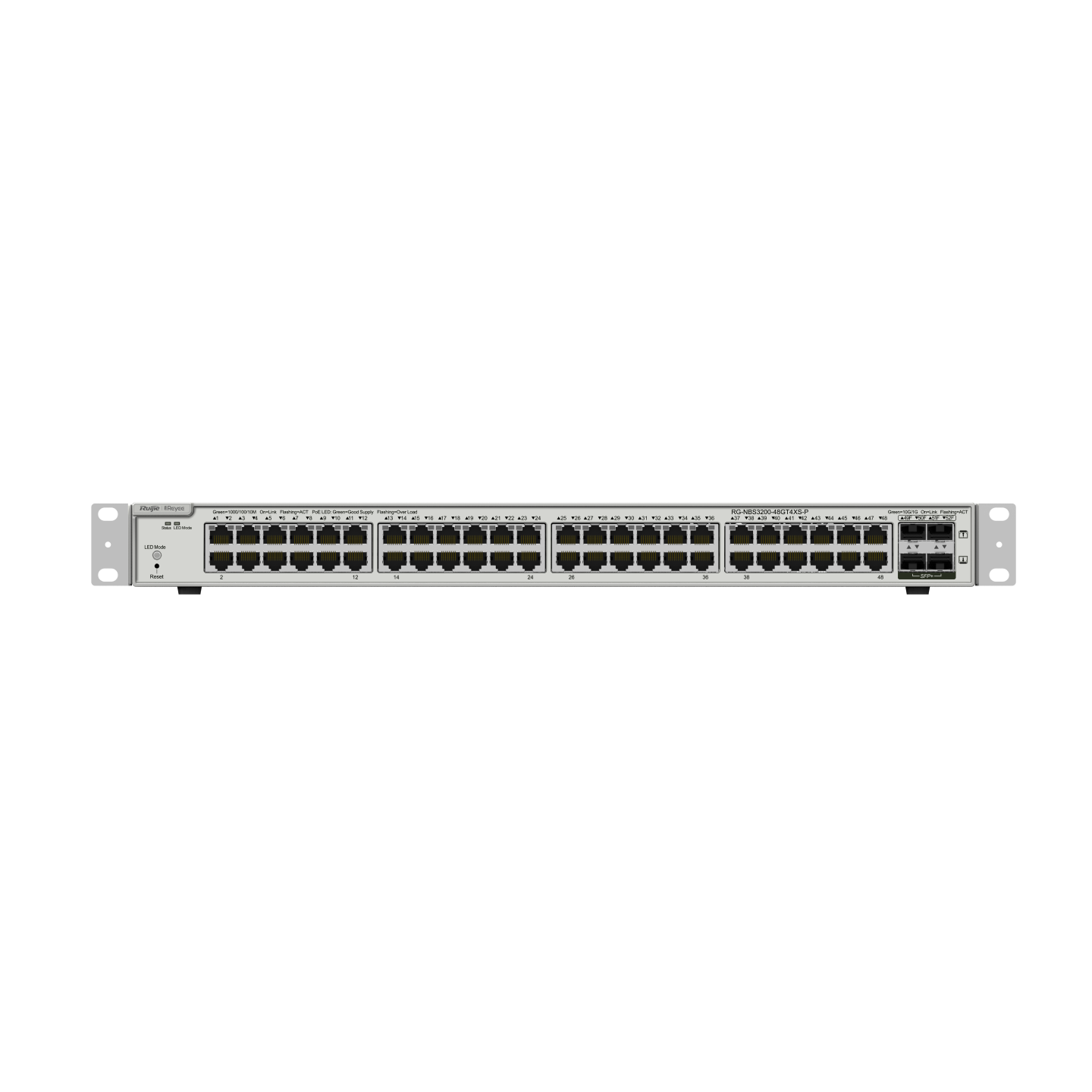

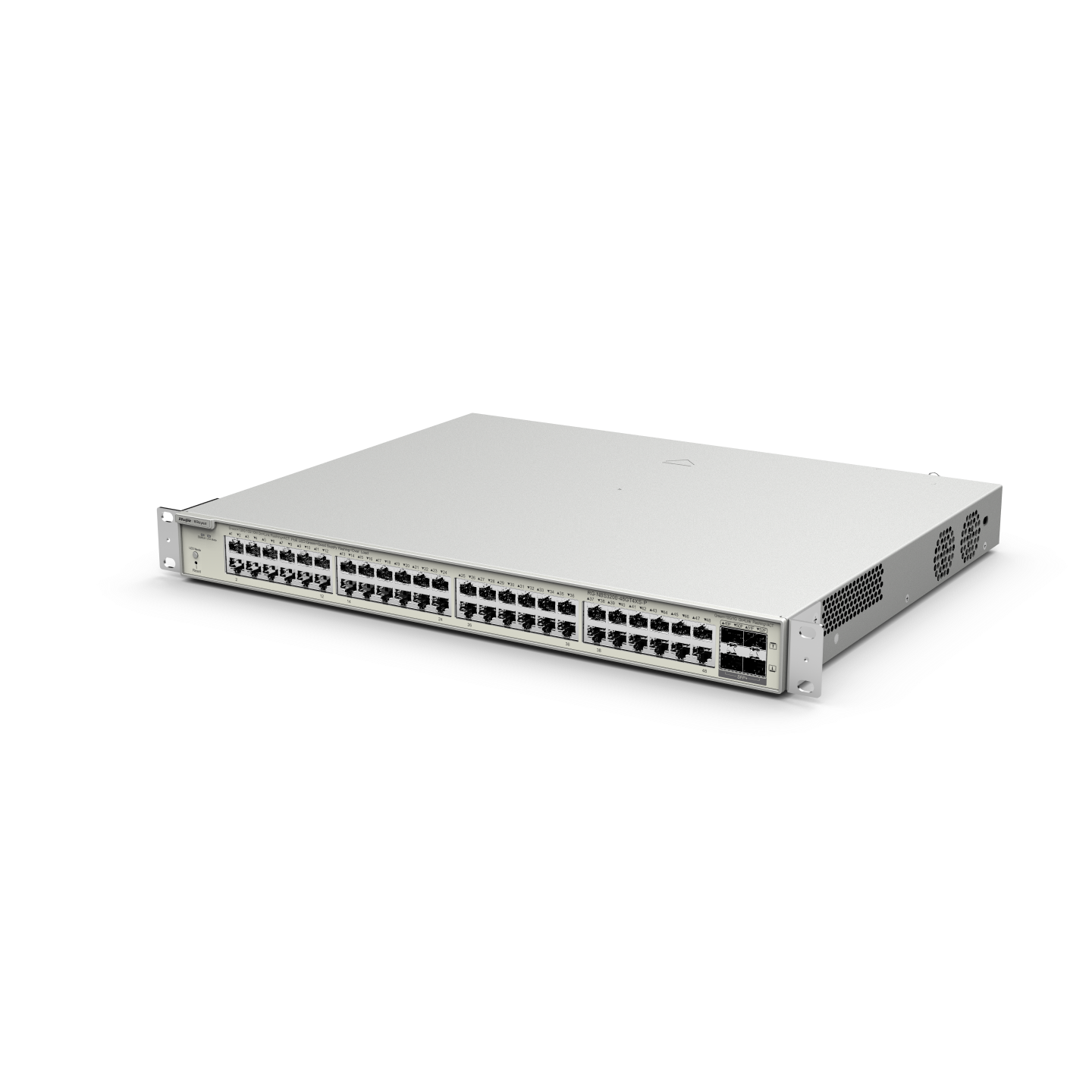

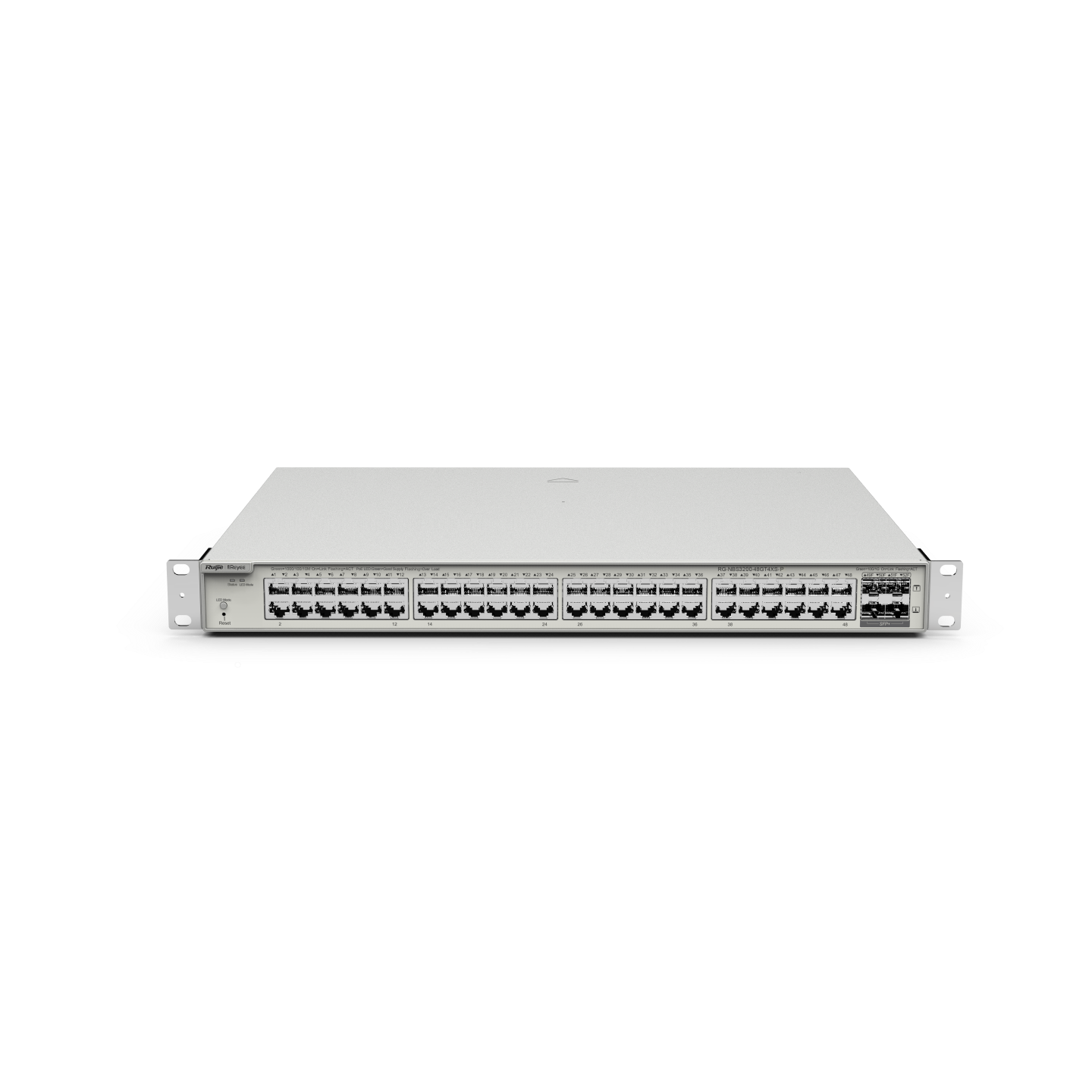

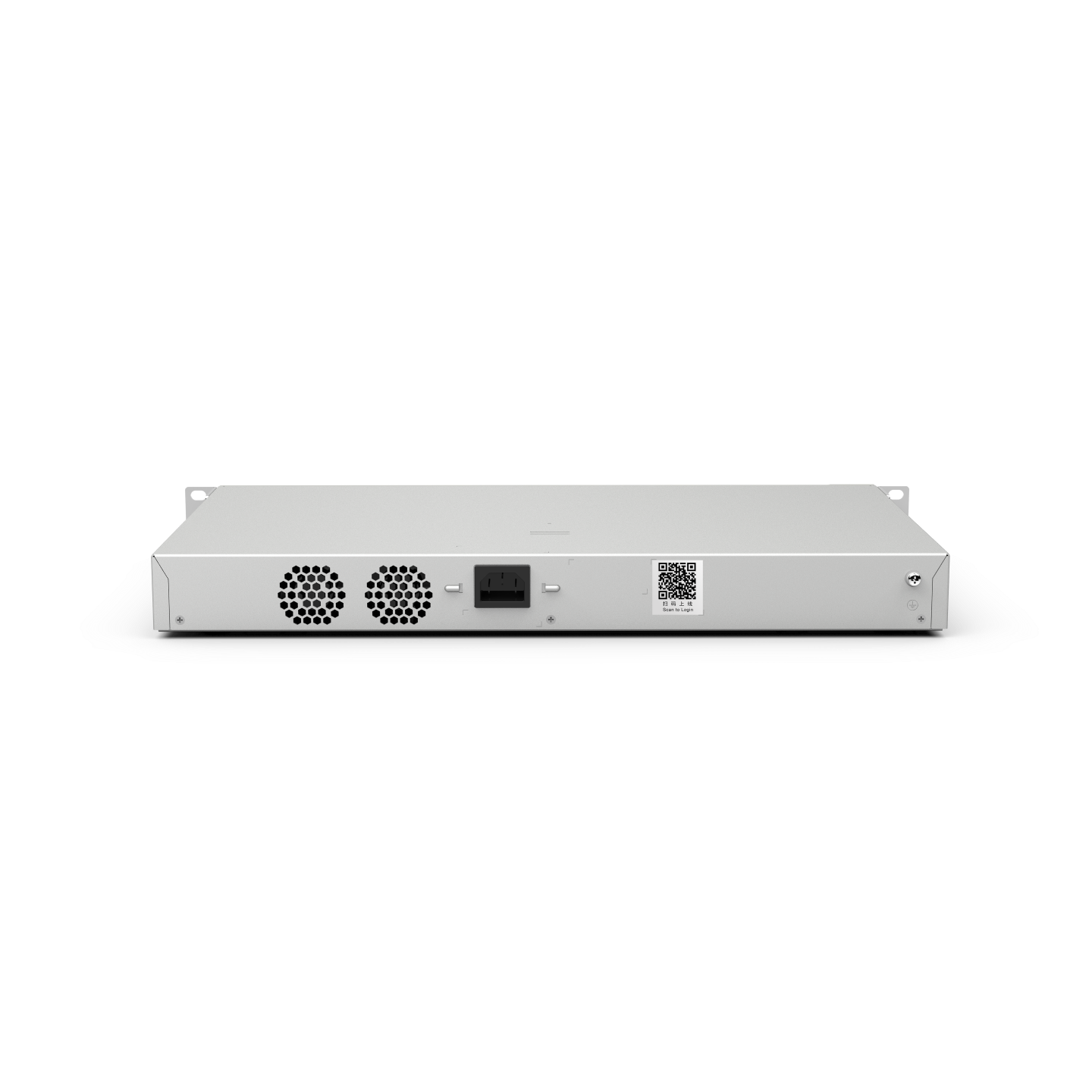

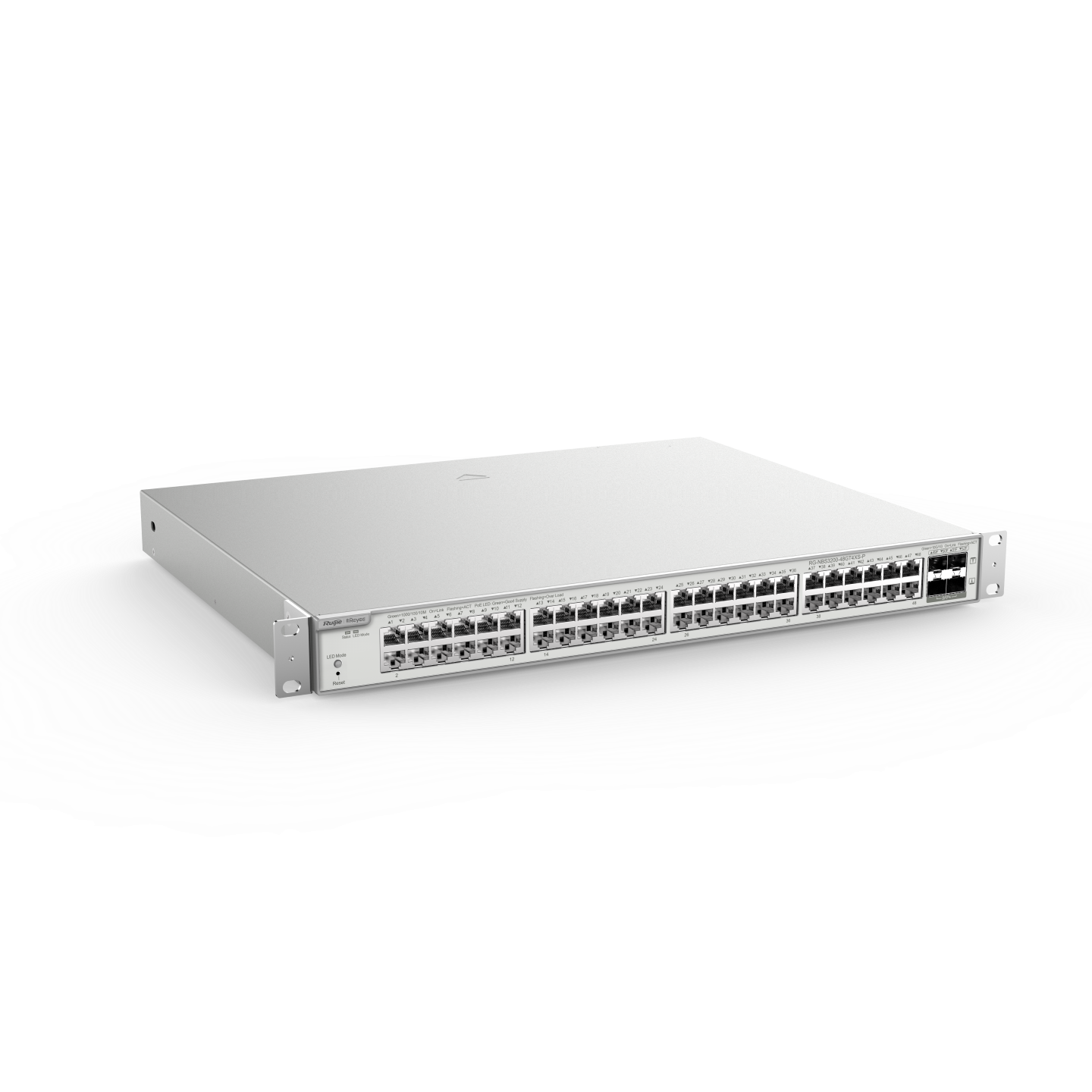

Ruijie Reyee 48-Port Gigabit Layer 2+ Cloud Managed PoE Switch, 4 * 10G Uplink RG-NBS3200-48GT4XS-P

The Ruijie Reyee RG-NBS3200-48GT4XS-P is a 48-port Gigabit Layer 2+ managed PoE switch with 4 high-speed 10G SFP+ uplink ports, designed for enterprise networks, surveillance systems, and high-performance access layers. It offers robust switching capabilities, advanced security features, and seamless cloud-based management.

Quick Specs

48-Port L2 Managed Poe 10G Switch, 48 Gigabit Rj45 Poe/Poe+ Ports,4 *10G Sfp+ Slots, 370W Poe Power Budget,19-Inch Rack-Mountable

Key Features

• Port Configuration: 48 × 10/100/1000 Mbps RJ45 PoE+ ports and 4 × 10G SFP+ uplink ports

• PoE Capability: Supports IEEE 802.3af/at with a total PoE budget of 370W

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.95 Mpps

• MAC Address Table: Supports up to 16,000 entries

• VLAN Support: Up to 4,094 VLANs

• Surge Protection: 6 kV on all ports

• Power Consumption: ≤448W

• Cooling: Built-in fan for efficient temperature control

• Form Factor: 440 mm × 357.6 mm × 43.6 mm

• Weight: 5.4 kg

• Warranty: 5 years

• Security: Supports IP/MAC-based ACLs, DHCP snooping, IP source guard, and anti-ARP spoofing

• Management: Offers web-based GUI, SNMP v1/v2c/v3, and cloud management via Ruijie Cloud and mobile app

• Network Optimization: Includes link aggregation, IGMP snooping, loop prevention, and jumbo frame support (up to 9,216 bytes)

• Self-Organizing Network (SON): Enables zero-touch provisioning and automatic topology recognition

Downloads

• View Datasheet
