EZVIZ 2K+ Dual Lens Indoor Security Camera C7

EZVIZ C7 2K+ Dual Lens Indoor Security Camera

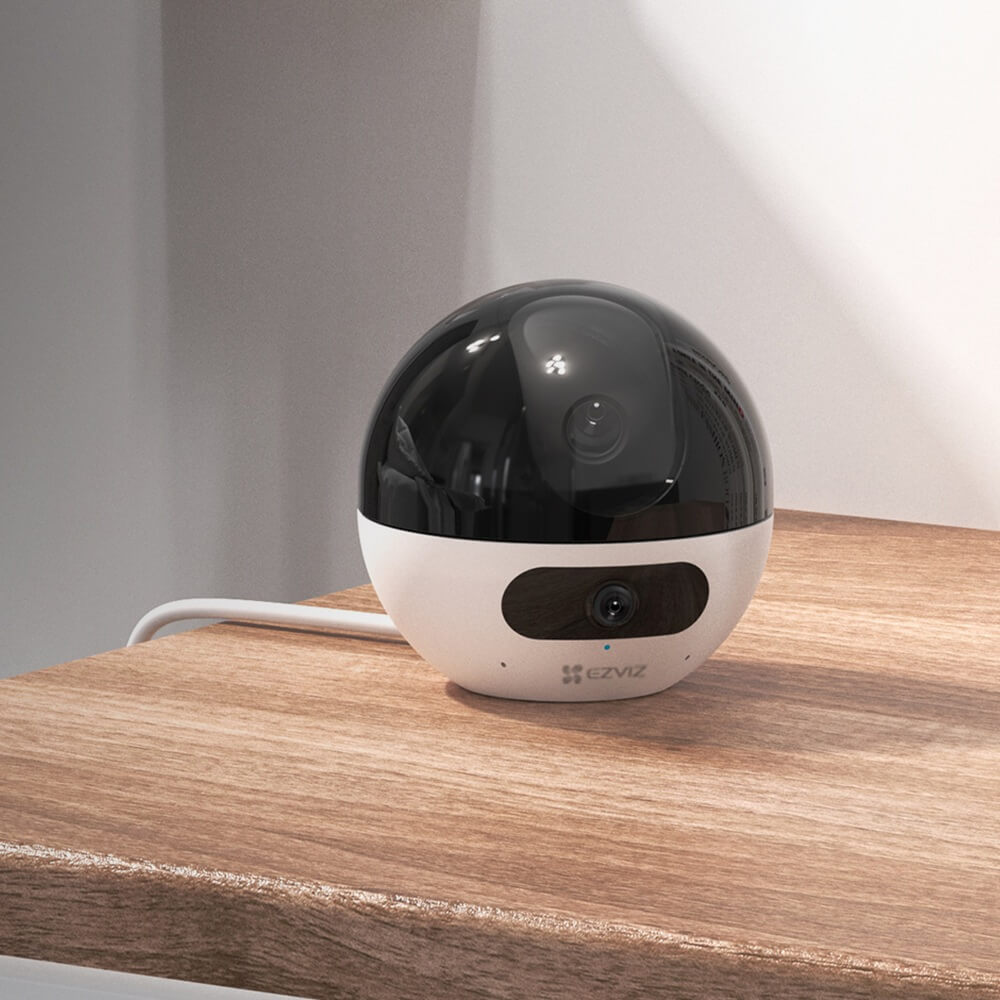

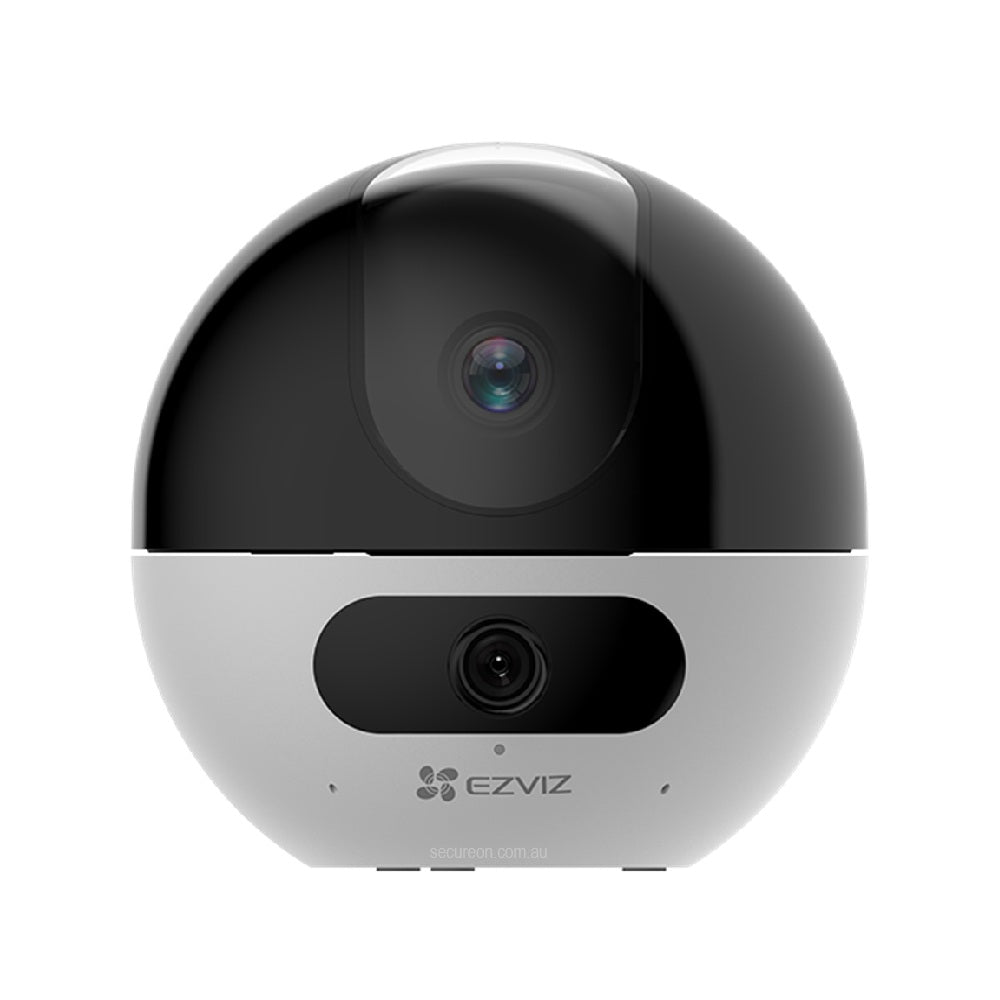

The EZVIZ C7 brings dual-lens coverage to indoor security, combining two 2K+ lenses in a single pan and tilt unit. A fixed wide-angle lens captures the full room while the PT lens zooms in on detail - ideal for larger rooms, open-plan spaces, or anywhere you need wider situational awareness without installing multiple cameras.

• Dual 2K+ (2560 × 1440) resolution - fixed wide lens (108°) and PT zoom lens (60°)
• Pan and tilt PT lens for flexible monitoring angles
• IR night vision up to 10 m
• AI-powered human shape and pet detection, patrol mode
• Wi-Fi 6 (802.11ax) support on 2.4GHz and 5GHz
• Bluetooth and AP pairing for easy setup
• Local microSD storage up to 512 GB and EZVIZ CloudPlay support
• Type-C power interface
• Compatible with EZVIZ smart home ecosystem

Is this the right camera for you?

If you need dual-lens indoor coverage in a single device - for a large living area, retail space, or open-plan office - the C7 is a smart, cost-effective solution.

Specifications

• Model: CS-C7-R100-8G44WF
• Image sensor: 1/3" Progressive Scan CMOS
• Fixed lens: 2.8mm @ F1.6 | 108° diagonal, 92° horizontal, 50° vertical
• PT lens: 6mm @ F1.6 | 60° diagonal, 51° horizontal, 28° vertical
• Max. resolution: 2560 × 1440 (Dual 2K+)
• IR range: Up to 10 m / 33 ft
• Video compression: H.264 / H.265
• Wi-Fi: IEEE802.11b/g/n/ac/ax, 2.4GHz and 5GHz (Wi-Fi 6)
• Wi-Fi pairing: AP pairing / Bluetooth pairing
• Local storage: microSD up to 512 GB
• Cloud storage: EZVIZ CloudPlay (subscription required)
• Power supply: DC 5V/2A via Type-C, max. 8W
• Dimensions: 100 × 100 × 98 mm
• Weight: 310 g (net)
• Operating conditions: -20°C to 50°C, humidity 95% or less (non-condensing)
• Certifications: CE / UKCA / WEEE / RoHS / REACH / UL

In the box

• Camera
• Power Adapter
• Power Cable
• Drill Template
• Mounting Plate
• Screw Kit
• Quick Start Guide

Downloads

View EZVIZ C7 Dual Lens Camera Datasheet
