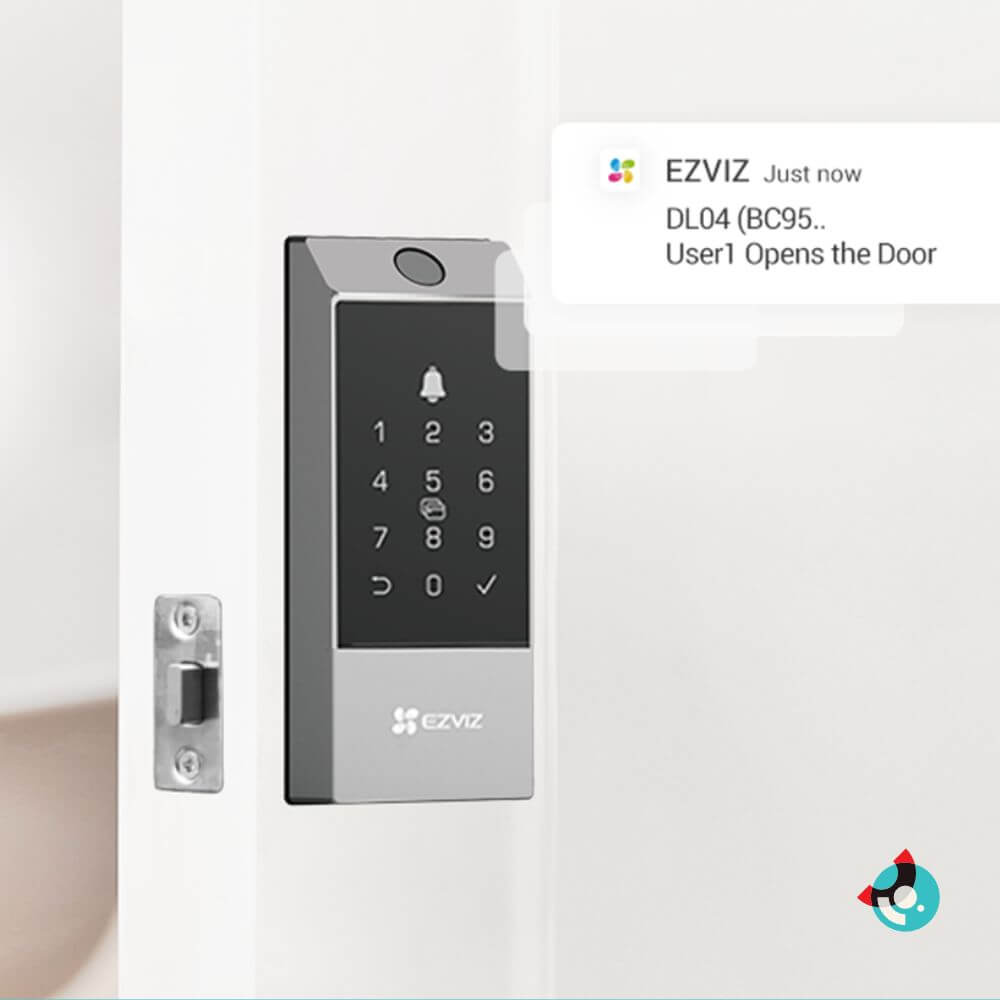

EZVIZ 5-in-1 Keyless Entry Smart Lock DL04 Pro

EZVIZ DL04 Pro Smart Lock - 5-in-1 Keyless Entry

Upgrade your front door with the EZVIZ DL04 Pro - a 5-in-1 smart lock that combines fingerprint access, PIN code, RFID card, mechanical key, and app control in one sleek, durable package. Built from aluminium and plastic and designed for Australian homes and businesses, the DL04 Pro delivers reliable keyless entry with real-time notifications straight to your phone.

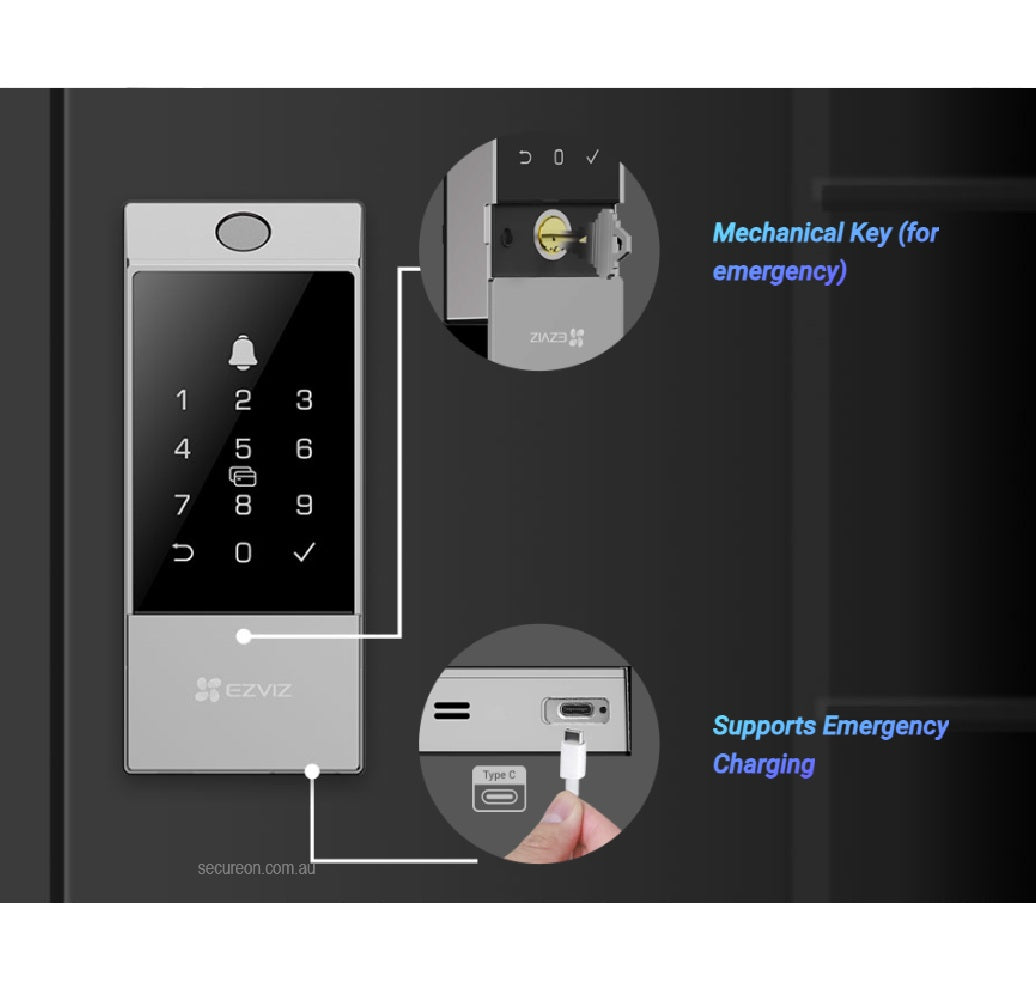

• 5-in-1 unlock methods: fingerprint, PIN, RFID card, Bluetooth key, and mechanical key
• 2.4G Wi-Fi and Bluetooth enabled for remote access and control
• Real-time notifications and access logs via the EZVIZ app
• Privacy mode to disable all electronic access when needed
• Supports up to 50 fingerprint, password, Bluetooth, and proximity card groups
• Anti-tamper and anti-test alerts for added security
• Powered by 4 AA alkaline batteries with low battery alert
• Operating temperature: -20°C to 60°C

Is this the right lock for you?

If you want a straightforward upgrade from a traditional deadbolt - with the convenience of fingerprint access and remote monitoring - the DL04 Pro is a practical, well-priced choice for residential and light commercial use.

Specifications

• Model: CS-DL04 Pro
• Material: Aluminium + Plastic
• Dimensions: Front Panel: 160 × 67 × 25 mm | Rear Panel: 166 × 70 × 28.5 mm
• Communication: EZVIZ Connect 2.4G Wi-Fi
• Working power: 4 AA Alkaline Batteries
• Working condition: -20°C to 60°C, Humidity 10% to 95% (non-condensing)

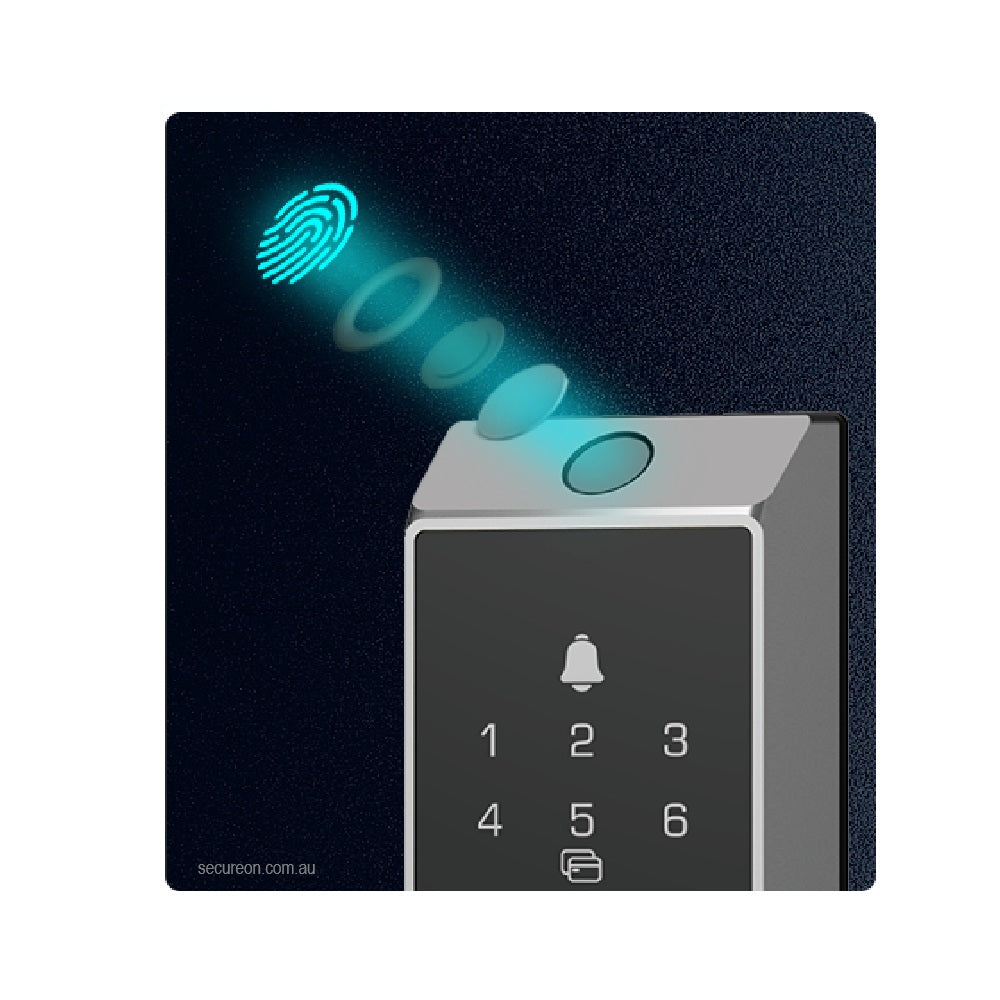

• Fingerprint unlock: Supports (max. 50 groups)
• Password unlock: Supports (max. 50 groups, 6 to 10 digits)
• Bluetooth key: Supports (max. 50 groups)
• Proximity card: Supports
• Virtual passcode: Supports
• Remote unlock: Supports
• Temporary passcode: Supports
• Privacy mode: Supports (via EZVIZ app)
• Anti-tamper alert: Supports
• Anti-test alert: Supports (locked for 3 minutes after 5 errors in 5 minutes)
• Low battery alert: Supports
• Certifications: CE (EMC/LVD/RED/ROHS) / BHMA / REACH / SVHC / WEEE

In the box

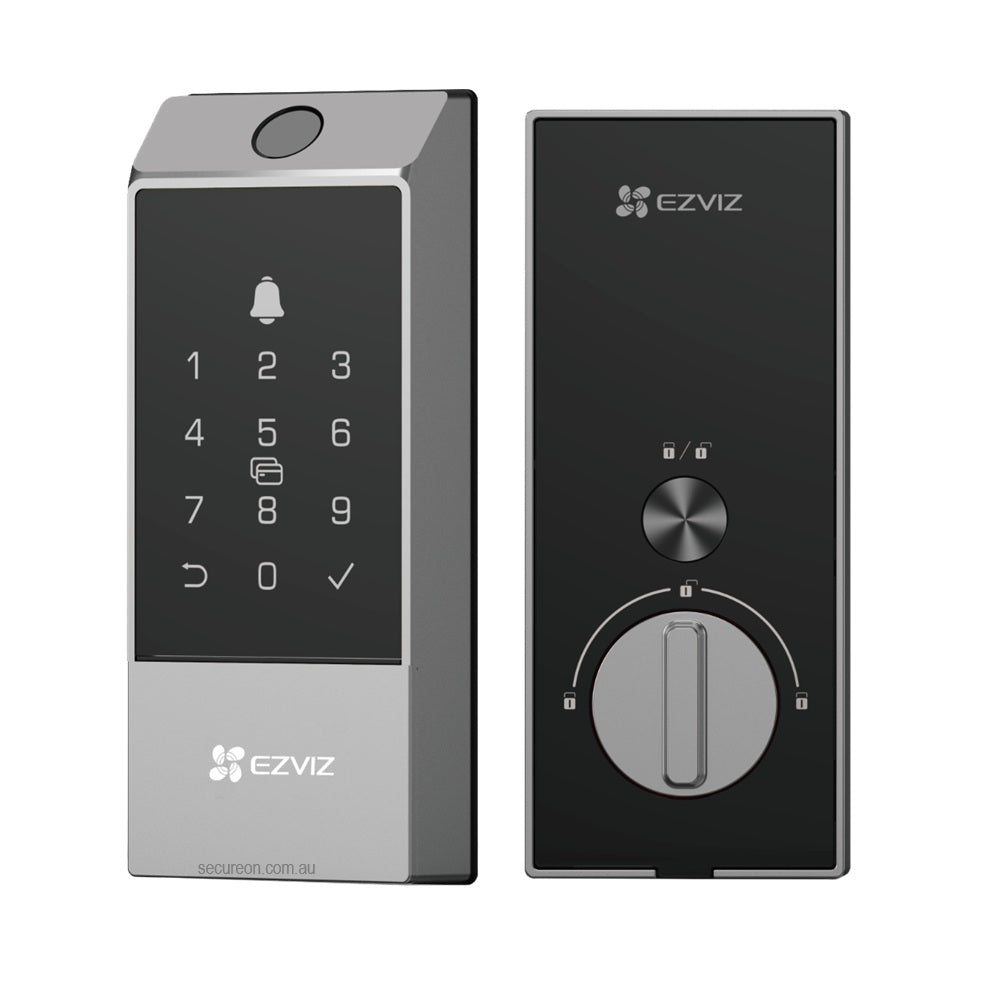

• DL04 Pro Front Panel
• DL04 Pro Rear Panel
• Screw Kit
• Mounting Bracket
• AA-Sized Battery × 4
• Proximity Card × 2
• Lock Cylinder Kit
• Lock Body Kit
• Hole Template
• Quick Start Guide

Downloads

View EZVIZ DL04 Pro Smart Lock User Manual
