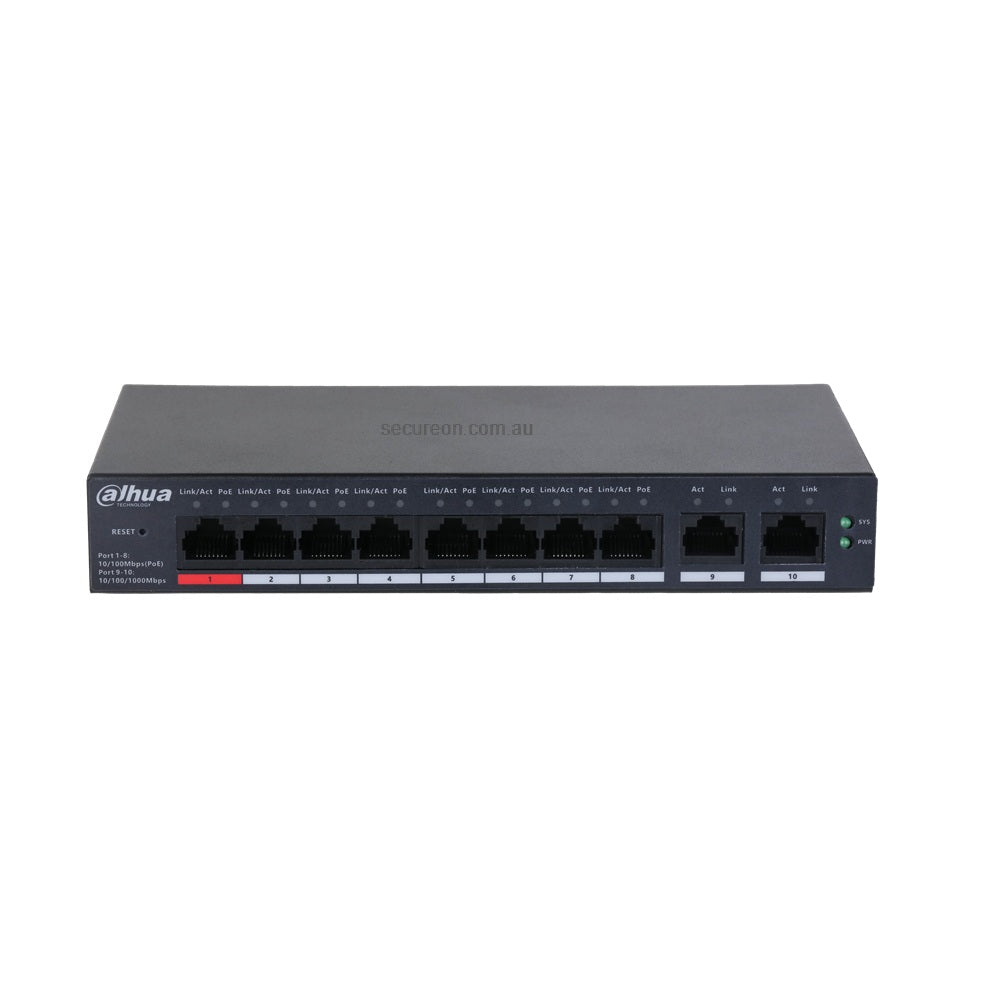

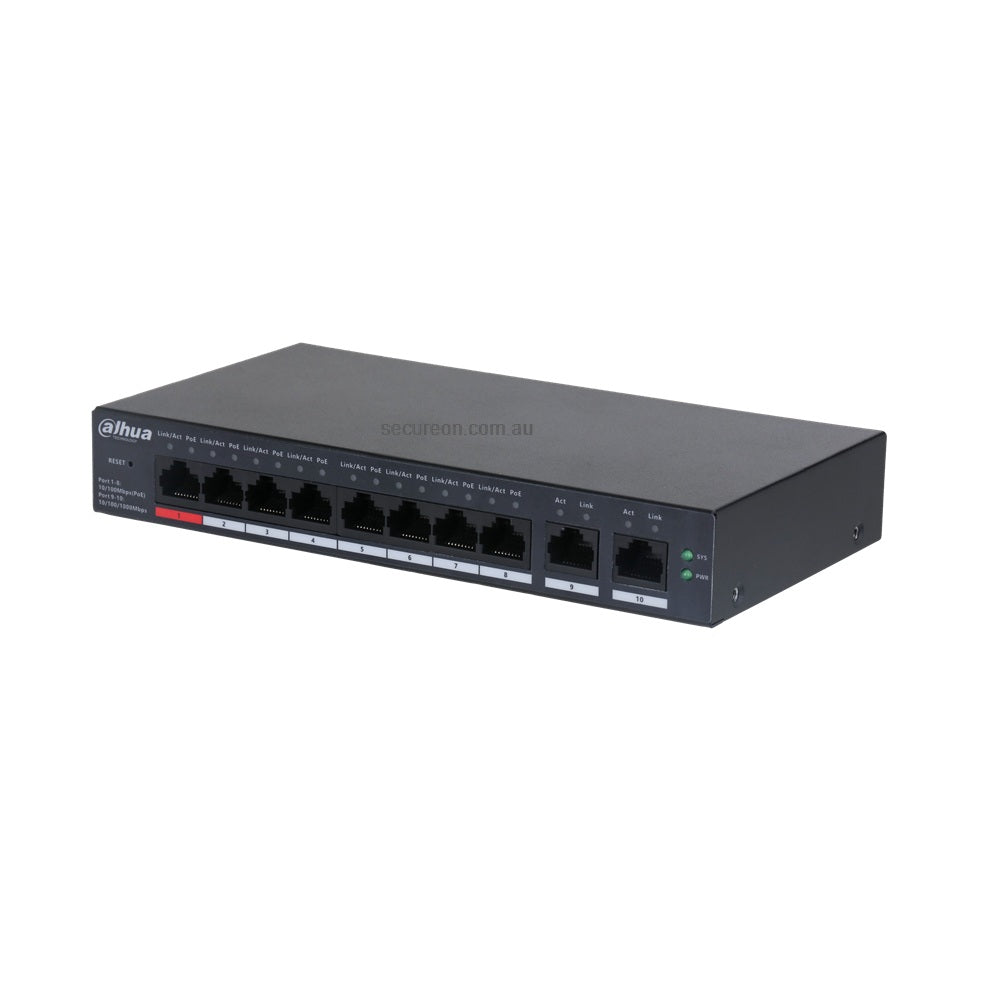

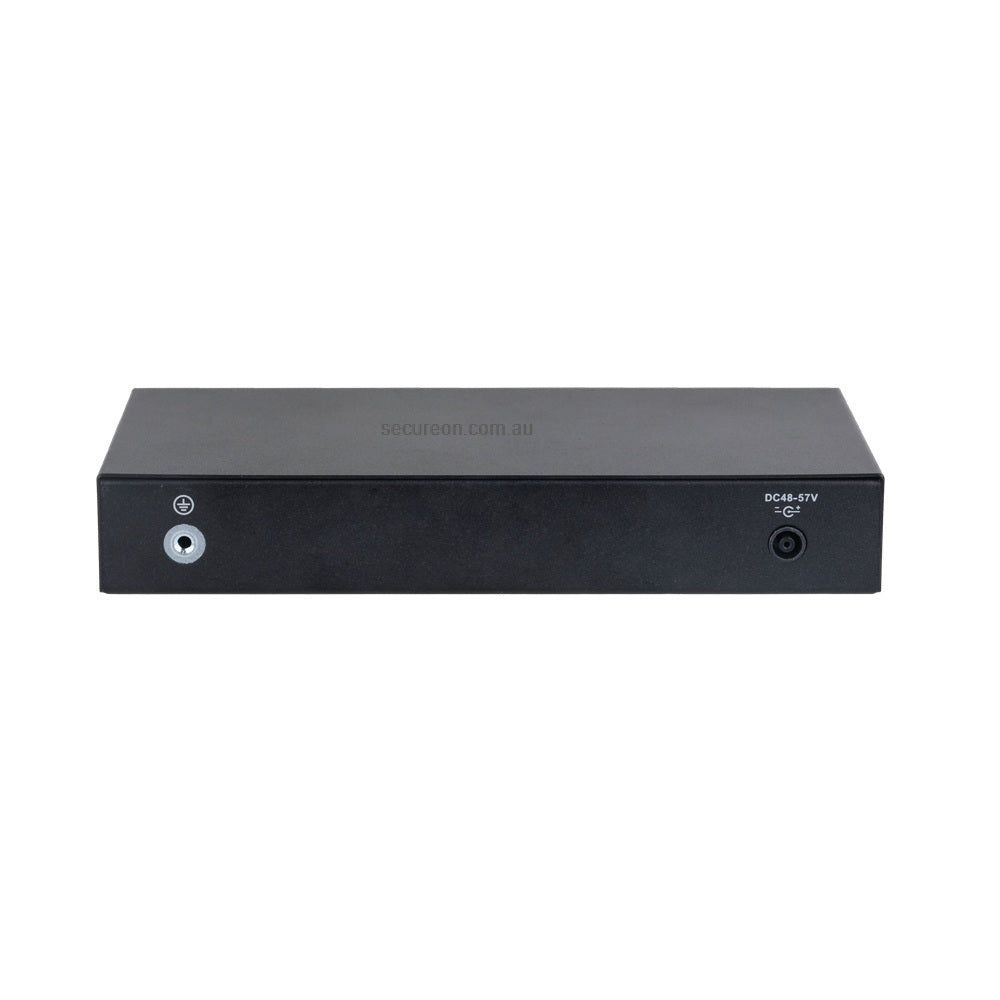

Dahua 10 Port Cloud Managed Switch - 8 PoE Ports, Layer 2 - DH-CS4010-8ET-110

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）

Reset Button

1

Power Supply

External power supply: 54 VDC, 2.22 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ≤3 W; Full load: 110 W

Performance

Layer

Layer 2

Management Type

Yes

Smart Managed Switch

Yes

MTBF

150 years

Switching Capacity

5.6 Gbps

Packet Forwarding Rate

4.17 Mpps

Packet Buffer Size

4 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

8K

VLAN Number

32

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1,2,4,5（V+）,3,6,7,8（V-）

Long Distance PoE Transmission

Yes

VLAN Function

Port-based VLAN

IEEE 802.3x Flow Control

Yes

DHCP Function

DHCP Client

Equipment Management

Web management; App management

General

Statics Protection

Air discharge: 8 kV; Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV; Differential mode: 2 kV

Net Weight

0.5 kg (1.10 lb)

Gross Weight

1.25 kg (2.76 lb)

Product Dimensions

190 mm × 106 mm × 30 mm (7.48" × 4.17" × 1.18") (L × W × H)

Packaging Dimensions

256 mm × 244 mm × 87 mm (10.07" × 9.61" × 3.43") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; wall mount

Certifications

CE
