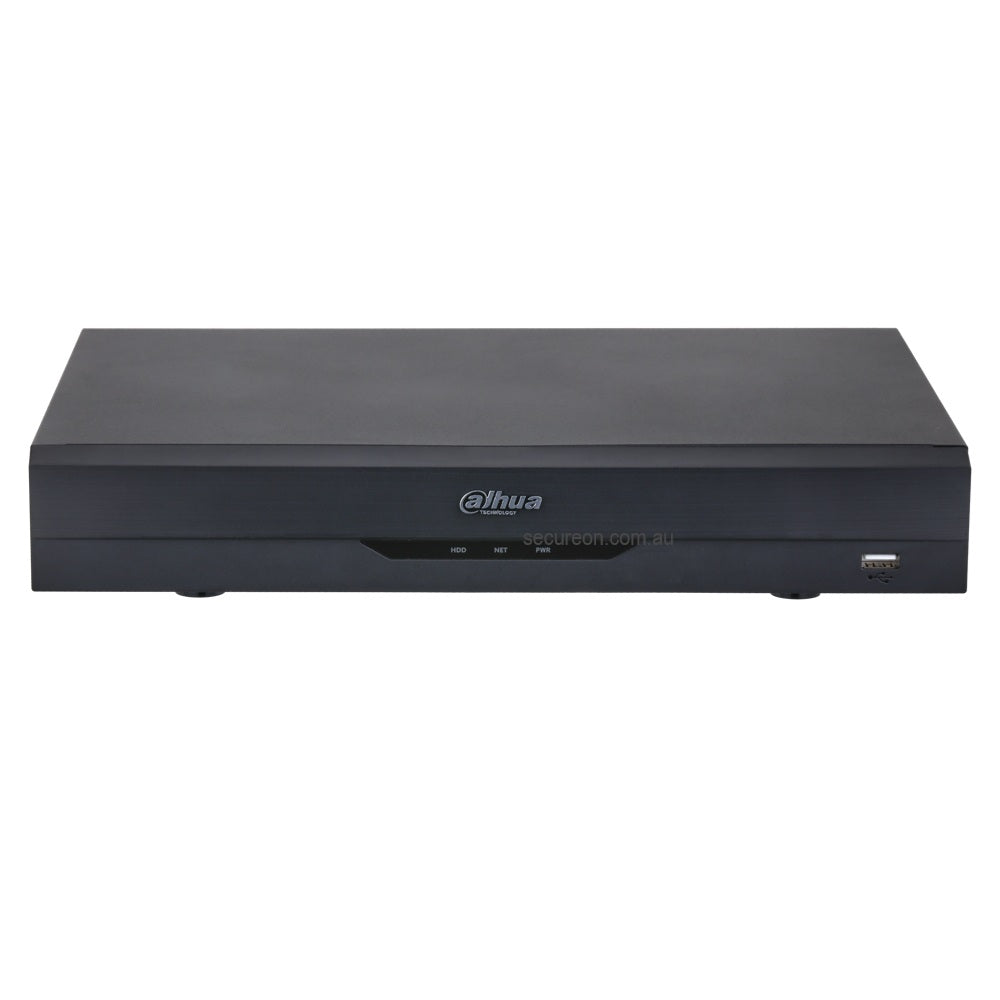

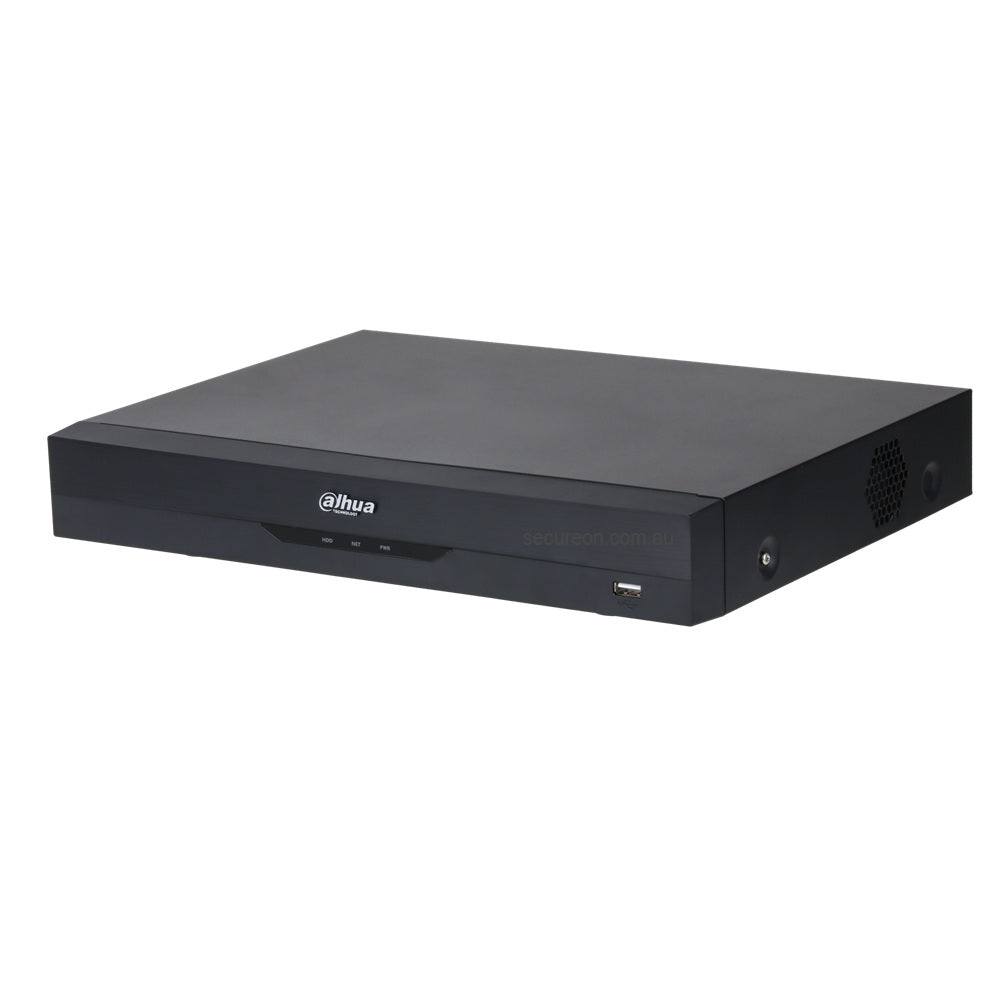

Dahua 4CH XVR 4K Penta-brid DVR WizSense AI No HDD | DH-XVR5104HS-4KL-I3
SKU:
DH-XVR5104HS-4KL-I3-S2
- $219inc. GST
- $219inc. GST
- Unit price
- per
10 customers are viewing this product
Please hurry! Only 20 left in stock
Typically shipped within 1 - 3 business days
Free standard shipping on orders over $200
Back-to-base Australian warranty
Free tech support
14-day return policy
The Dahua XVR5104HS-4KL-I3 is a 4-channel 4K Penta-brid XVR from the 4K Value/5MP Series, supporting HDCVI, AHD, TVI, CVBS, and IP cameras. Powered by WizSense AI, it delivers intelligent analytics including SMD Plus, perimeter protection, face detection, face recognition, and QuickPick 2.0 — all from the recorder itself. Ideal for small-to-medium installations requiring high-resolution recording with advanced AI capabilities.
- 4-channel Penta-brid: HDCVI / AHD / TVI / CVBS / IP
- 4K (8MP) recording support with H.265+ / Smart H.264+ compression
- WizSense AI: SMD Plus, Perimeter Protection, Face Detection & Recognition
- QuickPick 2.0 AI — 2-channel intelligent search
- Up to 8 IP channels (4 default + 4 via analog-to-IP conversion)
- HDMI (4K) + VGA dual output
- 1 SATA port — supports up to 16 TB HDD (not included)
- Mobile access via iOS & Android; P2P cloud connectivity
- Compact desktop form factor — 260 × 237.8 × 47.6 mm
Downloads
Specifications
| Category | Specification | Detail |
|---|---|---|
| System | Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux | |
| Operating Interface | Web; Local GUI | |
| AI Features | QuickPick 2.0 | 2 channels |
| Perimeter Protection | Advanced Mode: 2 channels (10 IVS rules/ch); General Mode: 4 channels (10 IVS rules/ch) | |
| Face Detection | 2 channels (up to 8 face images/s per channel); 6 face attributes | |
| Face Recognition | 2 channels; up to 10 face databases with 20,000 images | |
| SMD Plus (by Recorder) | 4 channels — secondary filtering for human & vehicle; reduces false alarms from leaves, rain & lighting changes | |
| SMD Plus (by Camera) | 8 channels | |
| Privacy Protection | 1 channel | |
| AI Video Analytics | Video Quality Analytics | 4 channels — brightness, colour cast, defocus, overexposure, contrast, black & white detection |
| Scene Changing / Black Block Masking / EPTZ | 1 channel each | |
| Audio & Video | Analog Camera Input | 4 × BNC — HDCVI / AHD / TVI / CVBS auto-detect |
| CVI Input | 4K@25/30fps; 4K@12.5/15fps; 6MP@20fps; 5MP@25/20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30/50/60fps | |
| IP Camera Input | Up to 8 channels (4 default + 4 via analog conversion); 64 Mbps in/recording/out bandwidth | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 | |
| Audio Compression | G.711a; G.711u; PCM | |
| Video Bit Rate | 32 kbps – 6,144 kbps | |
| Video Output | HDMI | 1 × HDMI — 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 |
| VGA | 1 × VGA — 1920×1080 / 1280×1024 / 1280×720 | |
| Multi-screen Display | 1/4 (standard); 1/4/8/9 (IP extension mode) | |
| Audio | Audio Input | 1 × RCA; 4 × BNC (coaxial audio) |
| Audio Output | 1 × RCA | |
| Audio Sampling | 8 kHz, 16-bit; 64 kbps | |
| Recording & Playback | Record Modes | General; Alarm; Motion Detection; Intelligent; POS |
| Playback Modes | Instant; General; Event; Tag; Smart Playback | |
| Simultaneous Playback | 1/4 channels | |
| Backup | USB device; Network | |
| Alarm | General Alarms | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarms | No disk; disk error; low space; network disconnection; IP/MAC conflict; video loss; video tampering; camera offline | |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email | |

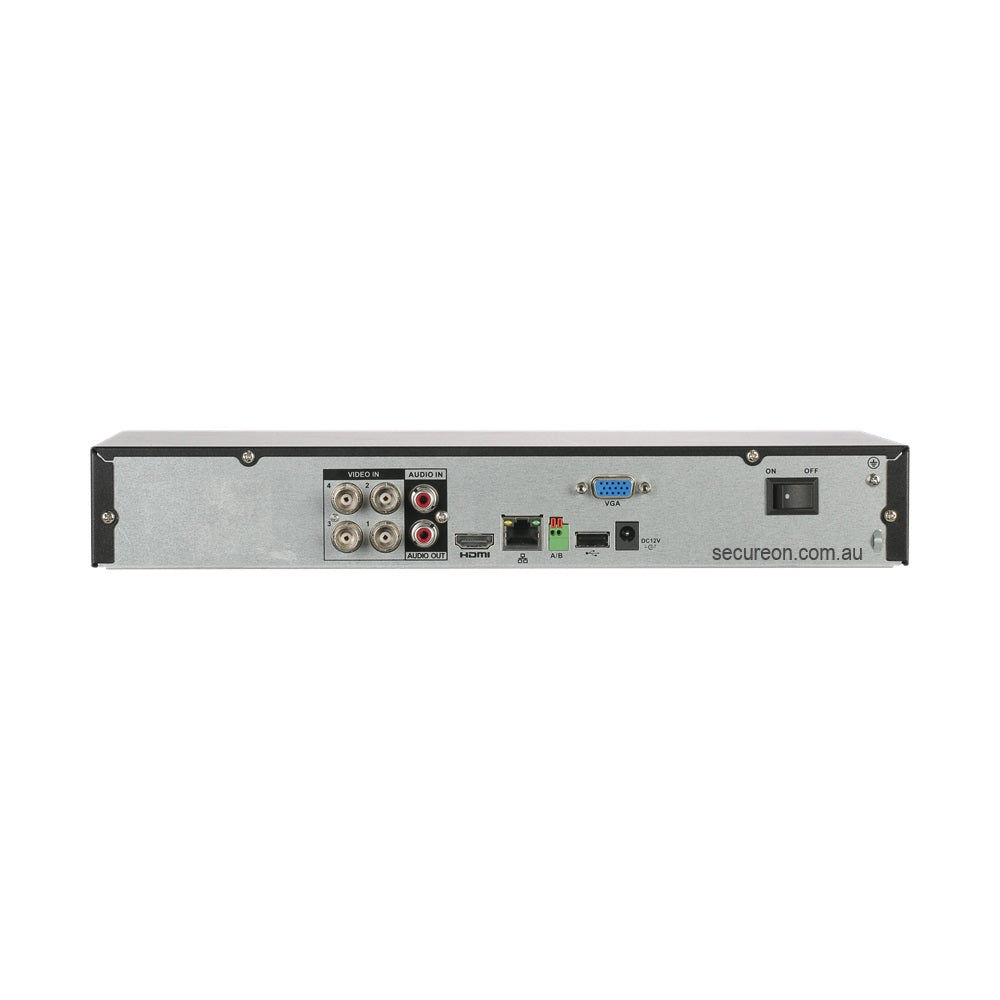

| Ports & Interfaces | USB | 2 × USB 2.0 (1 front, 1 rear) |
| Network | 1 × RJ-45 (10/100 Mbps Ethernet) | |
| RS-485 | 1 | |
| HDD Interface | 1 × SATA — up to 16 TB | |
| HDMI / VGA | 1 × HDMI; 1 × VGA | |
| Two-way Talk | Yes (shared with channel 1 audio input) | |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF | |
| Network | Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; FTP; DDNS; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF 24.06 (Profile T/S/G); CGI; SDK | |
| Mobile Access | iOS; Android | |
| Browser Support | Chrome; IE; Safari; Edge; Firefox | |
| General | Power Supply | 12 VDC, 2 A |
| Power Consumption | <7 W (without HDD) | |
| Net Weight | 0.96 kg (2.12 lb) | |
| Product Dimensions | 260.0 × 237.8 × 47.6 mm (W × D × H) | |
| Operating Temperature | −10 °C to +55 °C | |
| Storage Temperature | −20 °C to +60 °C | |
| Operating Humidity | 10%–90% RH, non-condensing | |
| Installation | Desktop | |
| Certifications | CE-LVD (IEC 62368-1); CE-EMC (EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035) |
