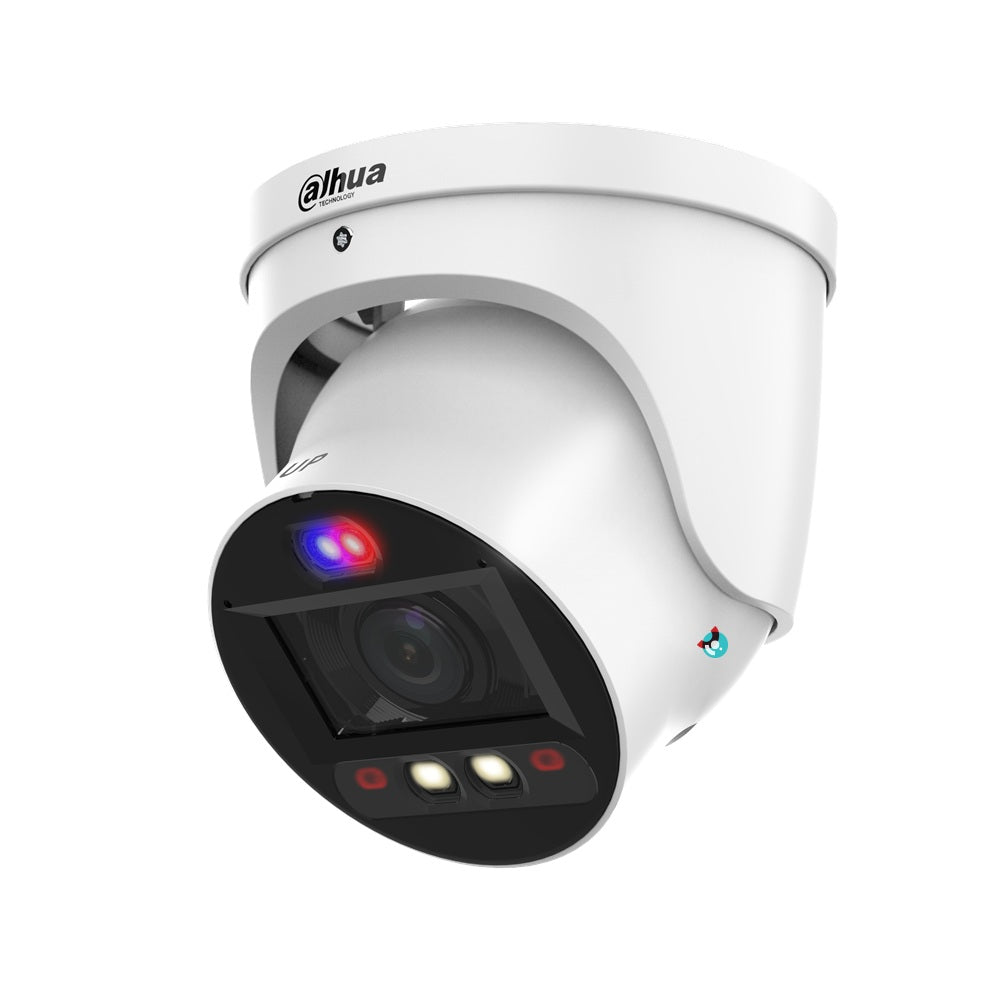

Dahua 6MP TIOC Eyeball Turret Camera - Varifocal 2.7-13.5mm, Built-in Mic & Speaker, SMD 4.0 - DH-HDW3649H-ZAS-PV-ANZ-S2

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3072 (H) × 2048 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ16

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.0

Field of View

H: 113°–36°
V: 57°–20°
D: 137°–40°

Iris Control

Fixed

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

65.2 m (213.91 ft)

26.1 m

(85.63 ft)

13.0 m

(42.65 ft)

6.5 m

(21.33 ft)

T

186.6 m (612.20 ft)

74.6 m

(244.75 ft)

37.3 m

(122.38 ft)

18.7 m

(61.35 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3072 × 2048@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

6M (3072 × 2048); 5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M 2304 ×1296/2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240)

Bit Rate Control

CBR/VBR/ABR

Video Bit Rate

H.264:3 kbps–16384 kbps
H.265:3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection;defocus detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G; Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 9/11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encryption; firmware encryption; configuration

encryption; Digest; WSSE; account lockout; security logs;

IP/MAC filtering; generation and importing of X.509

certification; syslog; HTTPS; 802.1x; trusted boot; trusted

execution; trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directve
2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 4 W (12 VDC); 5 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.5 W (12 VDC); 10.6 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

127.6 mm × Φ122.0 mm (5.02" × Φ4.80")

Net Weight

0.885 kg (1.95 lb)

Gross Weight

1.060 kg (2.34 lb)
