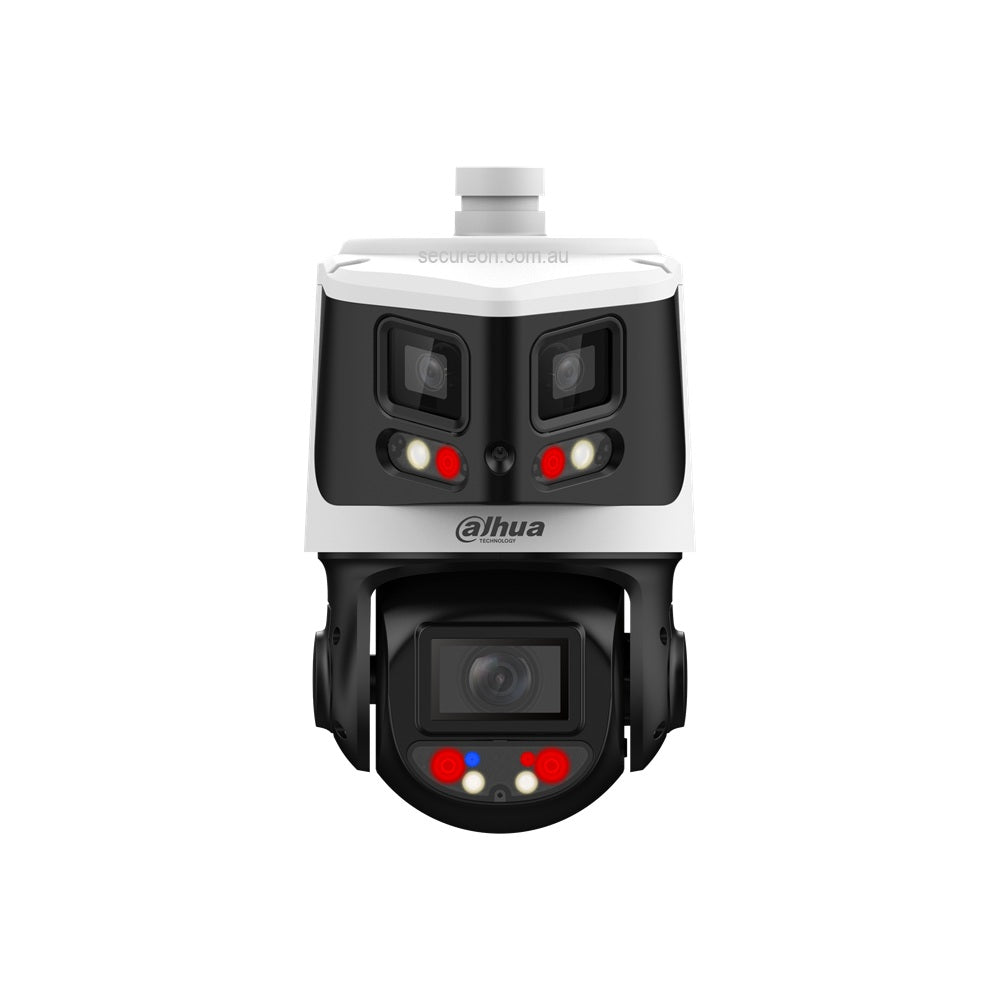

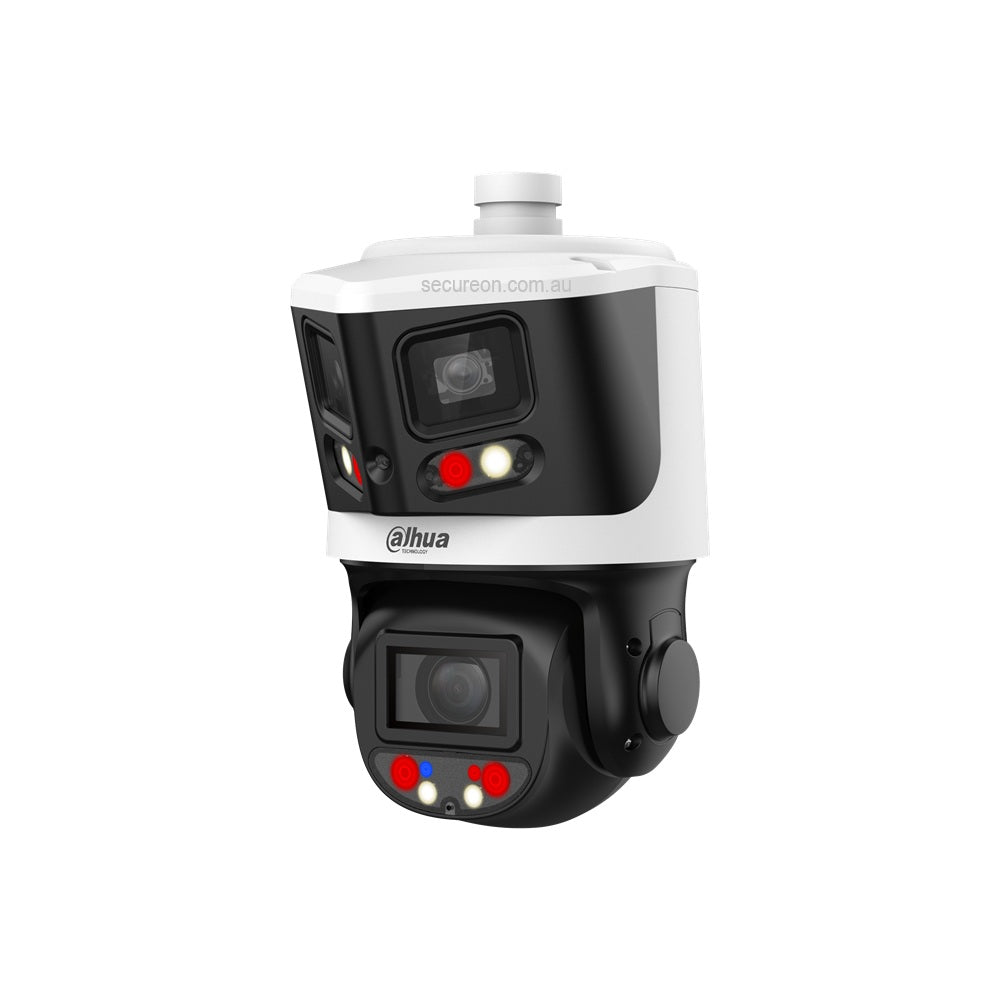

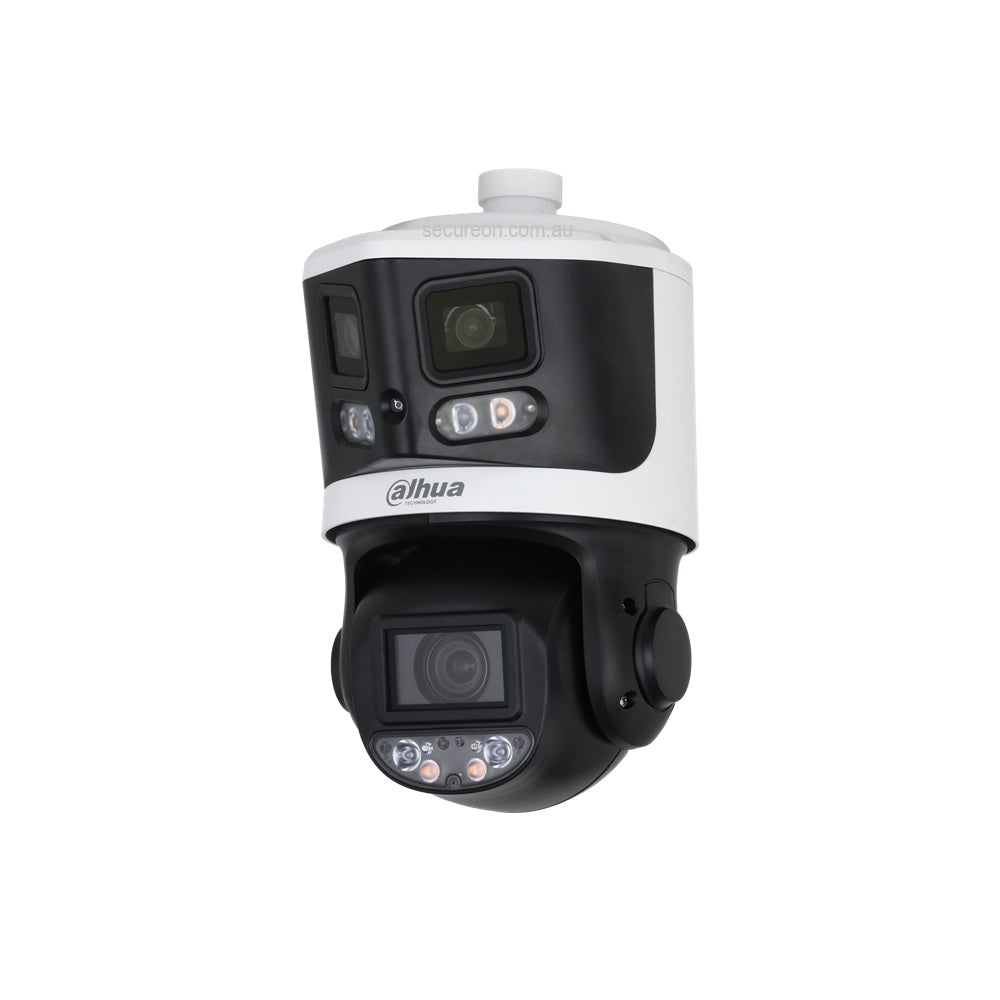

Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1

Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1

SKU: DH-SDT3E410-8P-MB-A-PV1
$650inc. GST
$650inc. GST
10 customers are viewing this product
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
Please hurry! Only 20 left in stock
  • Secure On Australia

Typically shipped within 1 - 3 business days

Free standard shipping on orders over $200

Back-to-base Australian warranty

Free tech support

14-day return policy

Tags: / / / / / / / / / / / / / / / / / / / / / / / /
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1

Dahua

Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1

$650
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1
Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1

Dahua

Dahua 8MP+4MP 10x TIOC Panoramic PTZ Camera - Dual Lens, Active Deterrence - DH-SDT3E410-8P-MB-A-PV1

$650
Product Details

The Dahua SDT3E410-8P-MB-A-PV1 is a dual-lens TIOC panoramic PTZ camera combining an 8MP wide-angle overview channel with a 4MP 10× optical zoom PTZ detail channel. Designed for large-area surveillance with simultaneous panoramic and detail views, it features WizTracking AI-driven smart tracking, active deterrence with red/blue warning lights and audio alarms, and robust IP66 + TVS 6000V protection — ideal for perimeters, car parks, and large open spaces.

Key Features

  • Captures a large area and great details at the same time
  • High-quality imaging with 8MP resolution for overview channel, 4MP for PTZ channel
  • Red & blue warning lights and alarm sounds for active deterrence
  • Enhanced deep learning-based human and vehicle classification
  • Smart dual light: expansive night view with up to 70 m IR distance and 30 m white light
  • IP66 & TVS 6000V protection with lightning / surge / voltage transient resistance

Downloads

Specifications

Category Specification Overview Channel Detail Channel (PTZ)
Camera Image Sensor 1/2.8" CMOS 1/2.8" CMOS
Pixels 8 MP 4 MP
Max. Resolution 5376 × 1520 2560 × 1440
ROM / RAM 4 GB / 2 GB 4 GB / 1 GB
Electronic Shutter 1 s – 1/100,000 s 1 s – 1/30,000 s
Scanning System Progressive
Min. Illumination 0.005 lux@F1.6 (Color); 0.0005 lux@F1.6 (B/W); 0 lux (illuminator on) 0.005 lux@F1.6 (Color); 0.0005 lux@F1.6 (B/W); 0 lux (illuminator on)
Illumination Distance 30 m IR; 30 m white light 70 m IR; 30 m white light
Lens Focal Length 2.8 mm 4 mm – 40 mm
Max. Aperture F1.6 F1.6 – F3.6
Field of View H: 180°; V: 47° H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°
Optical Zoom N/A 10×
Digital Zoom N/A 16×
Close Focus Distance 0.6 m 0.1 m – 0.5 m
PTZ Pan / Tilt Range Pan: 0°–345°; Tilt: –10° to +90°
Manual Control Speed N/A H: 0.1°–80°/s; V: 0.1°–50°/s
Preset Speed / Count H: 80°/s; V: 50°/s; 300 presets
Tour / Idle Motion 8 tours (up to 32 presets/tour); Preset; Tour
DORI Distance
Detect 500 m (1640 ft)
Observe 197.5 m (648 ft)
Recognize 100 m (328 ft)
Identify 50 m (164 ft)
Intelligence IVS Perimeter Protection Tripwire; intrusion; crossing fence; loitering; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle classification; linkage tracking
Face Detection N/A Face detection, optimisation, capture & upload; 6 attributes + 8 expressions; face cutout; real-time / quality-first / group snapshot modes
Auto Tracking Auto Tracking Lite; WizTracking (large-scale AI model-driven human tracking)
SMD Yes
AcuPick Deep learning target matching for people & vehicles across live and recorded video (overview channel)
Auto Patrol Links with up to 5 presets or scan after IVS alarm; IVS + SMD simultaneous
Active Deterrence Light Warning Red & blue flashing lights; duration: 5–30 s; frequency: high / medium / low
Sound Warning 11 built-in + 10 custom alarms; volume 0–100%; play times 1–10
Video Compression H.264H/B/M; Smart H.265+; H.265; Smart H.264+; MJPEG (Sub Stream 1)
Streams 3 streams
Main Stream Frame Rate 5376×1520 @ 1–25/30 fps 4M/3M/1080p/1.3M/720p @ 1–25/30 fps
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 128–16,384 kbps; H.265: 51–13,312 kbps H.264: 96–16,384 kbps; H.265: 38–10,240 kbps
Day/Night Auto; Color; B/W Auto; Color; B/W; Electronic
WDR DWDR 120 dB
Image BLC / HLC Yes / Yes
Noise Reduction 2D NR; 3D NR
Image Stabilisation N/A Electronic (EIS)
S/N Ratio ≥55 dB
Audio Compression PCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729 N/A
Audio Input 1 ch (LINE IN / built-in mic — mutually exclusive)
Audio Output 1 ch (LINE OUT / built-in speaker — mutually exclusive)
Network Network Port RJ-45 (100 Base-T)
Protocols TCP/IP; IPv4/IPv6; HTTP; HTTPS; RTSP; RTMP; RTP; RTCP; UDP; SMTP; FTP; NFS; NTP; DHCP; DNS; DDNS; UPnP; SNMP; QoS; 802.1x; PPPoE; Bonjour; IGMP; ICMP; ARP; SSL
Interoperability ONVIF (Profile S/G/T); CGI; SDK; P2P
Streaming Unicast / Multicast; up to 20 users (64 Mbps total)
Storage Micro SD (up to 512 GB); FTP/SFTP; NAS
Alarm Alarm Input / Output 1 input (0–5 VDC); 1 output
Alarm Events Motion/tampering; network disconnection; IP conflict; memory card state/space detection
Alarm Linkage Capture; recording; email; preset; alarm output; audio; warning light
Power Power Supply 12 VDC 3 A ±10%; PoE+ (802.3at)
Power Consumption Basic: 12 W; Max: 25 W (illuminator + heating glass + active deterrence + PTZ)
Protection IP66; TVS 6000V lightning proof; surge protection; voltage transient protection
General Operating Temperature –30 °C to +60 °C
Operating Humidity ≤95%

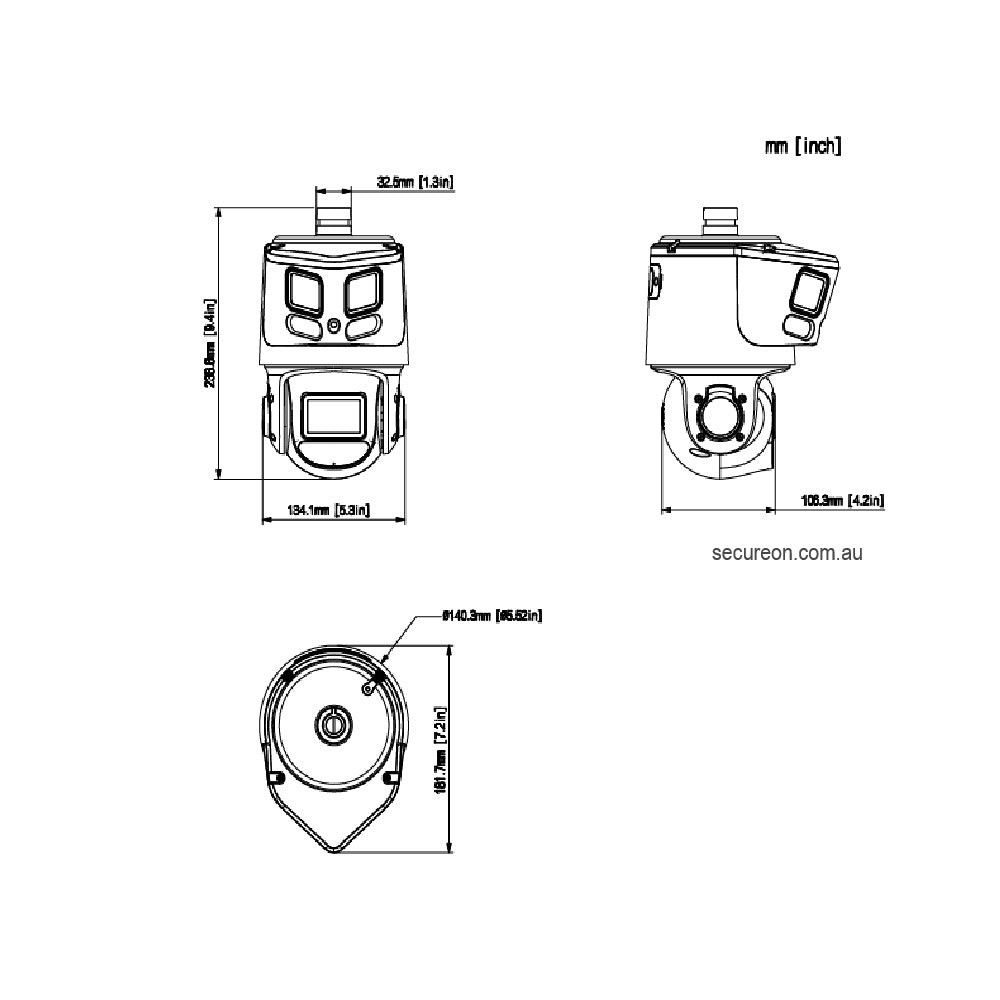

Product Dimensions 140.3 × 181.7 × 238.8 mm (L × W × H)
Net Weight 2.17 kg (4.78 lb)
Certifications CE: EN55032 / EN55035 / IEC61000-3-2 / IEC61000-3-3 / EN62368-1 / IEC62471
