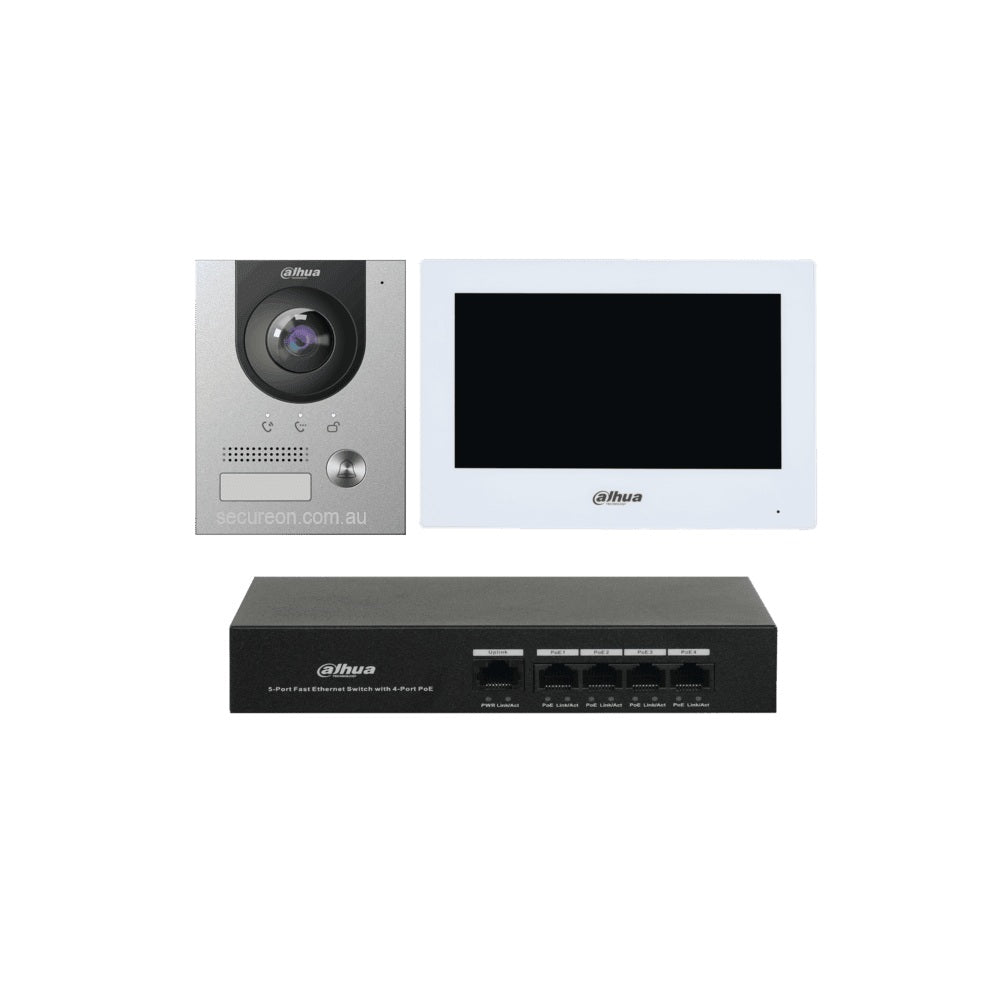

Dahua IP Villa Intercom Kit - VTO2201F-P, VTH2621GW-P, 4 PoE Switch, Surface Mount - KTP01L(S)-S2

System(VTO)

Main Processor

Embedded Processor

Operating System

Embedded Linux Operation System

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4

Basic(VTO)

Camera

1/2.9" 2 MP CMOS

Field of View

H: 168.6°; V: 87.1°; D: 176.7°

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.265; H.264

Video Resolution

Main stream: 720p; WVGA; D1; CIF
Sub stream: 1080p; WVGA; D1; QVGA; CIF

Video Frame Rate

25 fps

Video Bit Rate

256 kbps to 8 Mbps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 bits

Function(VTO)

Communication Mode

Full digital

Unlock Mode

Remote

Leave Videos

Yes (SD card is inserted in the indoor monitor or door station)

Storage

Supports Micro SD card (up to 256 GB)

Web Configuration

Yes

Performance(VTO)

Casing Material

Aluminum

Port(VTO)

RS-485

1

Alarm Output

1

Power Output

1 port (12 V, 600 mA)

Exit Button

1

Door Status Detection

1

Lock Control

1

Network Port

1 × RJ-45 port, 10/100 Mbps network port

Alarm(VTO)

Tamper Alarm

Yes

General(VTO)

Appearance Color

Silver

Power Supply

48 VDC, 0.4 A;
PoE (802.3af/at)

Power Adapter

Optional

Installation

Surface mount (The surface mount kit comes with the surface mount bracket)

Certifications

CE

Product Dimensions

200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")

Protection

IK08, IP65 (Silicone sealant is needed, see the quick start guide)

Operating Temperature

–40 °C to +60 °C (–40 °F to +140°F)

Operating Humidity

10%–95% (RH), non-condensing

Operating Altitude

Beneath 3000 m (9842.52 ft)

Operating Environment

Outdoor

Power Consumption

≤5 W (standby), ≤7 W (working)

Gross Weight

692 g (1.53 lb)

Storage Humidity

30%–75% (RH)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

System (VTH)

Main Processor

Embedded Processor

Operating System

Embedded Linux Operation System

Basic (VTH)

Screen Type

Capacitive Touchscreen

Display Screen

7" TFT

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1-channel all-direction microphone

Audio Output

Built-in 1.5 W loudspeaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kbps

Function (VTH)

Communication Mode

Full digital

Information Release

Supports to receive and view notifications issued by center

Leave Videos

Yes

DND Mode

Do not disturb period can be set

Number of Extensions

9

Storage

Embedded 8 GB card

Port (VTH)

Alarm Input

6 channel (switch quantity)

Alarm Output

1 channel

Network Port

1 × RJ-45 port

Alarm(VTH)

SOS Alarm

Yes

Performance(VTH)

Casing Material

PC + ABS

General (VTH)

Appearance Color

Black

Power Supply

12 VDC, 1 A, PoE

Installation

Surface Mount

Certifications

CE; FCC; UL

Accessory

Default bracket Default alarm cable

Product Dimensions

119.6 mm × 221.5 mm × 23.5 mm (4.71" × 8.72" × 0.93")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%-95% (RH), non-condensing

Operating Altitude

0 m–3,000 m (0 ft–9,842.52 ft)

Operating Environment

Indoor

Power Consumption

≤4 W (standby), ≤6 W (working)

Gross Weight

0.35 kg (0.77 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75% (RH), non-condensing

Storage Humidity

30%–75% (RH)

System(Networking Device)

Main Processor

Embedded Processor

Port(Networking Device)

Network Port

4 × PoE ports with 10/100 Mbps Base-TX
2 × uplink ports with 10/100 Mbps Base-TX

General (Networking Device)

Appearance Color

Black

Power Supply

Built-in power supply: 100–240 VAC

Certifications

CE; FCC

Product Dimensions

194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" ×1.38")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Power Consumption

Idling: 0.5 W; Full load: 36 W

Gross Weight

1.11 kg (2.15 lb)
