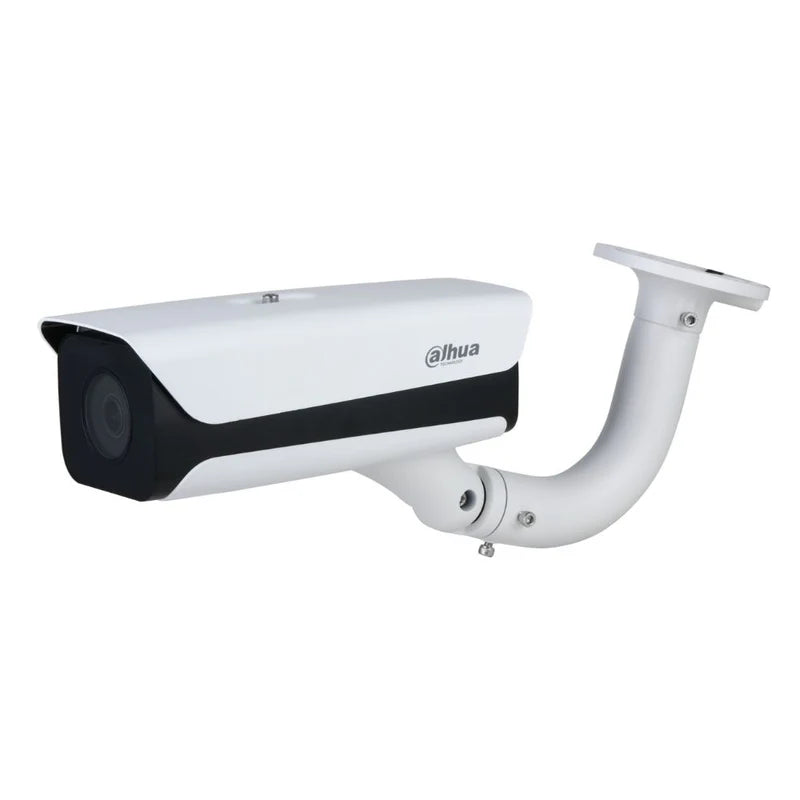

Dahua ITC215-PW6M-IRLZF-B is a license plate camera with a 1/2.8-in. CMOS sensor and 1080p resolution at 30 frames per second. Its 3.2-10.5 mm varifocal lens can capture license plates of vehicles travelling up to 37 mph. The camera can be mounted between 9.84 ft and 26.25 ft from the vehicles and supports traffic management and parking solutions when paired with a Dahua NVR or DSS Video Management System.
Dahuas's Automatic Number Plate Recognition (ANPR) cameras are designed to be installed on vehicle entrances. These devices come embedded with License Plate Recognition Algorithm to improve detection and recognition of each vehicle.
Dahua 2MP Access ANPR Security Camera ITC215-PW6M-IRLZF-B Datasheet
Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
6 IR illuminators, brightness adjustable |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8'' CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Resolution |
1920 × 1080 (OSD black strip excluded) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
Mainstream: 1080P (1920 × 1080)/720P (1280 × 720) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate |
H.264B: 32Kbps–32768Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264B/H.264M/H.264H/H.265/MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Picture Encoding Format |
JPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Full auto, auto colour temperature range, customized colour temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
1/50–1/10000, auto or manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
96 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Enhancement |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exposure Mode |
Full auto, customized auto, customized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Auto iris (W: 1.6–T: 3.3) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Trigger Mode |
Video detection; I/O coil; video detection and I/O coil |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shutter |
Single shutter |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Tampering Prevention |
Yes. Video/picture can be checked through watermark and verification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal: 108.1° (W)–30.3° (T); Vertical: 56.3° (W)–17.1° (T); Diagonal: 130.9° (W)–34.8° (T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
12 m (39.37 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security |
Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSD Overlay |
Supports overlay of time, address (position of the channel), lane (number/direction), plate (number and colour), vehicle (speed, colour, type) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Automatic Network Replenishment (ANR) |
Yes. Platform/FTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle Detection |
Vehicle capture rate ?99% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle Recognition |
Supports recognizing vehicle type, vehicle logo, vehicle series, vehicle colour, |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Track Frame |
Intelligent frame display. Supports displaying vehicle plate and vehicle path |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
?14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 100/1000M Ethernet port (RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
3, optocoupler input (on-off input) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V DC, 24V AC, PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
< 20W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
?30°C to +65°C (?22°F to +149 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%RH–90%RH (no condensation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal and plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
296.5 mm × 124.3 mm × 107.7 mm (11.67'' × 4.89'' × 4.24'') (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
1.7 kg (3.75 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
2.3 kg (5.07 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Installed with universal mounting bracket |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
3.2 mm–10.5 mm |
