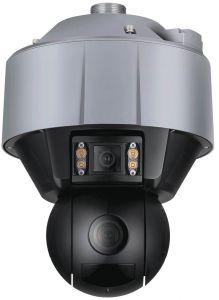

Dahua Security Camera 4MP Dual-PTZ 6mm & 10-50mm Starlight IR WizMind Series DH-SDT5X405-4F-0600-WA

Camera

Image Sensor

Panoramic: 1/1.8' CMOS
Detail: 1/1.8' CMOS

Pixel

Panoramic: 4MP
Detail: 4MP

Max. Resolution

Panoramic: 2688 (H) ×1520 (V)
Detail: 2688 (H) ×1520 (V)

ROM

8GB

RAM

4GB

Electronic Shutter Speed

Panoramic: 1/3 s–1/100000 s
Detail: 1/1 s–1/100000 s

Scanning System

Interlaced

Min. Illumination

Panoramic:
Color: 0.0005Lux@F1.0
B/W: 0.0001Lux@F1.0
Detail:
Color: 0.001Lux@F1.3
B/W: 0.0001Lux@F1.3
0Lux (IR light on)

Illumination Distance

Panoramic (white light):
20 m (75.46 ft)—face recognition
30 m (98.43 ft)—video metadata

Detail (IR light): 100 m (328.08 ft)

Illuminator On/Off Control

Panoramic: SmartIR/Manual/Off
Detail: Zoom Prio/Manual/SmartIR/Off

Illuminator Number

4 IR lights; 4 white lights

Lens

Focal Length

Panoramic: 6 mm
Detail: 10 mm–50 mm

Max. Aperture

Panoramic: F1.0
Detail: F1.3–F1.5

Field of View

Panoramic: H: 57°; V: 31°; D: 66°
Detail: H: 45°–10°; V: 26°–5.7°; D: 51°–11.5°

Optical Zoom

5x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

Panoramic: 0.2 m (0.66 ft)
Detail: 0.5 m–3 m (1.64 ft–9.84 ft)

Iris Control

Panoramic: Fixed
Detail: Auto

DORI Distance

Detect

Observe

Recognize

Identify

Panoramic: 110 m (360.89 ft)
Detail:
690 m (2263.78 ft)

Panoramic:
44 m
(144.36 ft)
Detail:
276 m
(905.51 ft)

Panoramic: 22 m
(72.18 ft)
Detail:
138 m (452.76 ft)

Panoramic: 11 m
(36.09 ft)
Detail:
69 m
(226.38 ft)

PTZ

Pan/Tilt Range

Panoramic:
Pan: 0°–360° endless; Tilt: 0°–30°
Detail:
Pan: 0°–250°; Tilt: -10°–90°

Manual Control Speed

Panoramic: Pan: 0.1°/s–100°/s; Tilt: 0.1°/s–25°/s
Detail: Pan: 0.1°/s-120°/s; Tilt: 0.1°/s-50°/s

Preset Speed

Panoramic: Pan: 100°/s; Tilt: 50°/s
Detail: Pan: 360°/s; Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

Artificial Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Recognition

Support

Video

Compression

H.265/H.265+/H.264+/H.264/MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

Panoramic:
4M (2688 × 1520); 4M (2560 × 1440); 1080P (1920 × 1080); 960P (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Detail:
4M (2688 × 1520); 4M (2560 × 1440); 1080P (1920 × 1080); 960P (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 4M/1080P/1.3M/720P (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080P/1.3M/720P/CIF (1–25/30 fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Bit Rate

H.264: 2816 kbps–13056 kbps
H.265: 1024 kbps–7936 kbps

Day/Night

Panoramic: Color/B/W;
Detail: Auto (ICR)

BLC

Support

WDR

Panoramic: 120dB;
Detail: 120dB

HLC

Support

White Balance

Panoramic: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Detail: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Support

Digital Zoom

16x

Flip

0°/180°

Audio

Compression

G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3(MIB-2); RTCP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (Total bandwidth 64M)

Storage

P2P; FTP; Micro SD (128G)

Browser

IE7 and later versions
Chrome 45 and earlier versions
Firefox 52 and earlier versions
Safari 12 and earlier versions

Management Software

SmartPSS/DSS/NVR

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4-2014

Port

Audio Input

1 (LINE IN bare wire)

Audio Output

1 (LINE OUT bare wire)

Alarm I/O

2/1
Digital input: 0–5V DC

Power

Power Supply

DC36V/2.23A±25%
Hi-PoE

Power Consumption

Basic: 21W
Max.: 40W (PTZ, zoom, focus, IR light, white light, and smart plan enabled)

Environment

Operating Temperature

-40°C to +70°C (-40°F to +158°F)

Operating Humidity

?95%

Protection

IP67; TVS 8000V lightning protection; surge protection

Structure

Dimensions

385 mm × ?277 mm (15.16' × ?10.91')

Net Weight

9 kg (19.84 lb)

Gross Weight

13.8 kg (30.42 lb)
