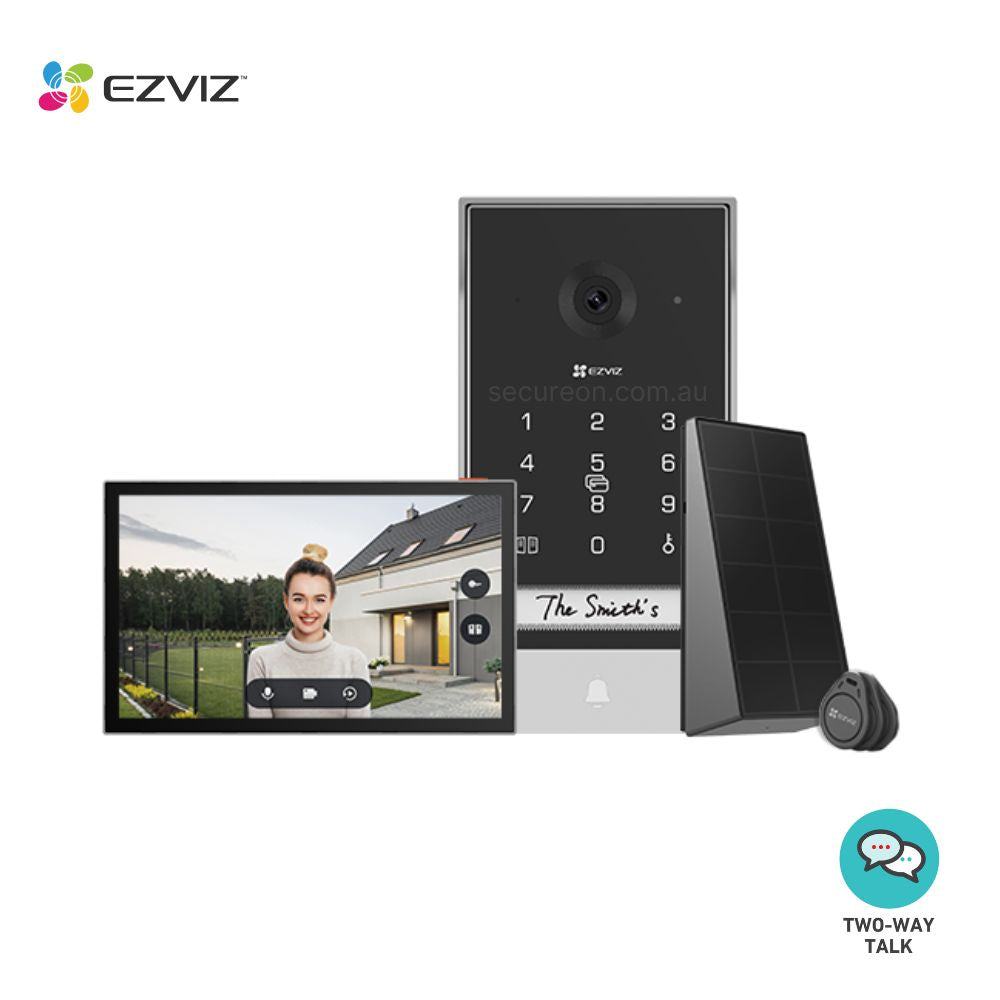

EZVIZ 2K Smart Home Video Doorphone Intercom Kit EP7

EZVIZ 2K Smart Home Video Doorphone Intercom Kit EP7

SKU: CS-EP7
$468inc. GST
$468inc. GST
10 customers are viewing this product
Solar-powered. Smartly connected. Easily controllable. Upgrade your home security with the EZVIZ Smart Home Video Doorphone Intercom Kit, featuring a crystal-clear 3MP 2K camera that captures every detail at your...
Product Badge
Product Badge
Product Badge
Product Badge
Please hurry! Only 20 left in stock
  • Secure On Australia

Typically shipped within 1 - 3 business days

Free standard shipping on orders over $200

Back-to-base Australian warranty

Free tech support

14-day return policy

Tags: / / / / / / / / / / / /
EZVIZ 2K Smart Home Video Doorphone Intercom Kit EP7

EZVIZ

EZVIZ 2K Smart Home Video Doorphone Intercom Kit EP7

$468
EZVIZ 2K Smart Home Video Doorphone Intercom Kit EP7

EZVIZ

EZVIZ 2K Smart Home Video Doorphone Intercom Kit EP7

$468
Product Details

Solar-powered. Smartly connected. Easily controllable.

Upgrade your home security with the EZVIZ Smart Home Video Doorphone Intercom Kit, featuring a crystal-clear 3MP 2K camera that captures every detail at your front door. The included 7-inch touch monitor brings convenience right into your home, allowing you to see and speak with visitors from anywhere.

Experience seamless two-way communication, real-time alerts, and remote access through your smartphone. This integrated system combines professional-grade video quality with intuitive smart home integration, giving you complete control and peace of mind.

Perfect for modern households seeking reliable security without complicated installation. Transform how you interact with guests and protect what matters most.

Key Features

  • 2K Resolution
  • 7-Inch Color Touch Screen
  • Remote Door/Gate Unlock¹
  • No Wiring Between the Outdoor & Indoor Devices²
  • Solar-Powered with the Included Charging Panel³
  • Two-Way Talk (Supports voice changer feature)
  • Passcode Unlock
  • Remote Control via the EZVIZ App
  • Weatherproof Design⁴
  • Built-In Doorbell with Multiple Ringtones⁵
  • High-Performance Wi-Fi Halow™
  • Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage⁶

Downloads

EP7 Smart Home Video Doorphone
Specifications
Model CS-EP7
Outdoor Doorbell
Camera
Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Lens 2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & Night IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution 2K, 2048 × 1296
DNR 2D / 3D DNR
Video Compression H.265 / H.264
Frame Rate Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Open the door (Gate) Support 2 wiring ports. 1-10m distance. The intercom panel provides a dry-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate) Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 0.8A, otherwise should do as user manual.
Door Open Methods 1.RFID badge unlock (CPU card × 3 pcs) 2.Password unlock 3.App remote unlock 4.Indoor display unlock
Outdoor Doorbell Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Doorbell Button Supports 1 button.
Name Card Supports handwritten. 3 cards stickers included (1 sticker already on the intercom panel).
Terminal Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. Two wiring ports to connect the solar panel.
Password Keypad 0-9 10-digial password keyboard; support 5 sets of 6-10 digital passwords; press the keypad to turn on the light, the light can be turn off
Network
Wi-Fi Standard IEEE 802.11 AH
Frequency Range 904 M - 928 M (US), 865 M-867 M (EU)
Channel Bandwidth 8 M (U ), 2 M (EU)
Security 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Wi-Fi HaLow Pairing AP pairing
Max Transmission Distance for Intercom and monitor Up to 350m in open area; up to 80m in two enclosed walls
General
Operation Conditions -20°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade Waterproof IP65, with shield cover
Power Supply Battery (7.3V), EZVIZ Doorbell Solar Panel
Battery Capacity 2600 mAh 7.3V (5200mAh 3.7V) rechargeable and detachable lithium battery 85 days at the rate of using 3 minutes per day, and open the electric strike plate 10 times
Product Dimension 175 × 86 × 34 mm
Interior Display
Info
Display size 7” touch screen
Resolution 1024 × 600
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Button Screen On / Off Button
Terminal Two wiring ports to connect the power
Storage Supports microSD card (Up to 512 GB)
Network Parameters
Interface Protocol EZVIZ Cloud Proprietary Protocol
Protocol EZVIZ Cloud Proprietary Protocol
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth Supports 20MHz
Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtones Up to 20 ringtones
Functions Live view, playback, two-way talk, video call
General
Operation Conditions -10°C to 45°C, humidity 95% or less (non-condensing)
Size 180 × 111 × 15 mm
Power Supply 12-24VDC 1A power supply, adaptor (12V 1A included in package)
Power Consumption 8W, Max. 24W
Solar Panel
Performance Parameter
Power Voltage 8.1V max
Max. Power Current 240mA
Max. Power 1.2W
Operating Temperature -20°C to 50°C
Product Dimension 126 × 59 × 44mm
IP Grade IP65
General
Net Weight in Total 675g
Weight with Package 1865g
In the box
In the box - Monitor
- Wall Bracket for Monitor
- Power Adapter for Monitor
- Intercom Panel (Doorbell) with a Weather-proof Shield
- Drill Template for Monitor
- Drill Template for Intercom Panel
- Screwdriver
- Name Card (×3)
- Badges (×3)
- Screw Kit (×2)
- Pin (×1)
- Wires and Wire Connectors
- Battery for Intercome Panel (× 1)
- USB Cable for Battery (× 1)
- Power Supply Jack Connector Cable (× 1)
- Solar Panel (× 1)
- Regulatory Information (×2)
- Quick Start Guide
Certifications
Certifications CE / REACH / WEEE / RoHS
