EZVIZ 4MP 2K Smart Wi-Fi Pan & Tilt Camera TY1 Pro

EZVIZ TY1 Pro 4MP 2K Smart Wi-Fi Pan & Tilt Camera

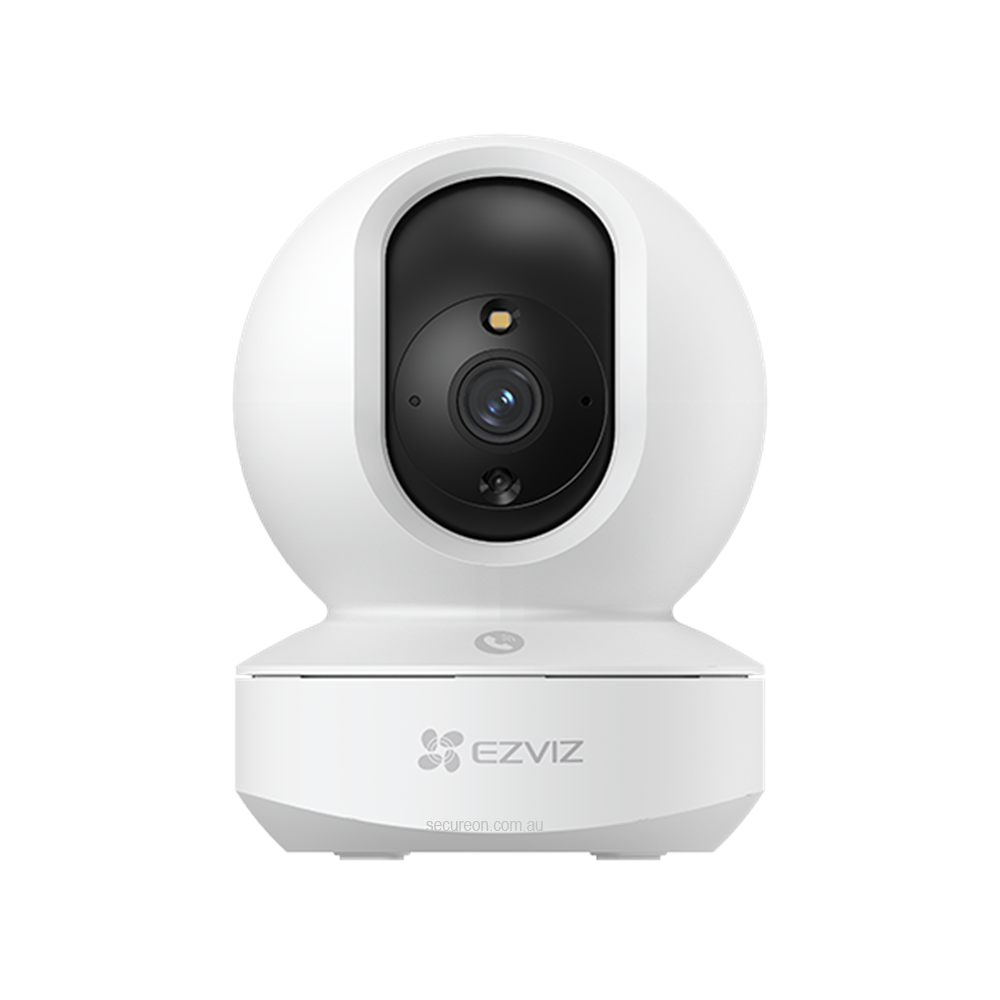

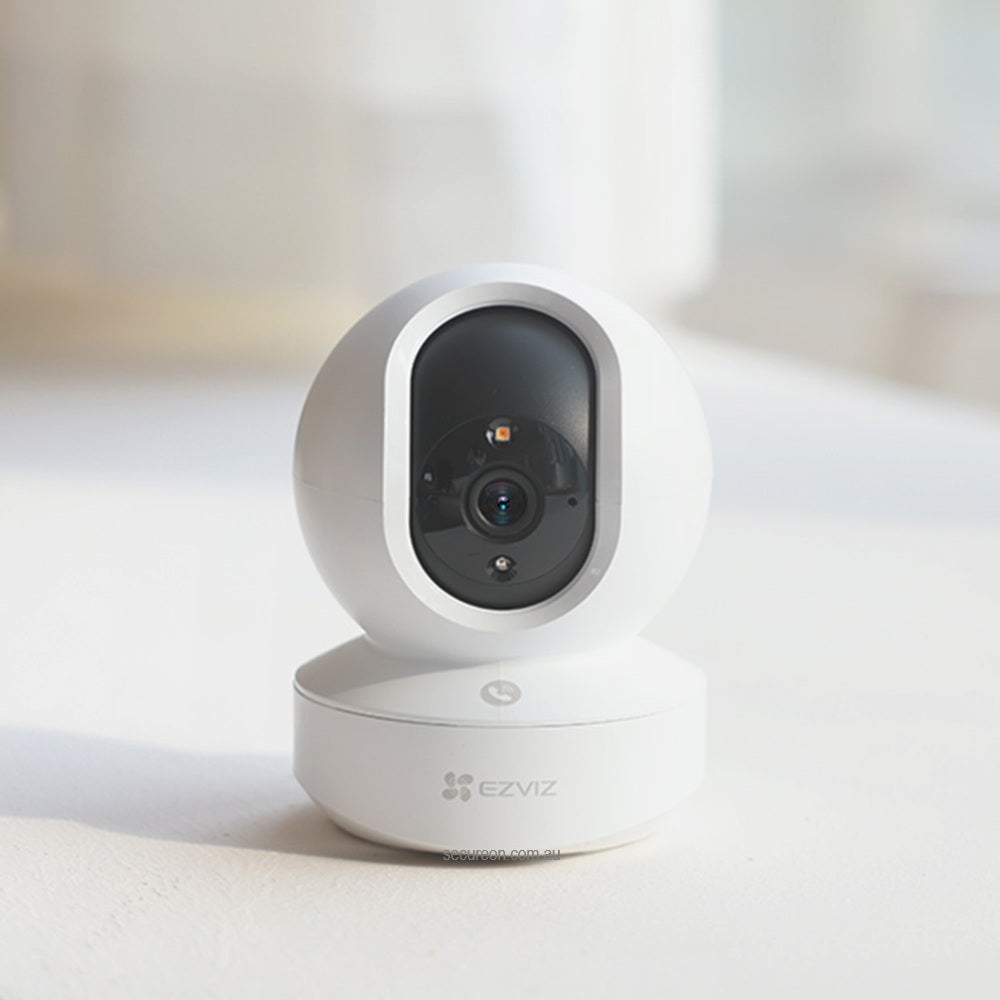

The EZVIZ TY1 Pro is a compact and capable indoor pan and tilt camera delivering 4MP 2K resolution with auto motion tracking. Whether you are keeping an eye on a baby, a pet, or a home office, the TY1 Pro follows the action automatically so you never miss a moment.

• 4MP 2K (2304 × 1296) resolution for crystal-clear indoor footage
• Pan and tilt with smart human shape tracking and patrol mode
• Two-way audio with loud noise detection
• AI-powered human shape detection with instant app alerts
• IR night vision up to 10 m
• Dual-band connectivity: Wi-Fi 2.4GHz and RJ45 wired network
• Local microSD storage up to 512 GB and EZVIZ CloudPlay support
• Type-C power interface
• Compatible with EZVIZ smart home ecosystem

Is this the right camera for you?

If you want an affordable, easy-to-use indoor camera with auto-tracking and solid 2K resolution, the TY1 Pro is a great entry-level choice for homes and small offices.

Specifications

• Model: CS-TY1-R105-1L3WF
• Image sensor: 1/2.7" Progressive Scan CMOS
• Lens: 4mm @ F1.6 | 82° horizontal, 48° vertical, 98° diagonal
• Max. resolution: 2304 × 1296
• IR range: Up to 10 m / 33 ft
• Video compression: H.264 / H.265
• Wi-Fi: IEEE802.11b/g/n, 2.4GHz
• Wired network: RJ45 10/100M
• Local storage: microSD up to 512 GB
• Cloud storage: EZVIZ CloudPlay (subscription required)
• Power supply: DC 5V/1A via Type-C, max. 5W

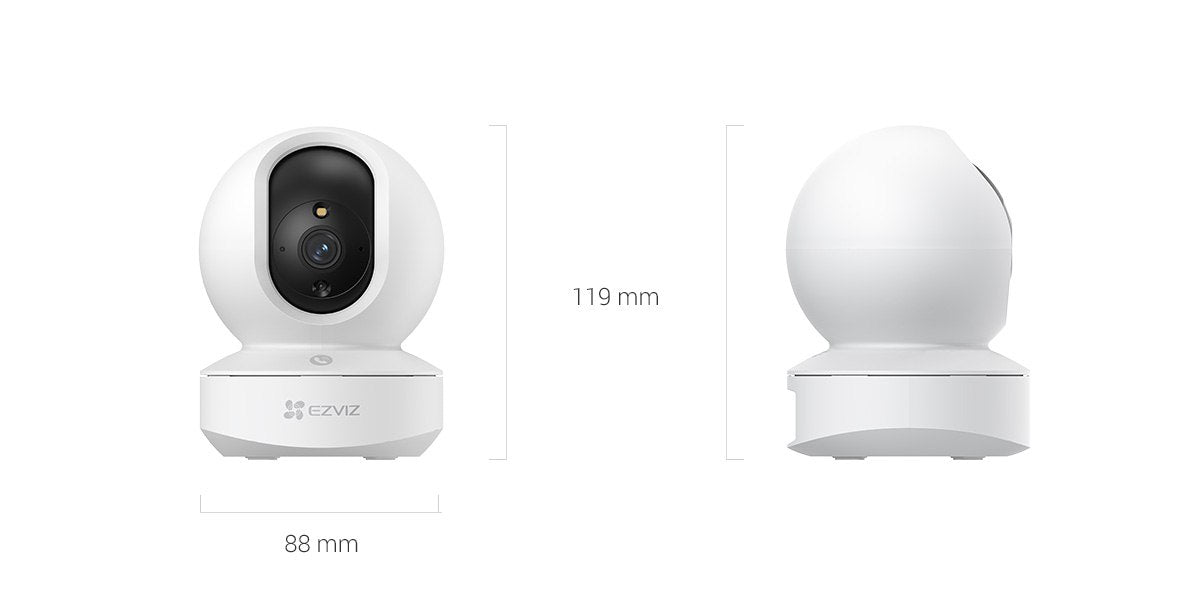

• Dimensions: 88 × 88.2 × 119 mm
• Weight: 218 g (net)
• Operating conditions: -10°C to 45°C, humidity 95% or less (non-condensing)
• Certifications: CE / UL / WEEE / REACH / RoHS

In the box

• Camera
• Power Adapter
• Power Cable
• Drill Template
• Mounting Plate
• Screw Kit
• Quick Start Guide

Downloads

View EZVIZ TY1 Pro 2K Camera Datasheet
