EZVIZ Dual 2K+ Dual-Lens Pan & Tilt Wi-Fi Camera H90

EZVIZ H90 Dual 2K+ Dual-Lens Pan & Tilt Wi-Fi Camera

**Smart Integration with Google Assistant & Amazon Alexa**

**No subscription required**

Dual cameras, dual rotations - total outdoor coverage.

The EZVIZ H90 Dual takes 360-degree outdoor protection to a new level by combining two independently rotating 2K+ lenses in a single housing. The wide-angle top lens sweeps a 110° field of view while the close-up bottom lens tracks and zooms in on detail - both working together with co-detection technology to follow activity automatically. A single device that sees more, covers more, and responds faster.

• EZVIZ H90 Dual 2K+ Dual-Lens Pan & Tilt Wi-Fi Camera
• 2K+ & 2K+ Dual Lenses (2560 × 1440)
• Triple Motors - Top Pan 220°, Bottom Pan 324° / Tilt 90°
• Co-Detection for Auto Smart Tracking
• One-Tap Control for Linked View Change
• Two Patrol Modes for Auto-Security
• AI-Powered Human and Vehicle Shape Detection (both lenses)
• Colour Night Vision up to 40 m
• IR Night Vision up to 30 m
• Two-Way Talk with Customisable Voice Alerts
• Active Defence with Siren and Strobe Light
• IP65 Weatherproof + 2-Hour Rainstorm Rated
• Dual Wi-Fi Antennas + RJ45 Wired Option
• H.265 Video Compression
• Supports MicroSD Cards (Up to 512 GB) & EZVIZ CloudPlay Storage

Specifications

• Model: CS-H90-R100-8H44WKFL
• Image sensor: 1/3" Progressive Scan CMOS
• Top lens: 2.8mm @ F1.6 | 110° diagonal, 96° horizontal, 54° vertical | Pan 220°, Tilt 10° (manual)
• Bottom lens: 6mm @ F1.6 | 60° diagonal, 52° horizontal, 28° vertical | Pan 324°, Tilt 90°
• Max. resolution: 2K+ (2560 × 1440)
• IR night vision: Up to 30 m / 98 ft
• Colour night vision: Up to 40 m / 131 ft (both lenses aligned)
• Video compression: H.265 / H.264
• Wi-Fi: IEEE802.11b/g/n, 2.4GHz
• Wired network: RJ45 10/100M
• Local storage: microSD up to 512 GB
• Cloud storage: EZVIZ CloudPlay (subscription required)
• Power consumption: Max. 18W
• IP grade: IP65 + 2-hour rainstorm rated

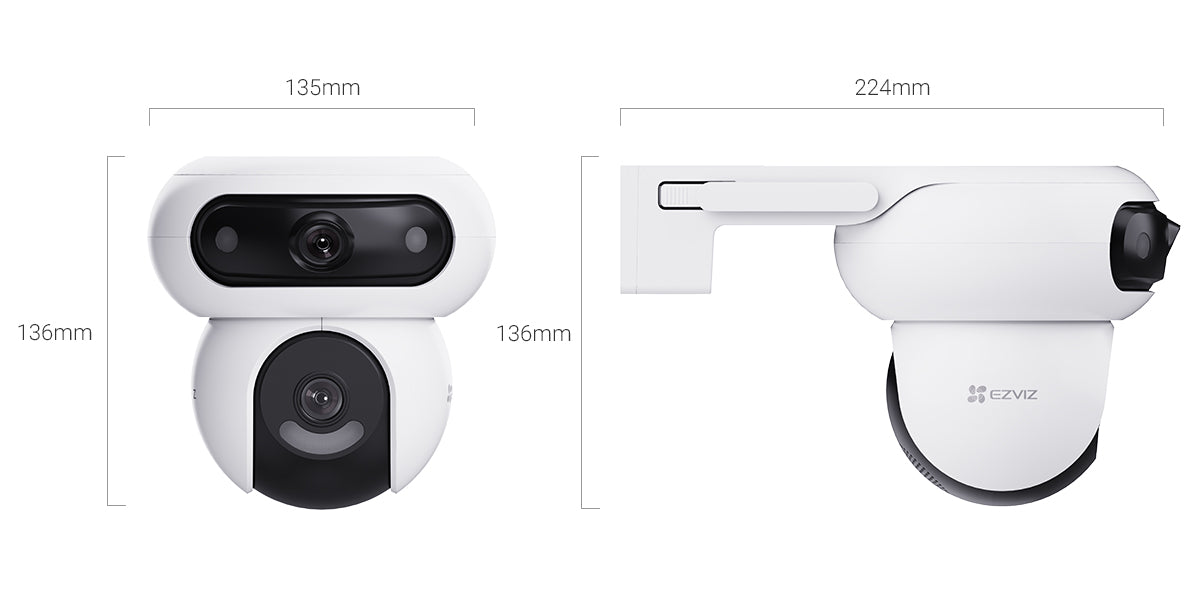

• Dimensions: 224 × 135 × 136 mm
• Weight: 723 g (net)
• Operating conditions: -30°C to 50°C, humidity 95% or less (non-condensing)
• Certifications: CE / UL / WEEE / RoHS / REACH

In the box

• H90 Dual 2K+ Camera
• Power Adapter
• Drill Template
• Waterproof Kit
• Screw Kit
• Quick Start Guide

Downloads

View EZVIZ H90 Dual 2K+ Dual-Lens Pan & Tilt Wi-Fi Camera Datasheet
