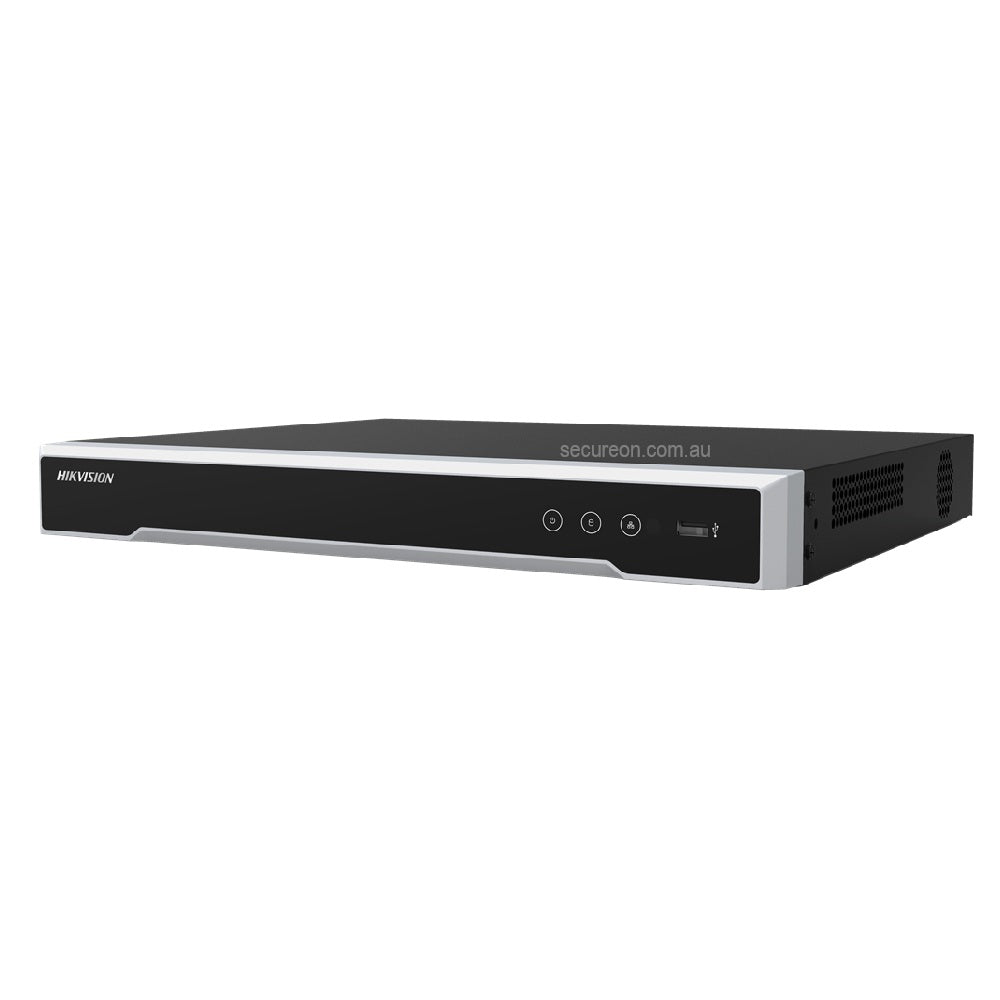

Hikvision 16 Channel AcuSense M-Series NVR - 4K Recording, 16 PoE Ports - DS-7616NI-M2-16P
SKU:
DS-7616NI-M2-16P
- $1,023inc. GST
$1,650- $1,023inc. GST
- Unit price
- per
Save $627
10 customers are viewing this product
Please hurry! Only 20 left in stock
Typically shipped within 1 - 3 business days
Free standard shipping on orders over $200
Back-to-base Australian warranty
Free tech support
14-day return policy
Vendor: Hikvision
Hikvision 16 Channel AcuSense M-Series NVR - 4K Recording, 16 PoE Ports - DS-7616NI-M2-16P
Vendor: Hikvision
Hikvision 16 Channel AcuSense M-Series NVR - 4K Recording, 16 PoE Ports - DS-7616NI-M2-16P
HIKVISION M-SERIES DS-7616NI-M2/16P 16CH NVR, 256MBPS, 8K, 16 POE, 2 BAY, NO HDD, 3YR
Key features
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP camera inputs
- Up to 16-ch@4 MP decoding capacity
- Up to 256 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
Specifications
Video and audio
| IP video input | 16-ch, up to 32 MP resolution Note: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming bandwidth | 256 Mbps |
| Outgoing bandwidth | 256 Mbps |
| HDMI output | 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz |
| VGA output | 1920 × 1080/60 Hz |
| Video output mode | HDMI/VGA independent output |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Decoding
| Decoding format | H.265+/H.265/H.264+/H.264 |
| Decoding capability | 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps) / 10-ch@8 MP (30 fps) / 20-ch@4 MP (30 fps) / 40-ch@1080p (30 fps) |
| Synchronous playback | 16-ch |
| Recording resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Note: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Dual-stream recording | Supported |
| Stream type | Video, Video & Audio |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
Network
| Remote connections | 128 |
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP |
| Network interface | 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Camera access protocol | ONVIF (version 2.5), RTSP |
PoE
| PoE interface | 16 × RJ-45 10/100 Mbps self-adaptive Ethernet |
| PoE power | ≤ 200 W |
| PoE standard | IEEE 802.3 af/at |
Auxiliary interface
| SATA | 2 SATA interfaces |
| Capacity per disk | Up to 16 TB |
| Alarm in/out | 4/1 |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
General
| Power supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD, PoE off) |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight | ≤ 3 kg (without HDD) |
| Certifications | FCC, CE |
Frequently asked questions
How many cameras can the DS-7616NI-M2/16P support?
The DS-7616NI-M2/16P supports up to 16 IP cameras simultaneously, with up to 32 MP resolution per camera when ultra HD resolution mode is enabled. It is compatible with ONVIF (version 2.5) and RTSP cameras.
Does this NVR have built-in PoE ports?
Yes - it has 16 PoE ports (IEEE 802.3 af/at) with a total PoE budget of up to 200 W, allowing you to power compatible IP cameras directly without separate power supplies.
Does this NVR include hard drives?
No - the DS-7616NI-M2/16P is supplied without hard drives. It has 2 SATA bays supporting up to 16 TB per drive (up to 32 TB total). Hard drives are available separately - contact us for compatible HDD recommendations.
What is the maximum display resolution?
The NVR supports 8K (7680 × 4320) output via HDMI, making it future-ready for high-resolution displays. VGA output supports up to 1080p. HDMI and VGA operate as independent outputs.
What warranty does this product come with?
This product is covered by a 3-year Hikvision warranty when purchased through Secure On Australia. All stock is 100% Australian and supported locally. Contact us for warranty claims or technical support.
