Hikvision 16 Channel M-Series NVR - 8K Recording, 16 PoE Ports, 4 Bay - DS-7716NI-M4-16P
Vendor: Hikvision
Hikvision 16 Channel M-Series NVR - 8K Recording, 16 PoE Ports, 4 Bay - DS-7716NI-M4-16P

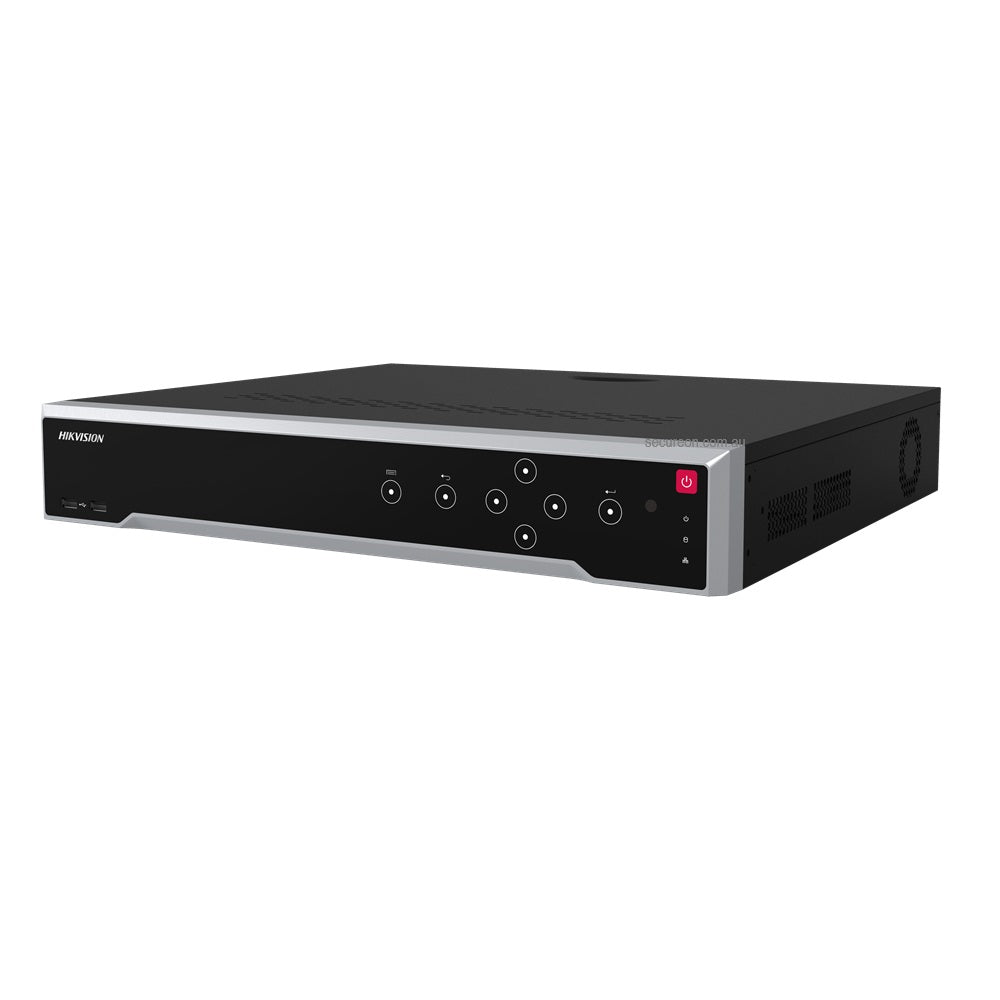

Hikvision M-Series 16-Channel NVR with 16 PoE | DS-7716NI-M4-16P
The DS-7716NI-M4-16P is a high-performance 16-channel Network Video Recorder from Hikvision's M-Series range. Designed for medium to large installations, it supports up to 32MP resolution cameras and delivers 8K HDMI output, making it a future-ready choice for professional surveillance systems across commercial and enterprise environments in Australia.
With 16 built-in PoE ports and 4 SATA bays, this 1.5RU rackmount unit simplifies deployment and provides ample storage expansion. A 256Mbps incoming bandwidth ensures smooth recording across all channels simultaneously.
Need help sizing your NVR and storage? Contact our team for expert advice on selecting the right recorder, HDD configuration, and camera combination for your project.
Key features
- H.265+/H.265/H.264+/H.264 video compression formats
- Up to 16-ch IP camera inputs, up to 32MP resolution
- Up to 40 x 1080p@30fps decoding capacity
- Up to 256 Mbps incoming and outgoing bandwidth
- 16 built-in PoE ports (IEEE 802.3 af/at)
- Dual HDMI outputs: HDMI 1 up to 8K, HDMI 2 up to 4K
- 4 SATA bays, up to 16TB per HDD
- Up to 8-ch IP speakers supported
- 19-inch rack-mounted 1.5U chassis
Downloads
Specifications
| Category | Specification |
|---|---|
| Video and Audio | |
| IP Video Input | 16-ch, up to 32MP resolution (up to 8-ch @ 32/24/16MP) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680×4320)/30Hz, 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1920×1080/60Hz |
| HDMI 2 Output | 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1920×1080/60Hz (max 1080p when HDMI 1 is 8K) |
| VGA Output | 1920×1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω); PAL: 704×576, NTSC: 704×480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32MP/24MP/16MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | 2-ch@32MP (30fps); 3-ch@24MP (30fps); 4-ch@16MP (30fps); 6-ch@12MP (30fps); 10-ch@8MP (30fps); 13-ch@6MP (30fps); 16-ch@5MP (30fps) |
| Synchronous Playback | 16-ch |
| Dual-Stream Recording | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connections | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF (v2.2), OTAP |
| Network Interface | 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Camera Access Protocol | ONVIF (v2.5), RTSP |
| Auxiliary Interface | |
| eSATA | 1 eSATA interface |
| SATA Interfaces | 4 |
| HDD Capacity | Up to 16TB per HDD |
| Serial Interface | 2 × RS-485 (half-duplex), 1 × RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front: 2 × USB 2.0; Rear: 1 × USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤15W (without HDD) |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimensions (W×D×H) | 445 × 400 × 75 mm (17.5" × 15.7" × 3.0") |
| Weight | ≤5 kg (without HDD) |
| Certification | CE, FCC, RoHS, REACH |
| Cyber security | |
| Standards | EN 303645 |
| Secure Boot | Supported |
| Secure Component Verification | Supported |
| Password Protection | Supported |
| IP & MAC Address Filtering | Supported |
| HTTPS Encryption | Supported |
| Stream Encryption | AES128 |
| IEEE 802.1X Network Access Control | Supported (EAP-TLS) |
| Signed Firmware | Supported |
| Other | Digest authentication, User access log, Centralised certificate management, Brute force delay protection |
