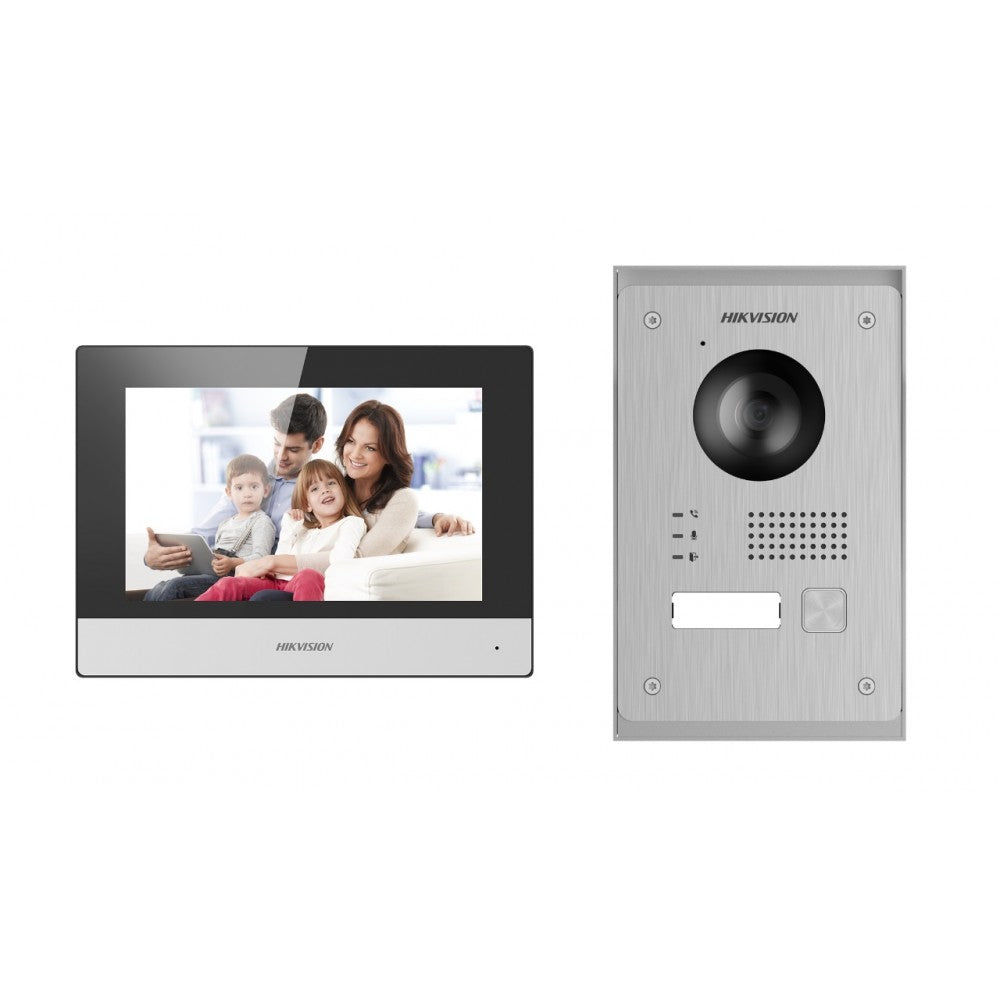

Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P
Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P

Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P

$423inc. GST
$509
$423inc. GST
SKU: DS-KIS703Y-P
Tags: / / / / / / / / / /
Product Badge
Product Badge
Product Badge
Product Badge
Product Badge
10 customers are viewing this product
Please hurry! Only 50 left in stock
  • Secure On Australia

Typically shipped within 1 - 3 business days

Free standard shipping on orders over $200

Back-to-base Australian warranty

Free tech support

14-day return policy

Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P

Hikvision

Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P

$509 $423
Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P
Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P

Hikvision

Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P

$509 $423
Product Details

The Hikvision 2-Wire Video Intercom Kit DS-KIS703Y-P is designed to provide convenience and flexibility for installation. With its 7" touchscreen monitor, the video doorphone can be installed either flush or surface mounted thanks to the included DS-KAB8103-IMEX enclosure. This makes it suitable for a variety of environments and ensures ease of use for all users.

The device has the ability to work with the Hik-Connect application for mobile devices.

Key Features

Two-Wire Indoor Station

  • Receives Video Call And Unlocks On Mobile App Anywhere, Anytime
  • 7 inch Touch-Screen, User Friendly Interface, Plug & Play
  • Easy, Cost-Efficient Installation

Villa Door Station

  • High quality imaging with 2 MP resolution
  • Easy, Cost-Efficient Installation
  • User Friendly Design, Name tag, Communication status LED indicator
  • IP65 water resistant, preventing water ingress for outdoor use

Downloads

View Datasheet

Specifications

Feature Door Station Indoor Station
Operation system Embedded Linux operation system Embedded Linux operation system
Operation mode Single-button Capacitive touch screen
Flash RAM 32 MB 32 MB
Memory 256 MB 128 MB
Camera Resolution 2 MP HD camera
Main stream: 1280*720P, 1920*1080p
Sub stream: 640*480		 N/A
Night vision WDR Low illumination
IR supplement distance: 3 m
Support		 N/A
Field of view Horizontal: 140°
Vertical: 85°		 N/A
Video Compression Standard H.264 N/A
Audio input Built-in 1*omnidirectional microphone Built-in 1*omnidirectional microphone
Audio output Built-in 1*loudspeaker, 8Ω Built-in 1*loudspeaker, 8Ω
Audio quality Noise suppression and echo cancellation Volume
Noise suppression and echo cancellation
Local adjustable
Audio compression standard G.711 U, G.711 A G.711 U, G.711 A
Audio compression Rate 64 Kbps N/A
Network protocol TCP/IP, RSTP, SIP2.0
Support, 2-Wire wiring
RS-485		 1*10 Mbps through 2-wire interface
Wi-Fi 802.11 b/g/n, 2.400-2.4835 GHz
RS-485
Alarm input 2( Exit button or door contact) 8
Output Two-wire interface 1*12 V/500 mA output
1 TAMPER switch		 Two-wire (output) 1
Two-wire interface 1 Two-wire (input) 1
Power input N/A 24 VDC/1.5 A
Power supply From indoor station 24 VDC/1.5 A
Power consumption ＜ 10 W ≤ 8 W
Working temperature -40° C to +60° C(-40° F to 140° F) -10 °C to 50 °C (14 °F to 122 °F)
Working humidity 10% to 95% 10% to 90%
Installation Surface mounting, flush mounting N/A
Protection level IP65 N/A
Display screen N/A 7-inch TFT touch screen
Display resolution N/A 1024 × 600
Brightness N/A Adjustable
