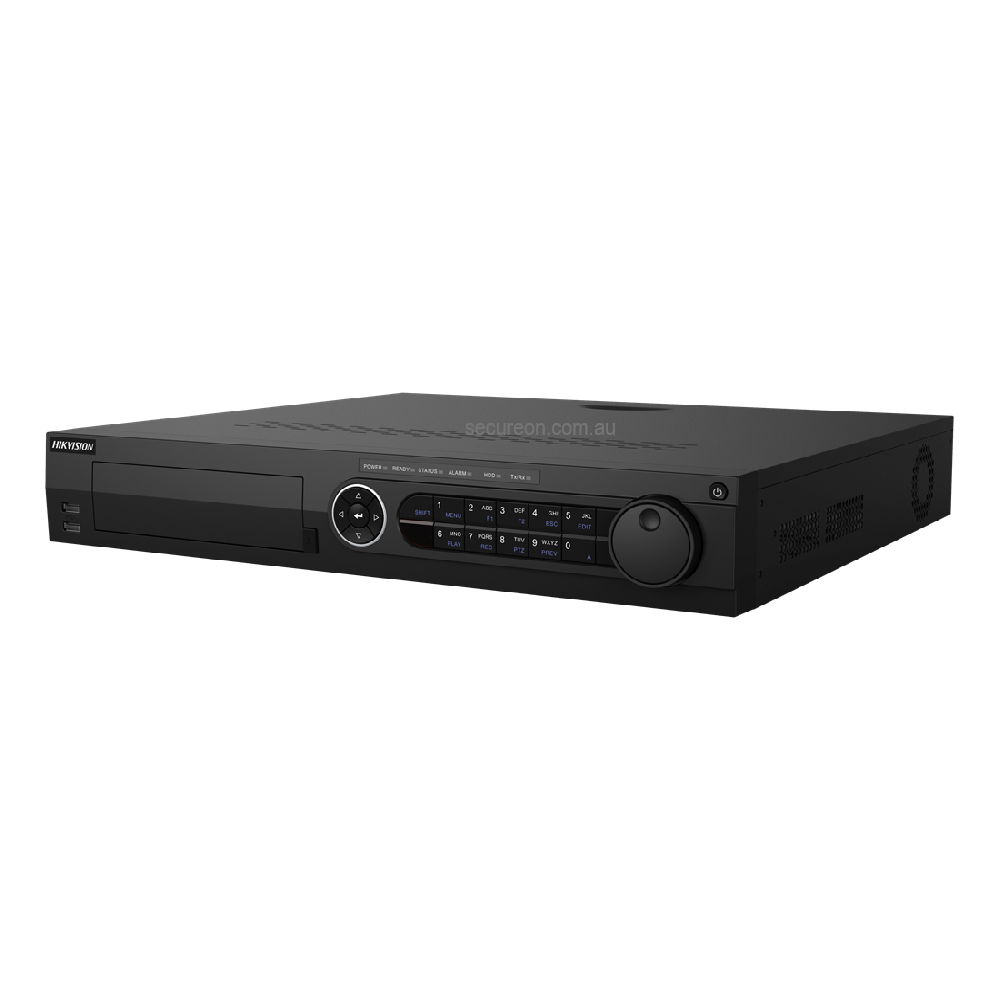

Hikvision 32 Channel Turbo HD DVR - AcuSense, 8MP 4K Recording, Hybrid - IDS-7332HUHI-M4-S

HIKVISION ACUSENSE DVR 7332HUHI-M4-S 32CH, 4XHDD, NO HDD, 8 MP RESOLUTION, 3YR

Key Features

• Deep learning-based perimeter protection
• Deep learning-based motion detection 2.0 for all analog channels
• Up to 32-ch analog camera inputs and 4 SATA interfaces
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• Up to 8 MP@8 fps/5 MP@12 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Up to 64-ch network camera inputs
• POS triggered recording and POS information overlay


Downloads

View Datasheet

Technical Specifications

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 16-ch, for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only

• Video and Audio
• IP Video Input

  32-ch (up to 64-ch);

  Up to 12 MP resolution;

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  32-ch;

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth256Mbps
• HDTVI Input8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
• AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2 independent output
• Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
• Synchronous Playback16-ch
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Network
• Remote Connection128
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
• Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

• Auxiliary Interface
• SATA4 SATA interfaces
• eSATASupport
• CapacityUp to 12 TB capacity for each disk
• Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
• Alarm In/Out16/4
• USB InterfaceFront panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 55 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch)
• ≤ 7 kg (without HDD, 15.4 lb.)
