Product Details

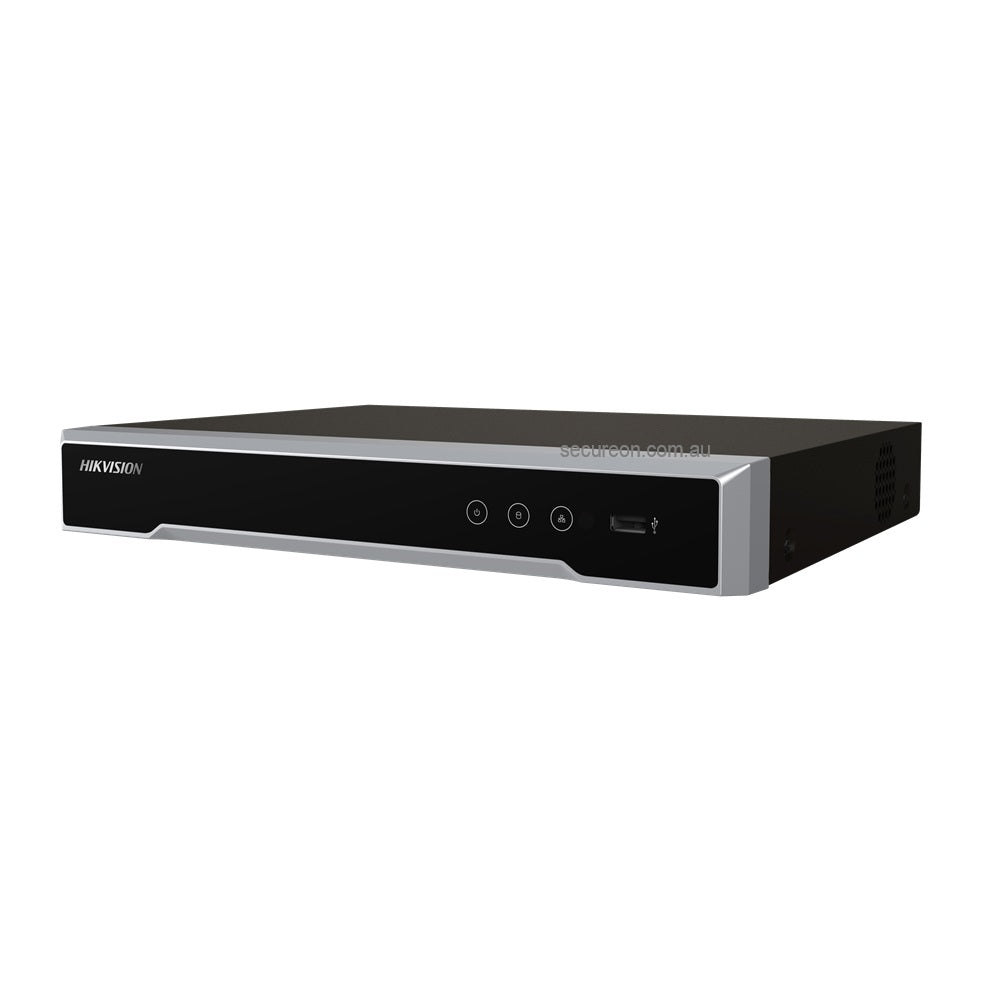

Hikvision M-Series 4-Channel NVR with PoE | DS-7604NI-M1/4P

The DS-7604NI-M1/4P is a compact, high-performance 4-channel Network Video Recorder from Hikvision's M-Series range. Designed for small to medium installations, it supports up to 32MP resolution cameras and delivers 8K HDMI output, making it a future-ready choice for professional surveillance systems across residential and commercial environments in Australia.

With 4 built-in PoE ports, installation is simplified. Power and data run over a single cable to each camera, eliminating the need for separate power supplies.

Key Features

  • H.265+/H.265/H.264+/H.264 video compression formats
  • Up to 4-channel IP camera inputs
  • Up to 4-ch @ 8MP decoding capacity
  • Up to 40 Mbps incoming bandwidth
  • 4 built-in PoE ports (IEEE 802.3 af/at, up to 60W total)
  • 8K/4K/2K HDMI output and 1080p VGA output
  • Supports up to 16TB per HDD (1 SATA bay)
  • 128 remote connections supported

Downloads

Specifications

Category Specification
Video and Audio
IP Video Input 4-ch, up to 32MP resolution
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 8K (7680x4320)/30Hz, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz
VGA Output 1920x1080/60Hz
Video Output Mode HDMI/VGA independent output
Audio Output 1-ch, RCA (Linear, 1 KOhm)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KOhm)
Decoding
Dual-Stream Recording Supported
Decoding Format H.265+/H.265/H.264+/H.264
Decoding Capability 4-ch@8MP (30fps) / 8-ch@4MP (30fps) / 16-ch@1080p (30fps)
Synchronous Playback 4-ch
Recording Resolution 32MP/24MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Remote Connections 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network Interface 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet
PoE
PoE Ports 4 x RJ-45 10/100 Mbps self-adaptive Ethernet
PoE Power Budget 60W max total
PoE Standard IEEE 802.3 af/at
Storage
SATA Interfaces 1
HDD Capacity Up to 16TB per HDD
Auxiliary Interface
Alarm In/Out 4/1
USB Interface Front: 1 x USB 2.0; Rear: 1 x USB 2.0
General
Power Supply 48 VDC, 1.875A
Power Consumption 15W max (without HDD, PoE off)
Working Temperature -10 to 50 degrees C (14 to 122 degrees F)
Working Humidity 10% to 90%
Dimensions (WxDxH) 320 x 240 x 48 mm (12.4 x 9.4 x 1.9 in)
Weight 1.2 kg max (without HDD)
Certification CE: EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035
