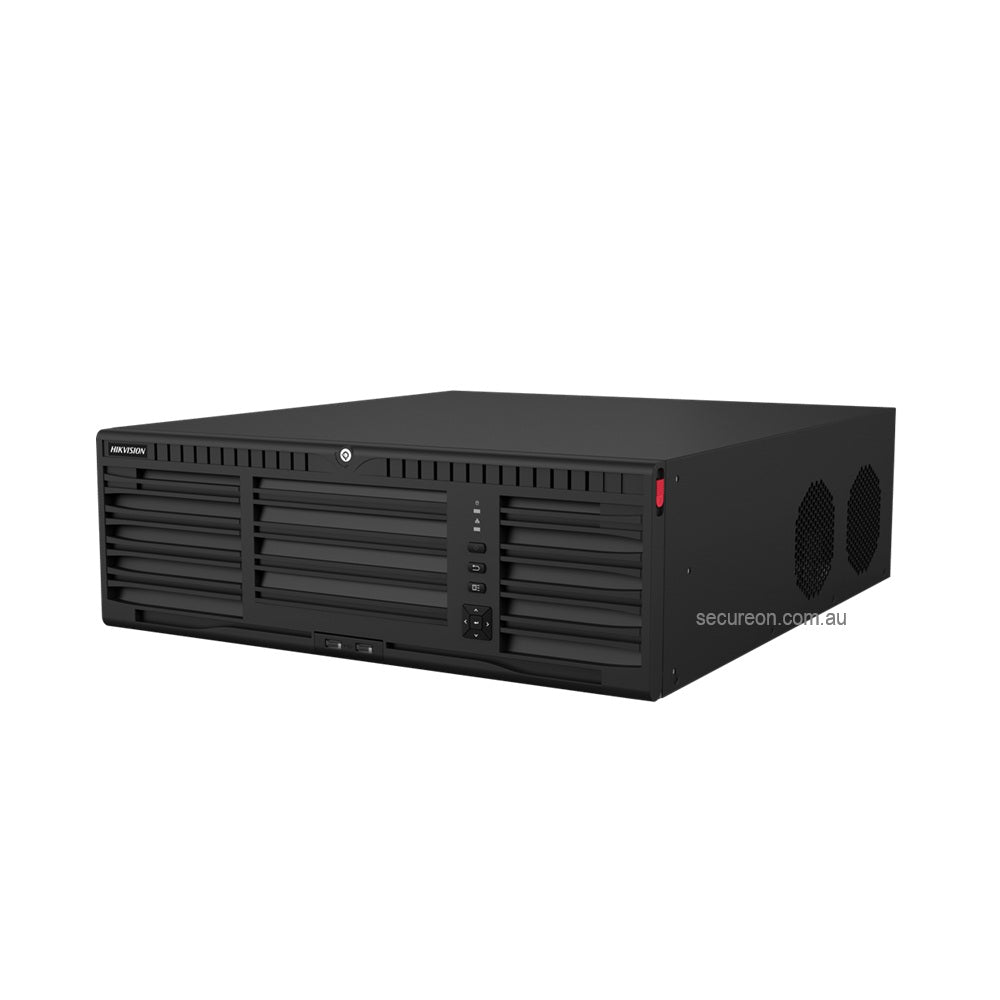

Hikvision 64 Channel M-Series NVR - 8K Recording, 16 SATA Bays - DS-9664NI-M16
SKU:
DS-9664NI-M16
- $6,251inc. GST
$10,083- $6,251inc. GST
- Unit price
- per
Save $3,832
10 customers are viewing this product
Please hurry! Only 50 left in stock
Typically shipped within 1 - 3 business days
Free standard shipping on orders over $200
Back-to-base Australian warranty
Free tech support
14-day return policy
Vendor: Hikvision
Hikvision 64 Channel M-Series NVR - 8K Recording, 16 SATA Bays - DS-9664NI-M16
Vendor: Hikvision
Hikvision 64 Channel M-Series NVR - 8K Recording, 16 SATA Bays - DS-9664NI-M16
HIKVISION M-SERIES DS-9664NI-M16 64CH NVR, 400MBPS, 8K, VGA/HDMI, 16 BAY, 3RU, RAID, NO HDD, 5YR
Key features
- Up to 64-ch IP camera inputs
- Up to 2-ch@32 MP / 2-ch@24 MP / 4-ch@12 MP / 8-ch@8 MP / 16-ch@4 MP / 32-ch@1080p decoding capacity
- Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
- 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
- Supports special cameras including people counting, ANPR (automatic number plate recognition), and fisheye cameras
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for reliable data storage - effectively avoids data loss risks
- Up to 8-ch IP speakers can be connected
Specifications
Video and audio
| IP video input | 64-ch |
| Incoming bandwidth | 400 Mbps |
| Outgoing bandwidth | 400 Mbps |
| HDMI 1 output | 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz |
| HDMI 2 output | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz Note: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| VGA 1 output | 1920 × 1080/60 Hz |
| VGA 2 output | 1920 × 1080/60 Hz |
| Video output mode | HDMI 1 and VGA 1 provide simultaneous video output (main output); HDMI 2 and VGA 2 provide simultaneous video output (auxiliary output) |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Decoding
| Decoding format | H.265+/H.265/H.264+/H.264 |
| Decoding capability | 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps) / 10-ch@8 MP (30 fps) / 20-ch@4 MP (30 fps) / 40-ch@1080p (30 fps) |
| Synchronous playback | 16-ch |
| Recording resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
Network
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP |
| Network interface | 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Camera access protocol | ONVIF (version 2.5), RTSP |
RAID
| RAID type | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Auxiliary interface
| SATA | 16 SATA interfaces supporting hot-plug |
| eSATA | 1 eSATA interface |
| Capacity per disk | Up to 16 TB |
| Serial interface | 1 × RS-485 (full-duplex), 1 × RS-232 |
| Alarm in/out | 16/9 |
| USB interface | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9) |
| DC 12V | 12 VDC, 1 A power output |
General
| Power supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Chassis | 3U chassis |
| Dimensions (W × D × H) | 445 × 496 × 150 mm (17.5" × 19.5" × 5.9") |
| Weight | ≤ 12.5 kg (without HDD) |
| Certifications | CE, FCC |
Frequently asked questions
How many cameras can the DS-9664NI-M16 support?
The DS-9664NI-M16 supports up to 64 IP cameras simultaneously, compatible with ONVIF (version 2.5) and RTSP protocols. It also supports special cameras including people counting, ANPR, and fisheye cameras.
Does this NVR include hard drives?
No - the DS-9664NI-M16 is supplied without hard drives. It has 16 hot-plug SATA bays supporting up to 16 TB per drive (up to 256 TB total raw storage). Hard drives are available separately - contact us for compatible HDD recommendations.
What RAID configurations does this NVR support?
The NVR supports RAID 0, 1, 5, 6, and 10, as well as N+M hot spare configurations, providing robust data redundancy to protect against drive failure.
What is the maximum display resolution?
The DS-9664NI-M16 supports 8K (7680 × 4320) output via HDMI 1, with a second independent HDMI output supporting up to 4K. Both HDMI and VGA outputs operate independently, giving you flexible multi-monitor setups.
What warranty does this product come with?
This product is covered by a 5-year Hikvision warranty when purchased through Secure On Australia. All stock is 100% Australian and supported locally. Contact us for warranty claims or technical support.
