Hikvision AX PRO Wireless Emergency Dual Button DS-PDEB2-EG2-WB

Hikvision AX PRO wireless emergency dual button DS-PDEB2-EG2-WB

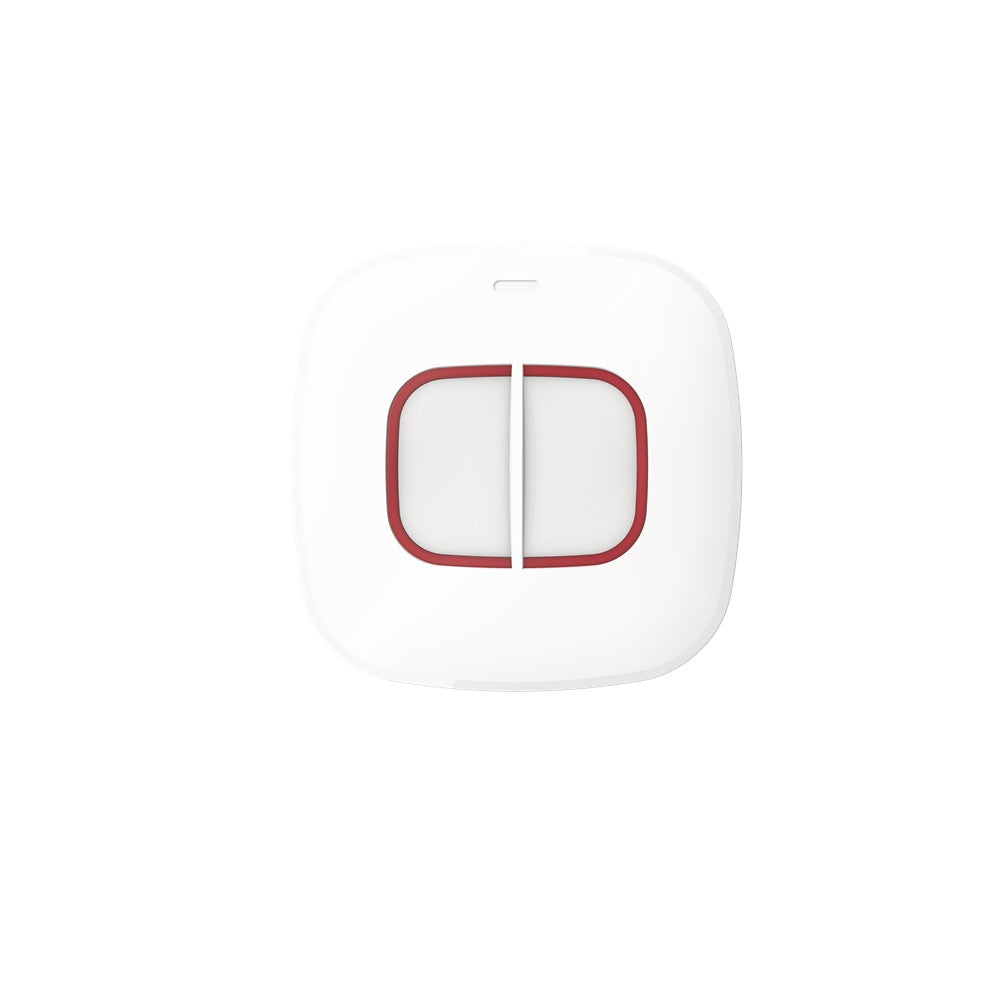

The Hikvision DS-PDEB2-EG2-WB is a wall-mount wireless emergency dual button for the AX PRO alarm system. Built to IP66 waterproof standard, it is ideal for humid environments and delivers reliable two-way wireless communication with AES-128 encryption and frequency hopping technology.

Key features

• Dual effective emergency button
• Fully remote configurable through app
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• IP66 waterproof rated

Specifications

Features

• Buttons: 2
• Tamper protection: Front; Rear
• Environment temperature indicator: Supported
• Signal strength indicator: Supported
• LED indicator: Blue (Alarm)

Transmission

• Transmission technology: Tri-X Wireless
• Transmission method: Two-way RF wireless
• Transmission frequency: 433 MHz
• Transmission security: AES-128 encryption
• Transmission range (free space): 800m
• Frequency hopping: Supported
• Enrolling method: Power up; Remote ID; QR Code

Electrical characteristics

• Battery life: Up to 3 years (standby time)
• Power supply: Battery powered
• Battery type: CR2450 x 1
• Typical voltage: 3V

General

• Operation temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation humidity: 10% to 90%
• IP rating: IP66
• Dimensions (W x H x D): 63.8mm x 63.8mm x 19mm
• Weight: 58.5g
• Mounting method: Wall
• Application scenario: Indoor; humid environments
