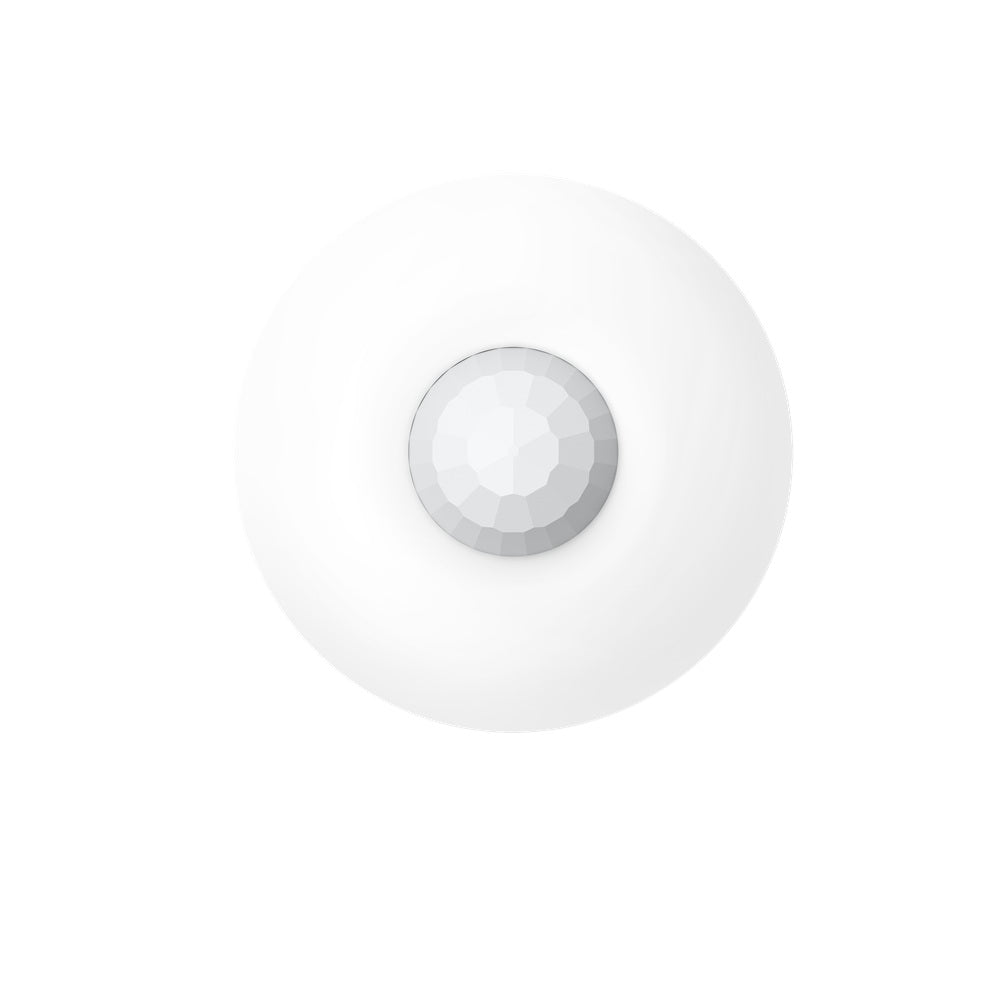

Hikvision AX PRO Wireless Internal PIR Ceiling Detector DS-PDCL12-EG2-WB
SKU:
DS-PDCL12-EG2-WB
- $58inc. GST
$93- $58inc. GST
- Unit price
- per
Save $35
10 customers are viewing this product
Please hurry! Only 50 left in stock
Typically shipped within 1 - 3 business days
Free standard shipping on orders over $200
Back-to-base Australian warranty
Free tech support
14-day return policy

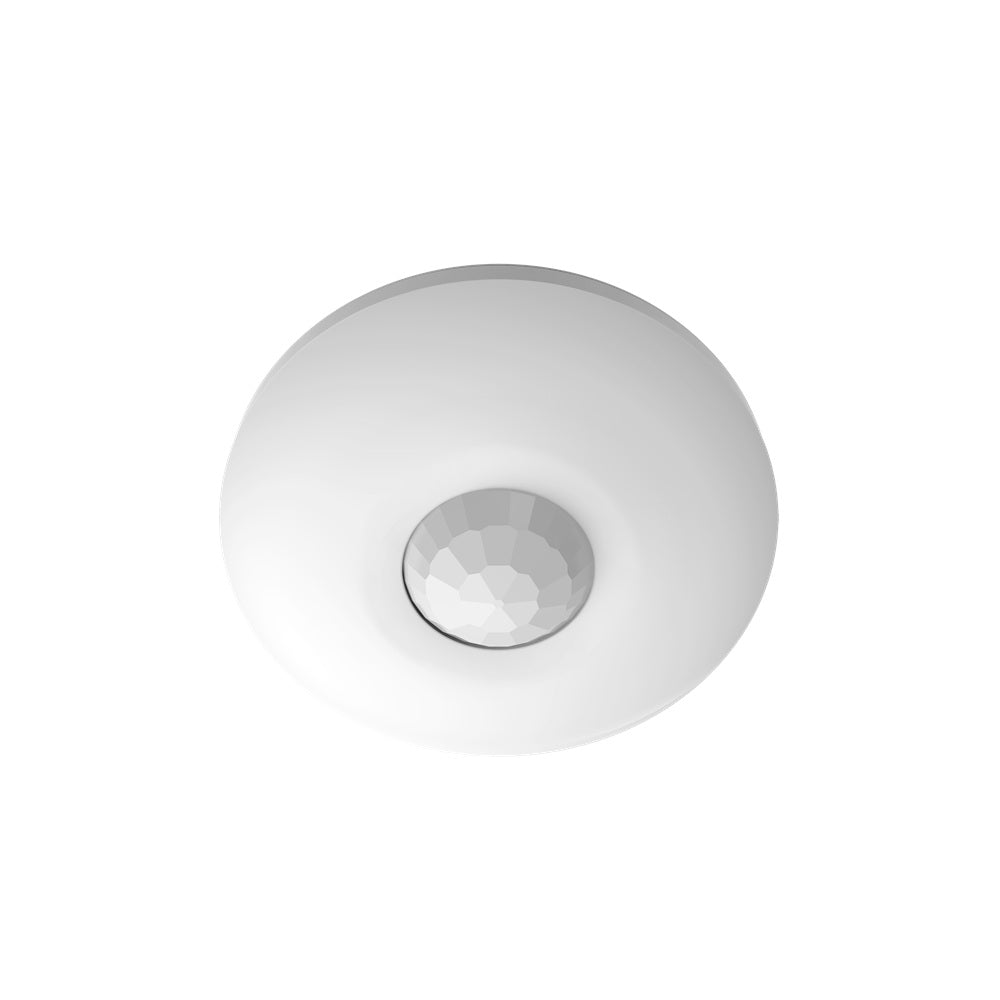

Hikvision AX PRO wireless internal PIR ceiling detector DS-PDCL12-EG2-WB
The Hikvision DS-PDCL12-EG2-WB is a wireless ceiling-mount PIR detector designed for the AX PRO alarm system. With a 360° detection angle and 12m range, it uses advanced SEC (Smart Environmental Control) digital signal processing and 3D optics to deliver reliable, tamper-resistant detection in any indoor environment.
Key features
- Detection range: 12m / 360°
- SEC (Smart Environmental Control) - advanced digital signal processing and 3D optics
- Fully remote configurable through app
- Multiple enrollment methods and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Specifications
Detection performance
- Detection method: Passive Infrared
- Detection range: 12m
- Detection angle: 360°
- Detection zones: 172
- Detectable speed: 0.3 to 2m/s
- Sensitivity: Auto; Low
- White light filter: 6500 lux
- Digital temperature compensation: Supported
- Creep zone protection: Supported
Features
- Digital processing: Supported
- Sealed optics: Supported
- Tamper protection: Front; Rear
- Environment temperature indicator: Supported
- Signal strength indicator: Supported
- LED indicator: Blue (Alarm)
Transmission
- Transmission technology: Tri-X Wireless
- Transmission method: Two-way RF wireless
- Transmission frequency: 433 MHz
- Transmission security: AES-128 encryption
- Transmission range (free space): 1 km
- Frequency hopping: Supported
- Enrolling method: Power up; Remote ID; QR Code
Electrical characteristics
- Battery life: Up to 5 years (standby time)
- Power supply: Battery powered
- Battery type: CR123A x 1
- Typical voltage: 3V
General
- Operation temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation humidity: 10% to 90%
- Dimensions (W x H x D): φ101.2 mm x 32.9 mm
- Weight: 109.5g
- Mounting height: 2.4 to 4m
- Mounting method: Ceiling
- Application scenario: Indoor
