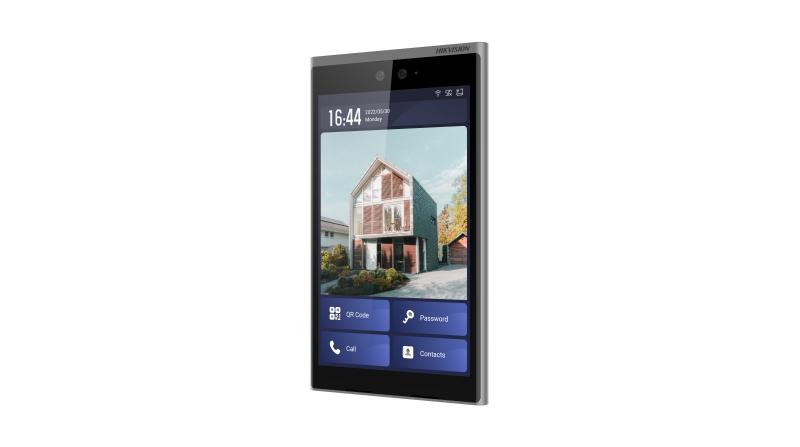

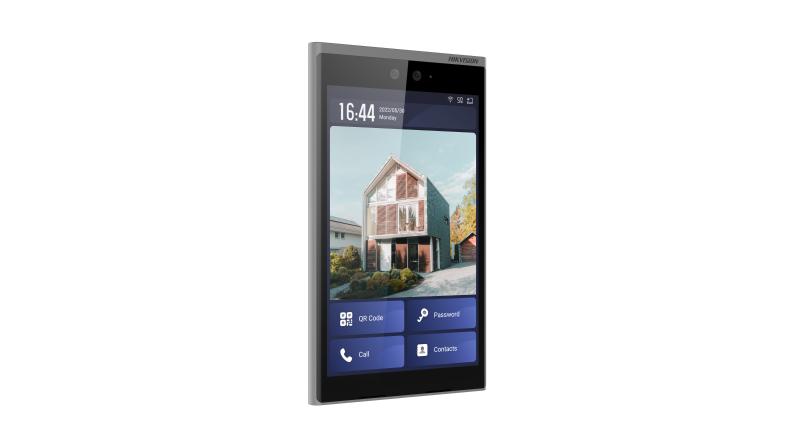

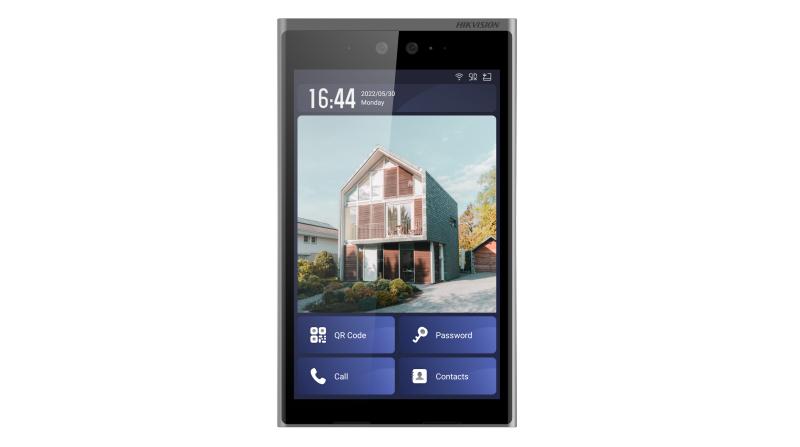

Hikvision Facial Door Station 10" IPS Touch Screen DS-KD9633-WBE6

Key Features

• Intuitive operation for a better user experience
• 10.1-inch colorful LCD screen with 1280 × 880 resolution
• Built-in Android system
• Touch screen UI, WEB
• Great image quality even in darkness
• See clearly with the 2MP camera
• Multiple intelligent authentications
• Card, PIN code, bluetooth, QR code, fingerprint & face recognition
• High level of protection
• IP65

Downloads

View Datasheet

View User Manual

Specifications

System parameters

• Operation systemAndroid 7.1
• ROM4 GB
• RAM2 GB
• ProcessorEmbeded high performance processor

Display parameters

• Screen size10.1-inch
• Operation methodCapacitive touch screen
• TypeColorful IPS
• Resolution1280 × 800
• Brightness410 cd/m²

Video parameters

• Lens2 x 2 MP HD camera with low illumination
• Resolution

  Main stream:1920 × 1080p and 1280 × 720p

  Sub stream: 1280 × 720p and 640 × 480p

• FOVHorizontal: 88°, Vertical: 44°
• Wide dynamic range (WDR)Digital WDR/120 dB
• Supplement lightIR light, up to 3 m
• Video compression standardH.264

Audio parameters

• Audio input2 built-in omnidirectional microphone
• Audio compression standardG.711 U, G.711 A
• Audio output1 built-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

Capacity

• User capacity20000
• Face capacity10000
• Fingerprint capacity/
• Card capacity100000
• Message capacity/
• Linked indoor station capacity500
• Sub door station capacity16

Network parameters

• Network protocolTCP/IP, RTSP
• Wi-FiWi-Fi 802.11 b/g/n
• BluetoothSupport
• 3G/4G/

Authentication

• Card reading frequency13.56 MHz

Device interfaces

• Alarm input4 (2 exit butttons and 2 door contacts by default)
• Network interface2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)
• TAMPER1
• Exit button2 (1 for lock control and 1 for secure door control unit)
• RS-4852 RS-485 (Half duplex, HIKVISION)
• USB2 for internal use only
• Wiegand/
• TF card1 (reserved)
• Alarm output2 (reserved)
• Lock control2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module
• Door contact input1

General

• InstallationSurface mounting and flush mounting
• Indicator/
• Weight

  Net weight: 1.225 kg

  Gross weight: 3.333 kg

• Protective levelIP65 and IK07
• Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity10% to 90% (no-condensing)
• Dimension (W × H × D)271 mm × 159.2 mm × 26.5 mm (10.7" × 6.3" × 1")
• Battery/
• Power supply12 VDC, 2 A
• Application environmentOutdoor
• Power consumption≤ 18 W
• LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Lithuanian,Estonia,Latvian,Norwegian,Danish,Slovakia,Hebrew,Swedish,Finnish,TraChinese,Mongolian,HongKongTraChinese
