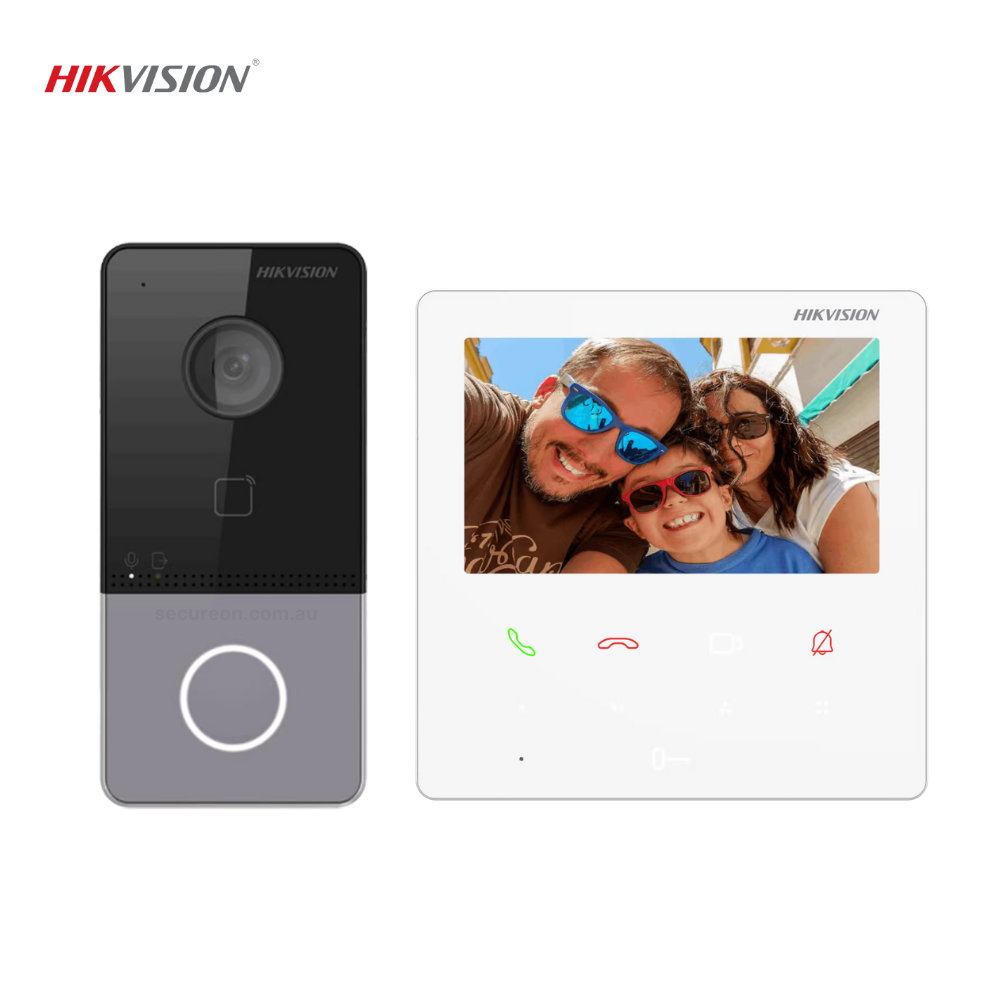

Hikvision IP Video Intercom Kit White DS-KIS606-P-WHITE

Hikvision DS-KIS606-P G2 2MP IP Kit, White

Key Features

• Network video intercom kit for villa
• One-press call button for easier calls
• Convenient Hik-Connect APP mobile control
• Device included: DS-KV6113-PE1(C) × 1, DS-KH6110-WE1 × 1, DS-KABV6113-RS × 1, PSU × 2
• Power adapter included in the package

Downloads

View Datasheet

Specs

Door station/System parameters

• Operation systemLinux
• ProcessorEmbeded high performance processor
• RAM256 MB
• ROM32 MB

Door station/Video parameters

• Supplement lightIR light, up to 3 m
• Resolution

  Main stream: 1920 × 1080p,1280 X 720p

  Sub stream: 1280 X 720p,640 x 480p

• Lens2MP HD camera
• Field of viewHorizontal: 131°, Vertical: 78°
• Video Compression StandardH.264; H.265; MJPEG

Door station/Audio parameters

• Audio input1 built-in omnidirectional microphone
• Audio output1 built-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable
• Audio compression standardG711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
• Audio compression Rate64 Kbps

• Door station/Capacity parameters
• User capacity2000
• Linked indoor station capacity16
• Card capacity10000

Door station/Network parameters

• Network protocolTCP/IP, RTSP, IPV6,ONVIF

Door station/Device interfaces

• Network interface1 RJ-45, 10/100 Mbps self-adaptive
• RS-4851
• Alarm input4
• Lock control1 relay, Max. 30 VDC 2 A
• Exit button1
• Door contact input1
• TAMPER1

Door station/General

• Button1 physical button(s)
• Power consumption＜ 10 W
• Working temperature-40 °C to 55 °C(-40 °F to 131 °F)
• Working humidity10% to 95% (no-condensing)
• Dimension138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
• InstallationSurface mounting
• Protection levelIP65
• Indicator2
• Application environmentOutdoor
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

• Net weight: 0.190 kg； Gross weight: 0.414 kg

Indoor station/System parameters

• Operation systemEmbedded Linux operation system
• RAM128 MB
• ROM16 MB
• ProcessorEmbedded processor

Indoor station/Display parameters

• Display resolution480 × 272
• Operation methodCapacitive touch screen with 9 touch buttons
• Screen size4.3-inch colorful TFT screen
• TypeColorful TFT screen

Indoor station/Video parameter

• Video compression standard/
• Resolution/
• Lens/
• Wide dynamic range (WDR)/
• FOV/

Indoor station/Audio parameters

• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U, G.711 A
• Audio compression bitrate64 Kps
• Volume adjustmentAdjustable

Indoor station/Capacity parameters

• Notice capacity200
• Linked indoor extensions capacity16

Indoor station/Network parameters

• Network protocolTCP/IP, SIP, RTSP
• Wi-FiWi-Fi 802.11 b/g/n, 2.4 GHz

Indoor station/Device interfaces

• Network interface1 RJ-45 10/100 Mbps self-adaptive

Indoor station/General

• Button9 physical button
• Power consumption≤ 4 W
• Power supplyIEEE802.3af, Standard PoE,12 VDC
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 95% (no-condensing)
• Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Dimension (W × H × D)120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
• InstallationWall mounting, table mounting
• Application environmentIndoor
• Protective level/
• With package: 336.6 g Without package: 197.8 g
• LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
