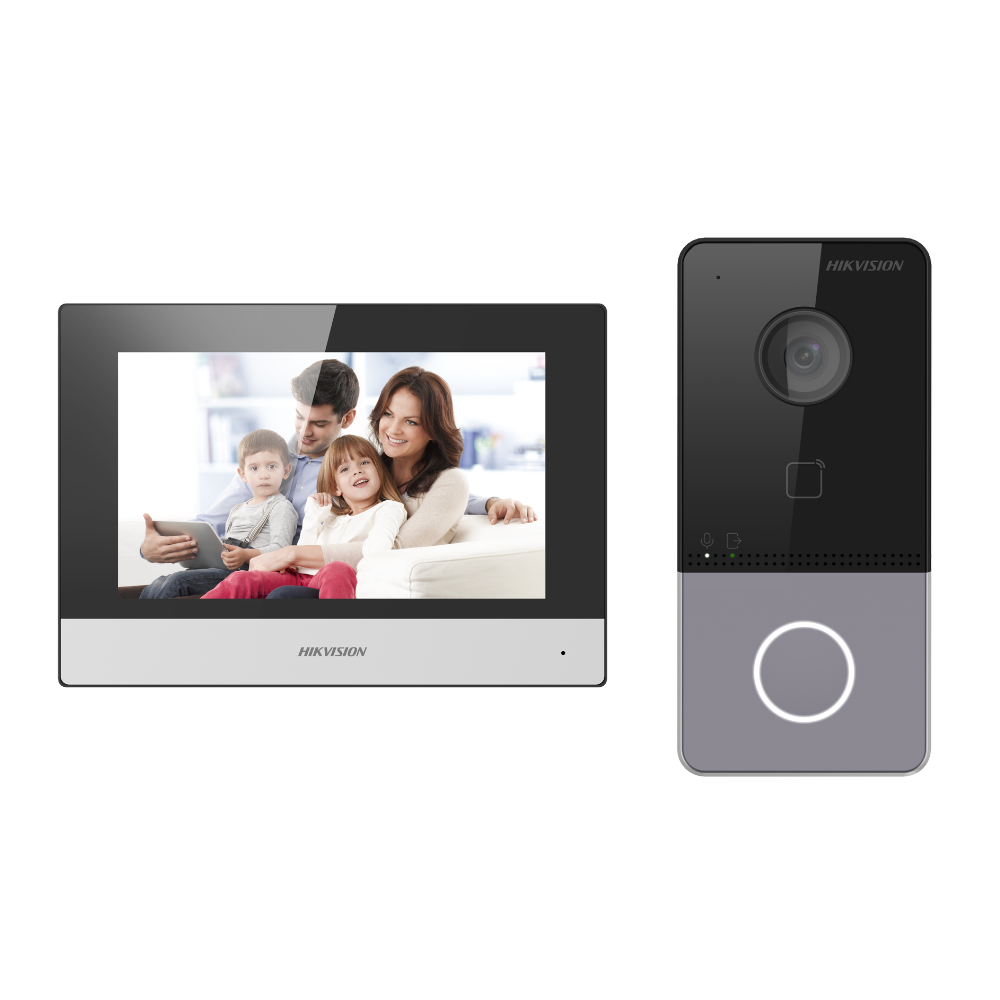

The Hikvision DS-KIS603-P is a G2 2MP IP video intercom bundle for villa or house, delivering clear two-way communication and convenient remote access control.
Key features
- IP video intercom for villa or house
- One call button for easier calls
- Convenient Hik-Connect app mobile control
- 2MP HD camera with true WDR and 131° horizontal field of view
- Remote unlock via the Hik-Connect app - answer your door from anywhere
- Standard Power over Ethernet (PoE) support - power both the indoor monitor and outdoor door station over a single network cable
- 7-inch colour TFT touch screen indoor station with Wi-Fi
- IP65 weather protection on door station
- Power adapter included in the package
- No PoE switch included
- 2-year warranty
What's in the box
- DS-KV6113-WPE1(C) Door Station x1
- DS-KH6320-WTE1 Indoor Station x1
- PSU x2
Specifications
| Door station - System parameters | |
|---|---|
| Operating system | Embedded Linux |
| Flash | 32 MB |
| RAM | 256 MB |
| Door station - Video parameters | |
|---|---|
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode: 3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | True WDR |
| Field of view | Horizontal: 131° / Vertical: 78° |
| Video compression standard | H.264, H.265, MJPEG |
| Stream | Main stream: 1080p@25fps, 720p@25fps / Sub stream: 720@25fps, 480@25fps |
| Motion detection | Support |
| Flash-avoid frequency | 50 Hz, 60 Hz |
| Door station - Audio parameters | |
|---|---|
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G711U, G711A, G726, AAC_LC, AAC_LD, OPUS, G722.1 |
| Audio compression rate | 64 Kbps |
| Door station - Network parameters | |
|---|---|
| Network protocol | TCP/IP, RTSP, IPv6, ONVIF |
| Wired network | 10/100 Mbps Ethernet |
| Door station - Device interfaces | |
|---|---|
| RS-485 | 1 |
| Alarm input | 4 |
| Debugging port | 1 |
| Tamper switch | 1 |
| Door station - General | |
|---|---|
| Power consumption | < 10 W |
| Working temperature | -40°C to 53°C (-40°F to 127.4°F) |
| Working humidity | 10% to 95% |
| Dimensions | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicators | 2 |
| Power supply | IEEE802.3af Standard PoE / 12 VDC |
| Indoor station - System parameters | |
|---|---|
| Operating system | Embedded Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high performance processor |
| Indoor station - Display parameters | |
|---|---|
| Screen size | 7-inch colour TFT screen |
| Operation method | Capacitive touch screen |
| Resolution | 1024 × 600 |
| Indoor station - Audio parameters | |
|---|---|
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression rate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Indoor station - Capacity parameters | |
|---|---|
| Notice capacity | 200 |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Linked door phone capacity | 17 |
| Indoor station - Network parameters | |
|---|---|
| Network protocol | TCP/IP, RTSP, SIP, IPv6, ONVIF |
| Wi-Fi | Wi-Fi 802.11b/g/n |
| Bluetooth | Reserved |
| 3G/4G | Not supported |
| Indoor station - Device interfaces | |
|---|---|
| Alarm input | 8 |
| Network interface | 1 × RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| TF card | Supported, up to 128 GB |
| Relay | 2 relays, Max. 30 VDC 0.3 A |
| Power supply output | Max. 12 VDC 0.2 A (PoE powered only) |
| Debugging port | 1 |
| Indoor station - General | |
|---|---|
| Power supply | IEEE802.3af Standard PoE / 12 VDC |
| Power consumption | ≤ 12 W |
| Working temperature | -10°C to 50°C (14°F to 122°F) |
| Working humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 200 mm × 140 mm × 23.3 mm (7.87" × 5.51" × 0.92") |
| Installation | Surface mounting |
| Application environment | Indoor |
| Weight | 339.1 g (without package) / 562.4 g (with package) |
| Language support | English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese and more |
