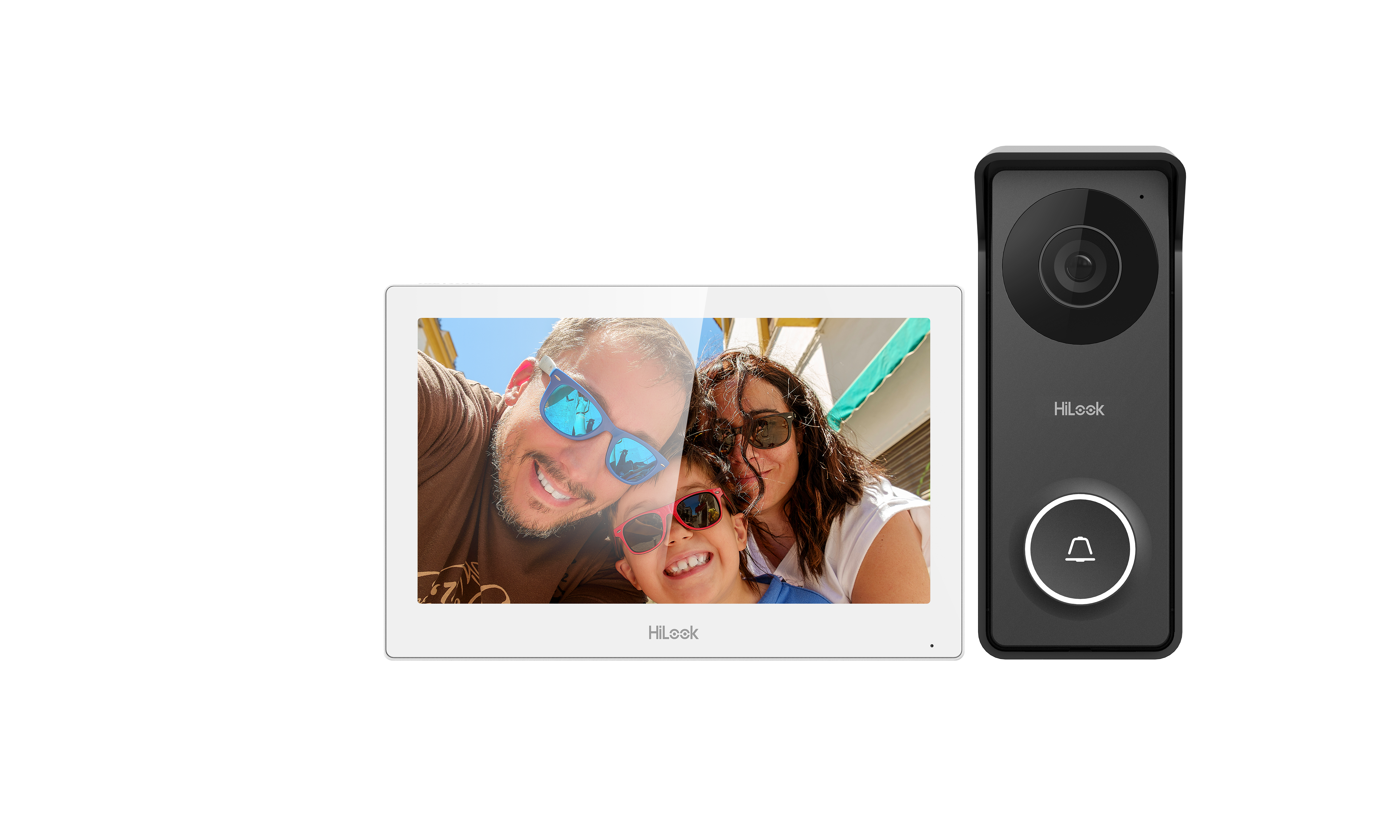

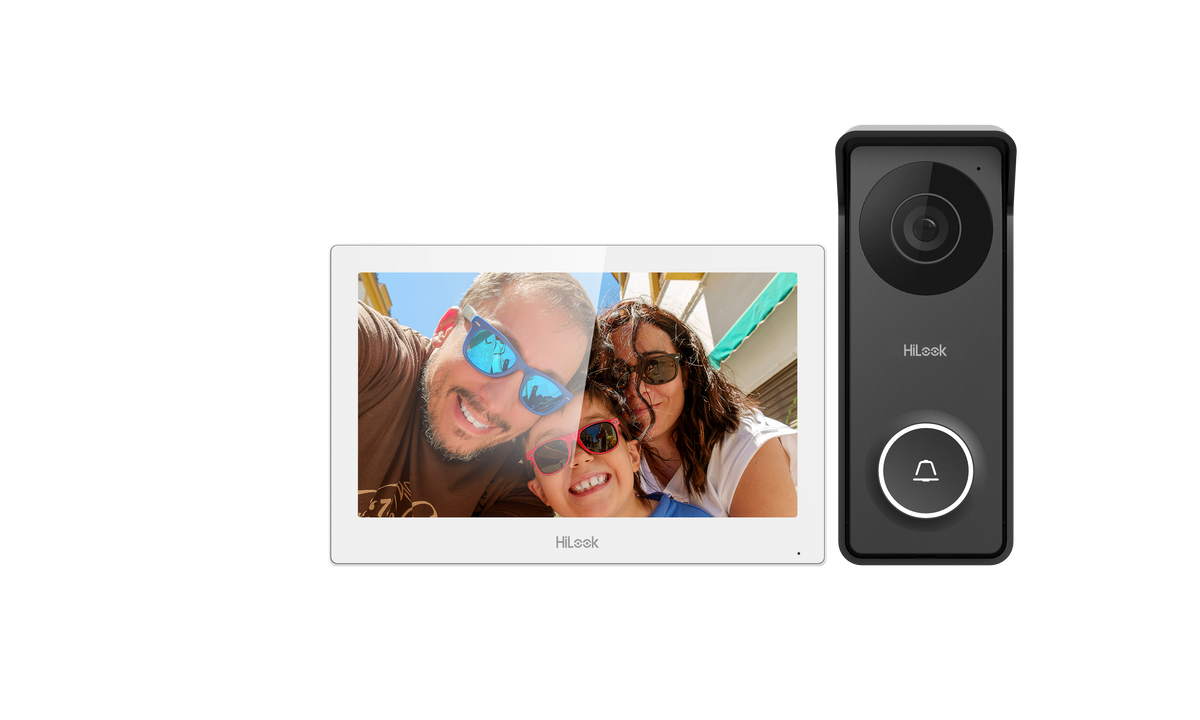

HiLook 1 Button Hybrid HD Intercom Kit HA-KIT-H1

Door station/Video parameters

• Supplement light IR light, up to 3 m
• Resolution Stream resolution:1280 * 720@60fps
• FOV Horizontal: 117°, Vertical: 70°, Diagonal: 141°

Door station/Audio parameters

• Audio input 1 built-in omnidirectional microphone
• Audio output 1 built-in loudspeaker

Door station/Capacity parameters

• Linked indoor station capacity 3
• Sub door station capacity 1
• Card capacity /

Door station/Device interfaces

• Lock control 1 relay, max 30 V 1 A
• Power supply input 12 VDC
• Debugging port 1
• Four-Wire interface 1

Door station/General

• Button 1 physical button(s)
• Indicator
• Power supply 12 VDC
• Power consumption ≤ 4 W
• Working temperature -30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity 10% to 90% (no-condensing)
• Application environment Outdoor
• Dimension (W × H × D) 55 mm × 145 mm × 24 mm (2.17" × 5.71" × 0.94")
• Installation Surface mounting
• Protective level IP65, IK08
• Material Aluminum alloy and Plastic
• Without package: 200 g (0.44 lb)

Indoor station/System parameters

• Operation system Embedded Linux operation system
• RAM 128 MB
• ROM 32 MB
• Processor Embedded high performance processor

Indoor station/Display parameters

• Type Colorful TFT
• Resolution 1024 × 600
• Viewing Angle Horizontal 160°, vertical 130°
• Contrast 700 (Typ)
• Luminance 250 cd/m² （Typ）
• Operatiing method Capacitive touch screen
• Screen size 7-inch

Indoor station/Audio parameters

• Audio input 1 built-in omnidirectional microphone
• Audio output 1 built-in loudspeaker
• Audio compression bitrate 64 Kps
• Audio compression standard G.711U, G.711A
• Audio quality Noise suppression and echo cancellation

Indoor station/Capacity parameters

• Linked network camera capacity /
• Linked indoor extensions capacity 2
• Linked doorphone capacity 2
• Linked analog camera 1

Indoor station/Network parameters

• Wi-Fi Wi-Fi 802.11 b/g/n

Indoor station/Device interfaces

• Network interface /
• RS-485 /
• Alarm input 2
• Alarm output /
• Power supply input 12 VDC
• TF card Support TF card, up to 128 G
• Debugging port 2
• Four-Wire interface 4
• Relay /

Indoor station/General

• Button 0 physical button
• Power supply 12 VDC
• Power consumption ≤ 5 W
• Working temperature -10 °C to 50 °C (14 °F to 122 °F)
• Working humidity 10% to 90% (no-condensing)
• Dimension (W × H × D) 175 mm × 113.5 mm × 18.1 mm (6.89" × 4.47" × 0.71")
• Installation Surface mounting
• Application environment Indoor
• Without package: 260 g (0.573 lb)
• Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
