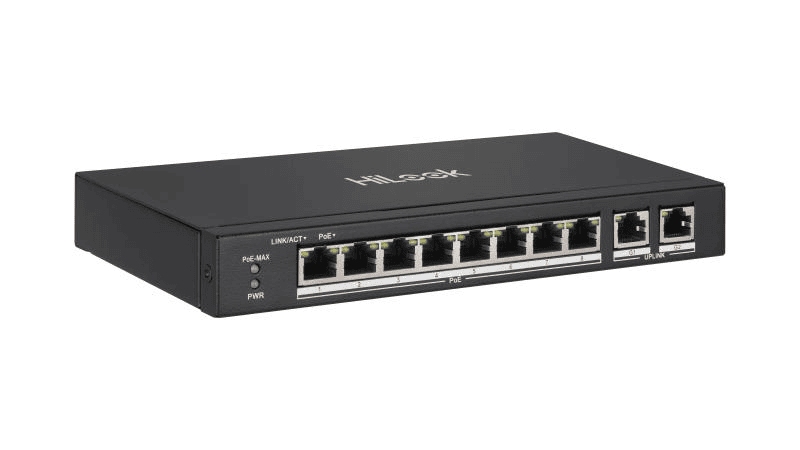

HiLook 10 Port 8 POE Unmanaged POE Switch 2x Giga UPlink 60W NS-0310P-60

• 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
• IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 KV surge protection for PoE ports.
• Up to 250 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching
• Solid high-strength metal shell.
• Reliable fan-free design.

Downloads

View Datasheet

Specs

PoE Power Supply

• PoE StandardPorts 1 to 8: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
• PoE PortPorts 1 to 8
• Max. Port PowerPorts 1 to 8: 30 W
• PoE Power Budget60 W

Network Parameters

• Port Number8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
• Forwarding Mode Store-and-forward switching
• Working ModeStandard mode (default), Extend mode
• Ports for Long-Distance TransmissionPorts 1 to 8
• MAC Address Table16 K
• Switching Capacity5.6 Gbps
• Packet Forwarding Rate4.1664 Mpps
• Internal Cache4 Mbits

Dialing Function

• Long RangePorts 1 to 8: up to 250 m.

General

• Shell Metal material, fan-free design
• Gross Weight1.20
• Net Weight0.555
• Dimension (L × H × D)217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
• Operating Temperature-10°C to 40°C (14°F to 104°F)
• Storage Temperature-40°C to 85 °C -40°F to 185°F)
• Operating Humidity5% to 95% (no condensation)
• Storage Humidity 5% to 95% (no condensation)
• Power Supply48 VDC, 1.35 A
• Power Consumption in Idle< 5 W
• Power Souce65 W
• Max. Power Consumption65 W

Approval

• EMC

  FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-
  3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
  (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

• Safety

  UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

• Chemistry

  CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
  No 1907/2006)
