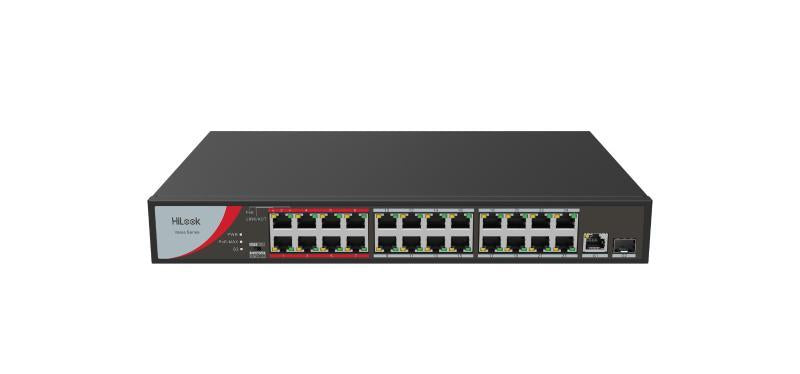

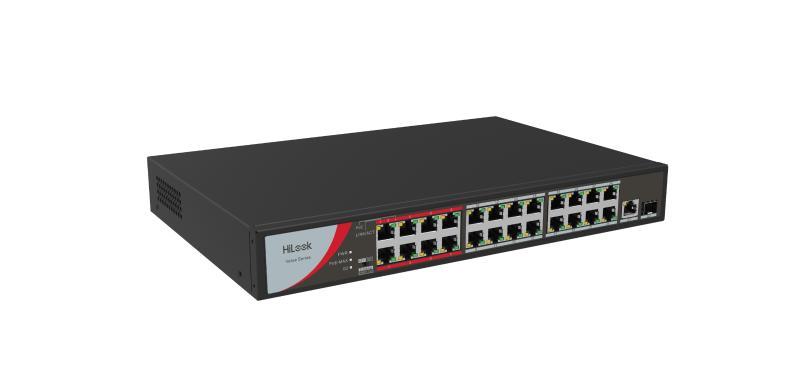

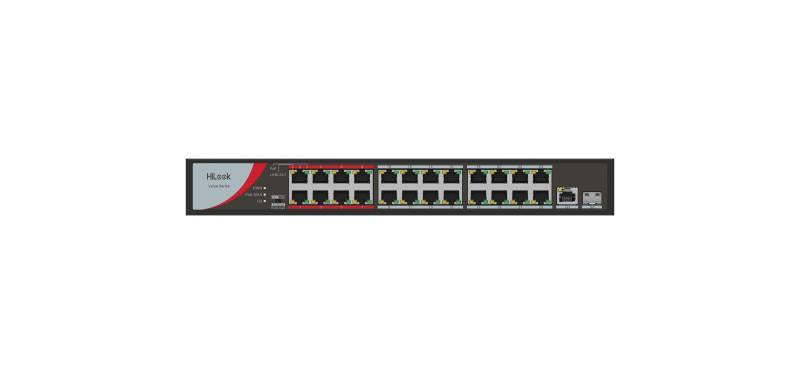

HiLook 26 Port 24 POE Unmanaged POE Switch 230W NS-0326P-230

Vendor: HiLook

HiLook 26 Port 24 POE Unmanaged POE Switch 230W NS-0326P-230

$400

Vendor: HiLook

HiLook 26 Port 24 POE Unmanaged POE Switch 230W NS-0326P-230

$400

HiLook 24 Port Fast Ethernet Unmanaged POE Switch

  • Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
  • All ports support 6 kV lighting protection
  • 230 W PoE power budget
  • Maximum transmission distance is 250 meters for port 17 to 24 in "extend" mode
  • MAC address auto learning and auto aging

Downloads

View Datasheet

Specs

  • NS-0318P-130(B)
  • Port number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
  • Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding modeStore-and-forward switching
  • Working modeStandard mode (default); Extend mode
  • High priority portsPorts 1 to 8
  • Ports for long-distance transmissionPorts 17 to 24
  • MAC address table4 K
  • Switching capacity8.8 Gbps
  • Packet forwarding rate6.547 Mpps
  • Internal cache2.75 Mbits
  • PoE standardIEEE 802.3af, IEEE 802.3at
  • PoE power pin

    Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
    Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

  • PoE portPorts 1 to 24
  • Max. port power30 W
  • PoE power budget230 W
  • Max. power consumption250 W
  • ShellMetal material
  • Gross weight3.33 kg (7.34 lb)
  • Net weight2.55 kg (5.6 lb)
  • Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
  • Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating humidity5% to 95% (no condensation)
  • Storage humidity5% to 95% (no condensation)
  • Power supply100 to 240 VAC, 50/60 Hz, Max. 4 A
  • Power consumption in idle20 W
