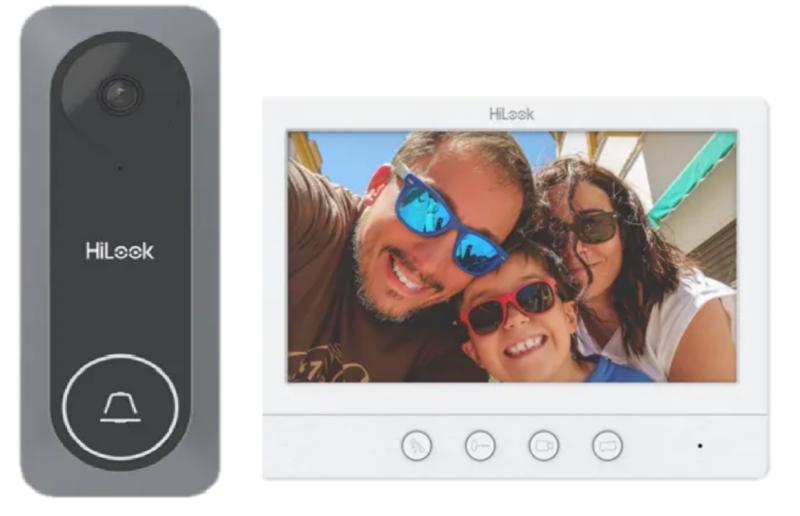

HiLook 4-Wire 1 Button HD Video Intercom Kit HA-KIT-A2

Door station/Video parameters

• Supplement light IR light, up to 3 m
• Resolution Stream resolution: 1280 * 720@60fps
• FOV Horizontal: 130°，Vertical: 70°

Door station/Audio parameters

• Audio input Built-in omnidirectional microphone
• Audio output Built-in loudspeaker

Door station/Device interfaces

• Lock control 1 relay, max 30V 1 A
• Debugging port 1
• Four-wire 1 four-wire interface

Door station/General

• Button 1 physical button(s)
• Indicator /
• Power supply 12 VDC
• Power consumption Max. 4W
• Working temperature -30° C to + 60° C
• Working humidity 10% to 90%
• Dimensions 136mm x 51mm x 20mm
• Application environment Indoor
• Installation Surface mounting
• Protective level /
• Material Plastic

Indoor station/Display parameters

• Operation method Physical button
• Type 7-inch colorful TFT
• Resolution 1024 x 600

Indoor station/Audio parameters

• Audio input Built-in omnidirectional microphone
• Audio output Built-in loudspeaker

Indoor station/Capacity parameters

• Linked indoor extensions capacity 2
• Linked doorphone capacity 2
• Linked analog camera 1

Indoor station/Device interfaces

• Power supply input 12V DC
• Debugging port 1
• Four-Wire interface 4, 2 for indoor extentions, 2 for doorphones
• DIP switch 1 Bit
• BNC 1

Indoor station/General

• Button 4 physical button
• Power supply 12 VDC
• Power consumption ≤5 W
• Working temperature -10° C to + 55° C (14° F to 131° F)
• Working humidity 10% to 90%
• Dimensions (W × H × D) 178mm x 132mm x 19mm
• Installation Surface mounting
• Application environment Indoor
• Protective level /
