Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1
Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1

Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1

$463inc. GST
$463inc. GST
SKU: DS-KH9310-WTE1
Tags: / / / / / / / / /
Product Badge
Product Badge
Product Badge
10 customers are viewing this product
Please hurry! Only 50 left in stock
  • Secure On Australia

Typically shipped within 1 - 3 business days

Free standard shipping on orders over $200

Back-to-base Australian warranty

Free tech support

14-day return policy

Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1

Hikvision

Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1

$463
Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1
Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1

Hikvision

Hikvision 2nd Gen IP Intercom Display 7″ Android Room Station PoE White DS-KH9310-WTE1

$463
Product Details

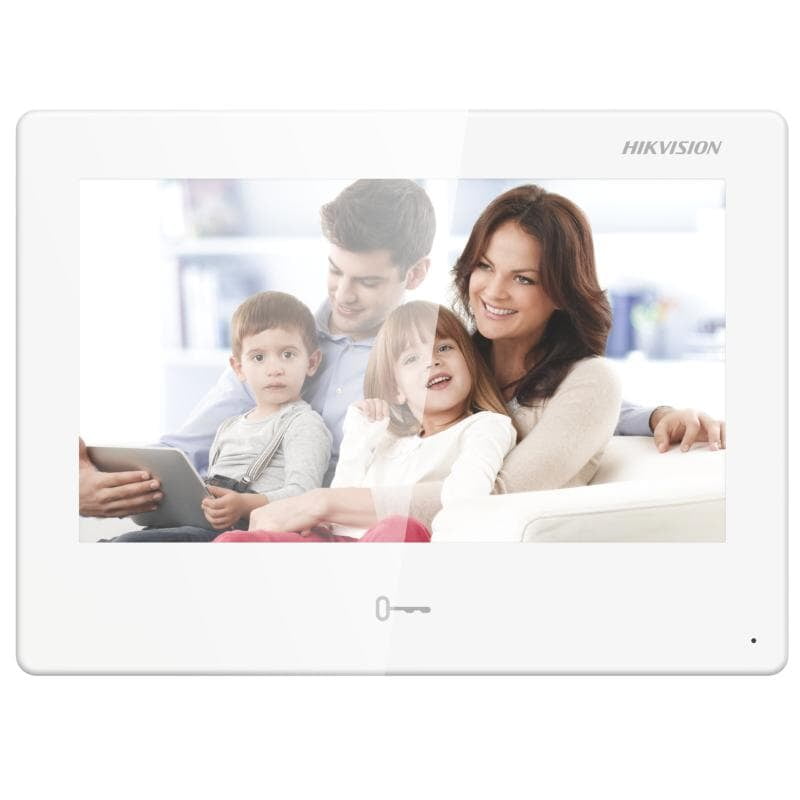

The DS-KH9310-WTE1 is an Android-powered room station from Hikvision with a 7 inch display. By utilizing the Hik-Connect app, it can easily view, arm, or disarm other Hikvision devices like NVRs, cameras, and alarm HUBs. This added functionality makes it a convenient choice for sites that use or are transitioning to a Hikvision ecosystem. Compatibility with the Gen 2 intercom range and Hikvision software allows for easy installation, setup, and configuration for installers.

Key Features

  • 7-inch colorful touch screen with resolution 1024 × 600
  • Supports Android app installation
  • Open platform for the third-party software integration
  • Video intercom & live view on mobile phone all-day
  • Built-in Hik-Connect for all-in-one management
  • Wireless intrusion panel for on-site management
  • Receives 7 seconds of video verification from alarm systems

Downloads

View Datasheet

View User Manual

Specifications

System parameters

  • Operation systemAndroid 10.1
  • ROM8 GB
  • RAM2 GB
  • ProcessorEmbeded high performance processor

Display parameters

  • Screen size7-inch
  • Operation methodCapacitive touch screen
  • TypeColorful TFT
  • Resolution1024 × 600

Video parameters

  • Lens/
  • Resolution/
  • FOV/
  • Wide dynamic range (WDR)/
  • Video compression standardH.265；H.264
  • Focal length/

Audio parameters

  • Audio input1 built-in omnidirectional microphone
  • Audio compression standardG722.1, OPUS, AAC_LC, AAC_LD, G726, G711.U, G711.A
  • Audio output1 built-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable

Capacity

  • Message capacity200 captured pictures, 200 alarm records
  • Notice capacity200
  • Linked indoor extensions capacity16
  • Linked network camera capacity16
  • Linked doorphone capacity17

Network parameters

  • Network protocolTCP/IP, SIP, RTSP
  • Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • Bluetooth/
  • 3G/4G/
  • Zigbee/

Device interfaces

  • Alarm input8
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER/
  • RS-4851 RS-485 (Half duplex)
  • TF cardSupport TF card, up to 128 G
  • Alarm output1
  • Lock control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)

General

  • Button/
  • InstallationSurface mounting
  • Indicator/
  • Weight

    Net weight: 419.3 g, Gross weight: 694 g

Protective level/

  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)187 mm × 137 mm × 25.7 mm (7.36" × 5.39" × 1.01")
  • Battery/
  • Power supply12 VDC, 1 A, IEEE802.3af, standard PoE
  • Application environmentIndoor
  • Power consumption≤ 12 W
  • LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
