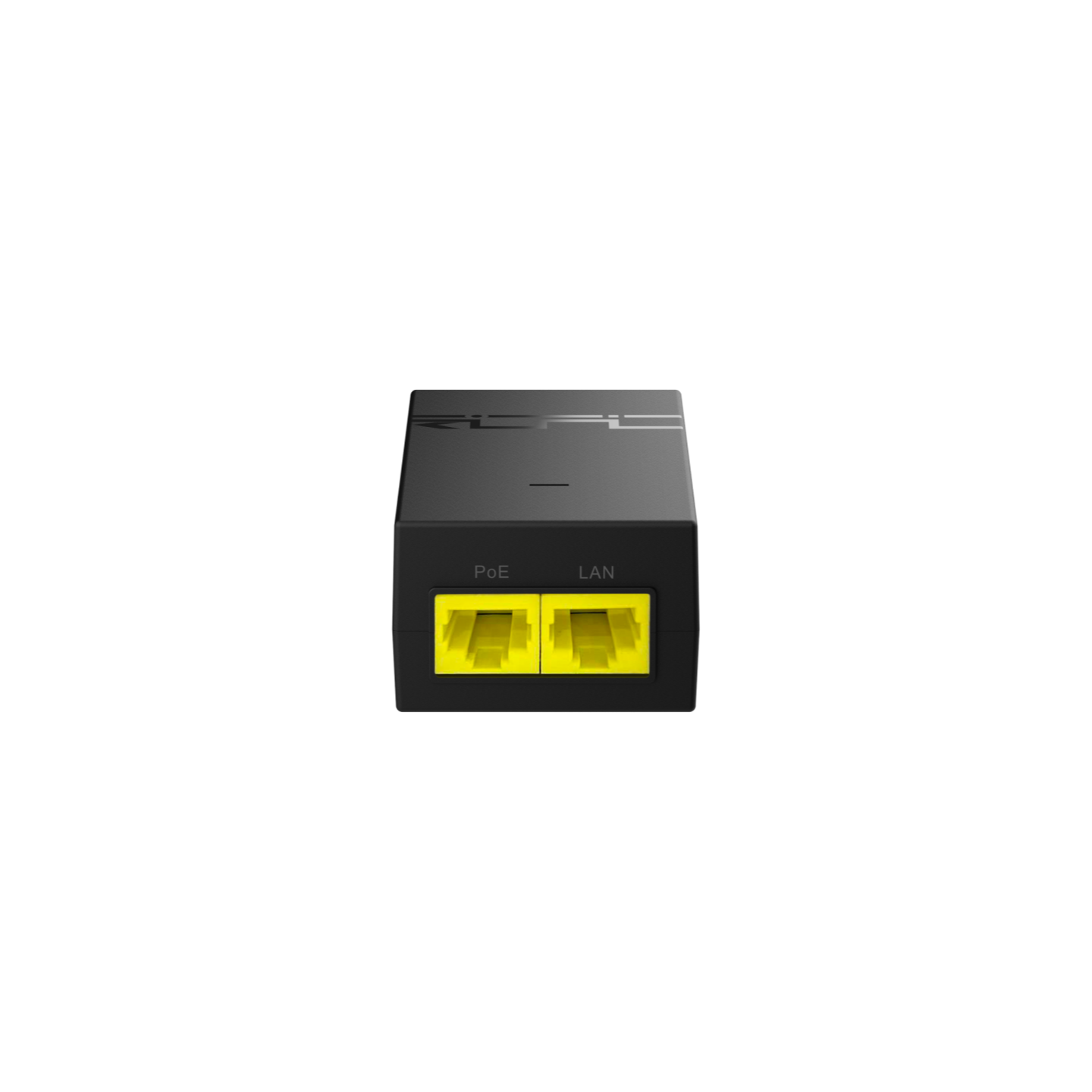

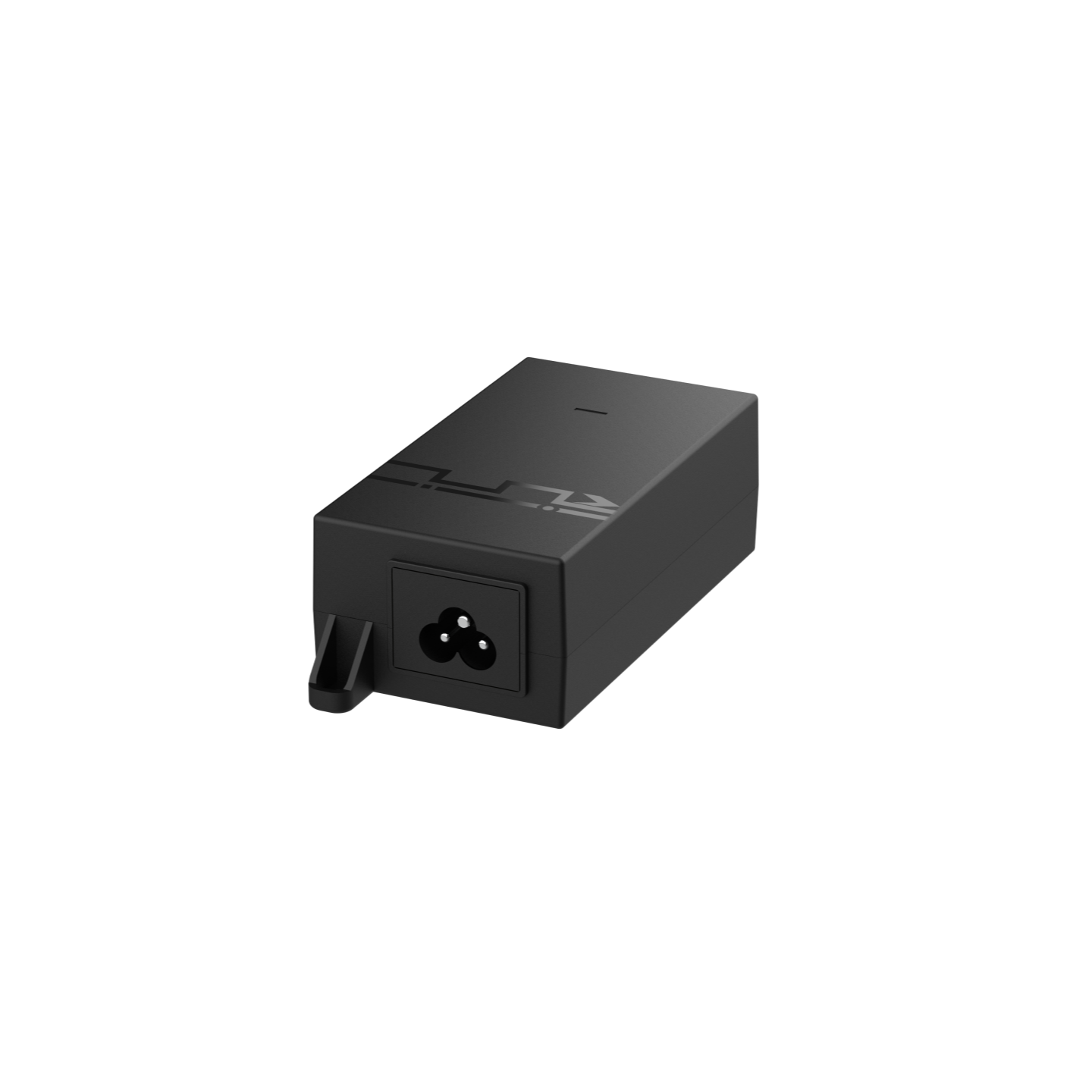

Ruijie 1-Port PoE Injector (1000Base-T, 52 V, 15.6 W) RG-POE-AF15

The Ruijie RG-POE-AF15 is a compact Power over Ethernet (PoE) injector that provides both power and data over a single Ethernet cable. Supporting up to 15.6W of power output and Gigabit Ethernet speeds, it is ideal for powering standard PoE devices such as wireless access points, IP cameras, and VoIP phones.

Quick Specs

1-Port Poe Adapter (1000Base-T, 52V, 15.6W), Power Supply With Passive Poe

Key Features

• Power Output: Delivers up to 15.6W of power at 52V DC for standard PoE devices.

• Gigabit Support: Enables high-speed data transmission with 10/100/1000 Mbps capability.

• Standards Compliant: Fully supports IEEE 802.3af (PoE) standard.

• Power Delivery: Utilizes 2-pair powering via pins 4,5 (+) and 7,8 (–).

• Surge Protection: Built-in protection against surges up to 2000A (8/20 µs).

• Temperature Range: Operates reliably between -10°C and +45°C.

• Compact Size: Measures 95.2 mm × 52.2 mm × 33.2 mm.

Technical Specifications

• Input Voltage: 100–240V AC @ 50/60Hz

• Input Current: 0.5A max

• Inrush Current: <80A @ 230V AC

• Output Voltage: 52V DC @ 0.3A

• Output Power: 15.6W

• Operating Humidity: 35%–95% non-condensing

• Storage Temperature: -40°C to +70°C

Downloads

• View Datasheet
