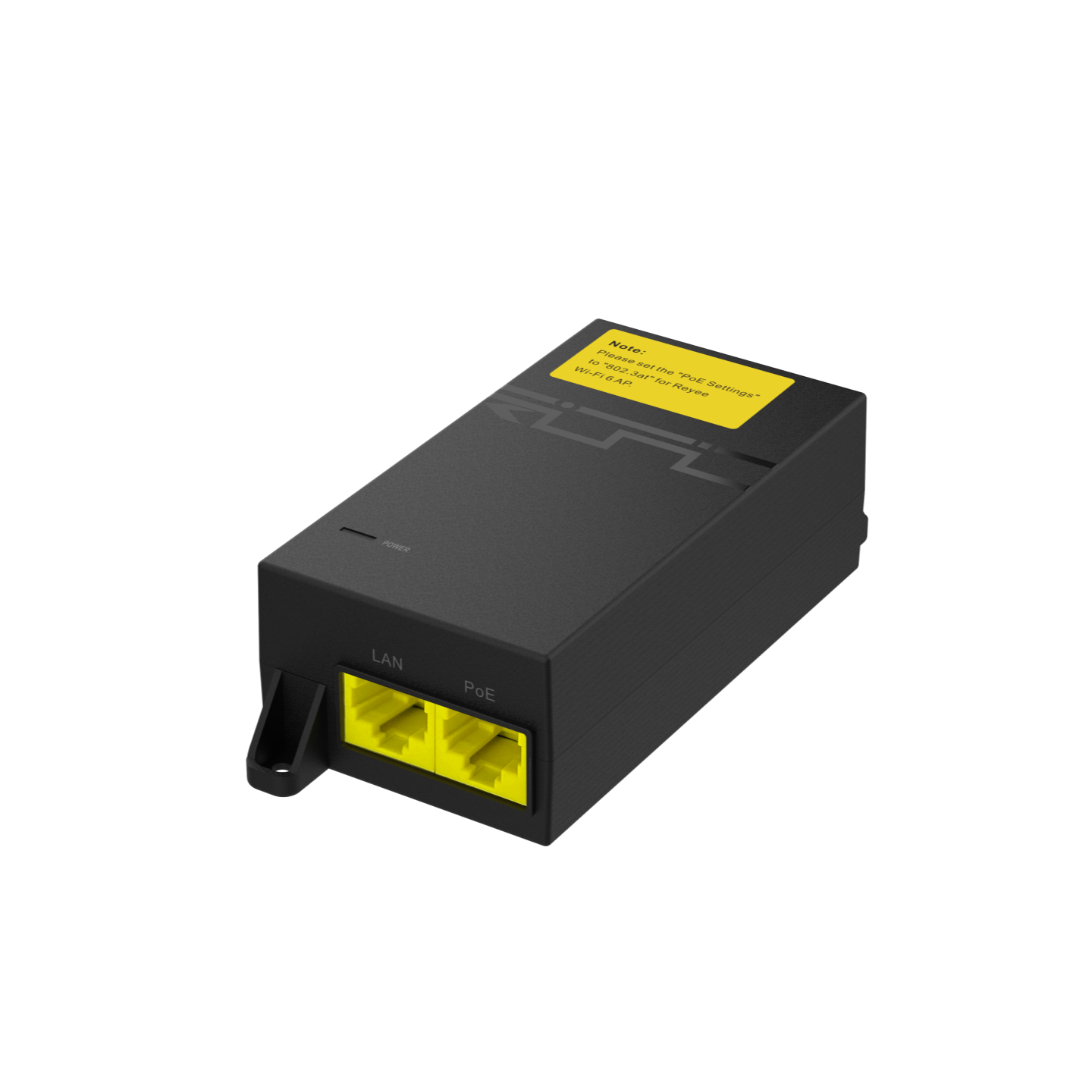

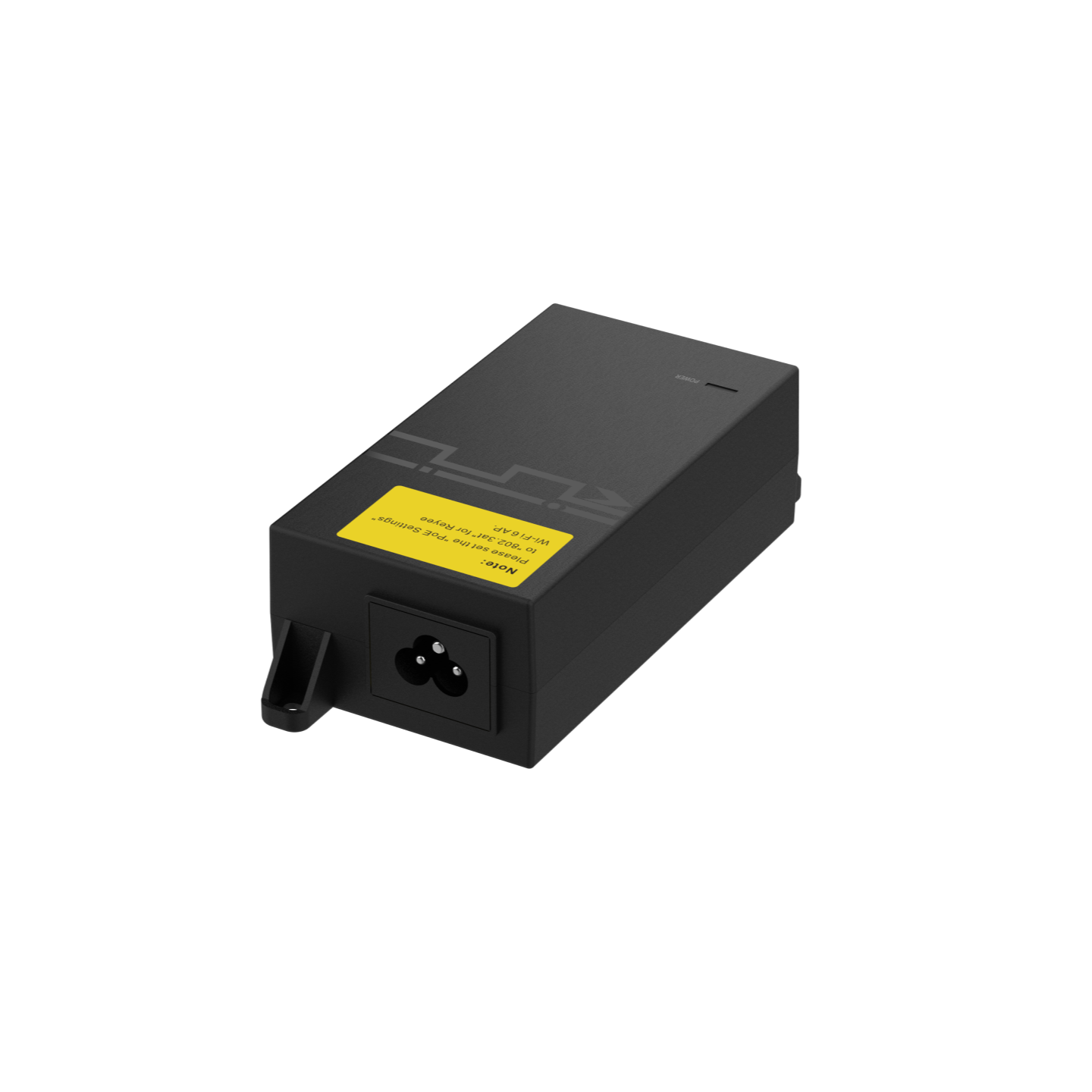

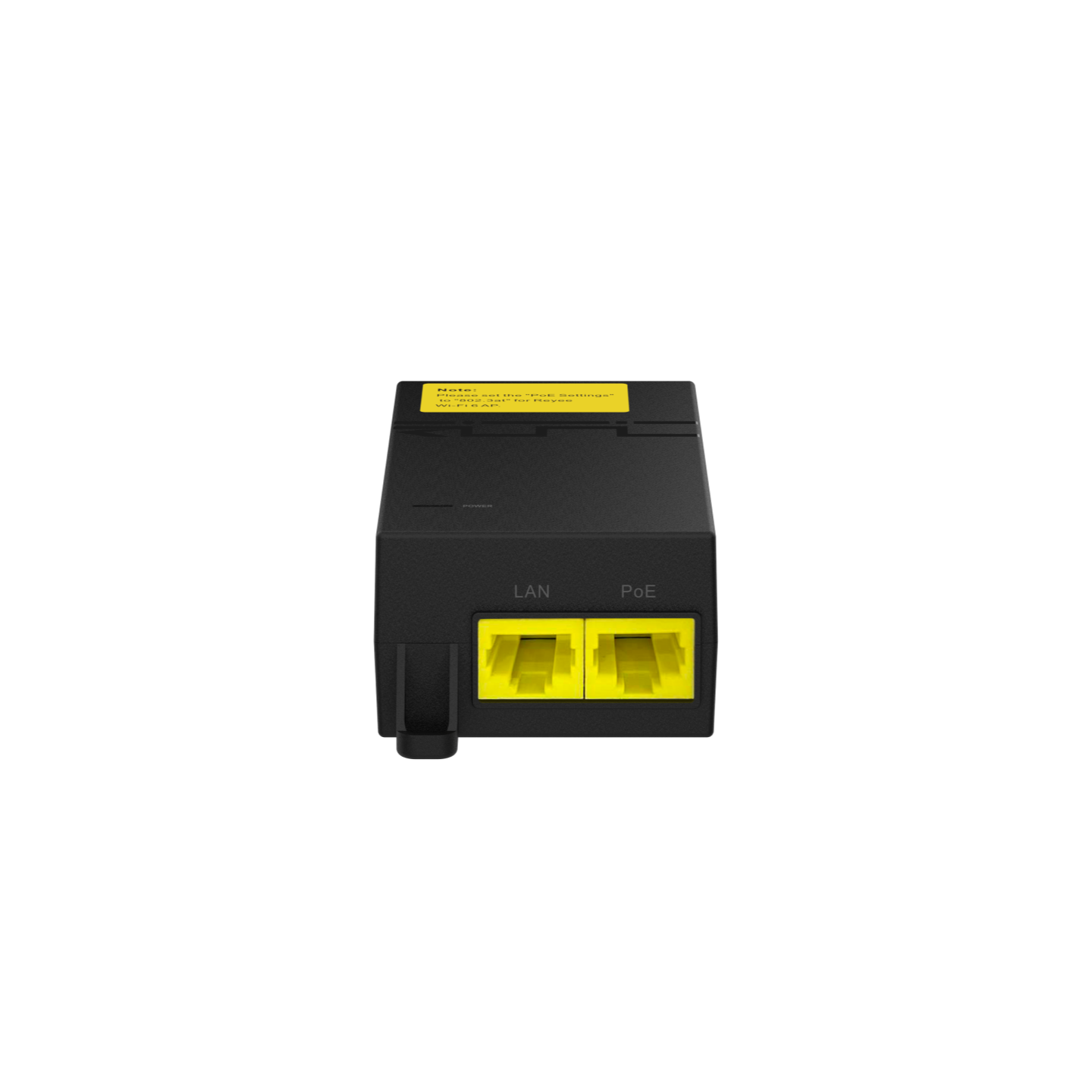

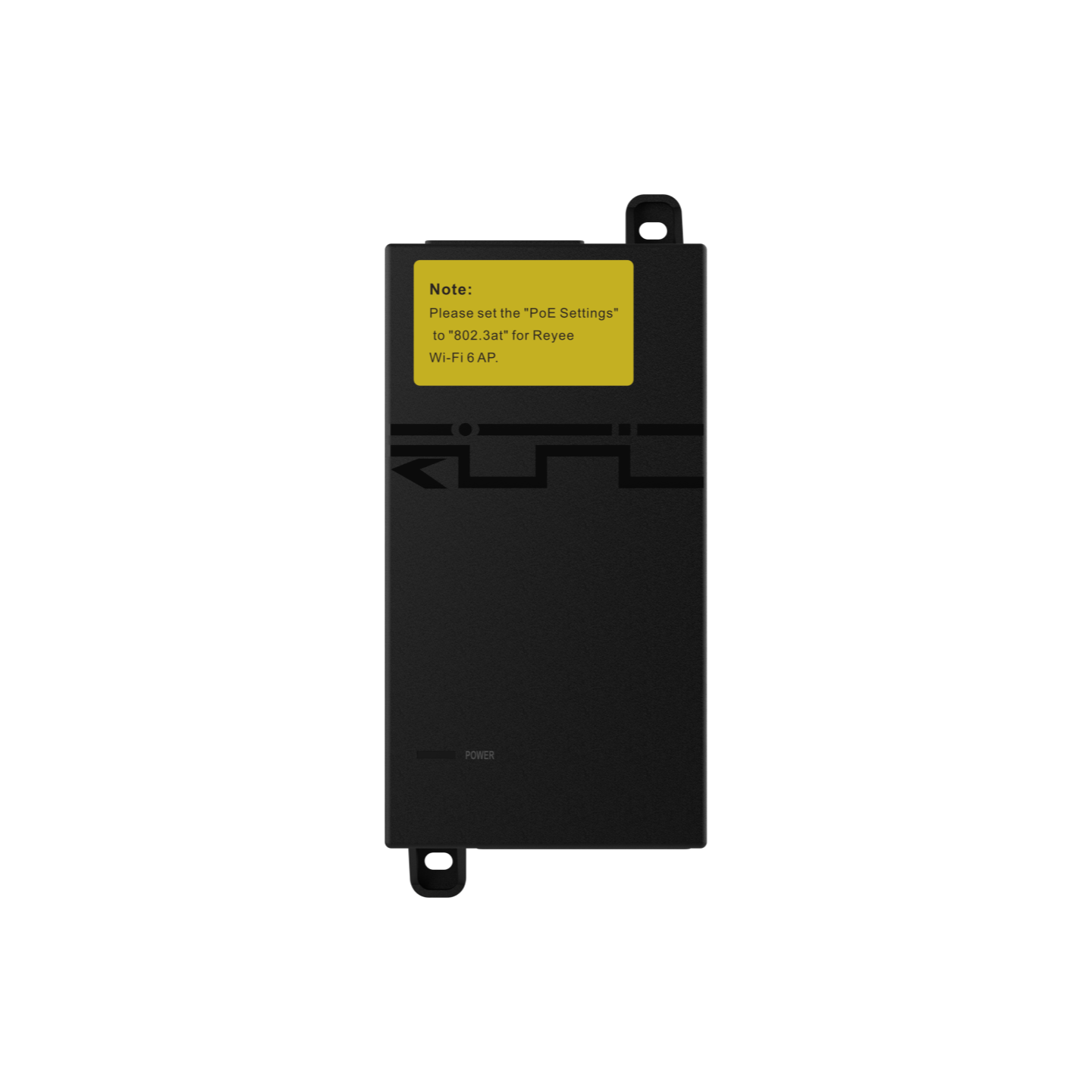

Ruijie 1-Port PoE Injector (1000Base-T, 52 V, 31.2 W) RG-POE-AT30

The Ruijie RG-POE-AT30 is a compact and efficient Power over Ethernet (PoE) injector that delivers both power and data through a single Ethernet cable. Designed to support up to 31.2W of output, it is well-suited for powering a variety of PoE-enabled devices such as wireless access points, IP cameras, and VoIP phones.

Quick Specs

1-Port Poe Injector (1000Base-T, 52 V, 31.2 W)

Key Features

• High Power Output: Provides up to 31.2W of power at 52V DC for devices requiring PoE+.

• Gigabit Ethernet Support: Compatible with 10/100/1000 Mbps data transmission rates.

• PoE Standard Compliance: Fully supports IEEE 802.3at (PoE+) standard.

• Efficient Powering: Uses 2-pair powering via pins 4,5 (+) and 7,8 (–).

• Surge Protection: Built-in surge protection up to 2000A (8/20 µs) for safety.

• Reliable in Harsh Conditions: Operates effectively in temperatures from -10°C to +45°C.

• Compact Design: Space-saving build with dimensions of 95.2 mm × 52.2 mm × 33.2 mm.

Technical Specifications

• Input Voltage: 100–240V AC @ 50/60Hz

• Input Current: 0.7A max

• Inrush Current: <100A @ 230V AC

• Output Voltage: 52V DC @ 0.6A

• Output Power: 31.2W

• Operating Humidity: 35%–95% non-condensing

• Storage Temperature: -40°C to +70°C

Downloads

• View Datasheet
