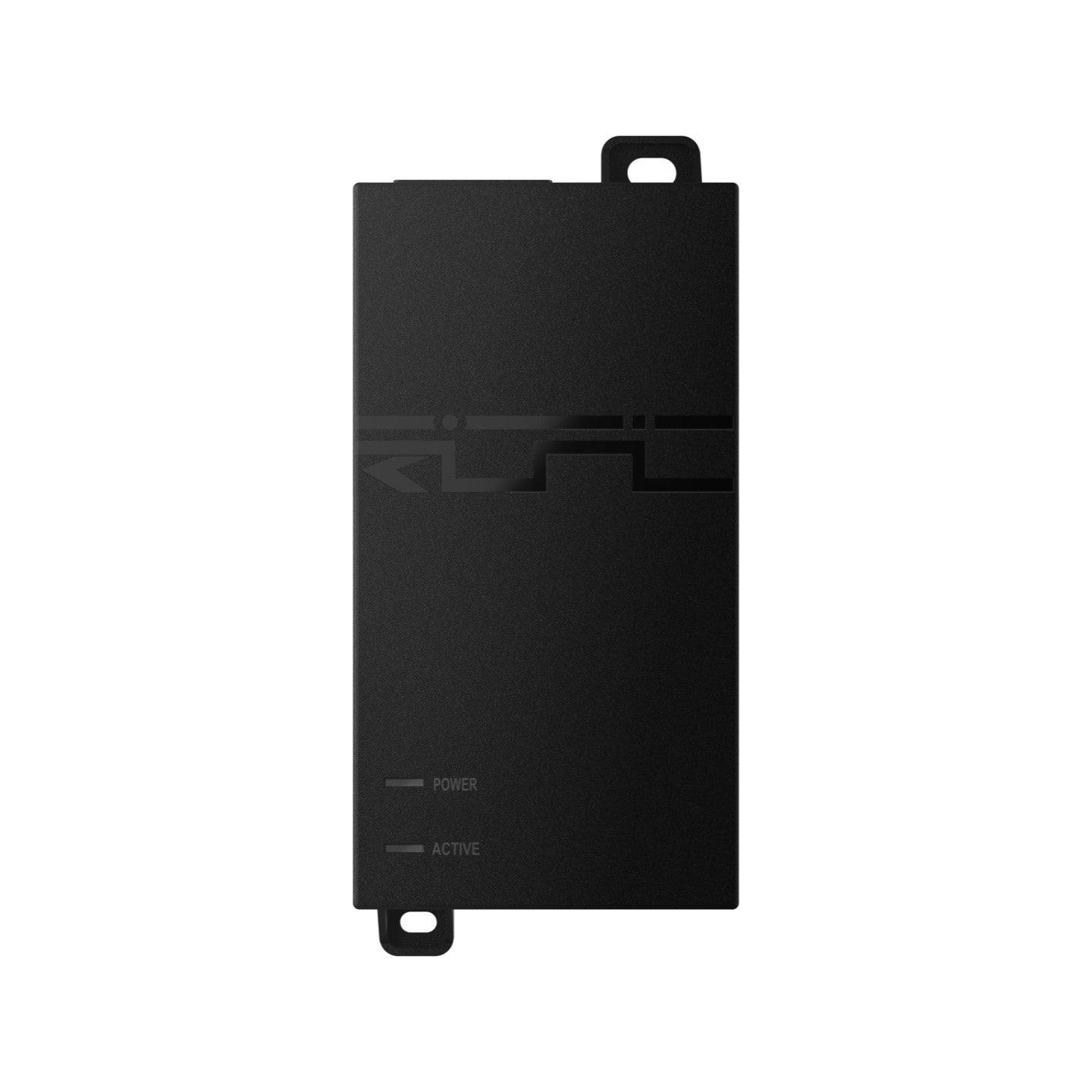

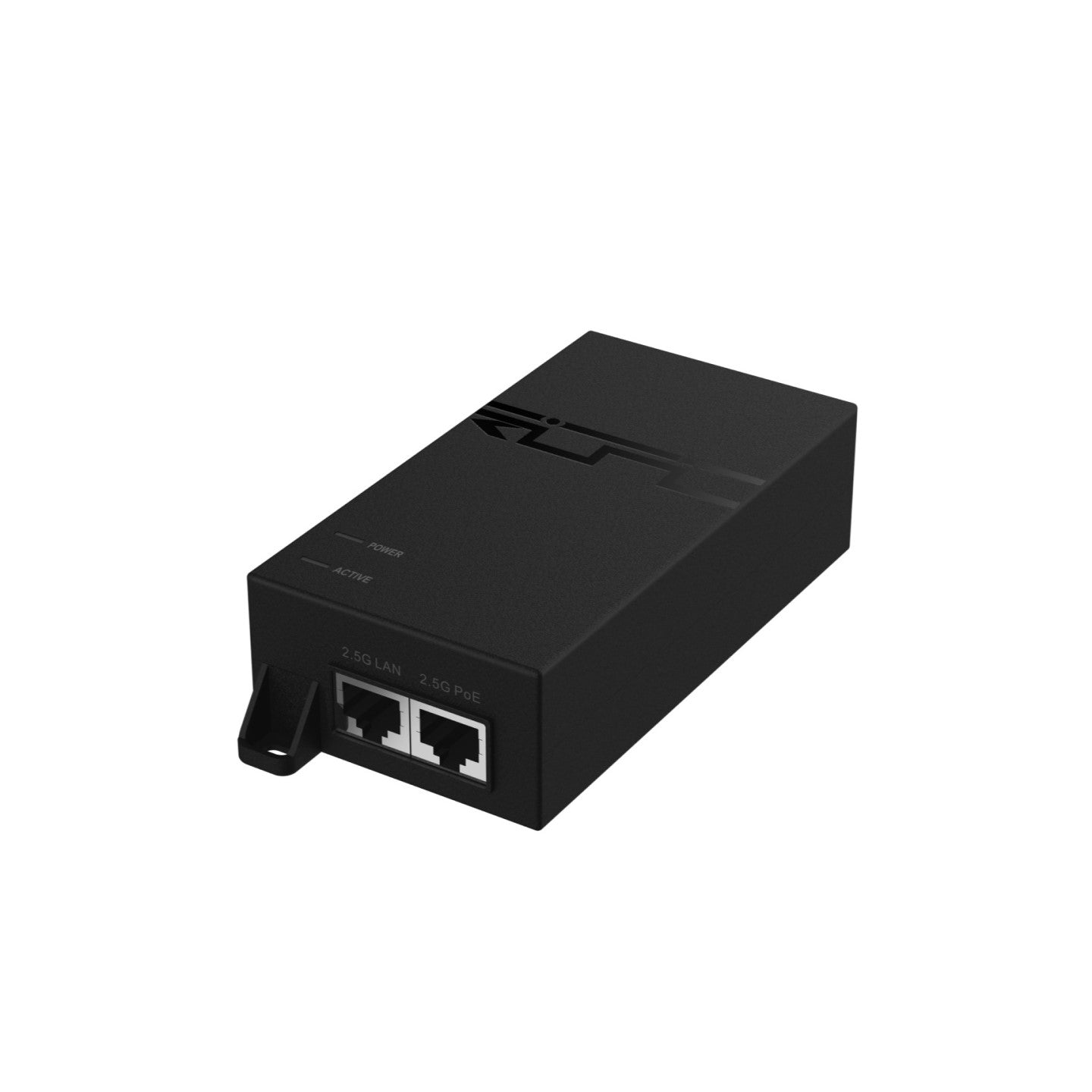

Ruijie 1-Port PoE Injector (2500Base-T, 56 V, 60 W) RG-POE-50-60W-MG

The Ruijie RG-POE-50-60W-MG is a high-performance single-port passive PoE++ injector designed to supply both power and data over one Ethernet cable. It supports up to 60W of output and is compatible with multi-gigabit Ethernet speeds, making it ideal for powering advanced access points, outdoor wireless bridges, and high-power network devices.

Quick Specs

1-Port Poe Adapter (2500Base-T, 50V, 60W), Power Supply With Passive Poe

Key Features

• High Power Output: Delivers up to 60W of power at 56V DC for power-hungry devices.

• Multi-Gigabit Support: Handles 10/100/1000/2500 Mbps Ethernet speeds.

• PoE Standard Compliance: Compatible with IEEE 802.3bt (Type 3).

• 4-Pair Powering: Uses all four pairs (pins 1,2,4,5 [+] and 3,6,7,8 [-]) for efficient power transmission.

• Surge Protection: Integrated surge protection up to 500A (8/20 µs).

• Compact & Efficient: Compact design and high efficiency with low power consumption when idle.

• Reliable Operation: Operates in temperatures ranging from -10°C to +45°C.

Technical Specifications

• Input Voltage: 100–240V AC @ 50/60Hz

• Input Current: 1.5A @ 120V AC; 1.2A @ 240V AC

• Inrush Current: <60A @ 120V AC; <120A @ 230V AC

• Efficiency: 90.32% average; 83.44% at 10% load

• No-Load Power Consumption: 0.130W

• Output Voltage: 56V DC

• Output Power: 60W

• Output Ripple & Noise: ≤1%

• Switching Frequency: 65KHz

• Line/Load Regulation: ≤5%

• Humidity: 35%–95% non-condensing

• Dimensions: 137.4 mm × 62.3 mm × 32.6 mm
