Ruijie 1000BASE-T SFP Copper Transceiver RJ45 100M Cat5e/6/6a MINI-GBIC-GT
SKU:
MINI-GBIC-GT
- $42inc. GST
$63- $42inc. GST
- Unit price
- per
Save $20
10 customers are viewing this product
Please hurry! Only 20 left in stock
Typically shipped within 1 - 3 business days
Free standard shipping on orders over $200
Back-to-base Australian warranty
Free tech support
14-day return policy

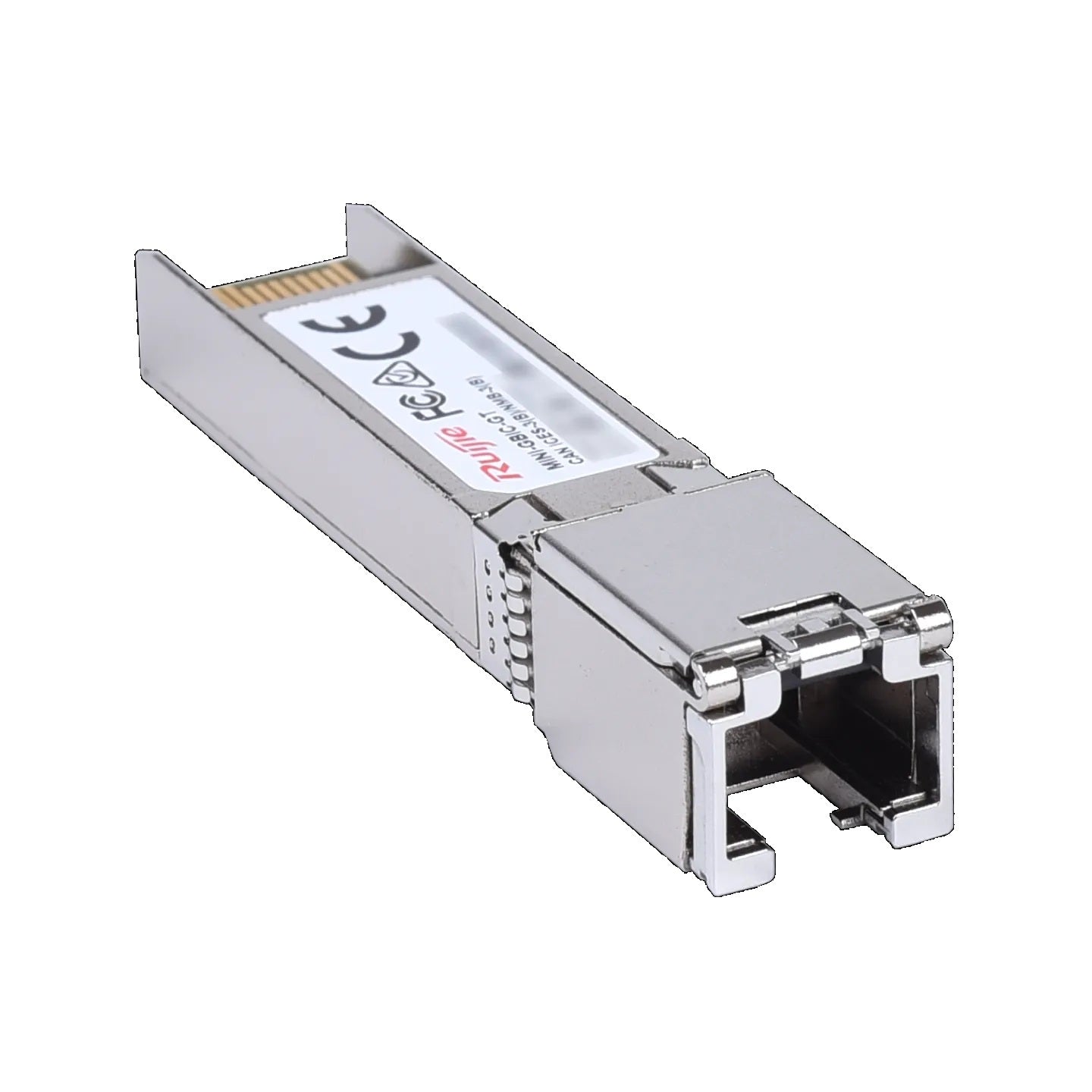

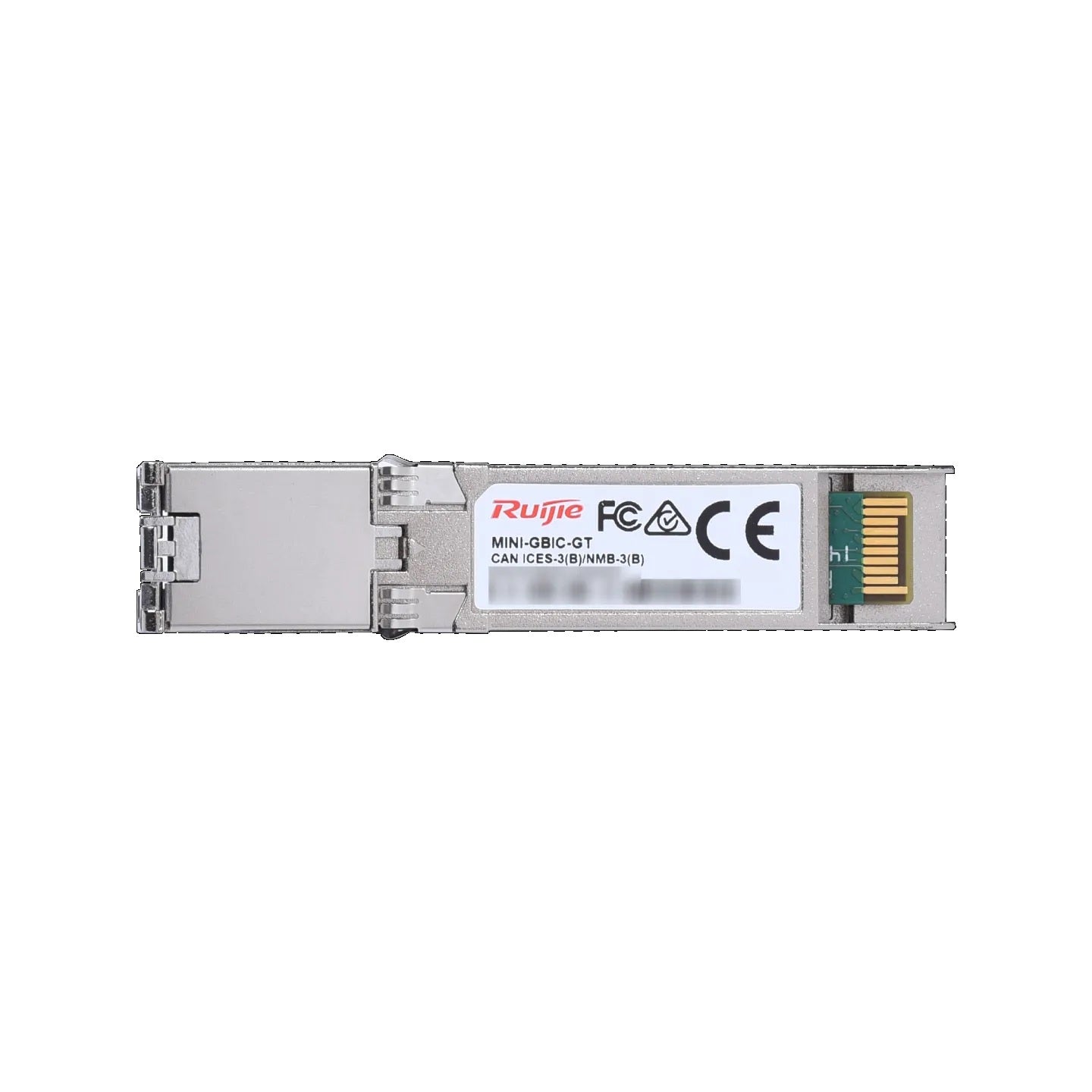

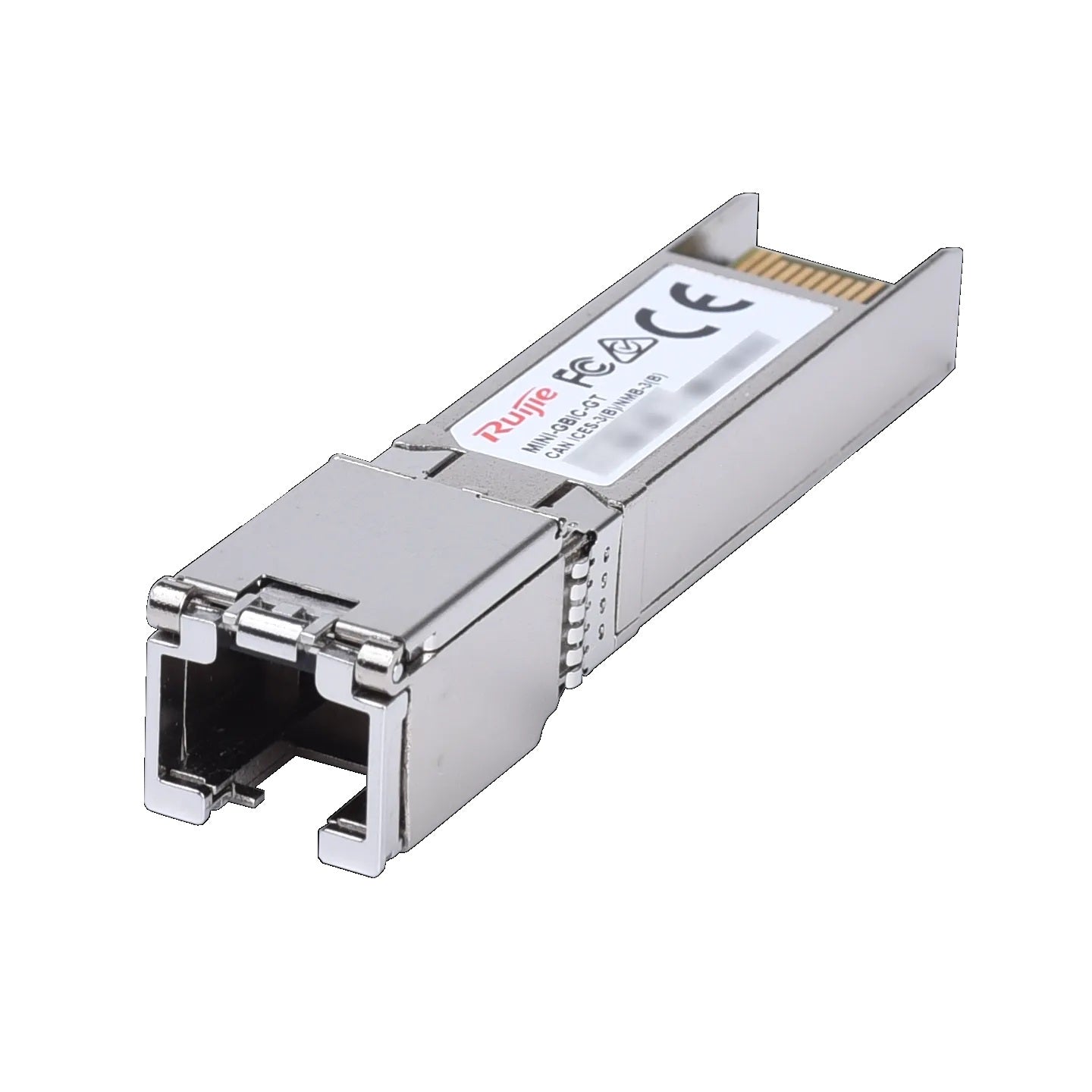

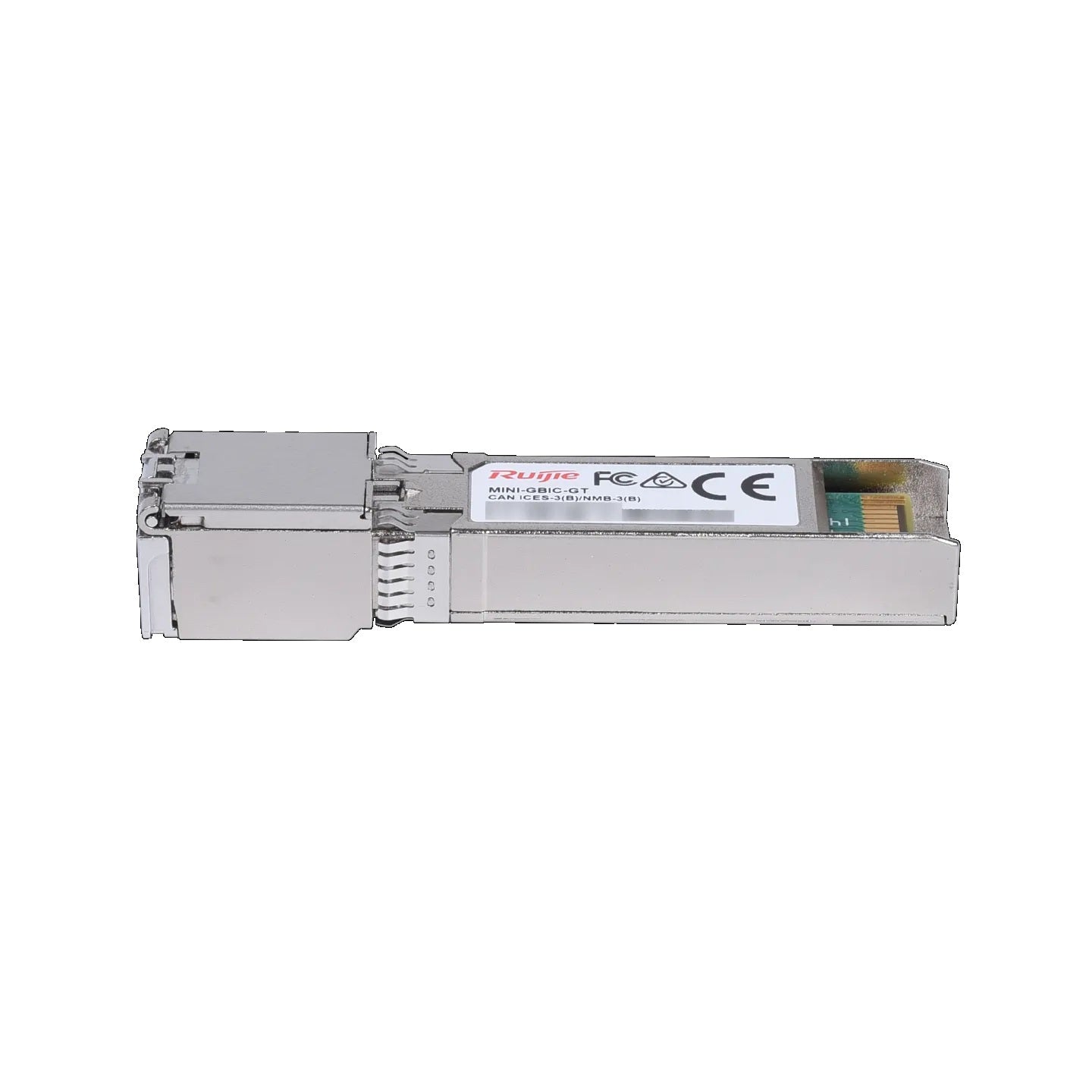

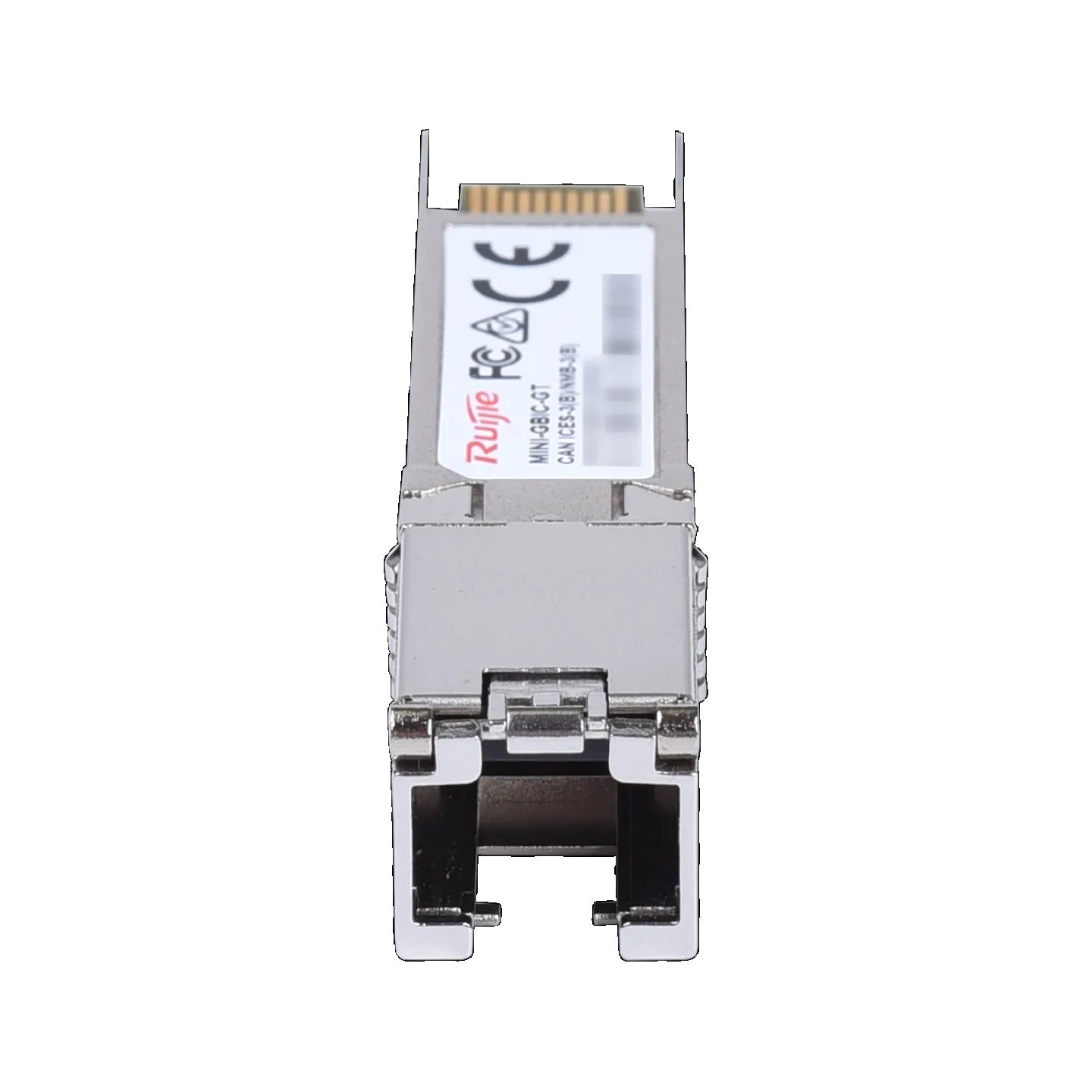

Ruijie MINI-GBIC-GT 1000BASE-T SFP Copper Transceiver RJ45
The Ruijie MINI-GBIC-GT is a 1000BASE-T SFP copper transceiver that converts an SFP port to a standard RJ45 Gigabit Ethernet interface, supporting link lengths up to 100 metres over Cat 5e, Cat 6, or Cat 6a cable. It is ideal for connecting switches, routers, servers, and NICs in data centre and campus environments where fibre is not available or required. Hot-pluggable and compliant with IEEE 802.3ab, SFP+ MSA, and RoHS standards. Backed by a 3-year Ruijie manufacturer warranty.
Highlight Features
- 1000BASE-T (1000base-X to 1000base-T) media converter in SFP form factor
- RJ45 connector over Cat 5e/6/6a copper cable
- Reach: up to 100m
- 1.25Gbps data rate
- Hot-pluggable SFP MSA compliant
- Max power consumption: 1.5W
- Auto-negotiation required on port
- IEEE 802.3ab, SFP+ MSA, and RoHS compliant
Specifications
| Connectivity | |
|---|---|
| Data Rate | 1000base-X to 1000base-T |
| Connector | RJ45 |
| Cable Type | Cat 5e / Cat 6 / Cat 6a |
| Reach | 100m |
| DDM/DOM | No |
| Physical | |
| Form Factor | SFP |
| Dimensions (W x D x H) | 56.5 x 13.5 x 8.5 mm |
| Weight | 35g |
| Max Power Consumption | 1.5W |
| Environment | |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% to 90% RH |
| Storage Temperature | -40°C to +85°C |
| Compliance | |
| Standards | IEEE 802.3ab, SFP+ MSA, RoHS |
Frequently Asked Questions
What is the MINI-GBIC-GT used for?
The MINI-GBIC-GT allows you to use a standard RJ45 copper cable (Cat 5e/6/6a) in an SFP port, effectively converting a fibre SFP slot into a Gigabit copper port. This is useful when you need to connect a device over copper rather than fibre, or when you want to add a copper uplink to a switch that only has SFP slots.
Does it require any special configuration?
Yes. The switch port must be configured with auto-negotiation enabled for the MINI-GBIC-GT to function correctly. Most modern switches support this by default.
What cable does it use?
The MINI-GBIC-GT uses standard Cat 5e, Cat 6, or Cat 6a copper Ethernet cable with an RJ45 connector, supporting distances up to 100 metres.
Does it support DDM/DOM diagnostics?
No. As a copper transceiver, the MINI-GBIC-GT does not support digital optical monitoring (DDM/DOM), which is only applicable to fibre-based transceivers.
Is it compatible with non-Ruijie switches?
The MINI-GBIC-GT conforms to SFP+ MSA standards and is designed for use with Ruijie switches. Compatibility with third-party equipment may vary — check your switch's compatibility list before purchasing.
What warranty does this transceiver come with?
The MINI-GBIC-GT is backed by a 3-year Ruijie manufacturer warranty.
