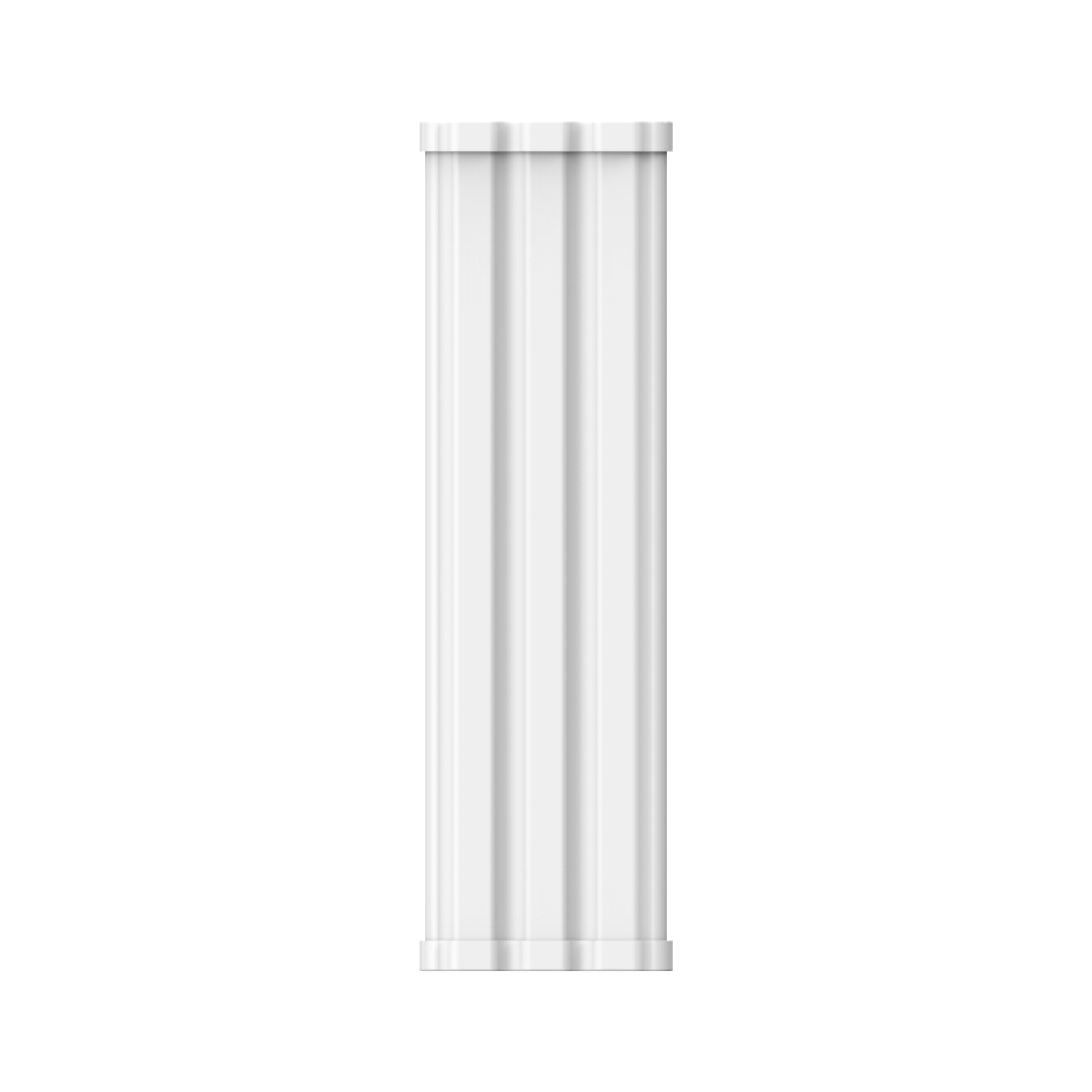

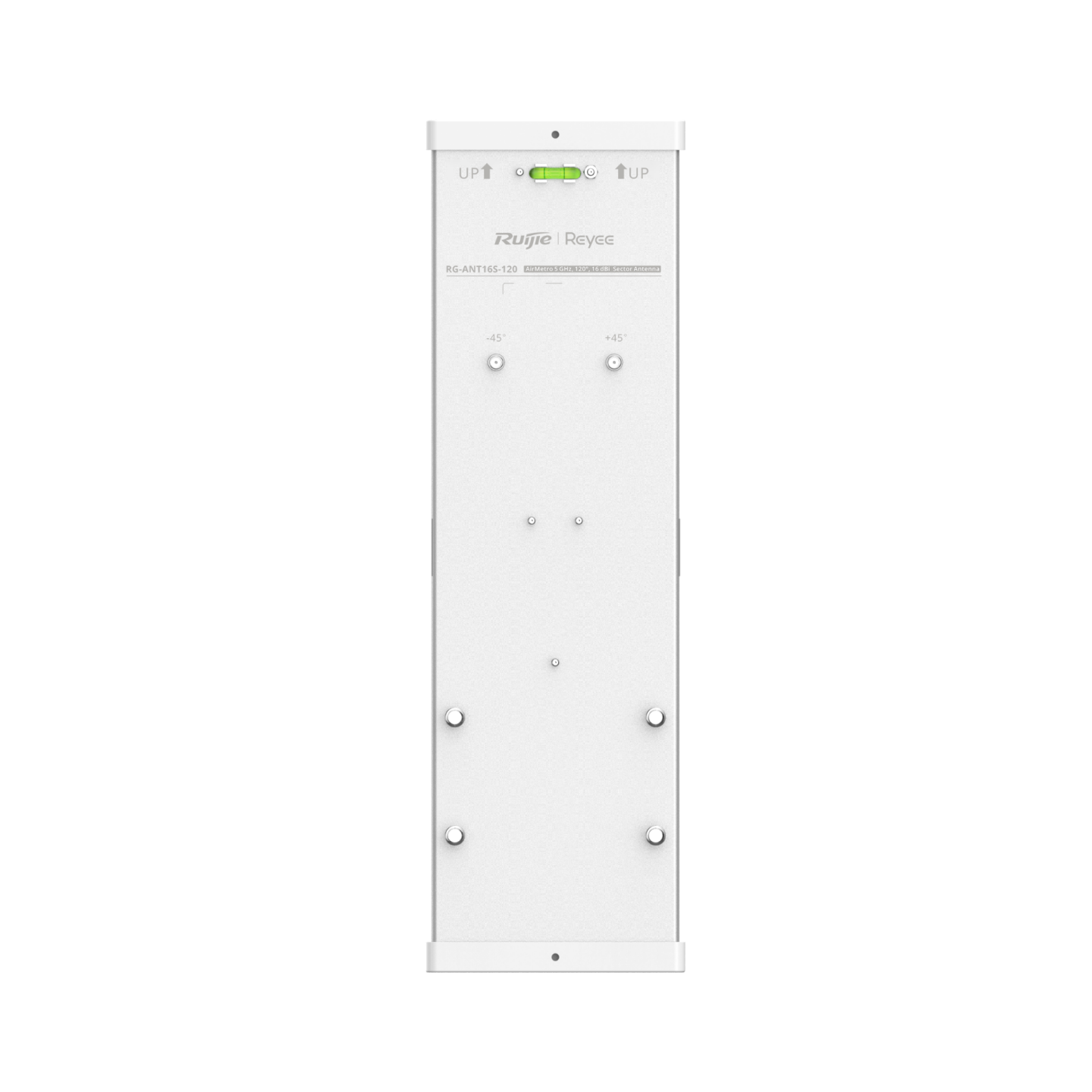

Ruijie 120° Sector Antenna of RG-AirMetro Series Wireless Bridges RG-ANT16S-120

The Ruijie RG-ANT16S-120 is a high-gain 5GHz sector antenna engineered for outdoor, point-to-multipoint (PTMP) wireless deployments. It offers broad directional coverage and stable long-range performance, making it ideal for robust outdoor wireless networks.

Quick Specs

A Supporting Sector External Antenna Product For An Outdoor Wireless Bridge Base Station, With 5Ghz Dual-Stream 2X2 Two-Space Stream Technology

Key Features

• Extended Wireless Coverage: Capable of delivering stable transmission up to 5 kilometers.

• High Gain Performance: 16 dBi gain enhances signal strength over large areas.

• Wide Beam Coverage: 120° horizontal and 10° vertical beamwidth for effective area distribution.

• Weatherproof Construction: IP55-rated enclosure for dust and water resistance.

• Dual Polarization: Supports dual linear polarization for improved signal stability and reduced interference.

• Built-in Protection: Includes surge and ESD protection for outdoor reliability.

• Wide Temperature Tolerance: Operational in conditions from -40°C to +70°C.

Technical Specifications

• Frequency Range: 5.150–5.850 GHz

• Gain: 16 dBi

• Beamwidth: 120° Horizontal / 10° Vertical

• Polarization: Dual Linear

• Impedance: 50 Ohms

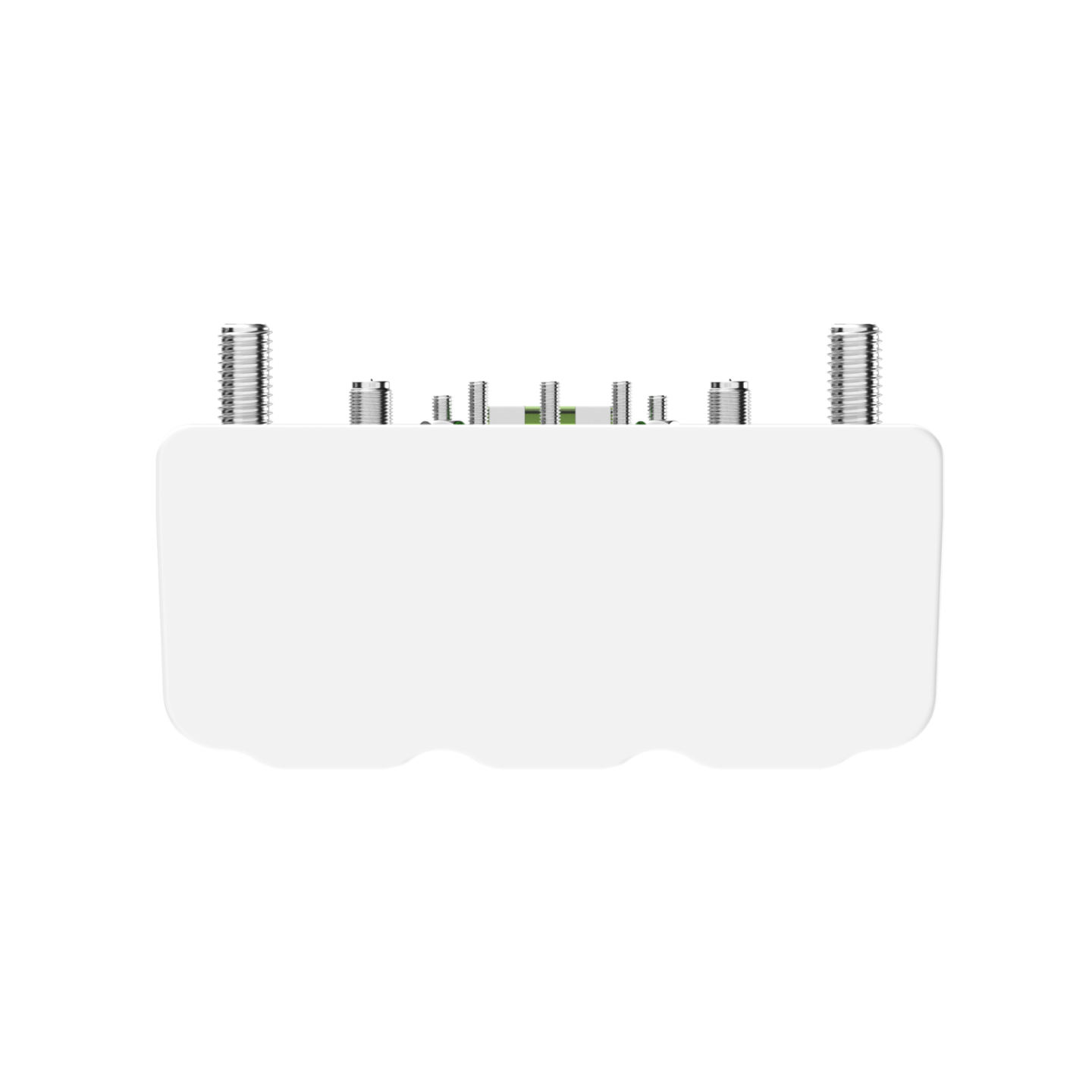

• Connector Type: 2 × RP-SMA

• Ingress Protection: IP55

• Dimensions: 361 mm × 110 mm × 48.5 mm

Downloads

• View Datasheet
