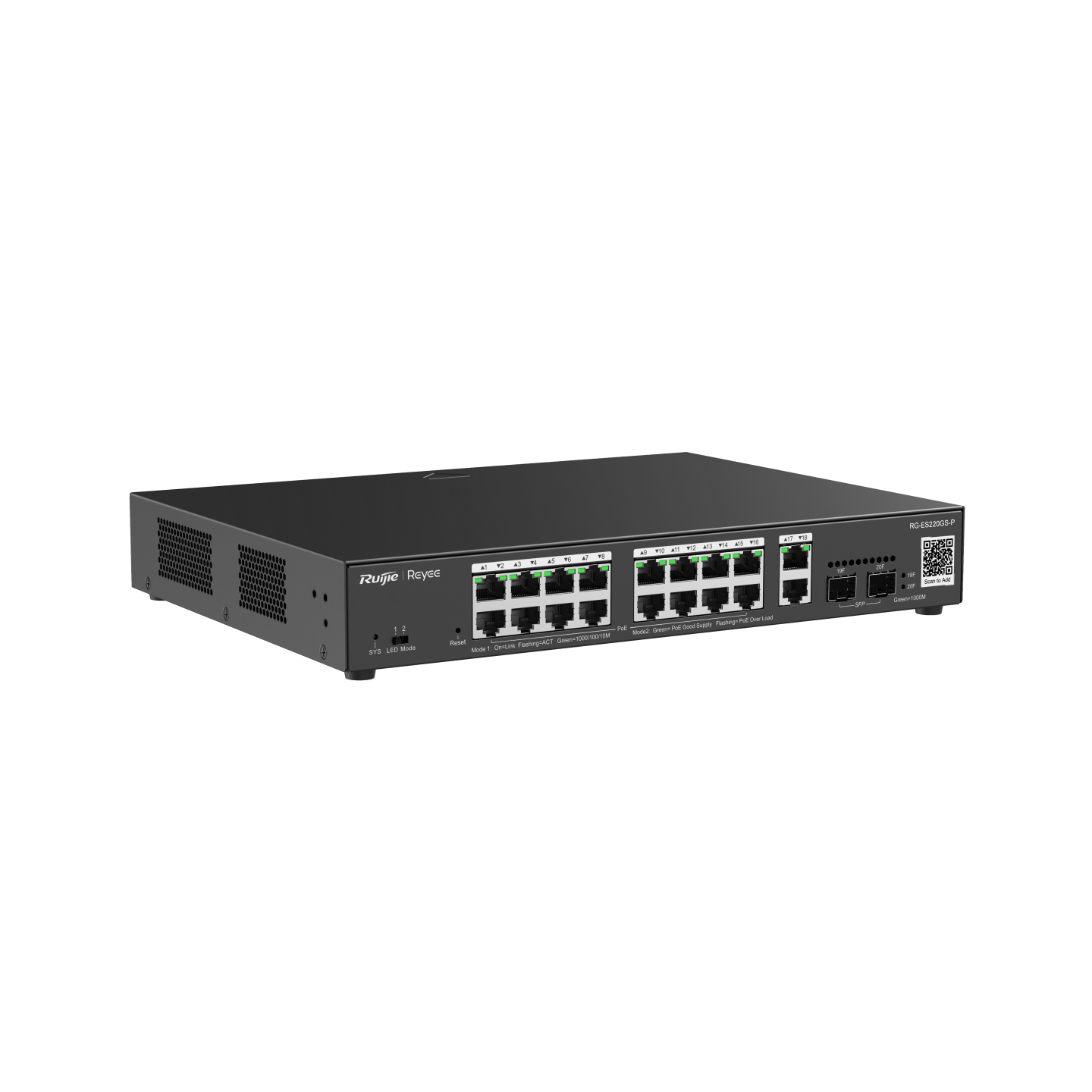

Ruijie 20-Port Gigabit Smart Cloud Managed PoE Switch RG-ES220GS-P

The Ruijie RG-ES220GS-P is a 20-port Gigabit smart cloud-managed PoE+ switch designed for small to medium-sized businesses, CCTV systems, retail, and educational environments. It offers cloud-based management via the Ruijie Cloud platform, enabling zero-touch provisioning, remote monitoring, and configuration. With features like automatic loop prevention and IP camera recognition, the RG-ES220GS-P ensures reliable and efficient network performance. Its fanless design ensures silent operation, making it suitable for noise-sensitive settings.

Quick Specs

20-Port Gigabit Smart Poe Switch, 16 Poe/Poe+ Ports With 2 Gigabit Rj45/2 Sfp Uplink Ports, 250W Poe Power Budget, Desktop Steel Case

Key Features

• 16 × 10/100/1000Base-T Gigabit PoE+ ports (IEEE 802.3af/at)

• 2 × 10/100/1000Base-T Gigabit uplink ports

• 2 × 1000Base-X SFP uplink ports

• Total PoE budget: 250W

• Switching capacity: 40 Gbps; Forwarding rate: 29.76 Mpps

• MAC address table: 8000 entries

• Supports up to 16 VLANs

• Cloud-based management through Ruijie Cloud app

• Automatic loop prevention for network stability

• IP camera recognition, ideal for CCTV deployments

• Port surge protection up to 4 kV

• Compact dimensions: 300 mm × 223 mm × 43.6 mm

• High reliability with MTBF > 200,000 hours

Downloads

• View Datasheet
