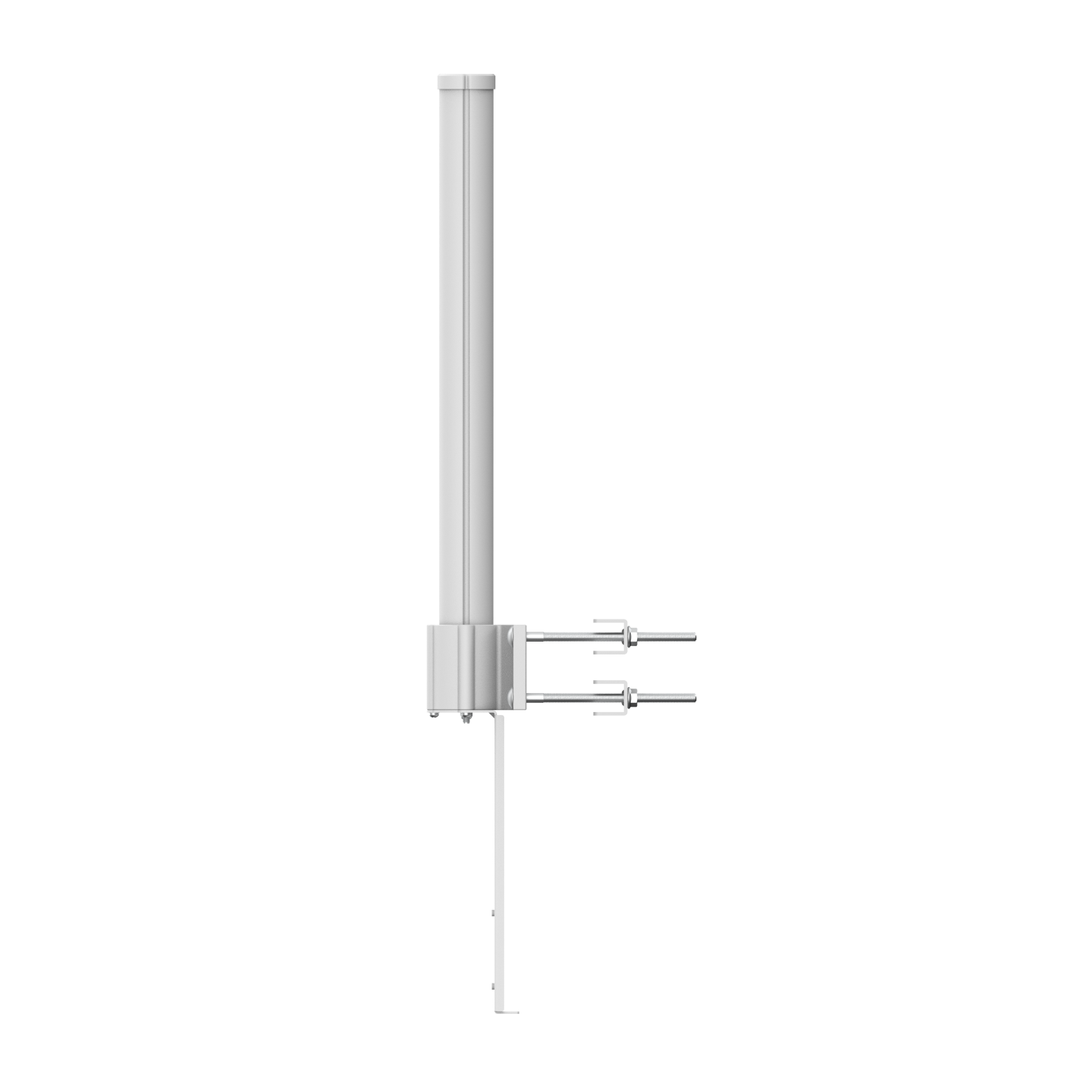

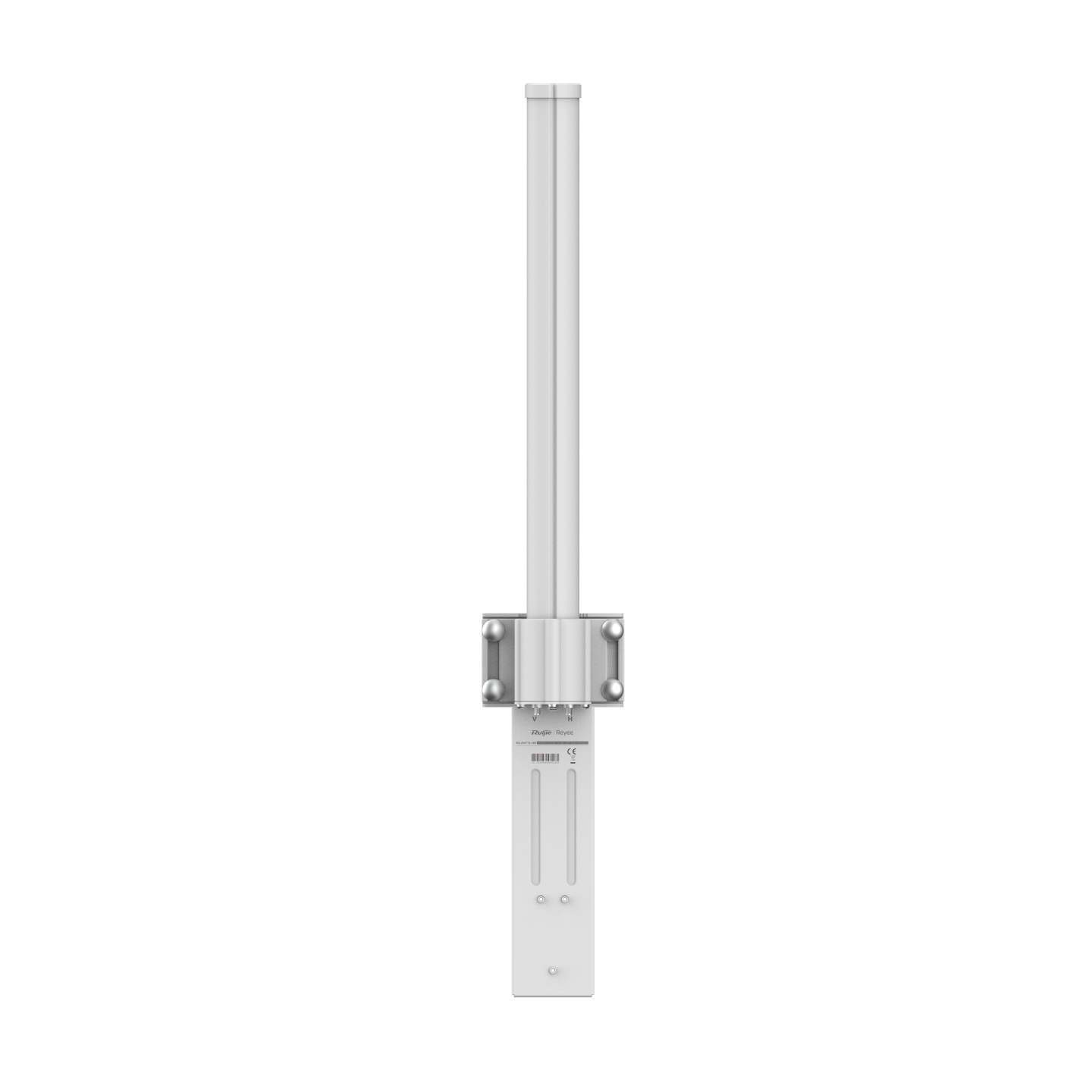

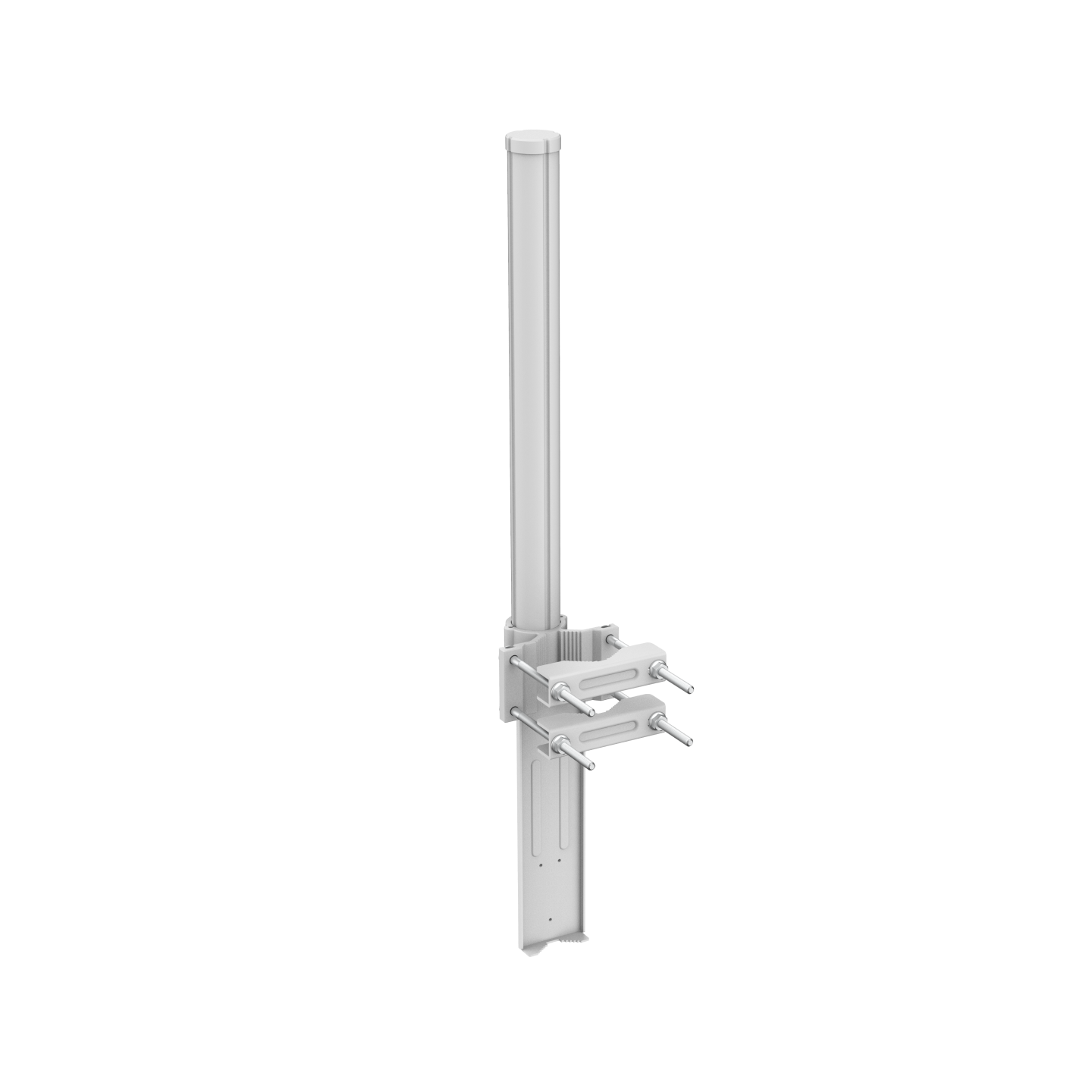

Ruijie 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges RG-ANT13-360

The Ruijie RG-ANT13-360 is a high-gain, outdoor 5GHz omnidirectional antenna engineered for point-to-multipoint (PTMP) wireless deployments. It offers comprehensive 360° horizontal coverage and stable performance over medium distances, making it suitable for robust outdoor wireless networks.

Quick Specs

A Supporting Omnidirectional External Antenna Product For An Outdoor Wireless Bridge Base Station, With 5Ghz Dual-Stream 2X2 Two-Space Stream Technology

Key Features

• Extended Wireless Coverage: Capable of delivering stable transmission up to 2 kilometers.

• High Gain Performance: 13 dBi gain enhances signal strength over large areas.

• Omnidirectional Coverage: 360° horizontal and 7° vertical beamwidth for comprehensive area distribution.

• Weatherproof Construction: IP55-rated enclosure for dust and water resistance.

• Dual Polarization: Supports dual linear polarization for improved signal stability and reduced interference.

• Built-in Protection: Includes surge and ESD protection for outdoor reliability.

• Wide Temperature Tolerance: Operational in conditions from -40°C to +80°C.

Technical Specifications

• Frequency Range: 5.150–5.850 GHz

• Gain: 13 dBi

• Beamwidth: 360° Horizontal / 7° Vertical

• Polarization: Dual Linear

• Impedance: 50 Ohms

• Connector Type: 2 × RP-SMA

• Ingress Protection: IP55

• Dimensions: 769 mm × 120 mm × 81.6 mm
