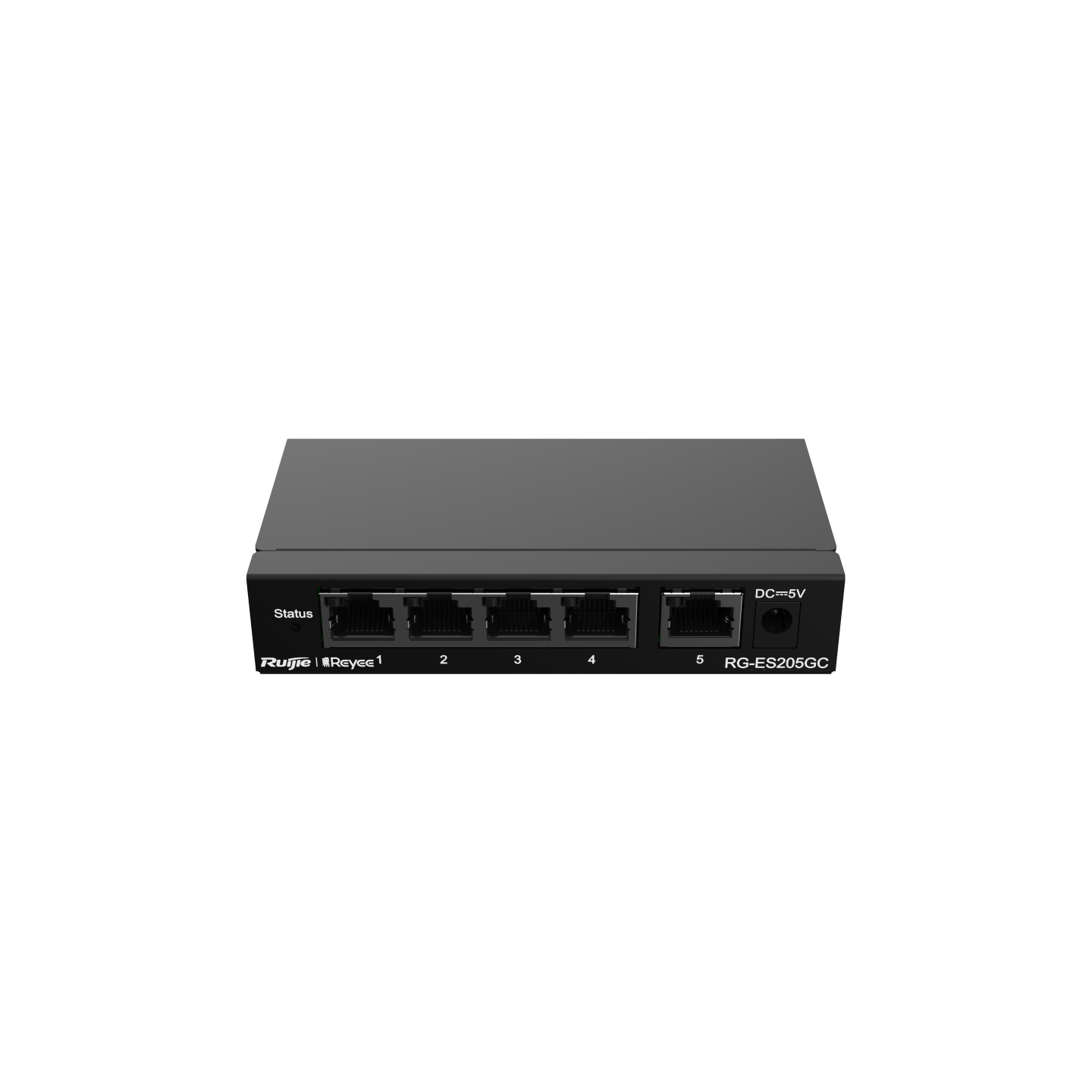

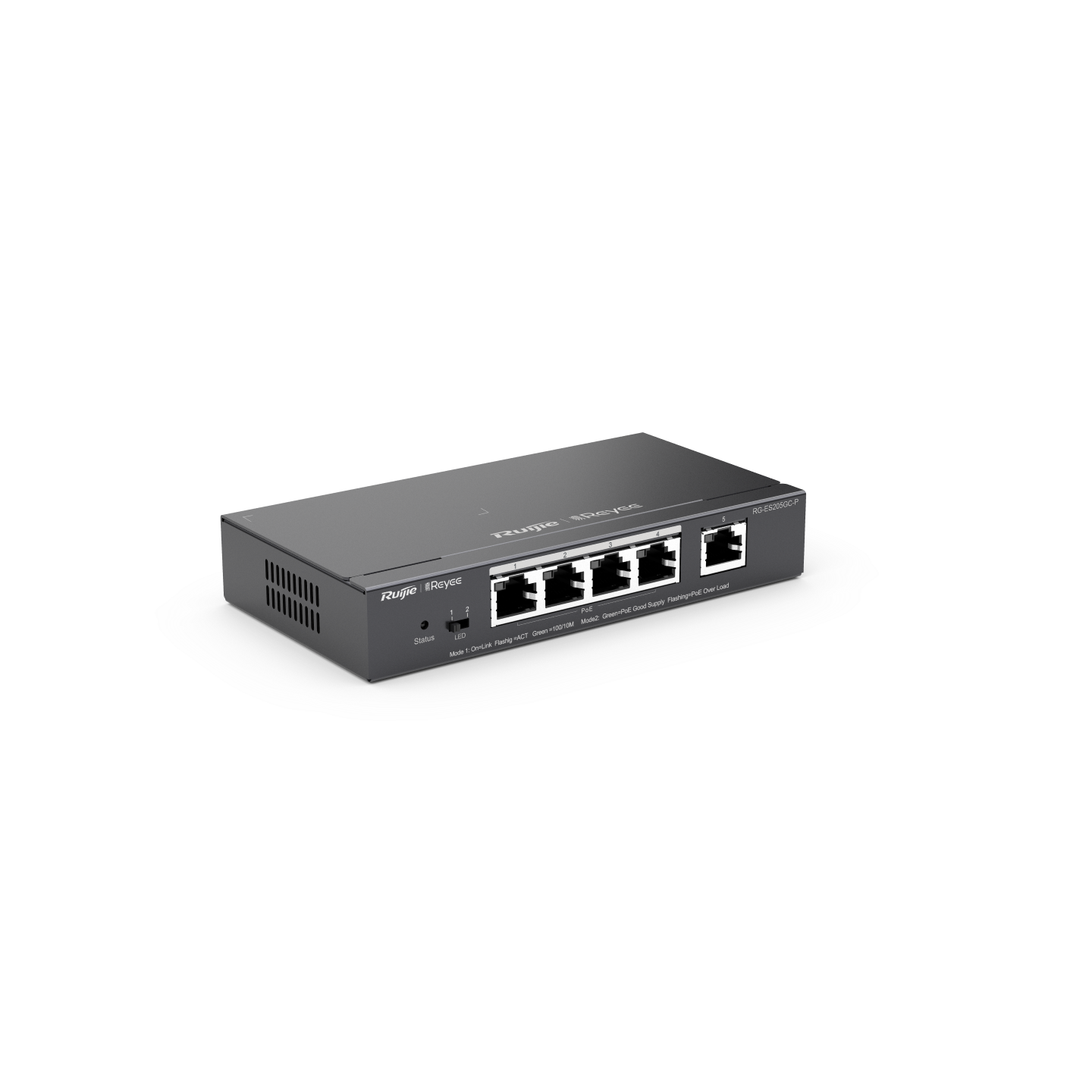

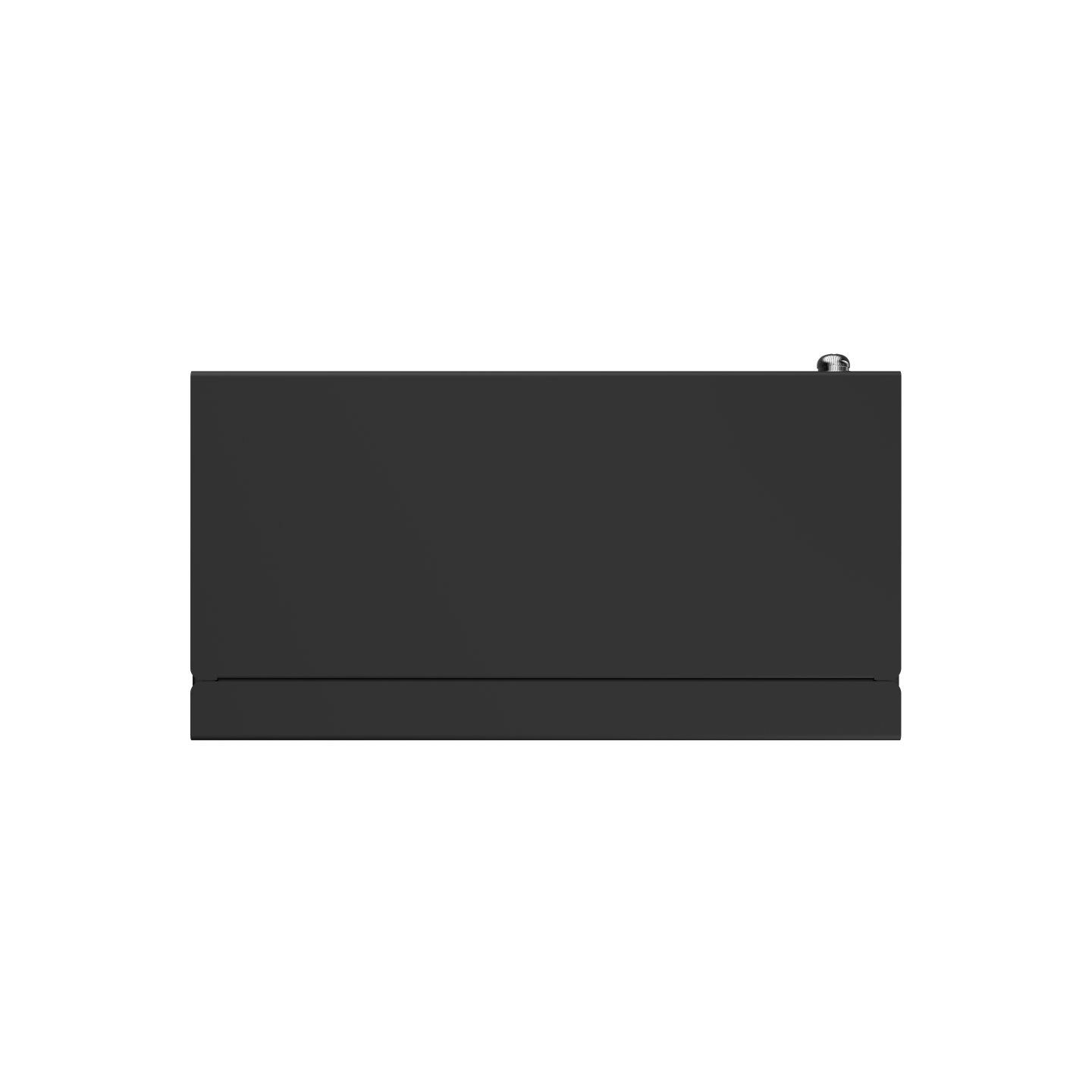

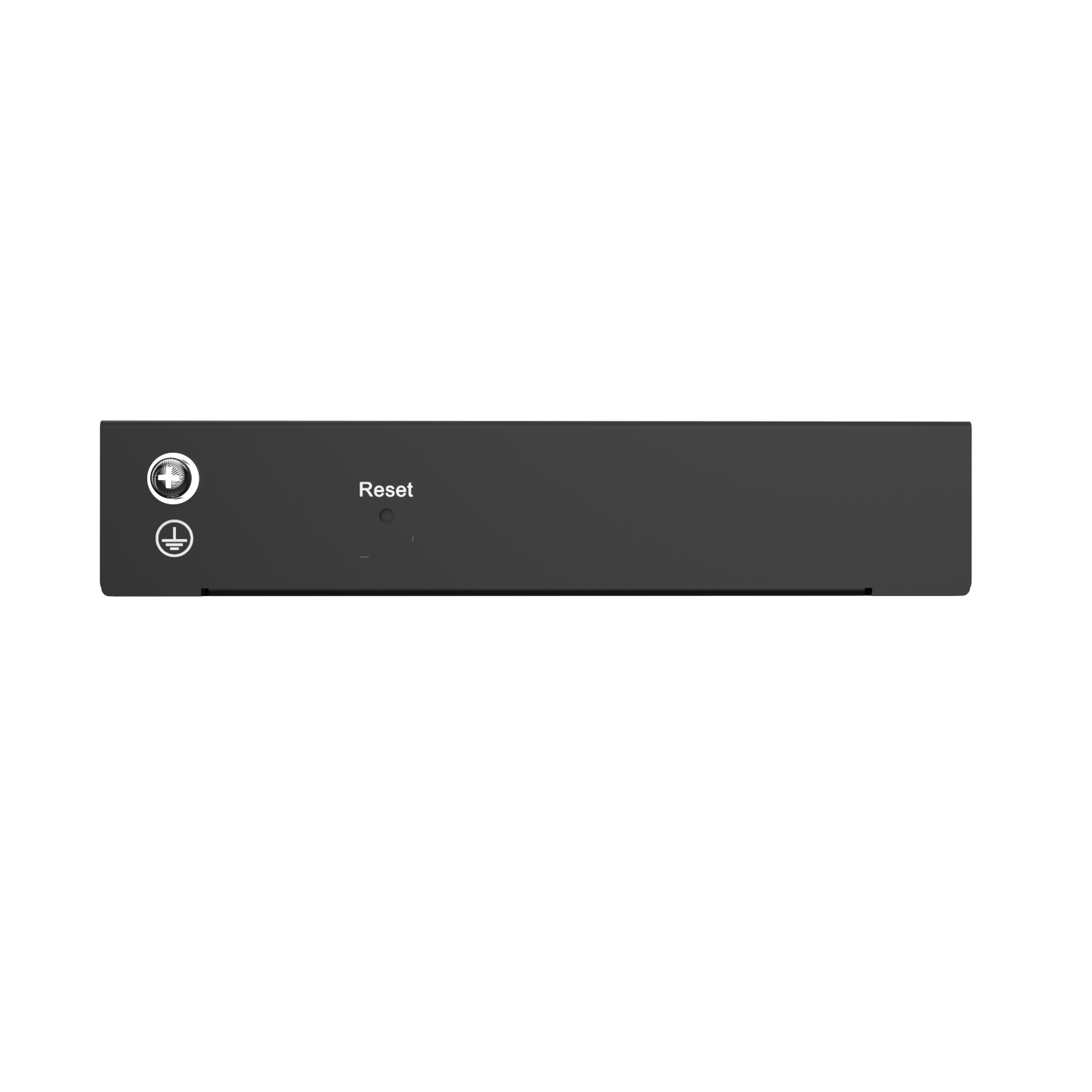

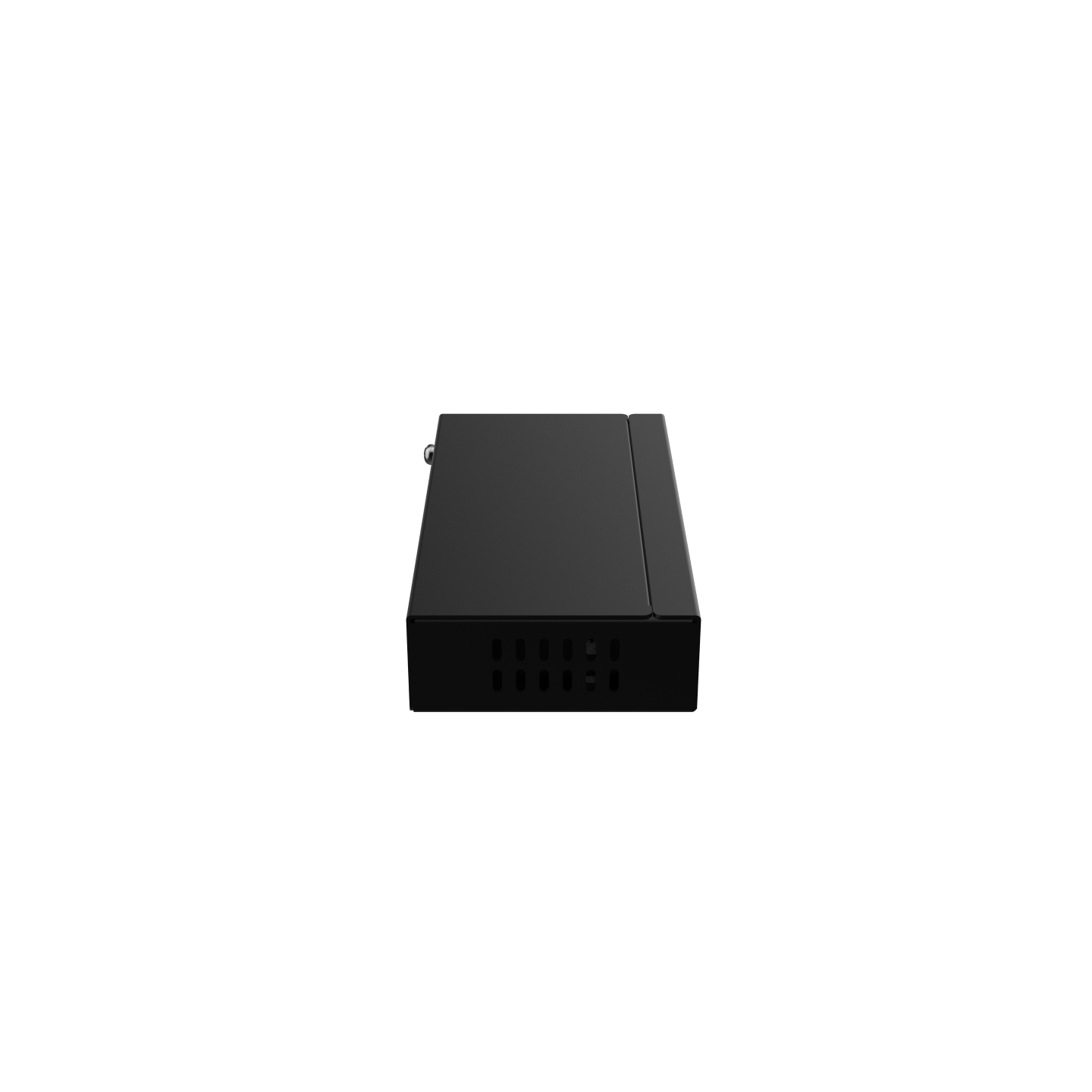

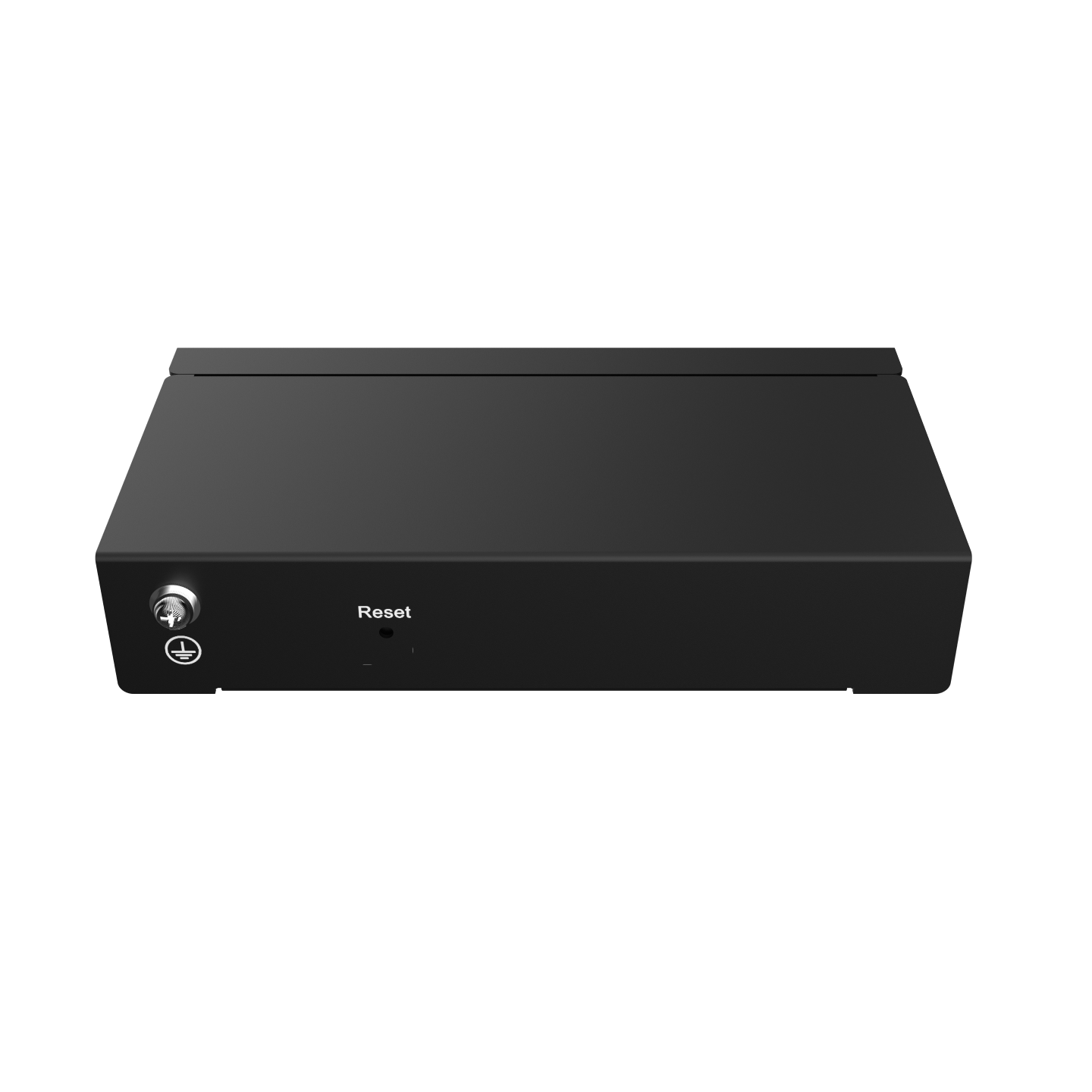

Ruijie 5-Port Gigabit Smart Cloud Mananged PoE Switch RG-ES205GC-P

The Ruijie RG-ES205GC-P is a 5-port Gigabit smart cloud-managed PoE+ switch designed for small to medium-sized businesses, CCTV systems, retail, and educational environments. It offers cloud-based management via the Ruijie Cloud platform, enabling zero-touch provisioning, remote monitoring, and configuration. With features like automatic loop prevention and IP camera recognition, the RG-ES205GC-P ensures reliable and efficient network performance. Its fanless design ensures silent operation, making it suitable for noise-sensitive settings.

Quick Specs

5-Port Gigabit Smart Poe Switch 5 Gigabit Rj45 Ports Including 4 Poe/Poe+ Ports 54W Poe Power Budget Desktop Steel Case

Key Features

• 5 × 10/100/1000Base-T Gigabit Ethernet ports (4 PoE+ ports)

• Cloud-based management through Ruijie Cloud app

• Automatic loop prevention for network stability

• IP camera recognition, ideal for CCTV deployments

• Supports up to 16 VLANs

• Switching capacity: 10 Gbps; Forwarding rate: 7.44 Mpps

• MAC address table: 2000 entries

• Fanless design for silent operation

• Port surge protection up to 4 kV

• Compact dimensions: 148 mm × 78 mm × 26 mm

• Low power consumption: ≤ 60W

• High reliability with MTBF > 200,000 hours
