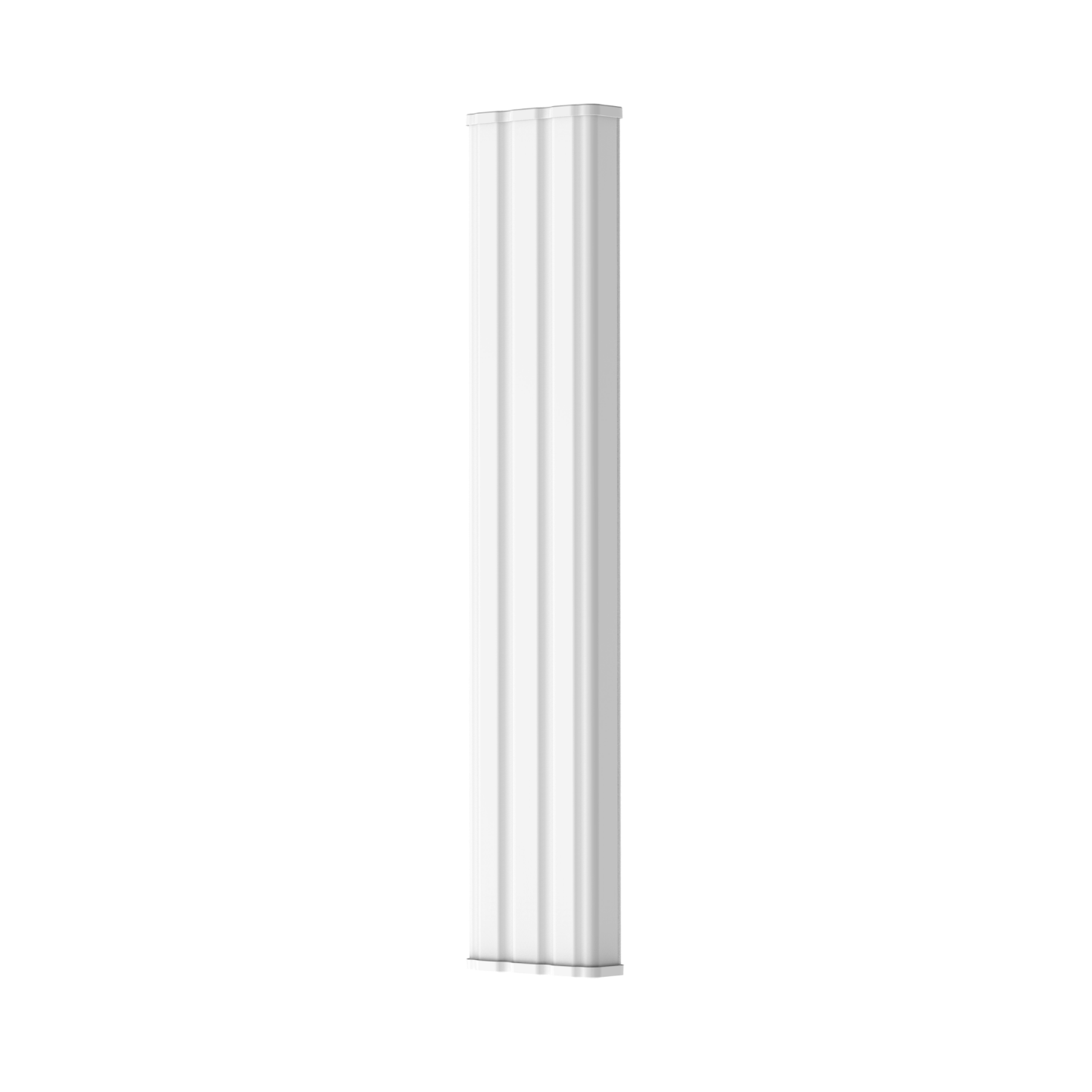

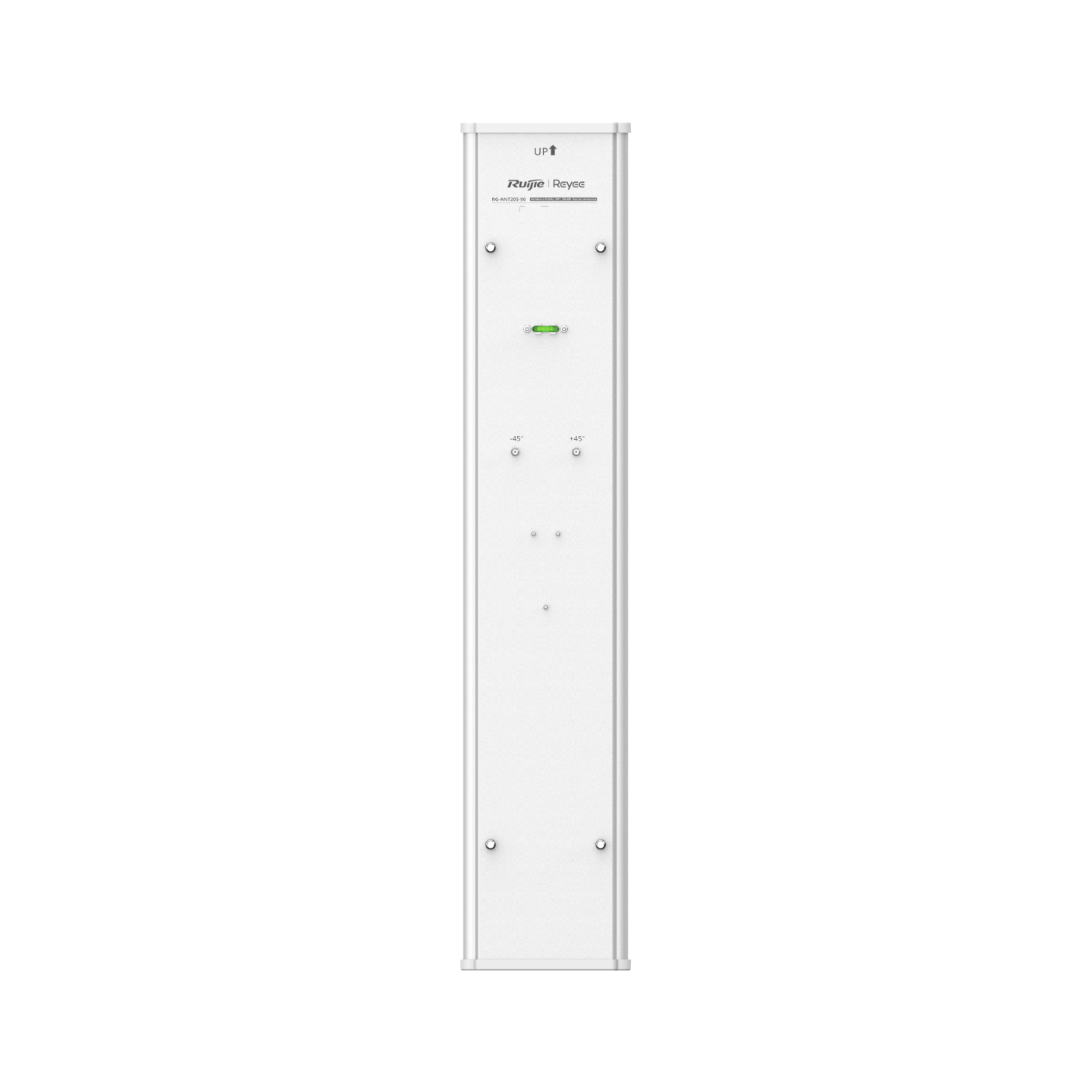

Ruijie 90° Sector Antenna of RG-AirMetro Series Wireless Bridges RG-ANT20S-90

The Ruijie RG-ANT20S-90 is a high-gain, outdoor 5GHz sector antenna designed for long-distance point-to-multipoint (PTMP) wireless deployments. It is optimized for focused coverage and stable performance in challenging environments.

Quick Specs

A Supporting Sector External Antenna Product For An Outdoor Wireless Bridge Base Station, With 5Ghz Dual-Stream 2X2 Two-Space Stream Technology2.4Ghz/5Ghz Dual-Radio

Key Features

• Long-Distance Coverage: Supports wireless transmission up to 10 kilometers.

• High Gain: 20 dBi gain enhances signal strength for better long-range performance.

• Wide Sector Coverage: 90° horizontal and 7° vertical beamwidth for sectorized deployment.

• Durable Design: Weather-resistant IP55-rated enclosure for outdoor use.

• Dual-Polarized: Dual linear polarization improves signal reliability and minimizes interference.

• Surge & ESD Protection: Integrated protection for stable operation in various conditions.

• Temperature Tolerance: Operates within -40°C to +70°C.

Technical Specifications

• Frequency Range: 5 GHz

• Gain: 20 dBi

• Beamwidth: 90° Horizontal / 7° Vertical

• Polarization: Dual Linear

• Impedance: 50 Ohms

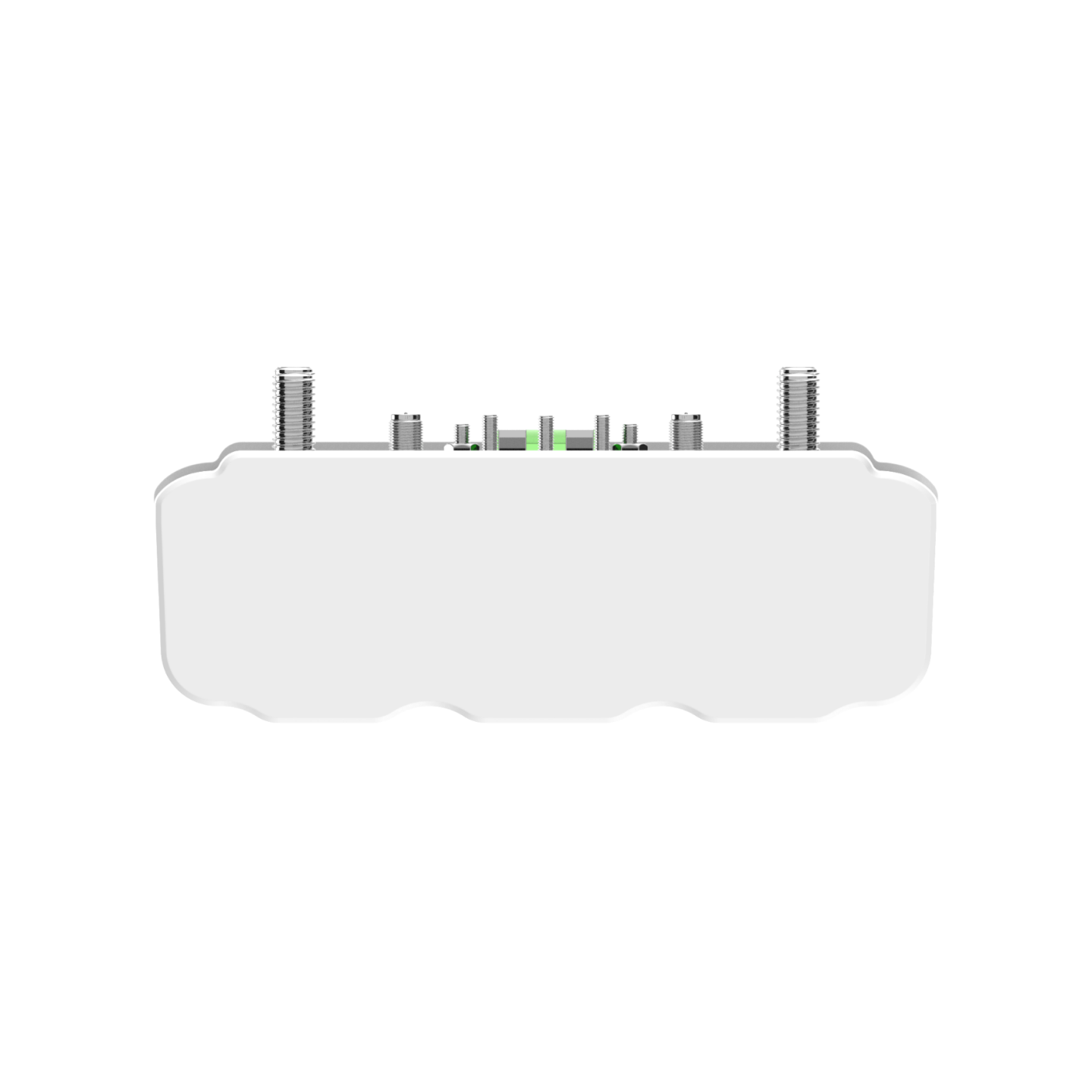

• Connector Type: 2 × SMA Male

• Ingress Protection: IP55

• Dimensions: 694 mm × 140 mm × 49 mm

Downloads

• View Datasheet
